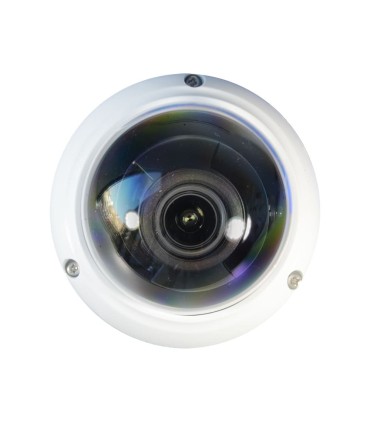

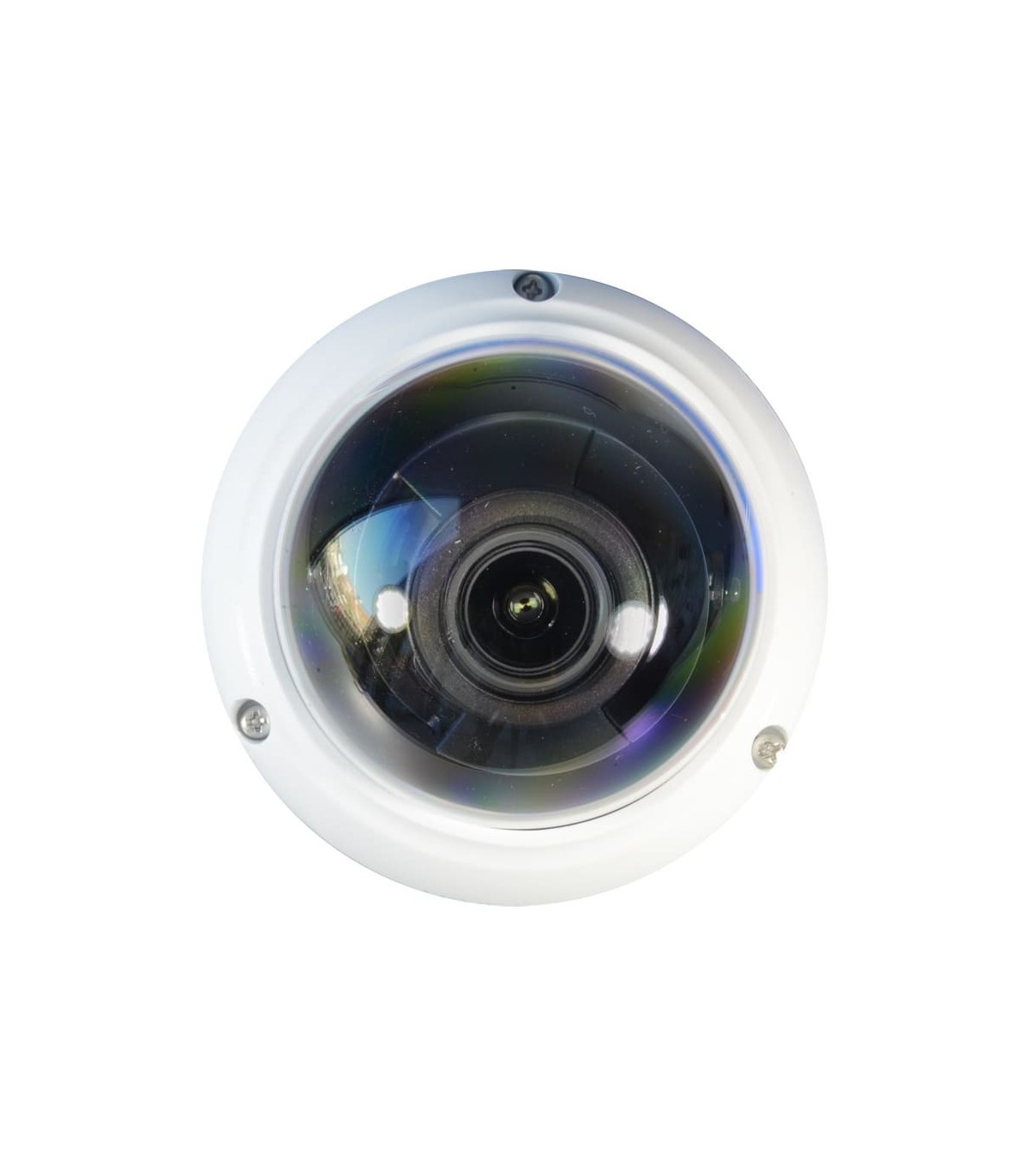

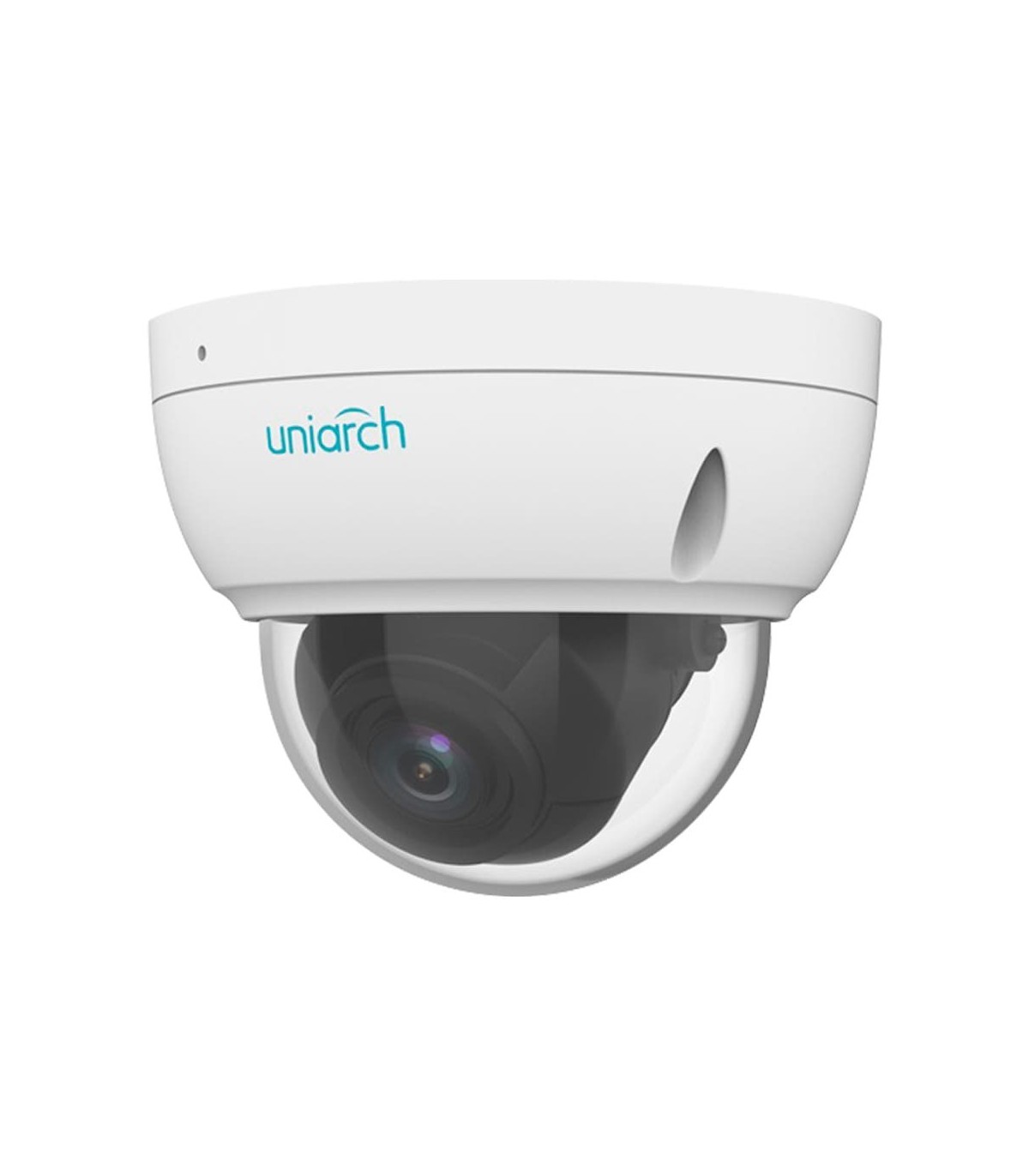

IPC-D315-APKZ - Uniarch 5MP 2.8-12mm Dome IP Camera

IPC-D315-APKZ - Uniarch 5MP 2.8-12mm Dome IP Camera

The IPC-D315-APKZ is a 5MP Uniarch Dome IP camera designed for professional video surveillance systems requiring high image quality, flexible framing adjustment and a robust construction for demanding installations. Equipped with a 1/2.7" CMOS sensor, it provides a maximum resolution of 2880×1620 and features a motorised 2.8-12mm F1.8 varifocal lens with autofocus.

Its Dome construction with IP67 and IK10 protection makes it suitable for outdoor environments and locations requiring increased resistance to impacts. The camera also integrates Smart IR, True WDR 120dB, Ultra 265 compression and local storage via MicroSD card.

5MP image and motorised 2.8-12mm F1.8 lens

The camera uses a 1/2.7" CMOS sensor and provides a maximum resolution of 5MP (2880×1620). It supports 5MP and 4MP video at up to 25 fps, while 3MP and 1080P resolutions can reach up to 30 fps, providing smooth image reproduction according to the selected configuration.

The motorised 2.8-12mm F1.8 varifocal lens with autofocus allows the image framing to be adjusted remotely. The focal length can be adapted from a wider view to a tighter view of specific areas, providing greater flexibility during camera installation and configuration.

The horizontal field of view varies approximately between 102.79° and 30.86°, depending on the selected focal length. This flexibility allows the camera to be adapted to different surveillance requirements without physically replacing the lens.

IPC-D315-APKZ with 30m Smart IR and True WDR 120dB

The IPC-D315-APKZ features Smart IR with a range of up to 30 m and an 850nm wavelength, allowing surveillance in environments with little or no visible light. The mechanical ICR filter switches between day and night modes to adapt the image to the available lighting conditions.

True WDR 120dB technology improves visibility in scenes containing both very bright and dark areas. The camera also features BLC, HLC and Digital Defog, together with 2D/3D DNR digital noise reduction, helping to provide a more balanced image under different operating conditions.

A minimum illumination of 0.005 Lux allows the camera to operate in low-light environments, while infrared illumination enables image capture at 0 Lux when IR is active.

Ultra 265, intelligent detection and MicroSD storage

Ultra 265 video compression helps optimise bandwidth and storage usage. The camera also supports H.265, H.264 and MJPEG, providing different integration and configuration options within an IP video surveillance system.

Intelligent functions include intrusion detection based on human body detection. The camera also provides motion detection, tampering detection and audio detection, allowing different security events to be configured according to the requirements of the installation.

The built-in microphone allows audio to be captured within the monitored area. For local storage, the camera supports MicroSD cards up to 256GB, allowing recordings to be stored directly on the device according to the system configuration.

PoE, ONVIF and IP67 IK10 protection

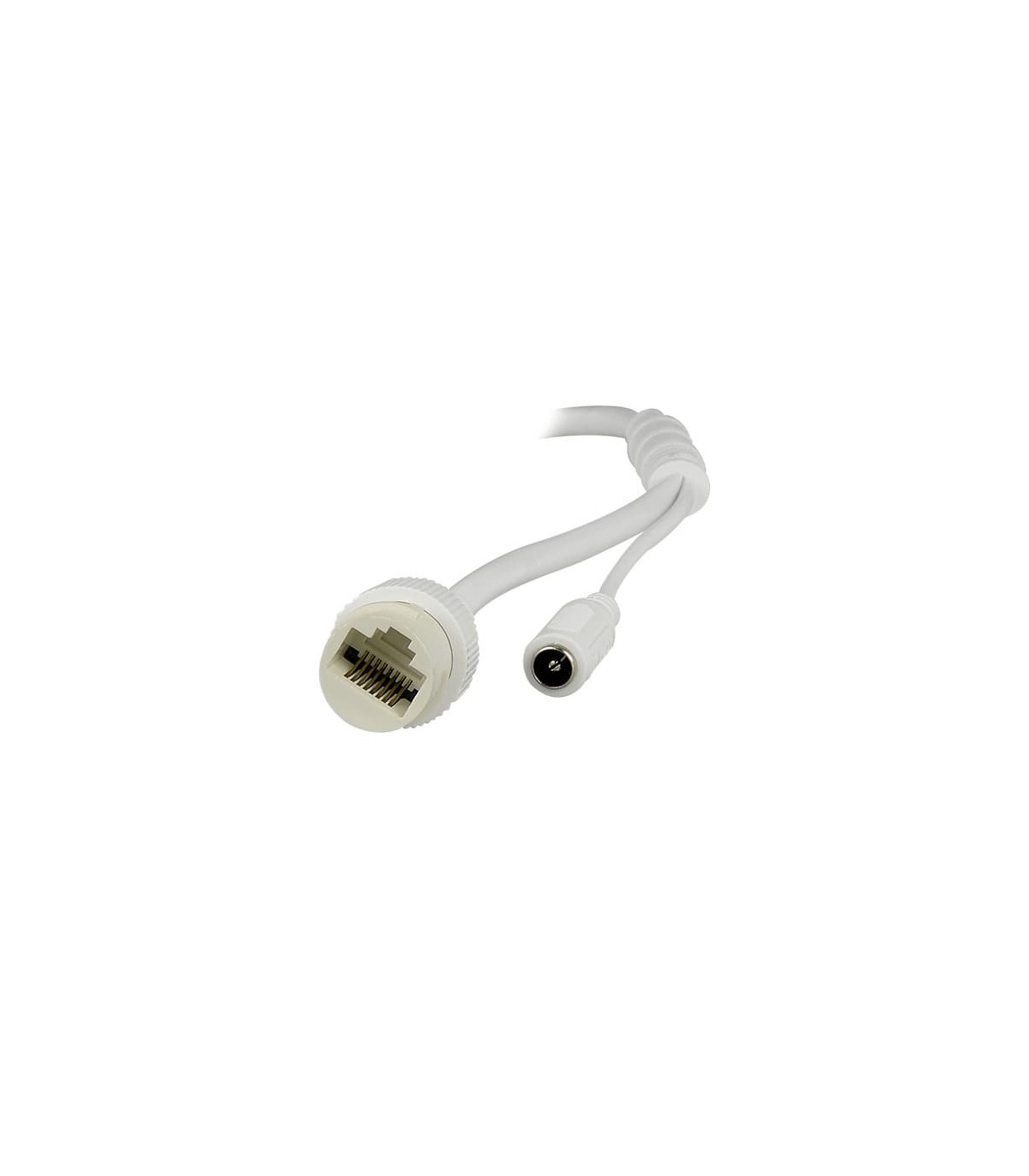

Network connectivity is provided through an RJ45 10/100 Base-TX interface. ONVIF compatibility facilitates integration with video surveillance systems and recording equipment compatible with this protocol.

The camera can be powered using 12V DC or directly through the network cable using PoE IEEE 802.3af. PoE allows both data and power to be transmitted through the same Ethernet cable, simplifying the infrastructure required for installation.

IP67 protection provides resistance against dust and water, while the IK10 rating provides high mechanical resistance against impacts. The combination of 5MP resolution, motorised 2.8-12mm lens, Smart IR, True WDR, MicroSD, PoE and vandal-resistant construction makes this Uniarch Dome camera suitable for professional indoor and outdoor video surveillance projects.
