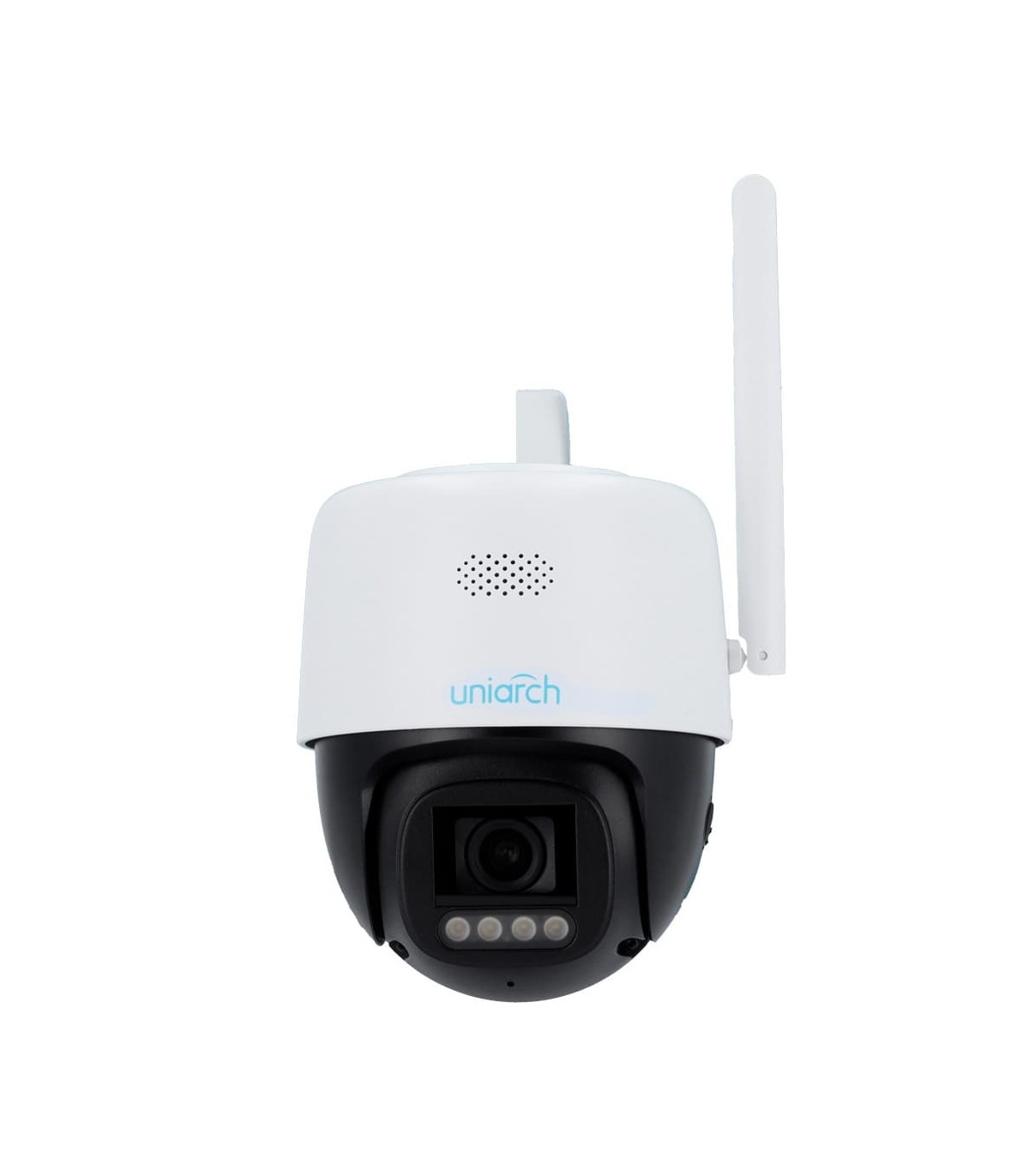

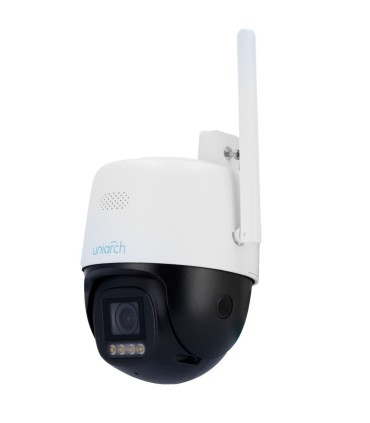

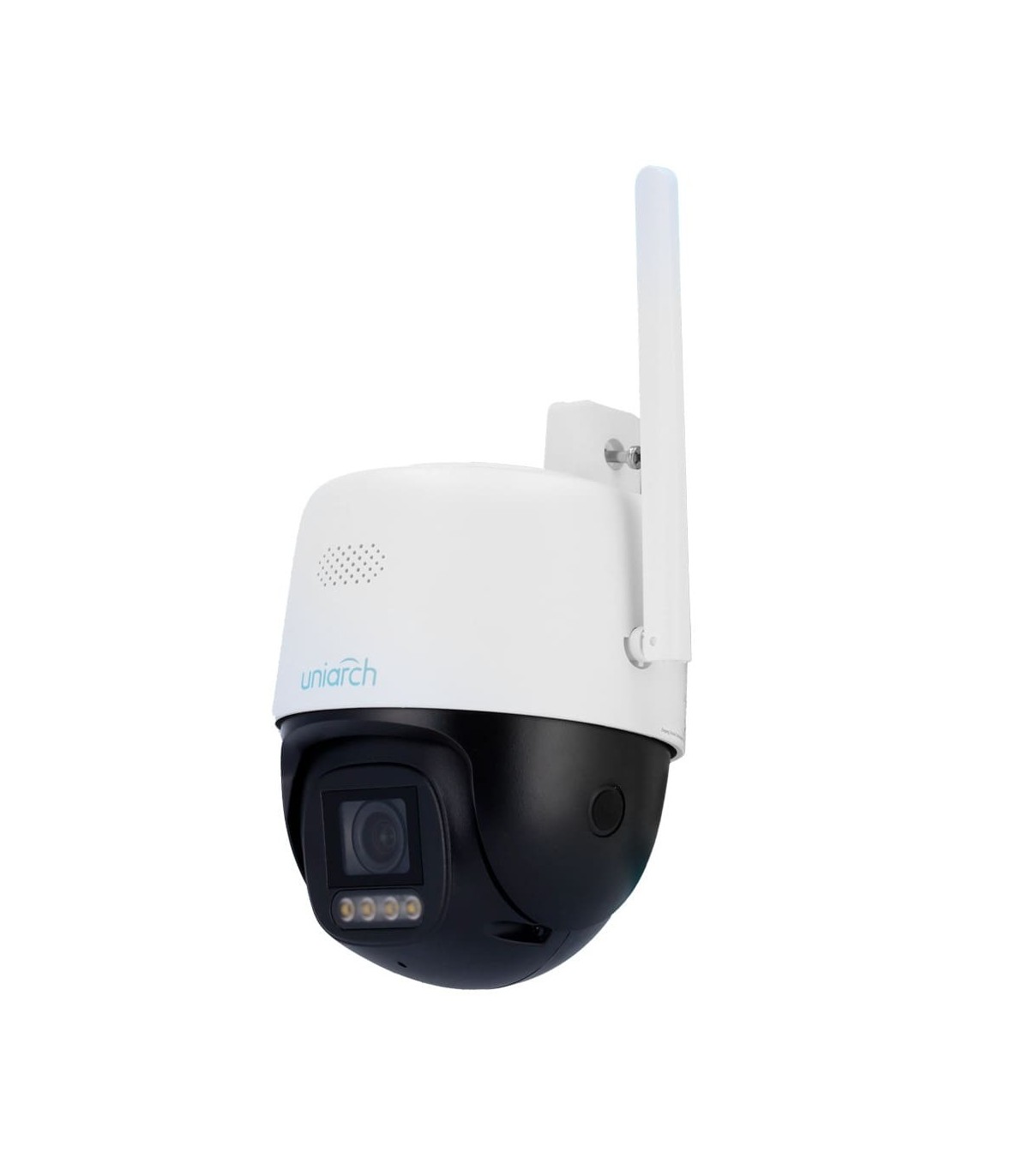

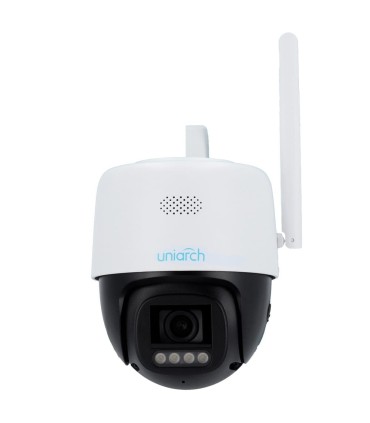

Uho-P3C-M5F4 - Uniarch WiFi 5MP 4mm PT IP Camera
Uho-P3C-M5F4 - Uniarch WiFi 5MP 4mm PT IP Camera:
- Uniarch PT IP camera with 5MP (2880 × 1620) resolution.
- 1/1.8" Progressive Scan CMOS image sensor.
- Fixed 4mm lens with an 89.4° horizontal viewing angle.
- Minimum illumination of 0.0003 Lux at F1.0 with AGC ON.
- White light illumination up to 30m.
- Ultra 265, H.265, H.264 and MJPEG video compression.
- Motion, person and audio detection.
- Two-way audio with built-in microphone and speaker.
- Local storage on MicroSD card up to 512GB.
- 2.4 GHz WiFi connectivity with IEEE 802.11b/g/n/ax.
- Remote access via EZStation, UNV-LINK, UNV-LINK Pro and Uniarch APP.
- IP66 protection for outdoor use.
Uho-P3C-M5F4 - Uniarch WiFi 5MP 4mm PT IP Camera
The Uho-P3C-M5F4 is a Uniarch PT IP camera with a maximum resolution of 5MP (2880 × 1620). It features a 1/1.8" Progressive Scan CMOS sensor and a fixed 4mm lens. The camera also provides 2.4 GHz WiFi connectivity for integration into a compatible wireless network.
The lens provides a viewing angle of 89.4° horizontally, 48.2° vertically and 97.7° diagonally. The camera supports several video compression formats. These include Ultra 265, H.265, H.264 and MJPEG, helping to optimize video transmission and storage.
5MP image and white light up to 30m
The 5MP resolution provides images up to 2880 × 1620 at 25fps. Lower resolutions are also available at frame rates up to 30fps. Minimum colour illumination is 0.0003 Lux at F1.0 with AGC ON.
The camera features white light illumination with a range of up to 30 metres. Image enhancement functions include DWDR, BLC, HLC, AGC, 2D/3D-NR, ROI and Privacy Mask.
Uho-P3C-M5F4 with intelligent detection
The Uho-P3C-M5F4 supports motion detection, person detection and audio detection. These functions provide additional options for identifying different events within the monitored area.
For local recording, the camera supports a MicroSD card up to 512GB. This allows video to be stored directly on the device using a compatible memory card.
Two-way audio and 2.4 GHz WiFi
The audio system includes a built-in microphone and speaker. Audio compression supports G.711U and G.711A. The integrated microphone and speaker provide two-way audio communication through the camera.
Wireless connectivity supports IEEE 802.11b/g/n/ax within the 2.4 GHz to 2.4835 GHz frequency range. Remote access is available through a Web browser, EZStation, UNV-LINK, UNV-LINK Pro and Uniarch APP.
IP66 protection for outdoor installations
The camera features an IP66 protection rating, making it suitable for outdoor installations. Its operating temperature range extends from -30°C to +60°C.
Power is supplied through DC 12V, with a stated consumption of 10W. The camera measures Ø118 × 118 × 199mm and weighs 530 g.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand | Uniarch |
| Model | Uho-P3C-M5F4 |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 5MP (2880 × 1620) |
| Lens | 4mm |
| Viewing Angle | 89.4° (H) / 48.2° (V) / 97.7° (D) |
| DORI | 62.1 m (D) / 24.8 m (O) / 12.4 m (R) / 6.2 m (I) |
| Main Stream | 5MP (2880 × 1620)@25fps; 4MP (2560 × 1440)@25fps; 3MP (2304 × 1296)@30fps; 2MP (1920 × 1080)@30fps; 720P (1280 × 720)@30fps |
| Extra Stream | 640 × 360@30fps; 2CIF (704 × 288)@30fps; NIF (352 × 288)@30fps |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Minimum Illumination | Colour: 0.0003 Lux (F1.0, AGC ON) |
| White Light Range | Up to 30m |
| Detection Functions | Motion Detection / Person Detection / Audio Detection |
| Image Enhancement | DWDR / BLC / HLC / AGC / 2D/3D-NR / Motion Detection / ROI / Privacy Mask |
| Internal Storage | MicroSD card up to 512GB |
| Alarms | Not available |
| Audio Compression | G.711U / G.711A |
| Audio | Built-in microphone and speaker |
| Bit Rate | 128 Kbps ~ 6144 Kbps |
| WiFi | IEEE 802.11b/g/n/ax |
| WiFi Frequency | 2.4 GHz ~ 2.4835 GHz |
| Remote Access | Web Browser / EZStation / UNV-LINK / UNV-LINK Pro / Uniarch APP |
| Power Supply | DC 12V / 10W |
| Operating Temperature | -30°C ~ +60°C |
| Protection Rating | IP66 |
| Dimensions | Ø118 × 118 × 199mm |
| Weight | 530 g |
