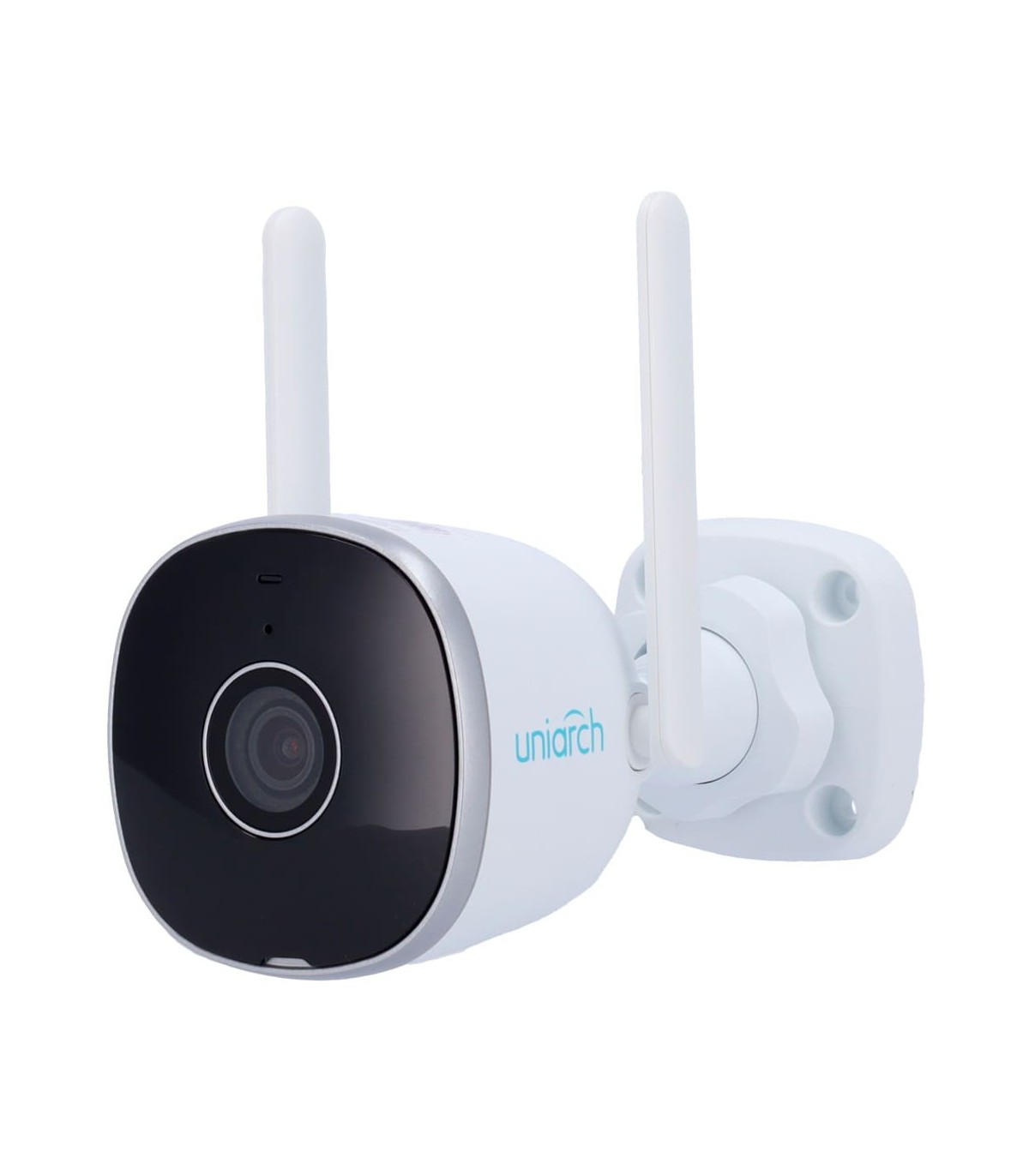

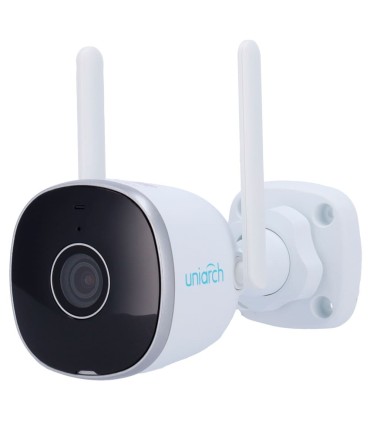

UHO-B2R-M2F3 - Uniarch 2MP WiFi Bullet IP Camera 2.8mm

Uho-B2R-M2F3 – Uniarch 2MP WiFi Bullet IP Camera 2.8mm

The Uho-B2R-M2F3 is a Uniarch Bullet IP camera designed for video surveillance systems that require WiFi connectivity, Full HD image quality and outdoor installation. Equipped with a 1/3" CMOS sensor, it delivers a maximum resolution of 2MP (1920 × 1080) at up to 30 frames per second. This provides smooth and detailed monitoring for a wide range of residential and professional security applications.

This IP camera supports Ultra 265, H.265 and H.264 video compression formats, helping optimise bandwidth and storage usage. It provides dual video streams and also supports U-Code, OSD and ROI regions. Image processing features include DWDR, Smart IR, 2D/3D digital noise reduction and digital Defog.

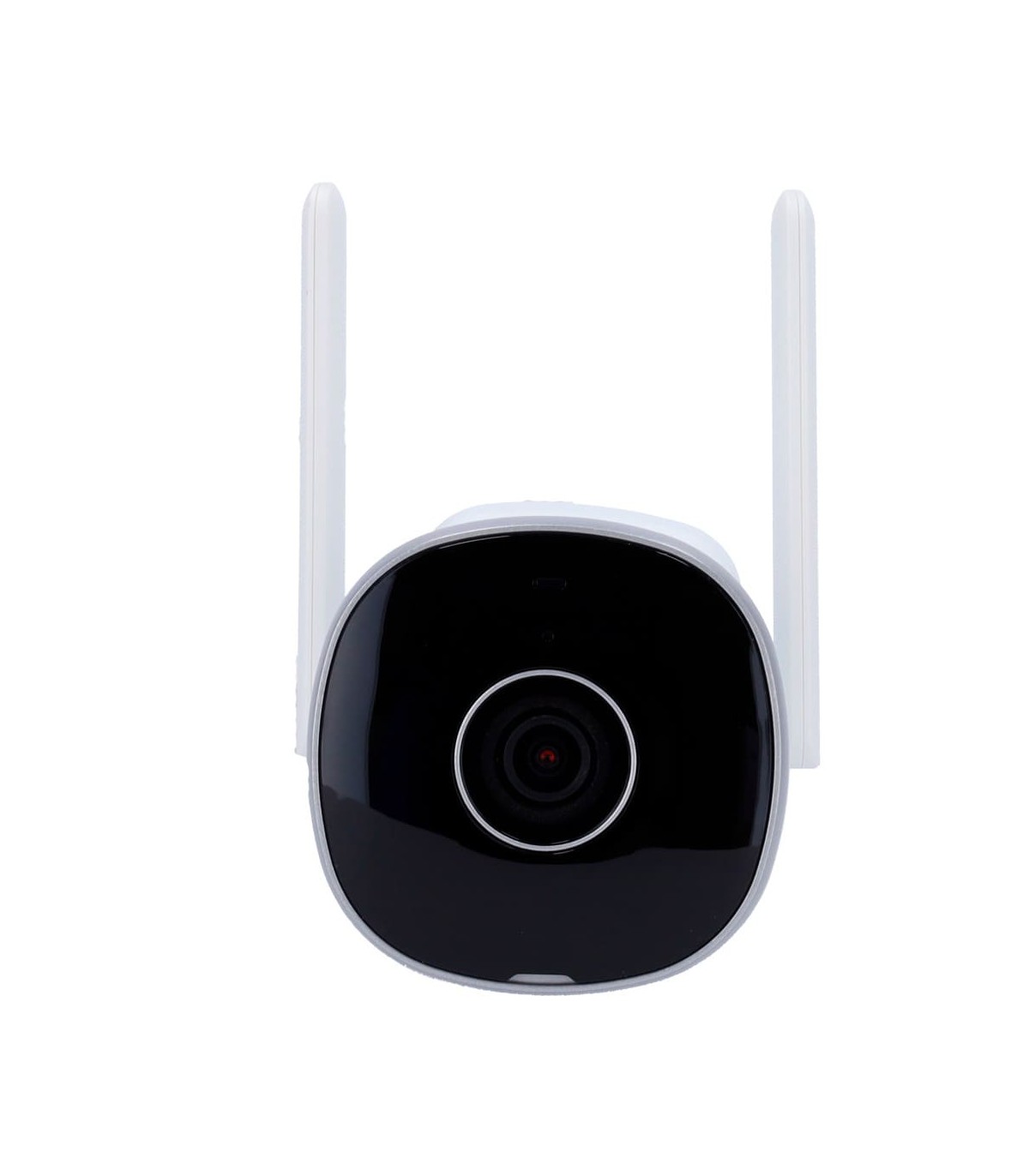

Uho-B2R-M2F3 with 2.8mm lens and Smart IR

The Uho-B2R-M2F3 uses a fixed 2.8mm F1.6 lens. Its field of view reaches 95.5° horizontally, 53.1° vertically and 110.4° diagonally. Minimum illumination is 0.003 lux in colour mode with AGC enabled and 0 lux when infrared illumination is active.

The Smart IR system provides infrared illumination up to 20 metres with an 850 nm wavelength. IR control can operate automatically or manually. The Day/Night function uses an IR cut filter with automatic ICR switching for reliable image performance in changing light conditions.

Uniarch WiFi IP camera with intelligent detection

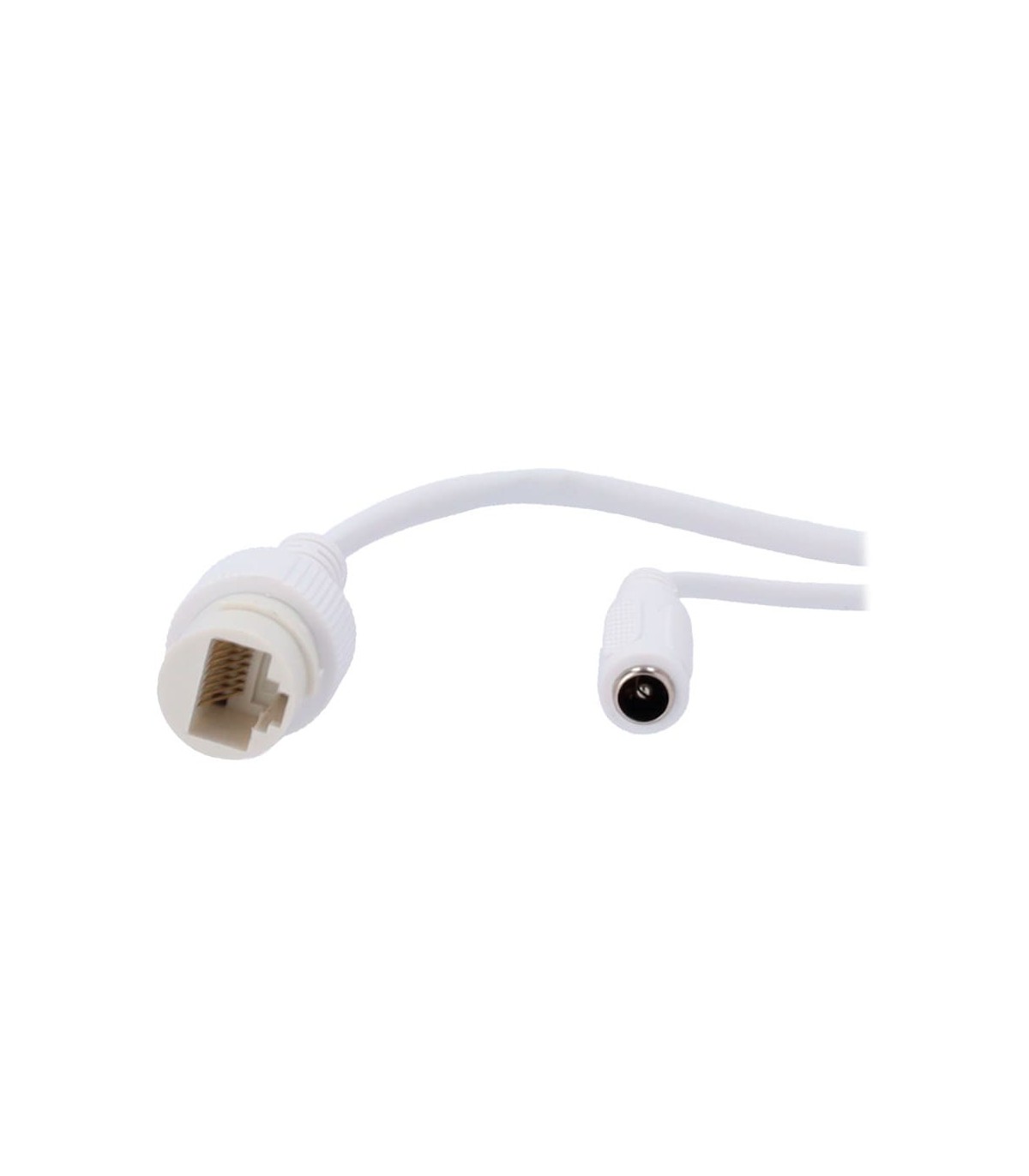

The WiFi connection operates on the 2.4 GHz band and supports IEEE 802.11b/g/n standards. The camera has a built-in WiFi antenna and can reach transmission speeds of up to 150 Mbps using IEEE 802.11n. A 10/100 Mbps RJ45 Ethernet interface is also available for wired network installations.

The Uho-B2R-M2F3 includes several detection functions for video surveillance. It supports human body detection, motion detection and audio detection. These functions help adapt monitoring to different installation requirements and make it easier to identify relevant security events.

Two-way audio and MicroSD storage

The camera includes a built-in microphone and speaker, enabling two-way audio communication. The audio system supports G.711U and G.711A compression, audio suppression and an 8 kHz sampling rate.

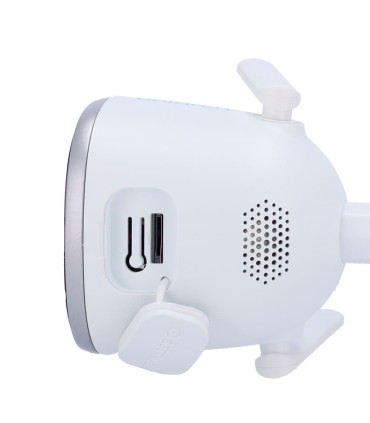

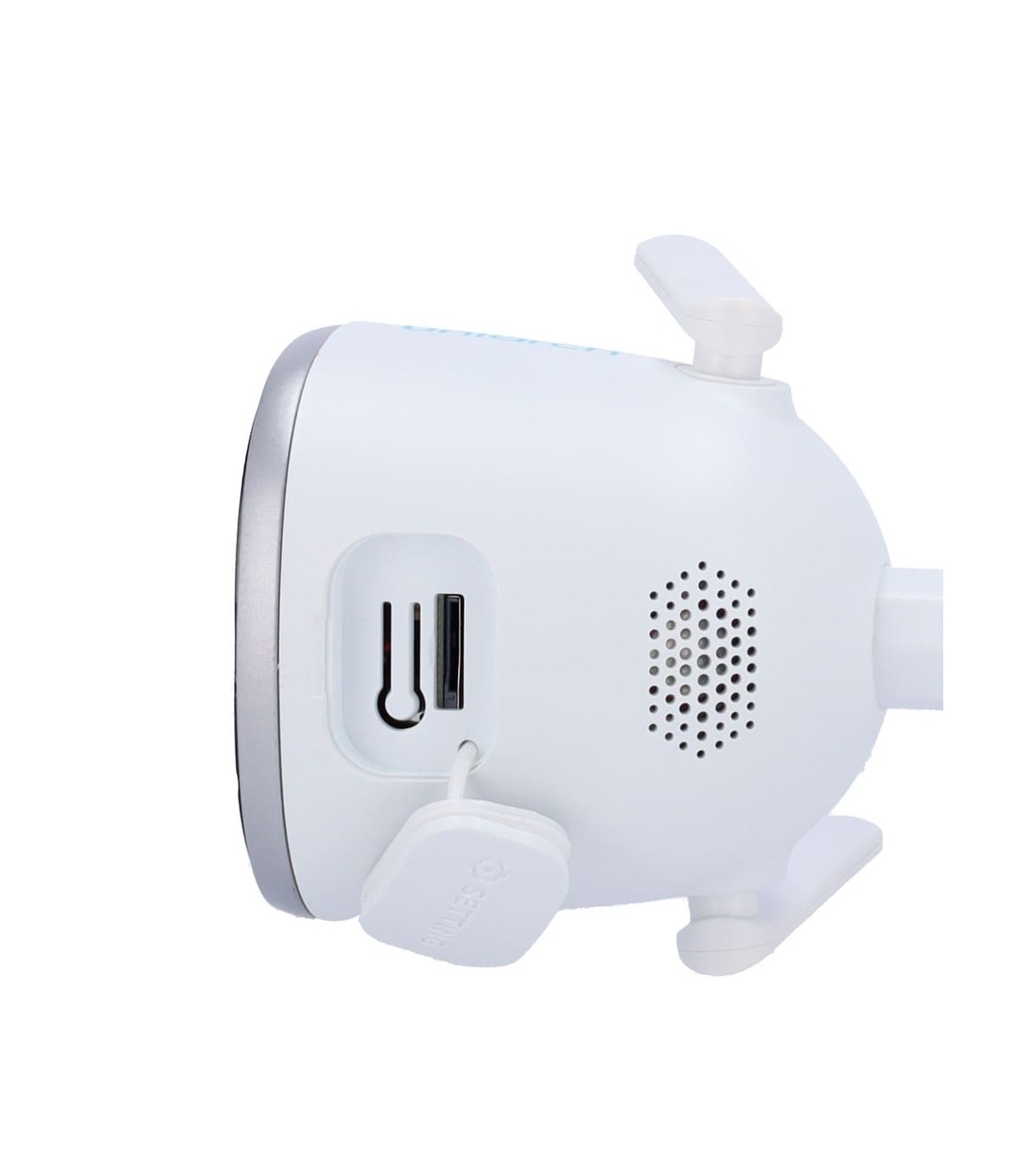

For local recording, the Uho-B2R-M2F3 supports MicroSD cards up to 512 GB. It also supports ANR for network storage. These storage options provide greater flexibility for managing and retaining video recordings according to the needs of the surveillance system.

Uho-B2R-M2F3 with IP67 protection for outdoor use

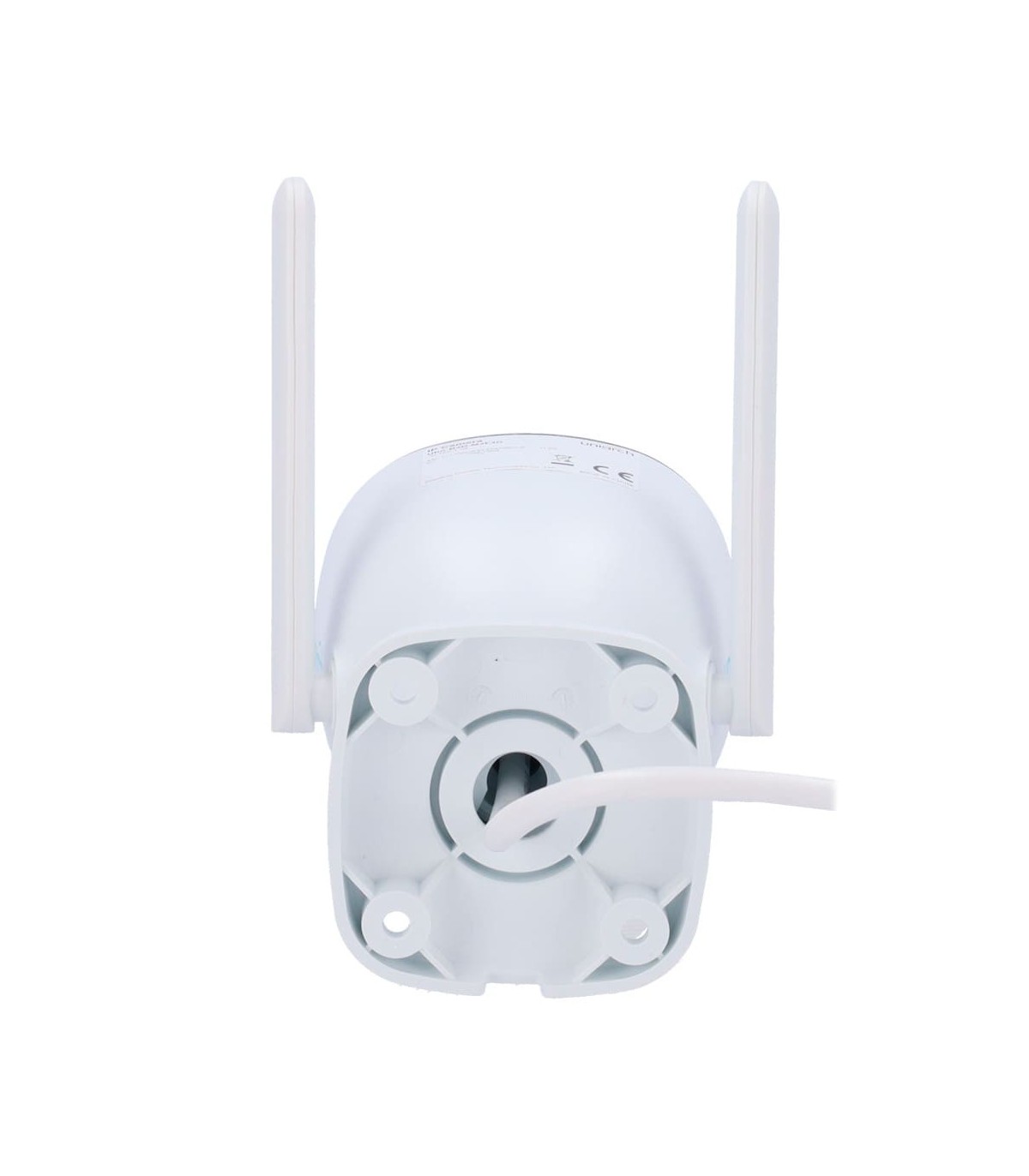

The Uho-B2R-M2F3 features an IP67 protection rating, making it suitable for outdoor installations. Its housing combines metal and plastic. The mounting bracket provides three-axis adjustment, with Pan from 0° to 360°, Tilt from 0° to 90° and Rotation from 0° to 360°.

Power is supplied via 12 V DC ±25%, with a maximum power consumption of 5.6 W. The camera can operate at temperatures from -30 °C to 60 °C and at relative humidity levels up to 95%, non-condensing.

With 2MP resolution, a 2.8mm lens, WiFi connectivity, Smart IR, two-way audio, MicroSD storage and IP67 protection, the Uho-B2R-M2F3 provides a versatile solution for residential and professional video surveillance installations.
