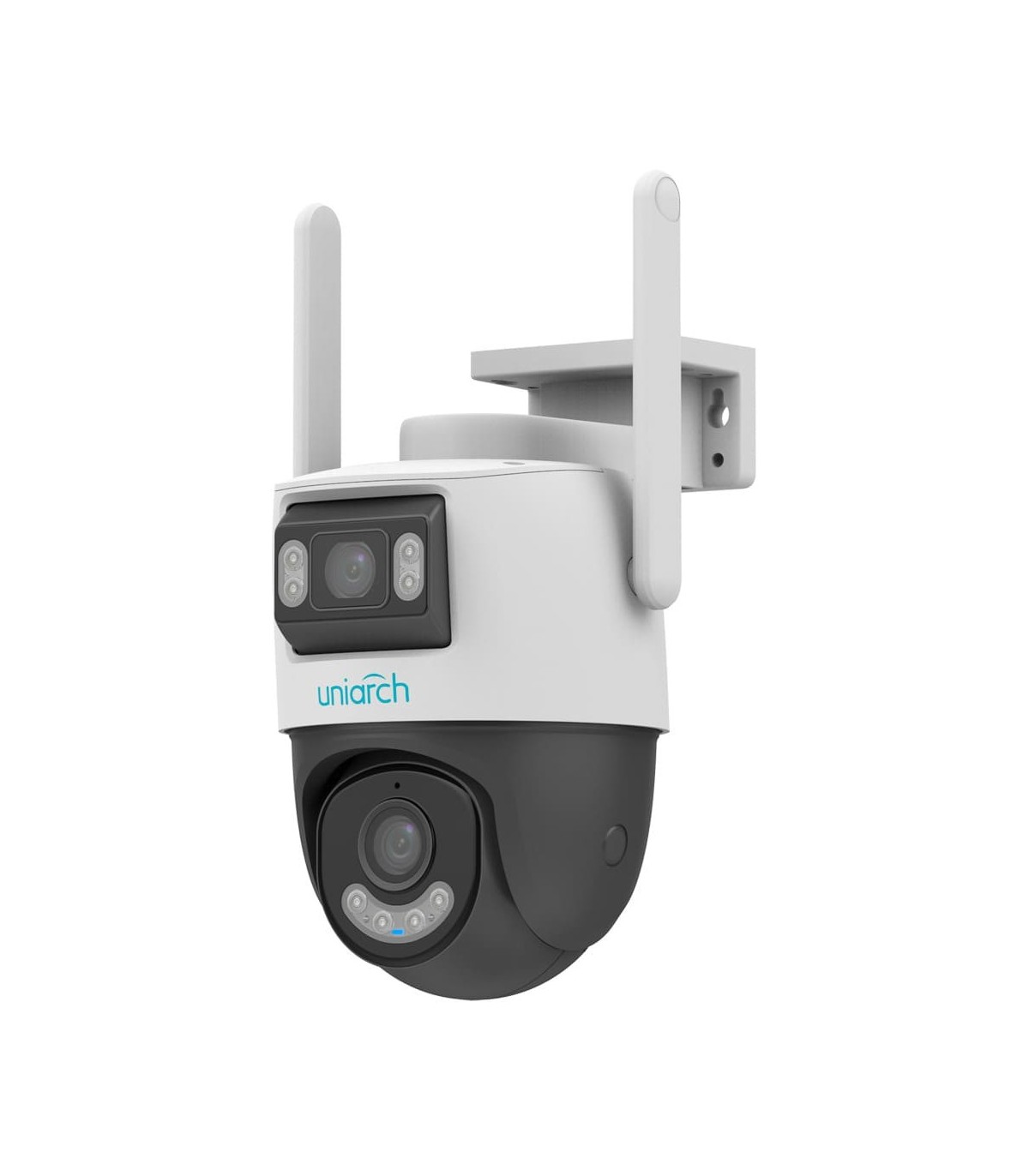

Uho-P2S-M33F34 - Uniarch Dual 3MP+3MP WiFi PT IP Camera

Uho-P2S-M33F34 - Uniarch Dual 3MP+3MP WiFi PT IP Camera

The Uho-P2S-M33F34 is a Uniarch PT IP camera for outdoor video surveillance that combines two cameras in a single device. The Dual Lens 3MP+3MP system integrates a fixed panoramic camera and a second motorised Pan/Tilt camera, allowing a general view of the area and specific zones to be monitored simultaneously using the movable module.

Both channels use 1/2.8" CMOS sensors with a maximum resolution of 3MP (2304×1296). The panoramic camera uses a fixed 2.8mm lens, while the PT camera features a fixed 4mm lens. This configuration provides two complementary perspectives within the same video surveillance system.

Dual Lens 3MP+3MP with 2.8mm and 4mm lenses

The Dual Lens configuration provides two video channels from a single device. The fixed panoramic camera, equipped with a 2.8mm lens, provides a wide view of the monitored area, while the second camera uses a 4mm lens combined with the motorised Pan/Tilt system.

Each channel provides a maximum resolution of 3MP (2304×1296), delivering high-definition images from both the panoramic view and the movable camera. The combination of the two cameras makes it possible to maintain an overview of the area while the PT module is directed towards another point of interest.

DWDR technology helps improve visibility in situations where significant lighting differences are present within the same image, providing a more balanced view under different operating conditions.

Uho-P2S-M33F34 with Pan/Tilt, Smart IR and Dual Light

The Uho-P2S-M33F34 features motorised Pan/Tilt movement on the second camera, allowing its orientation to be adjusted remotely and increasing the area that can be monitored by the device.

For night surveillance, it features Smart IR with a range of up to 30 m, allowing images to be captured in environments with little or no visible light. The system also incorporates warm light up to 10 m, providing visible illumination when additional night lighting is required.

The combination of infrared and warm light increases flexibility during night-time operation, allowing the illumination to be adapted to different outdoor surveillance situations.

Human and vehicle detection with active deterrence

The camera provides intelligent human and vehicle detection, allowing these targets to be distinguished within the monitored area. This functionality helps focus event detection on situations that are relevant to the security system.

In addition to intelligent detection, the device provides an audible and visual warning. The integrated speaker and lighting can be used as active deterrence elements when configured events are triggered.

The built-in microphone and speaker also enable two-way audio communication, making it possible to listen to the monitored environment and communicate directly through the camera.

Ultra 265 video compression helps optimise bandwidth usage and storage space. The camera also supports H.265 and H.264, providing different options for video transmission and recording.

2.4GHz WiFi, 512GB MicroSD and IP66 protection

2.4GHz WiFi connectivity allows the camera to be integrated into a wireless network, simplifying installation in locations where a wired data connection is not the most convenient option. The device also features an Ethernet network interface for a physical connection to the network infrastructure.

For local recording, the camera supports MicroSD cards up to 512GB, providing high storage capacity directly on the camera according to the selected configuration.

IP66 protection allows installation in outdoor environments and provides resistance against dust and water ingress. The combination of Dual Lens 3MP+3MP, motorised Pan/Tilt, Smart IR, warm light, human and vehicle detection, two-way audio, WiFi and MicroSD storage makes this Uniarch solution particularly versatile for outdoor video surveillance.
