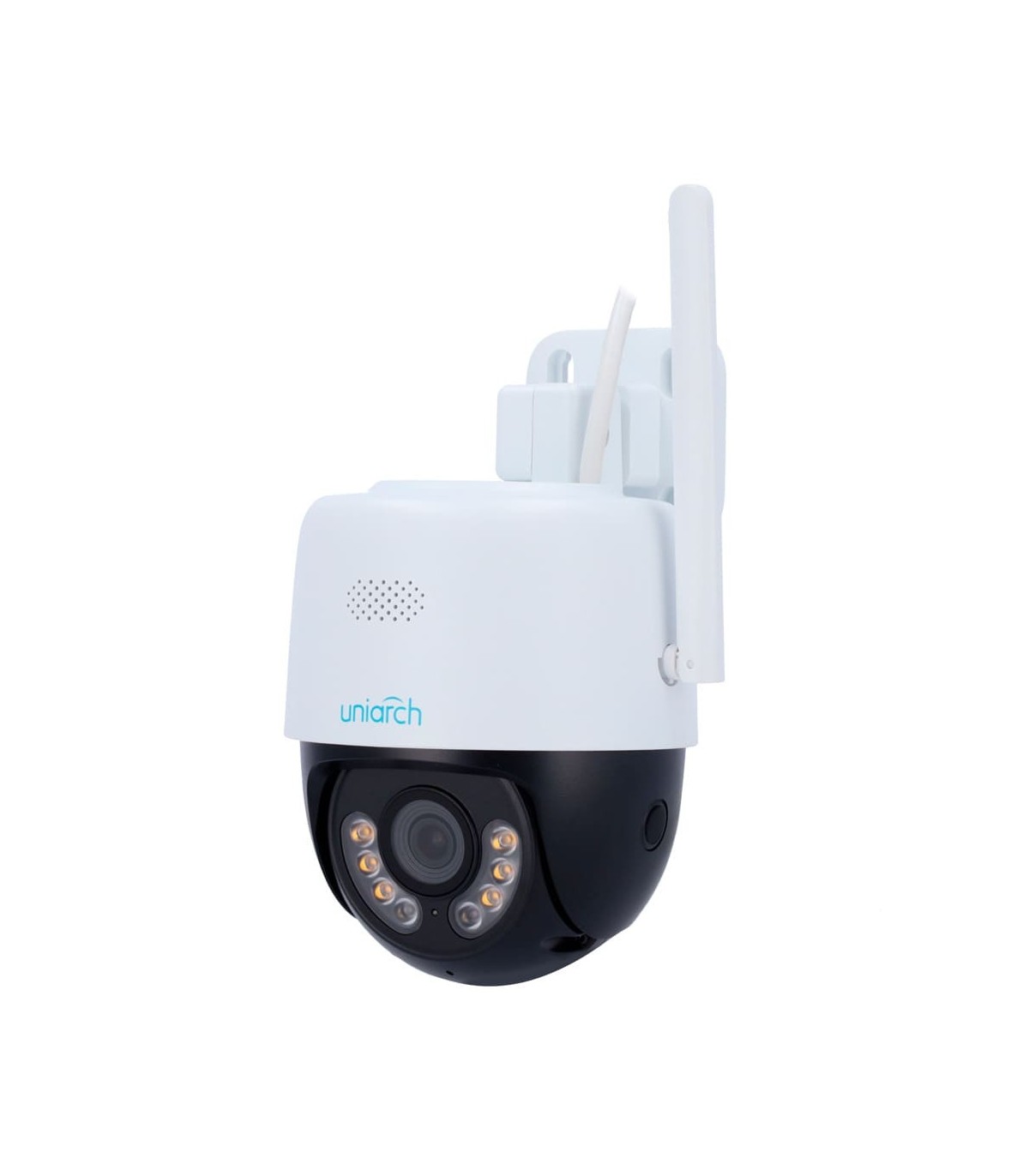

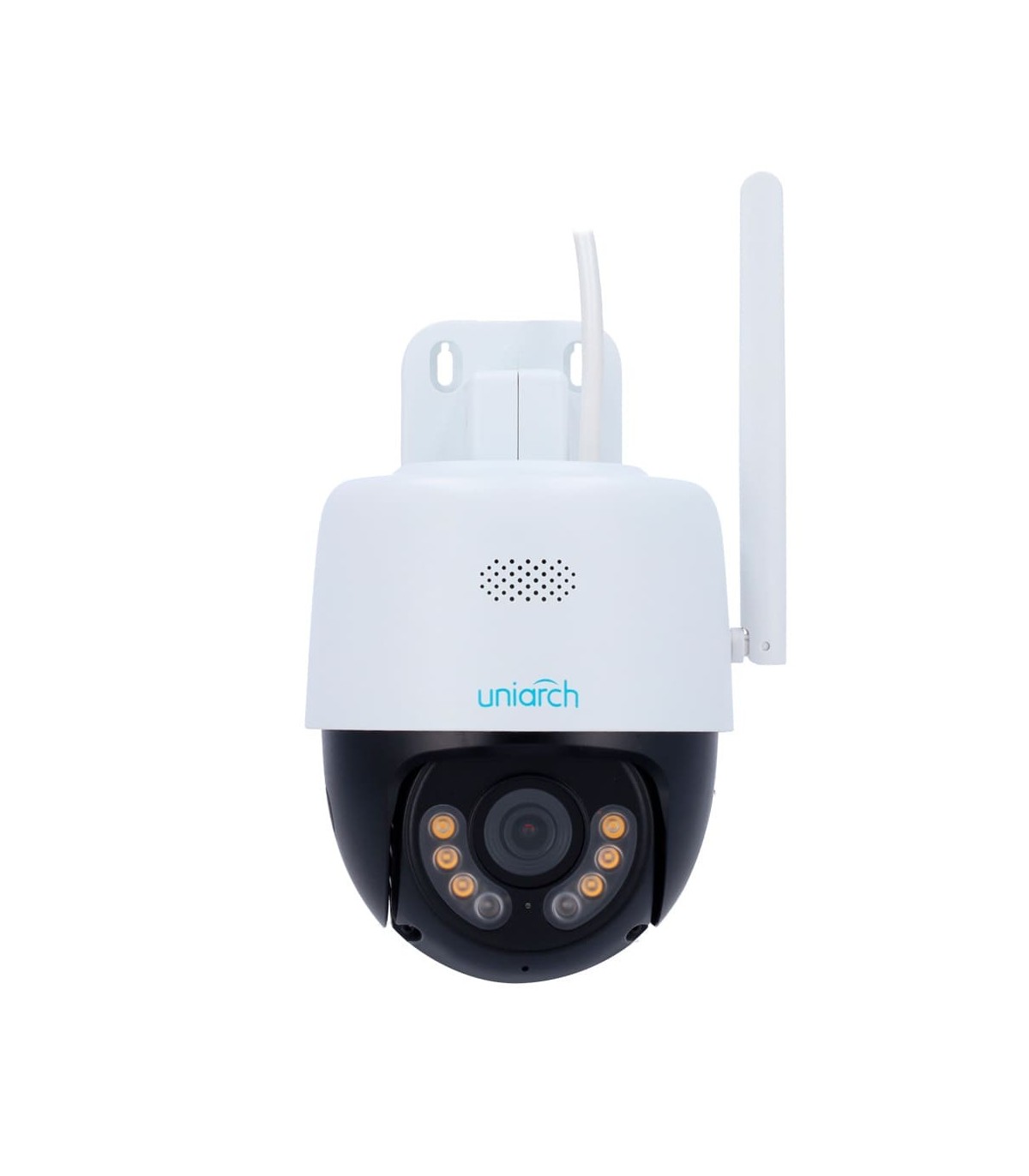

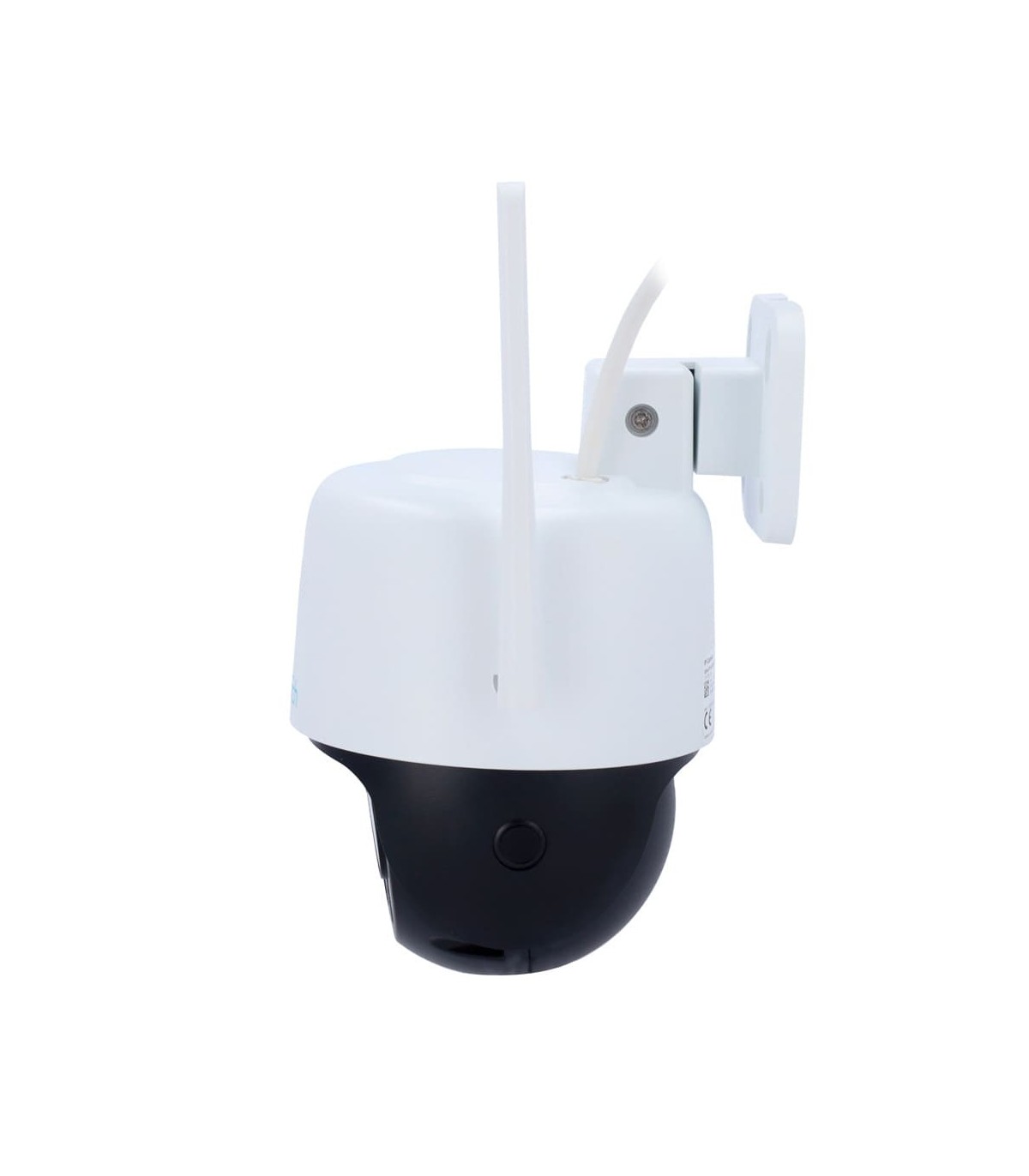

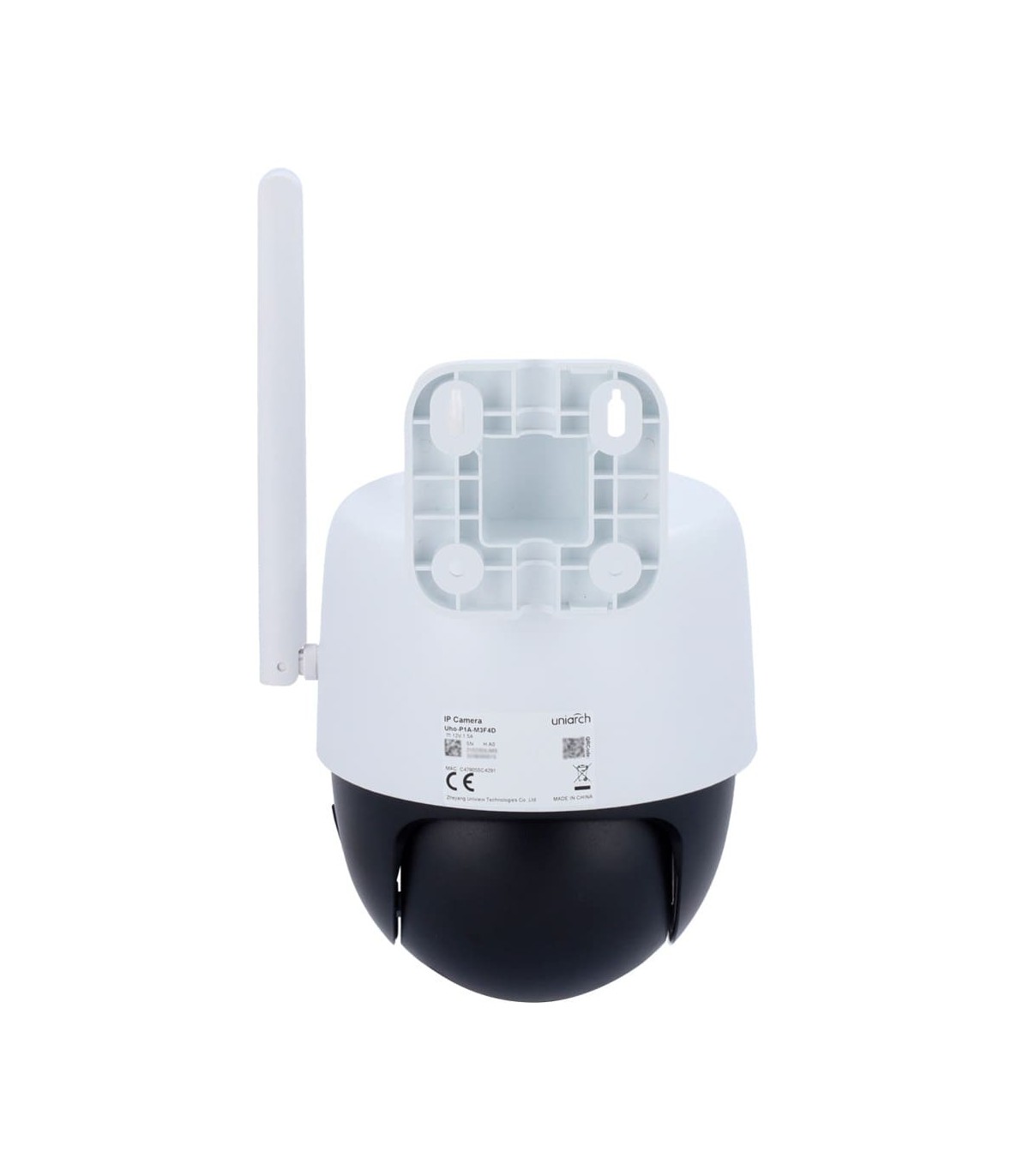

Uho-P1A-M5F4D - Uniarch 5MP 4mm WiFi PT IP Camera

Uho-P1A-M5F4D - Uniarch 5MP 4mm WiFi PT IP Camera

The Uho-P1A-M5F4D is a Uniarch PT IP camera designed for video surveillance systems requiring high resolution, motorised Pan/Tilt movement and WiFi connectivity. With a maximum resolution of 5MP (2880×1620), a fixed 4mm F1.6 lens and IP66 protection, it is suitable for monitoring both indoor and outdoor areas.

The motorised mechanism allows the camera to move horizontally and vertically, expanding the monitored area, while the Auto Tracking function enables automatic tracking of detected targets. Dual Light technology combines infrared illumination and warm light, allowing surveillance to be adapted to different lighting conditions.

5MP image and fixed 4mm F1.6 lens

The camera uses a 1/2.7" CMOS sensor and provides a maximum resolution of 5MP (2880×1620), delivering detailed images for different video surveillance applications. The fixed 4mm F1.6 lens provides a field of view of 93.6° horizontally, 48.9° vertically and 98.3° diagonally.

Image processing includes DWDR and 2D/3D DNR digital noise reduction, helping to improve image quality under different lighting conditions. Ultra 265, H.265, H.264 and MJPEG video compression allows transmission and storage to be adapted to the characteristics of the network infrastructure.

Uho-P1A-M5F4D with Pan/Tilt and Auto Tracking

The Uho-P1A-M5F4D features motorised Pan movement from 0° to 345° and Tilt movement from 0° to 90°, allowing the camera orientation to be controlled and a wider area to be monitored than with a fixed-position camera. The device also supports up to 20 presets for previously configured positions.

The Auto Tracking function enables automatic tracking of detected targets within the monitored area. The camera also includes intelligent human body detection, line crossing and intrusion detection, providing different monitoring functions that can be configured according to the requirements of the installation.

Dual Light, Smart IR and two-way audio

The Dual Light system combines Smart IR with a range of up to 30 m and warm light illumination with a range of up to 10 m. This combination allows infrared illumination to be used for night surveillance and warm light to be activated according to the configuration and conditions of the monitored area.

The camera features a built-in microphone and speaker, enabling two-way audio communication. This function adds remote interaction capability to the video surveillance system, in addition to video monitoring and audio capture at the installation location.

2.4GHz WiFi, MicroSD and IP66 protection

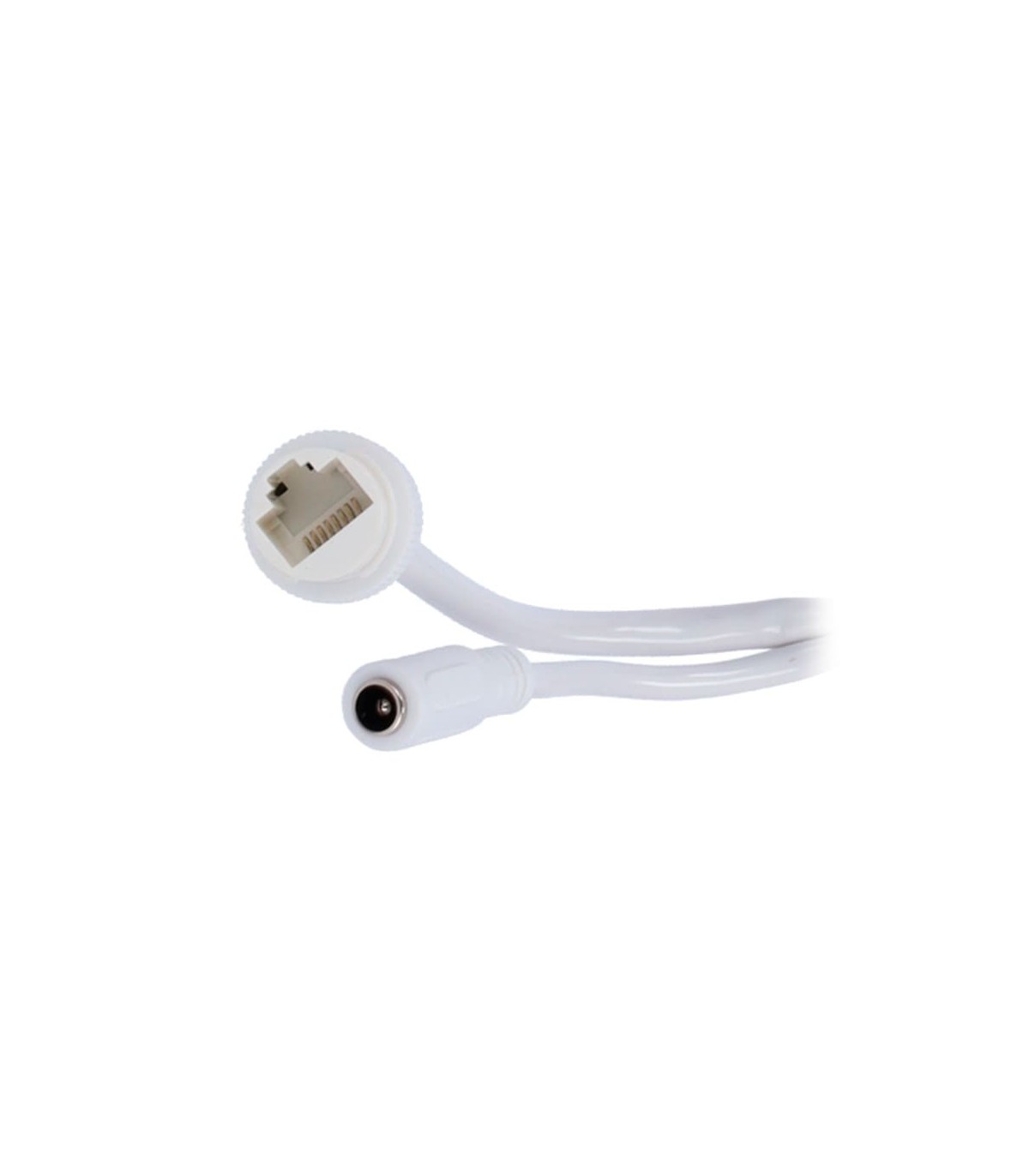

Connectivity includes 2.4GHz WiFi and an RJ45 10/100 Base-TX Ethernet interface, providing different options for integrating the camera into the network. For local storage, it supports MicroSD cards up to 256GB, allowing recordings to be stored directly on the device when this function is used.

Power is supplied via 12V DC. IP66 protection allows the camera to be used in outdoor installations, providing protection against dust and water suitable for this type of application. The combination of 5MP resolution, Pan/Tilt movement, Auto Tracking, Dual Light, 2.4GHz WiFi, two-way audio and MicroSD storage makes this Uniarch camera a versatile solution for different IP video surveillance projects.
