UHO-B2D-M3F3D - Uniarch 3MP WiFi Dual Light Bullet IP Camera 2.8mm

Uho-B2D-M3F3D – Uniarch 3MP WiFi Dual Light Bullet IP Camera 2.8mm

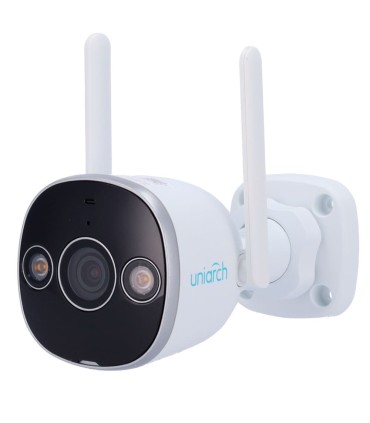

The Uho-B2D-M3F3D is a Uniarch Bullet IP camera designed for video surveillance systems that require 3MP resolution, WiFi connectivity and Dual Light illumination. Equipped with a 1/3" CMOS sensor, it provides a maximum resolution of 3MP (2304 × 1296) at up to 25 fps. At 1080P and 720P resolutions, it can reach up to 30 fps, delivering smooth video for a wide range of security applications.

The camera supports Ultra 265, H.265, H.264 and MJPEG video compression formats. It features dual video streams, U-Code, up to four OSD areas and up to eight ROI regions. Image processing functions also include DWDR, Smart IR, digital Defog and 2D/3D digital noise reduction.

Uho-B2D-M3F3D with 2.8mm F1.6 lens

The Uho-B2D-M3F3D uses a fixed 2.8mm F1.6 lens. This version provides a field of view of 108.5° horizontally, 62.9° vertically and 118.1° diagonally. The wide F1.6 aperture contributes to improved performance in environments with low levels of illumination.

Minimum illumination is 0.003 lux in colour mode with AGC enabled and 0 lux when infrared illumination is active. The Day/Night function uses an IR cut filter with automatic ICR switching, allowing the camera to adapt its image according to changing lighting conditions.

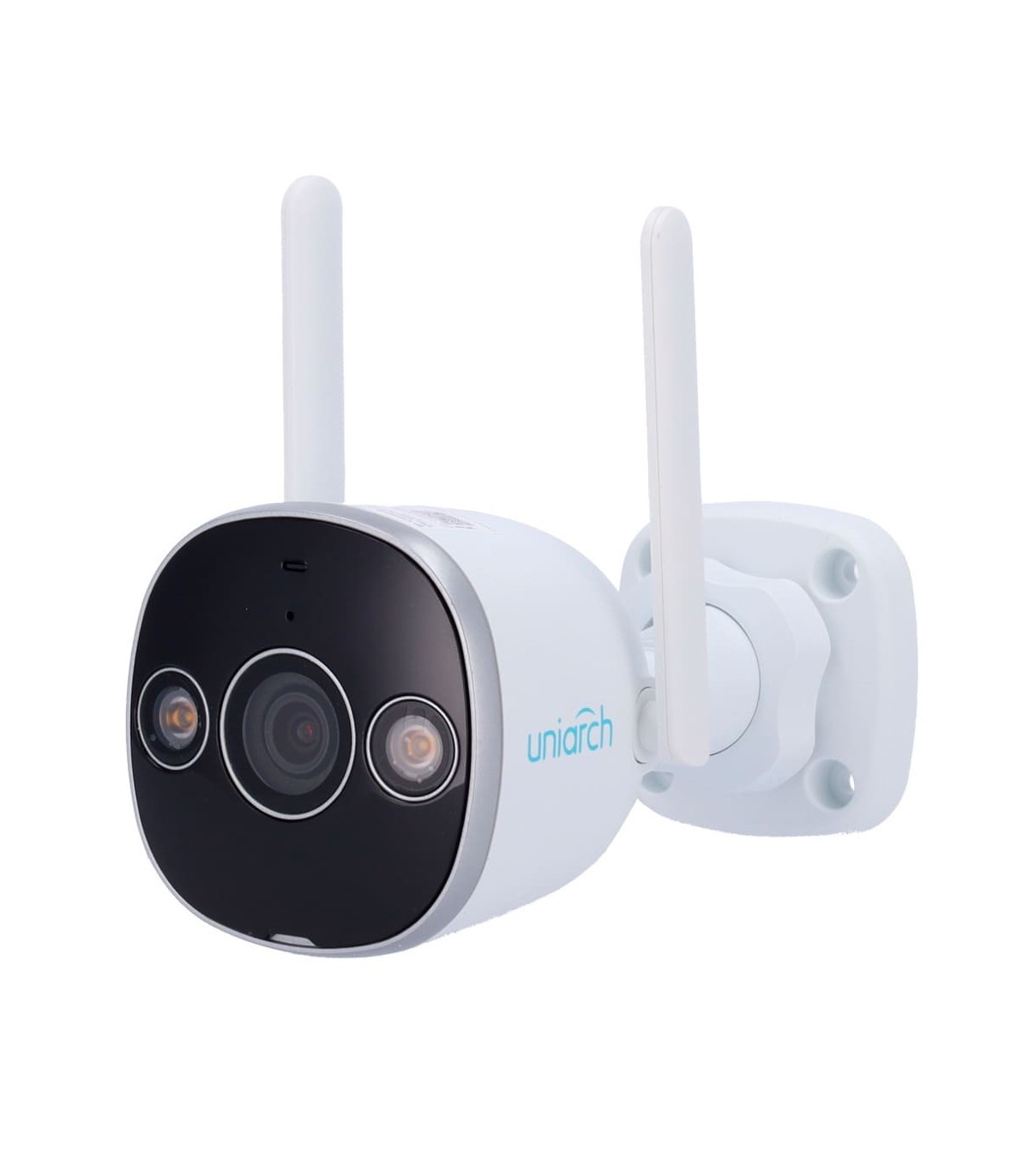

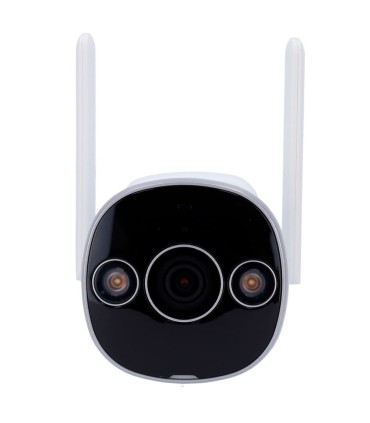

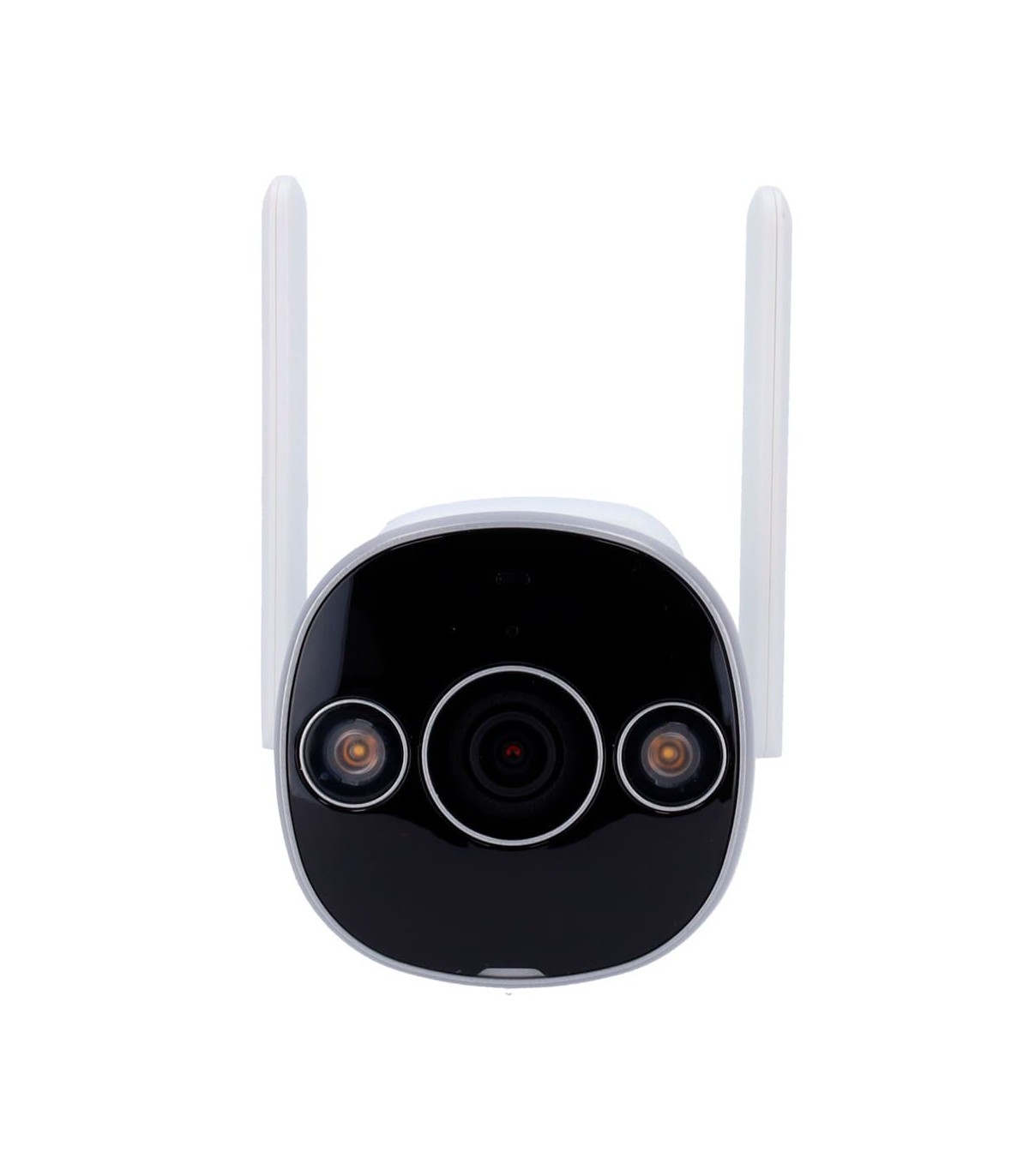

Dual Light technology with Smart IR and warm white light

One of the key features of this Uniarch camera is its Dual Light technology. The Uho-B2D-M3F3D combines infrared illumination with warm white light. The Smart IR system provides a range of up to 20 metres, while the warm white light reaches up to 10 metres.

Dual Light mode allows the camera to switch between infrared and warm white illumination when the configured condition is triggered. This enables the camera to adapt its lighting to the detected event and to the specific requirements of the surveillance installation.

Uniarch WiFi camera with Ultra Motion Detection

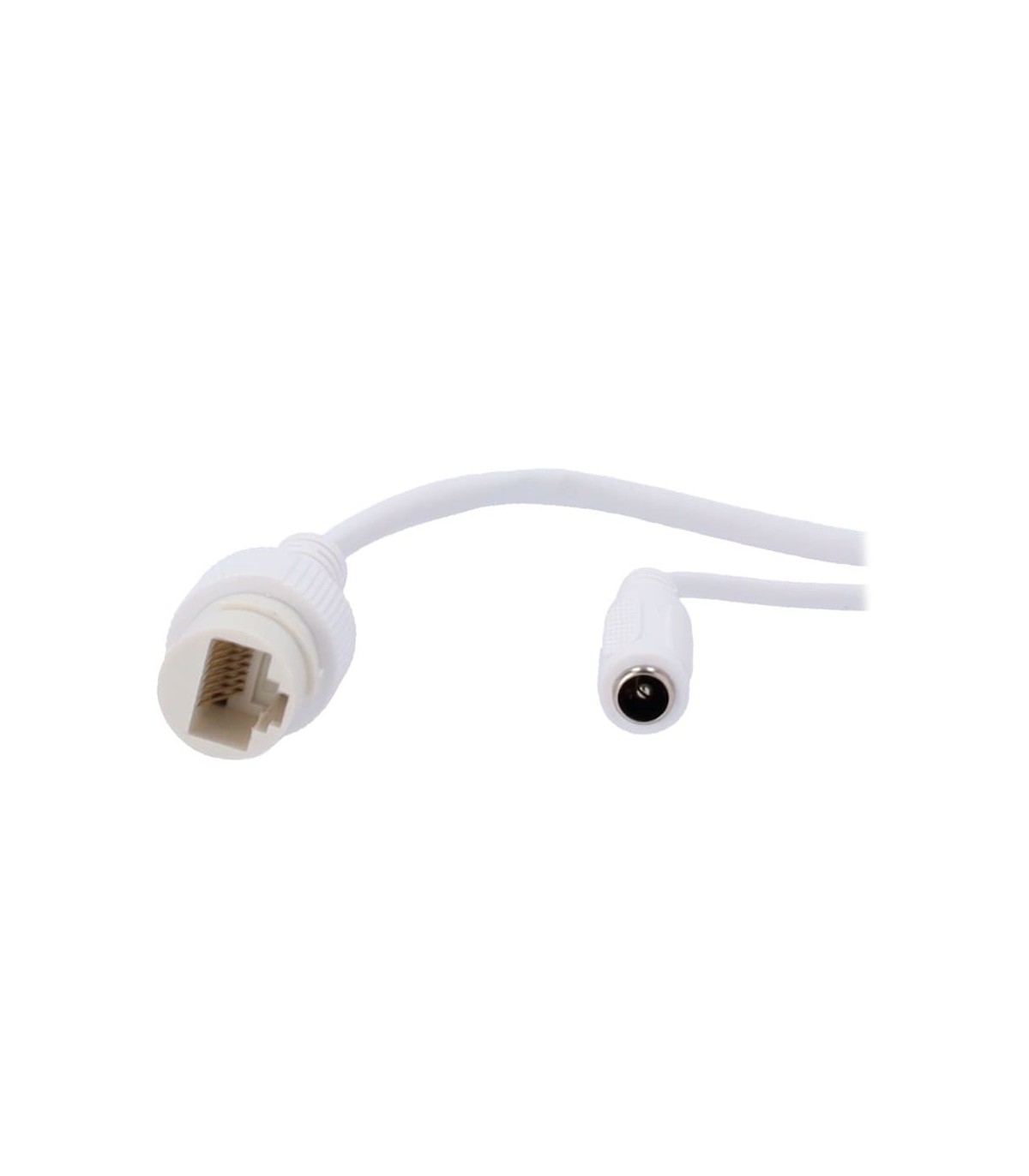

The WiFi connection operates on the 2.4 GHz band and supports IEEE 802.11b/g/n. The Uho-B2D-M3F3D includes a built-in WiFi antenna and can reach transmission speeds of up to 150 Mbps using IEEE 802.11n. A 10/100 Mbps RJ45 Ethernet interface is also available for wired network installations.

Security functions include motion detection, Ultra Motion Detection, audio detection and tampering alarm. These features make it possible to configure more efficient monitoring and help identify relevant events within the video surveillance system.

Two-way audio and MicroSD storage up to 512 GB

The camera includes a built-in microphone and speaker, enabling two-way audio communication. The audio system supports G.711U and G.711A compression, a 64 Kbps bitrate, audio suppression and an 8 kHz sampling rate.

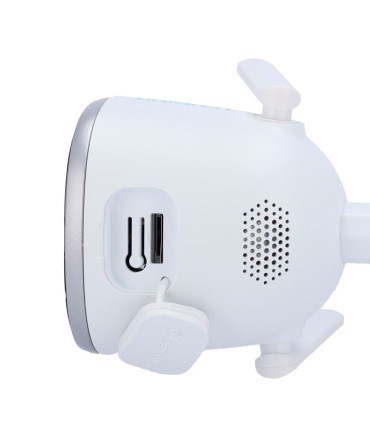

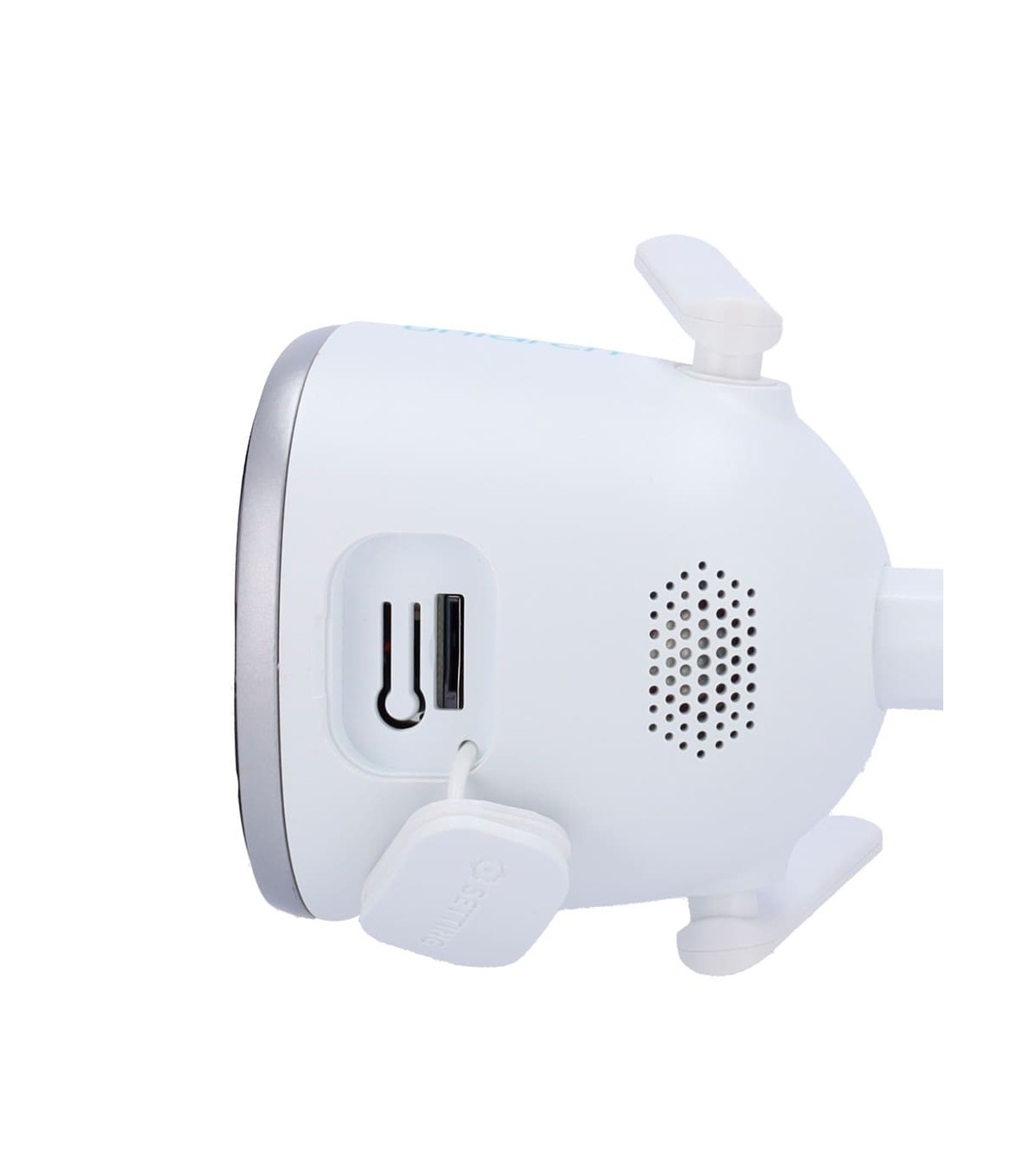

For local storage, the Uho-B2D-M3F3D supports MicroSD cards up to 512 GB. It also supports ANR for network storage, offering additional flexibility for managing and retaining video recordings.

Uho-B2D-M3F3D with IP67 protection for outdoor use

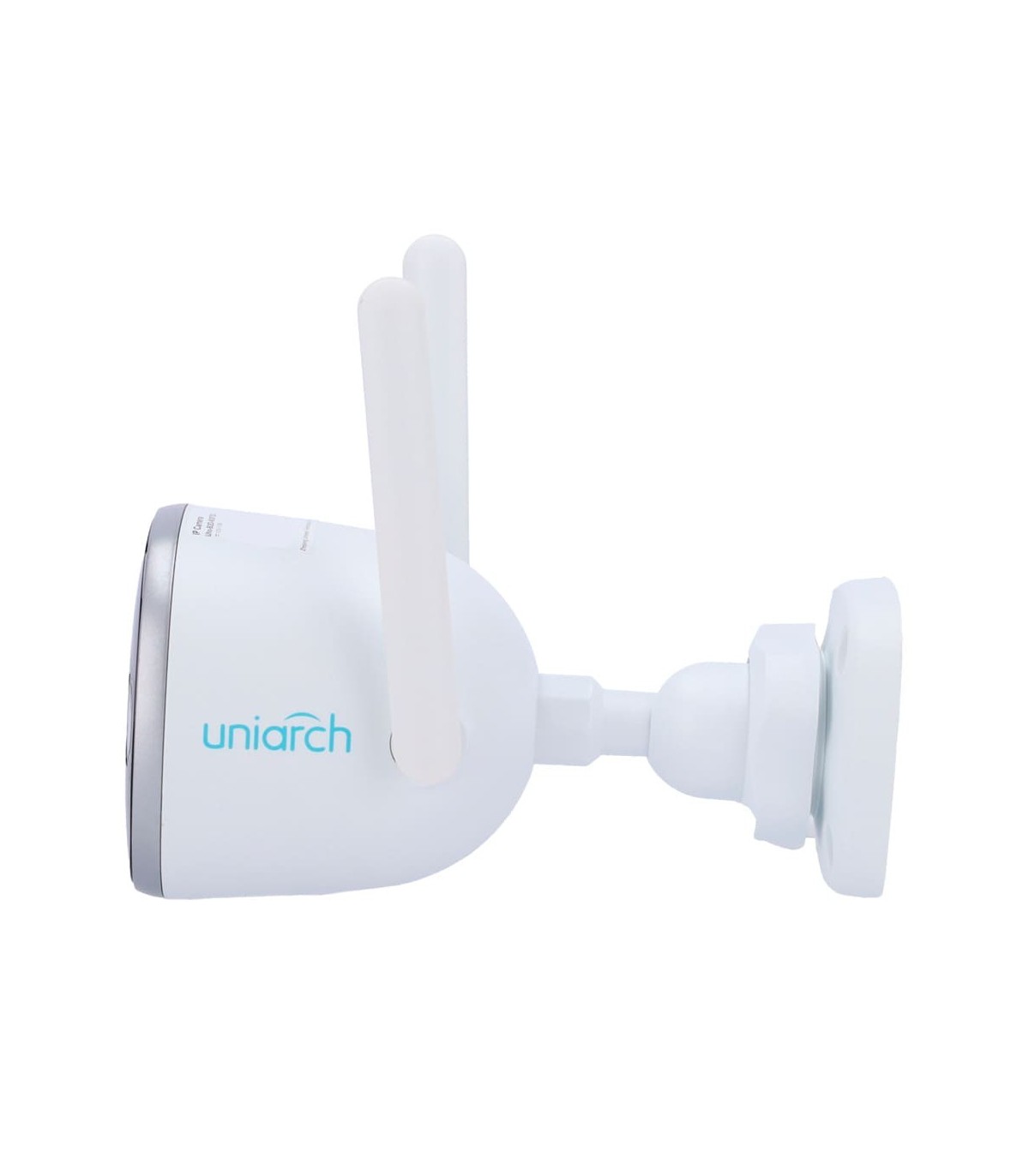

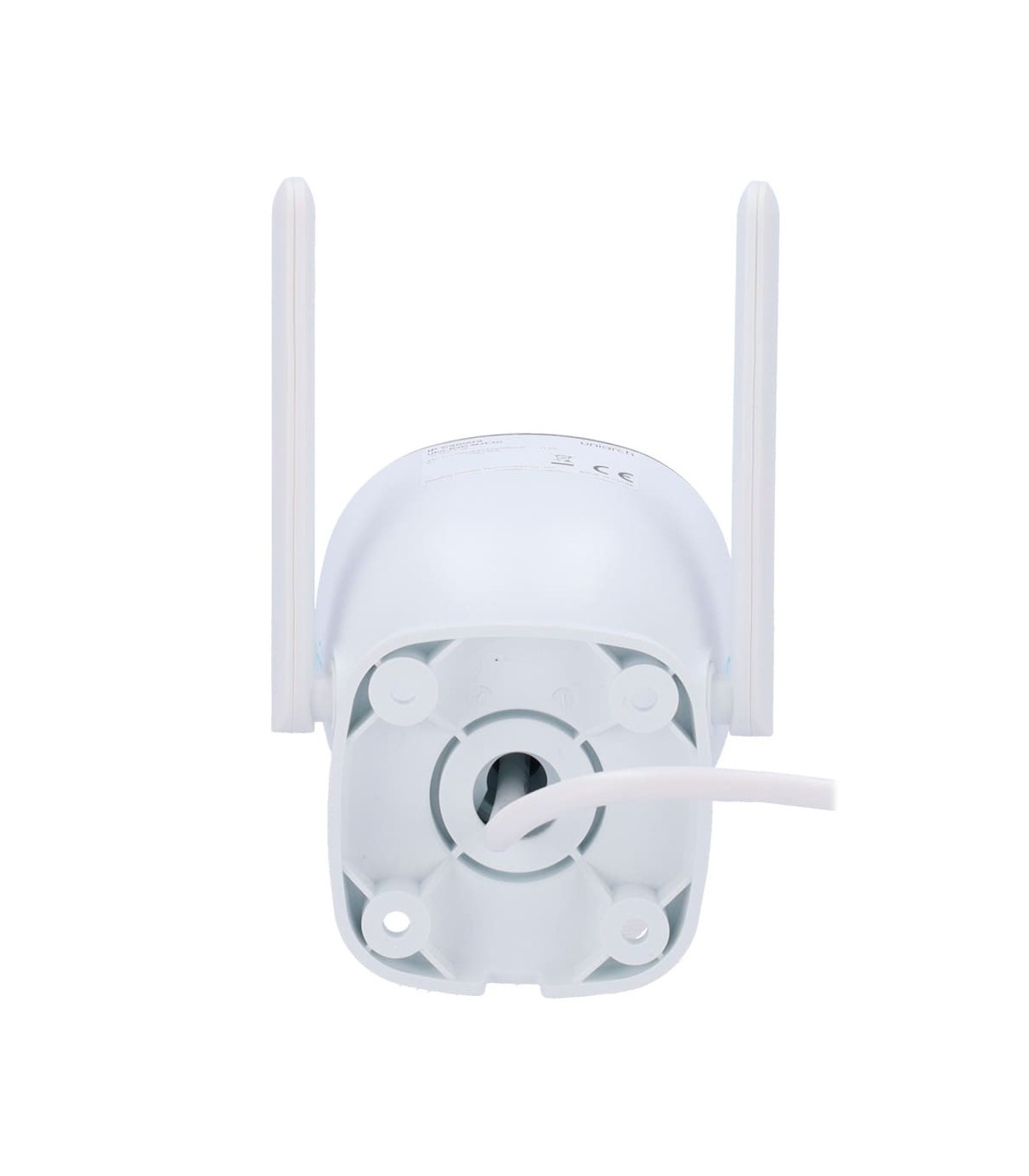

The Uho-B2D-M3F3D features an IP67 protection rating and a housing made from metal and plastic, making it suitable for outdoor installation. The mounting bracket provides three-axis adjustment: Pan from 0° to 360°, Tilt from 0° to 90° and Rotation from 0° to 360°.

Power is supplied via 12 V DC ±25%, with a maximum power consumption of 5.7 W. The operating temperature ranges from -30 °C to 60 °C, with relative humidity up to 95%, non-condensing.

With 3MP resolution, a 2.8mm lens, WiFi connectivity, Dual Light technology, Ultra Motion Detection, two-way audio and IP67 protection, the Uho-B2D-M3F3D provides a versatile solution for residential and professional video surveillance systems.
