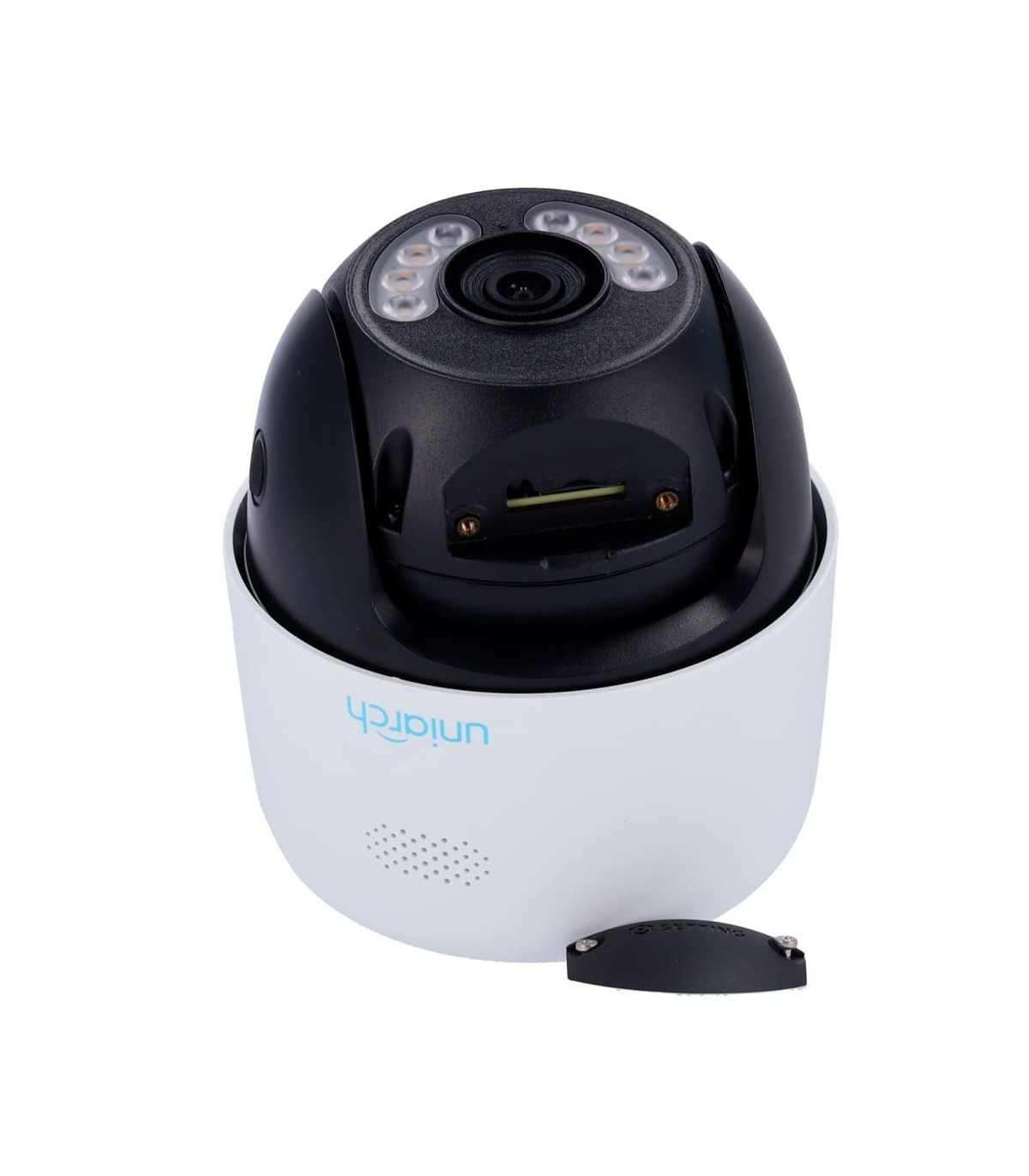

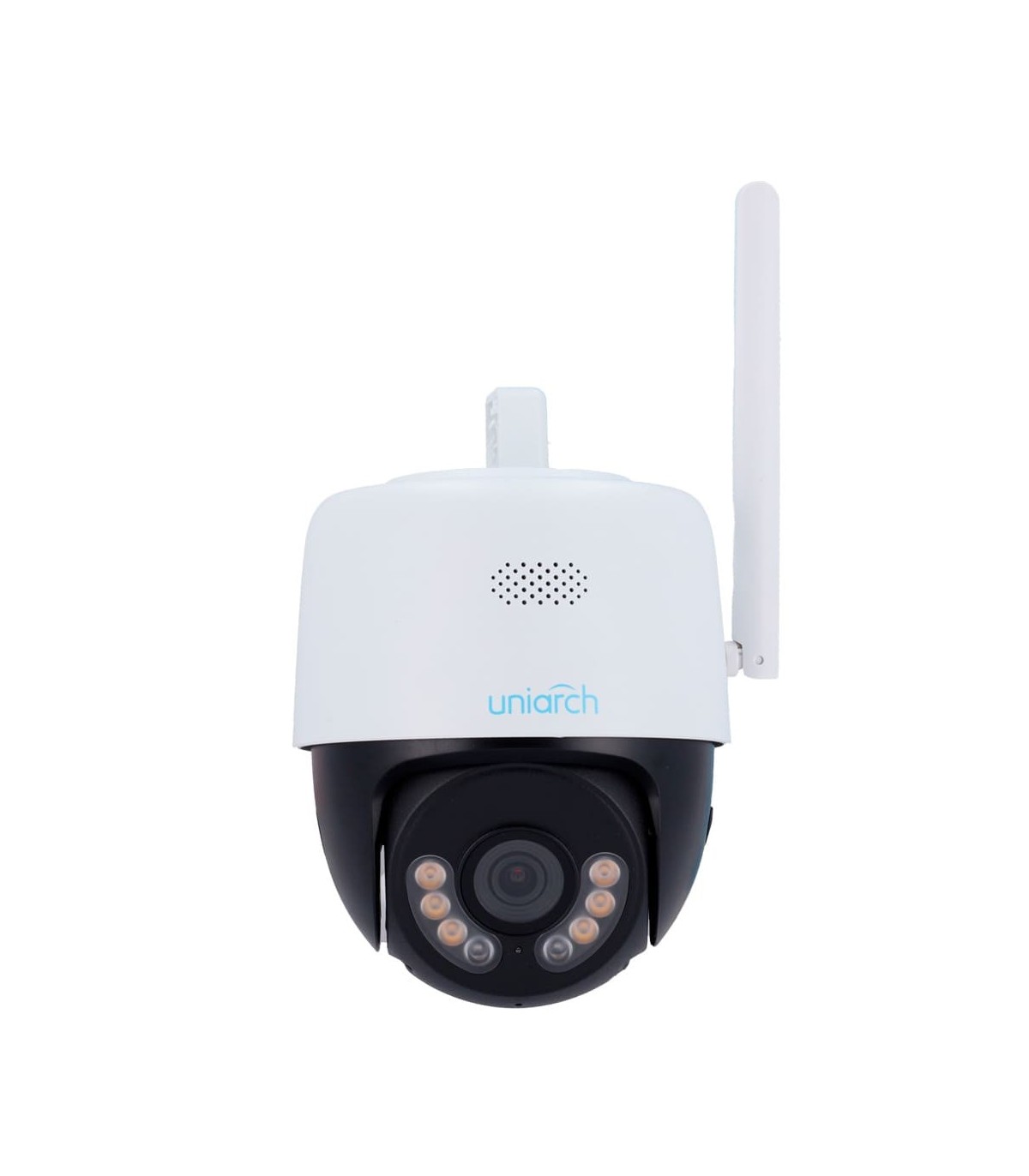

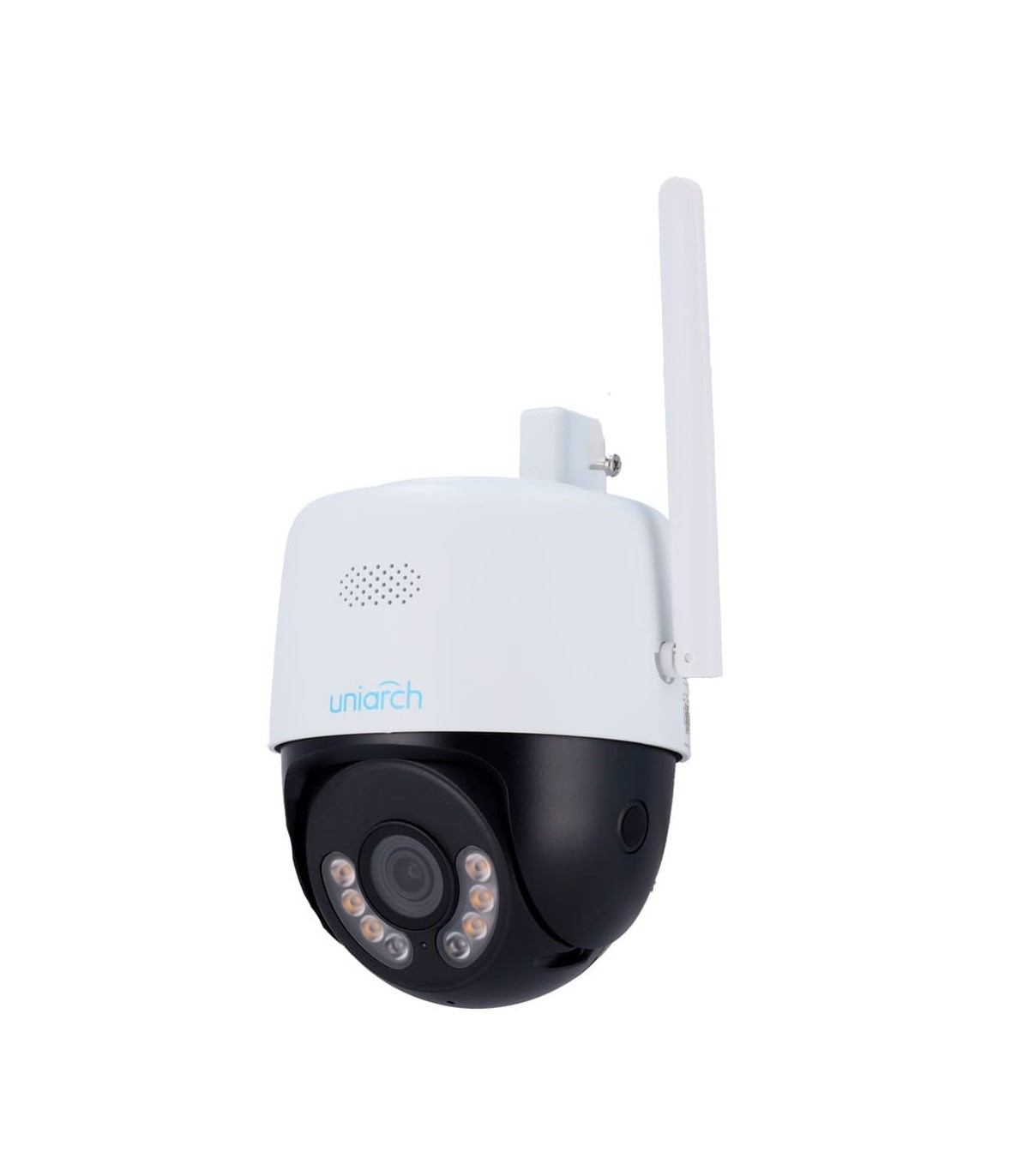

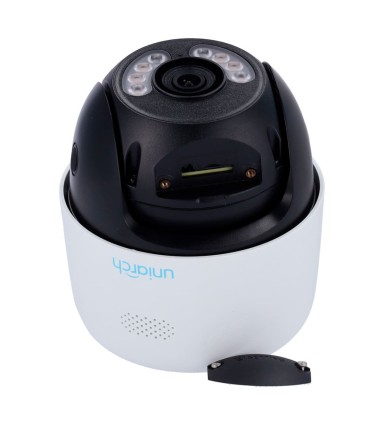

Uho-P1H-M3F4D - Uniarch 3MP 4mm PT WiFi IP Camera

Uho-P1H-M3F4D - Uniarch 3MP 4mm PT WiFi IP Camera

The Uho-P1H-M3F4D is a Uniarch PT WiFi IP camera designed for video surveillance systems requiring flexible coverage of indoor or outdoor areas. It features a 1/2.8" 3MP CMOS sensor and provides a maximum resolution of 2304×1296. Its fixed 4mm F1.6 lens delivers a horizontal field of view of 91.2°, while the Pan & Tilt mechanism allows the camera direction to be remotely controlled.

This model combines 2.4GHz WiFi and Ethernet connectivity with MicroSD storage up to 512GB. It also features a built-in microphone and speaker, two-way audio, Auto Tracking, and audible and visual warning. Smart IR illumination reaches up to 30 m, while the supplementary warm light provides a range of up to 10 m.

3MP image, 4mm lens and Dual Light illumination

The maximum 3MP (2304×1296) resolution operates at up to 20fps on the main stream. The fixed 4mm F1.6 lens provides a field of view of 91.2° horizontally, 47.9° vertically and 95.9° diagonally. A 4X digital zoom allows the image to be electronically enlarged when required.

In low-light environments, Smart IR provides an infrared range of up to 30 m. The camera also features warm light with a range of up to 10 m. A mechanical ICR filter provides Day/Night switching, while DWDR, 2D/3D DNR and Digital Defog complement the image processing functions.

Uho-P1H-M3F4D with Pan & Tilt and Auto Tracking

The Uho-P1H-M3F4D provides horizontal Pan movement from 0° to 345° and vertical Tilt movement from 0° to 90°. The system supports up to 20 preset positions, allowing different viewing directions to be stored for quick access. Auto Tracking adds automatic tracking capability during video surveillance.

Detection functions include motion detection, Ultra Motion Detection and audio detection. The combination of PT movement, Auto Tracking and detection functions provides flexible operation for different video surveillance scenarios.

2.4GHz WiFi, MicroSD 512GB and two-way audio

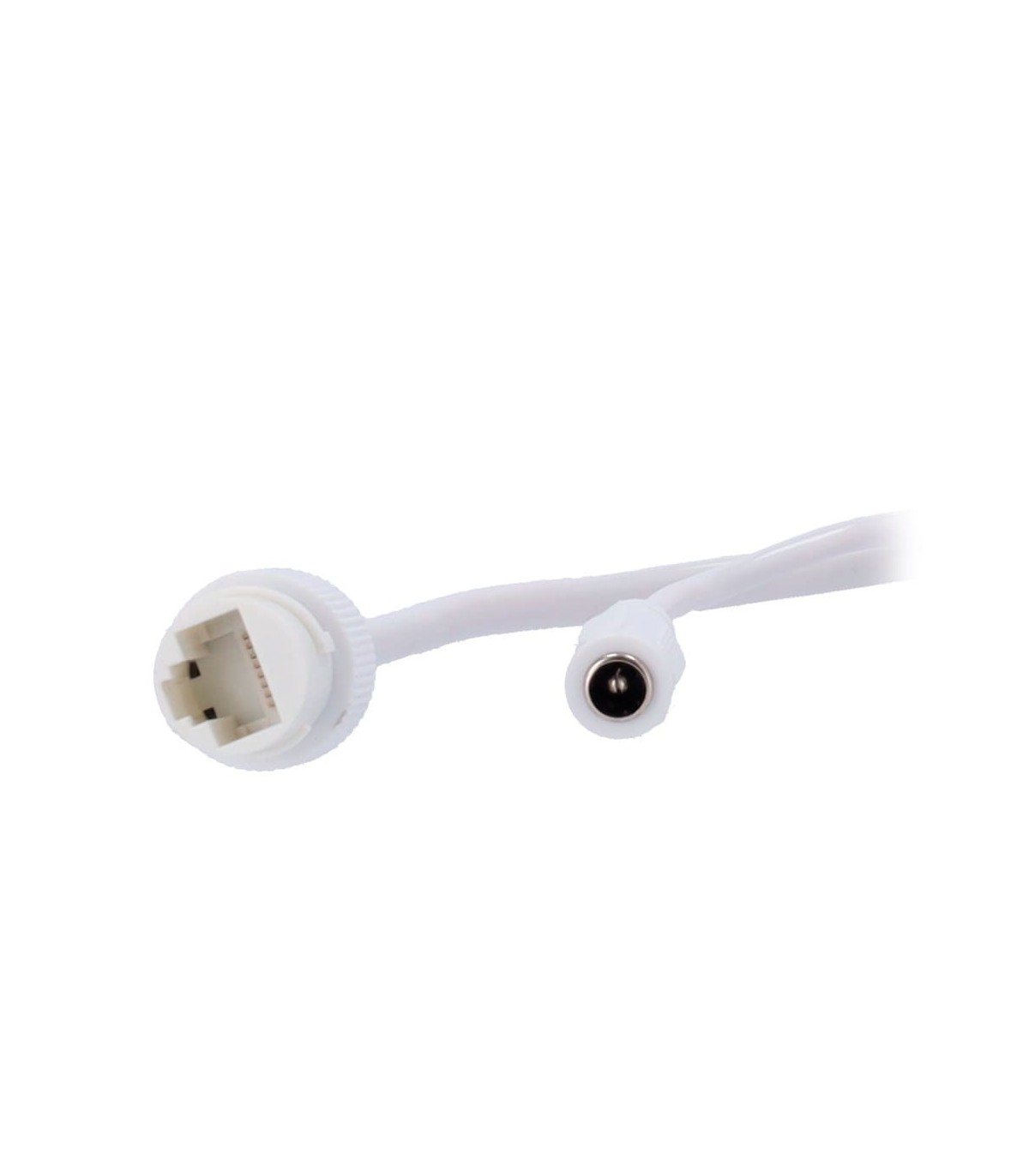

Wireless connectivity uses 2.4GHz WiFi, with support for IEEE 802.11b/g/n/ax and an integrated antenna. The camera also features an RJ45 10/100 Base-TX Ethernet interface. This allows the installation to use either WiFi or a wired network connection according to the requirements of the project.

Local storage is provided through a MicroSD card up to 512GB. The built-in microphone and speaker enable two-way audio communication. The camera also supports audible and visual warning, helping make alerts more noticeable in the monitored area.

IP66 protection and 12V DC power supply

The IP66 protection rating allows the camera to be used in outdoor installations exposed to demanding environmental conditions. Its specified operating temperature ranges from -30°C to 60°C, with relative humidity up to 95% without condensation. Power is supplied via 12V DC ±25%.

The combination of 3MP resolution, 4mm lens, Pan & Tilt movement, Smart IR 30m, warm light 10m, WiFi, Auto Tracking, MicroSD 512GB and two-way audio makes this Uniarch camera suitable for projects requiring mobile surveillance and wireless connectivity.
