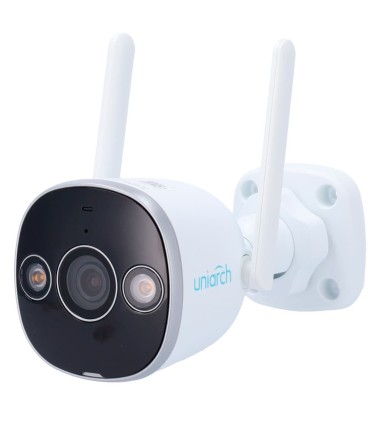

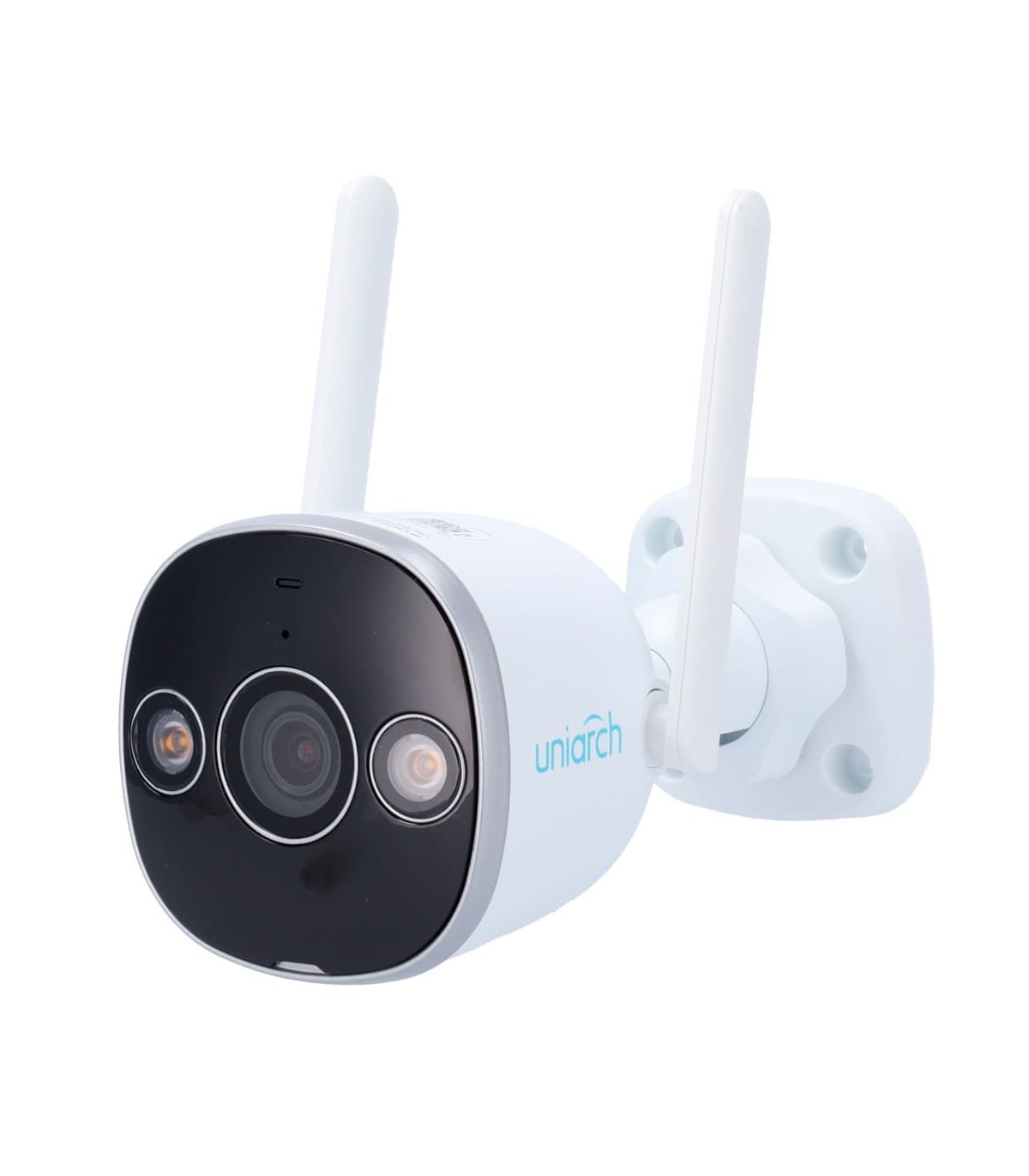

Uho-B2D-M5F4D - Uniarch 5MP 4mm Bullet WiFi IP Camera

Uho-B2D-M5F4D - Uniarch 5MP 4mm Bullet WiFi IP Camera

The Uho-B2D-M5F4D is a Uniarch Bullet WiFi IP camera designed for video surveillance systems requiring high resolution and wireless connectivity. Equipped with a 1/3" 5MP CMOS sensor, it provides a maximum resolution of 2880×1620 at up to 25fps. Its fixed 4mm F1.6 lens provides a field of view suitable for monitoring a variety of indoor and outdoor areas.

This model combines Dual Light illumination, 2.4GHz WiFi connectivity, an Ethernet interface and local storage via MicroSD card up to 512GB. The integrated microphone and speaker also provide two-way audio communication. Its IP67 protection makes the camera suitable for outdoor installations.

5MP image and fixed 4mm lens

The 5MP (2880×1620) resolution provides images with a high level of detail. The fixed 4mm F1.6 lens offers a horizontal field of view of 79.0°, a vertical field of view of 42.3° and a diagonal field of view of 85.1°. This configuration provides balanced coverage for different video surveillance applications.

Image processing includes DWDR and 2D/3D DNR digital noise reduction. The camera also supports Ultra 265, H.265, H.264 and MJPEG video compression formats. These technologies allow video transmission to be adapted to the requirements of the installation.

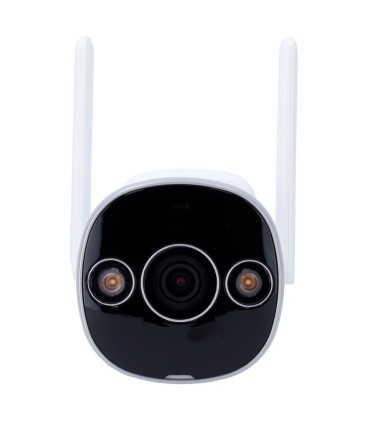

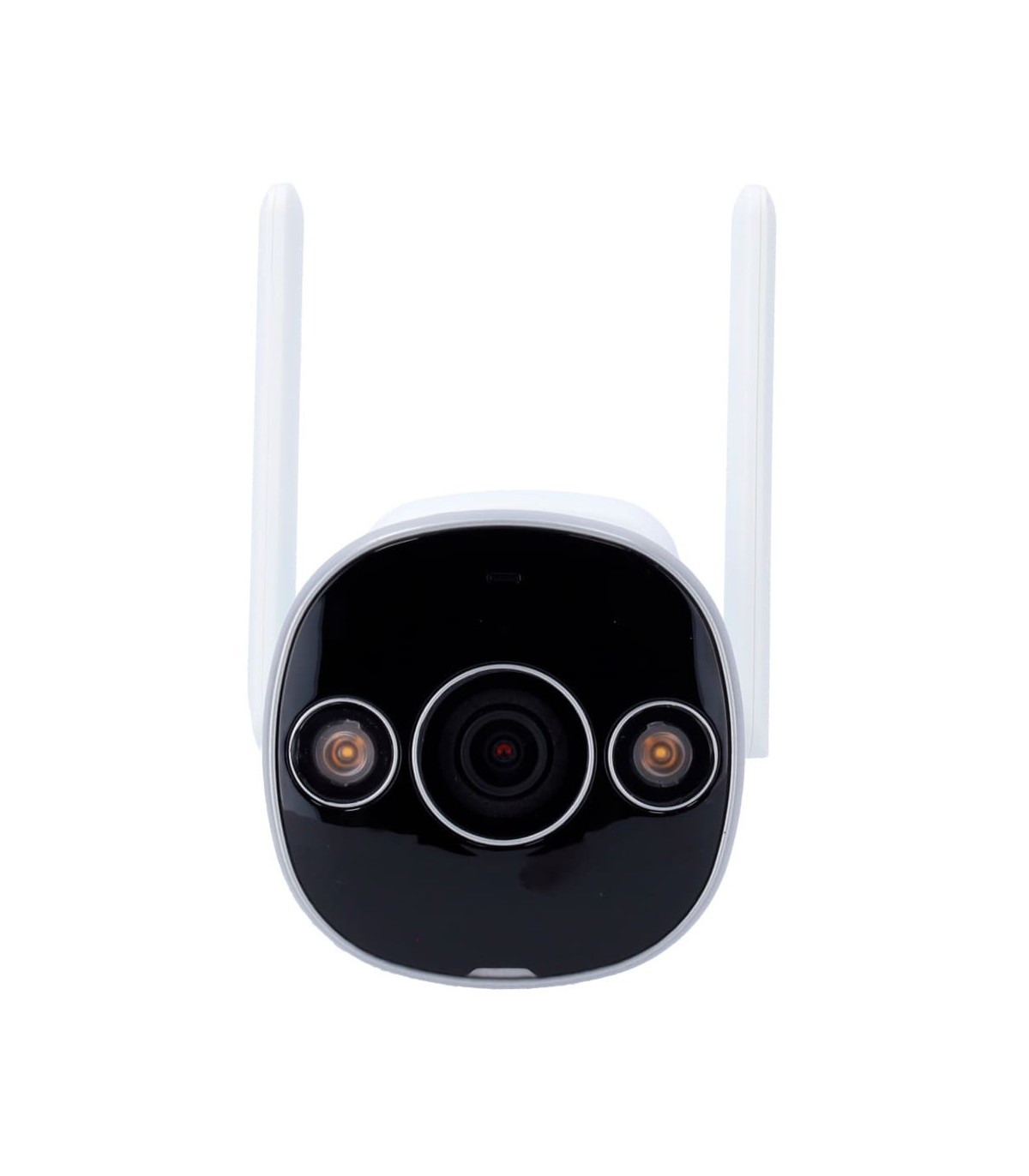

Uho-B2D-M5F4D with Smart IR and Dual Light

The Uho-B2D-M5F4D features Dual Light technology to improve surveillance in low-light conditions. The Smart IR system provides infrared illumination with a range of up to 20 m. In addition, the warm light reaches up to 10 m and provides visible illumination when required.

The Day/Night system uses a mechanical ICR filter to automatically adapt the image to changing lighting conditions. This allows the camera to maintain surveillance both during the day and in low-light environments.

2.4GHz WiFi, MicroSD 512GB and two-way audio

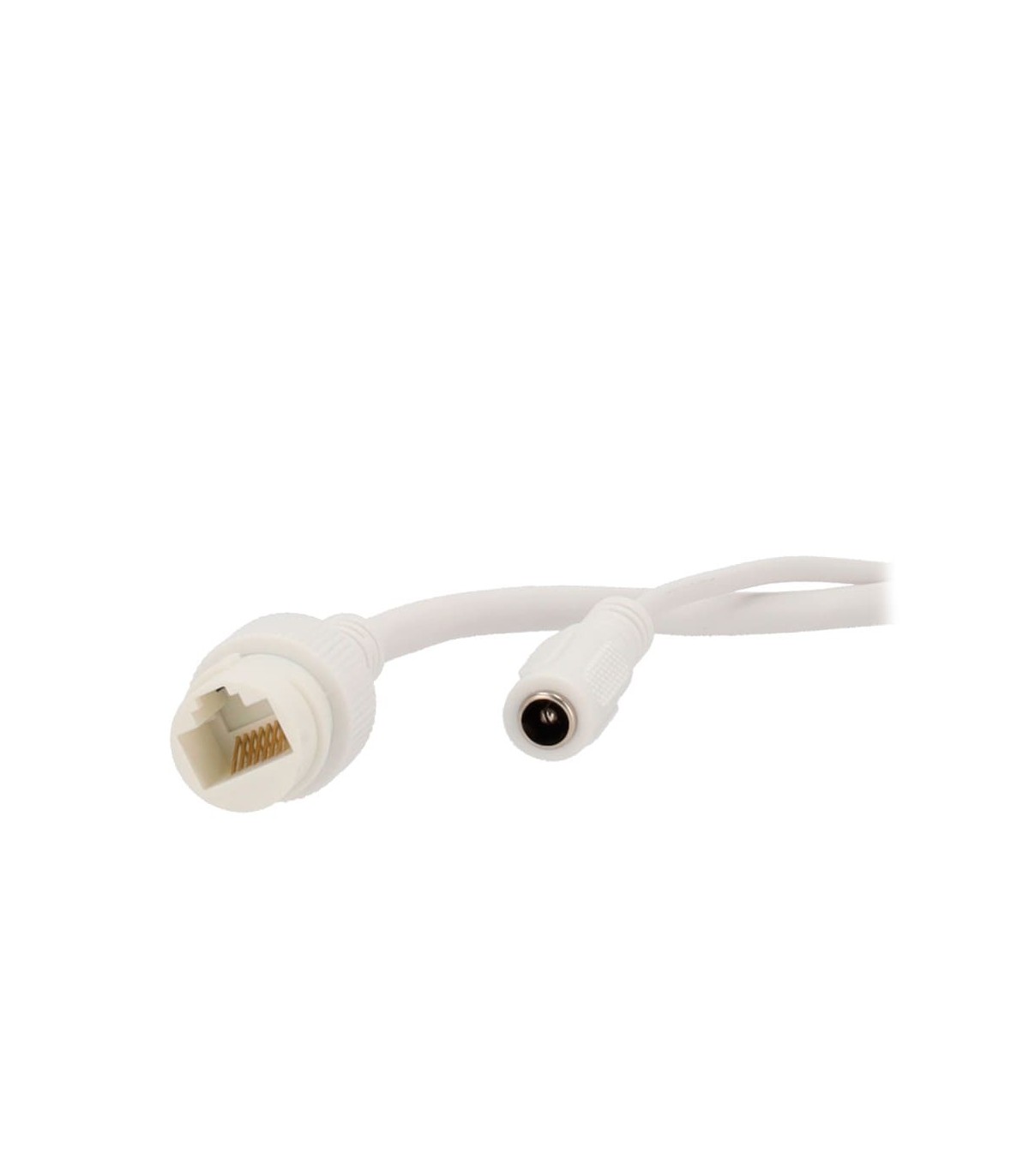

Wireless connectivity via 2.4GHz WiFi facilitates integration with compatible networks. An RJ45 10/100 Base-TX Ethernet interface is also available for wired network connectivity. The installer can therefore select the communication method that best suits the requirements of each project.

Local storage can be provided through a MicroSD card up to 512GB. In addition, the built-in microphone and speaker enable two-way audio. This function adds voice communication to the video surveillance system.

Outdoor installation with IP67 protection

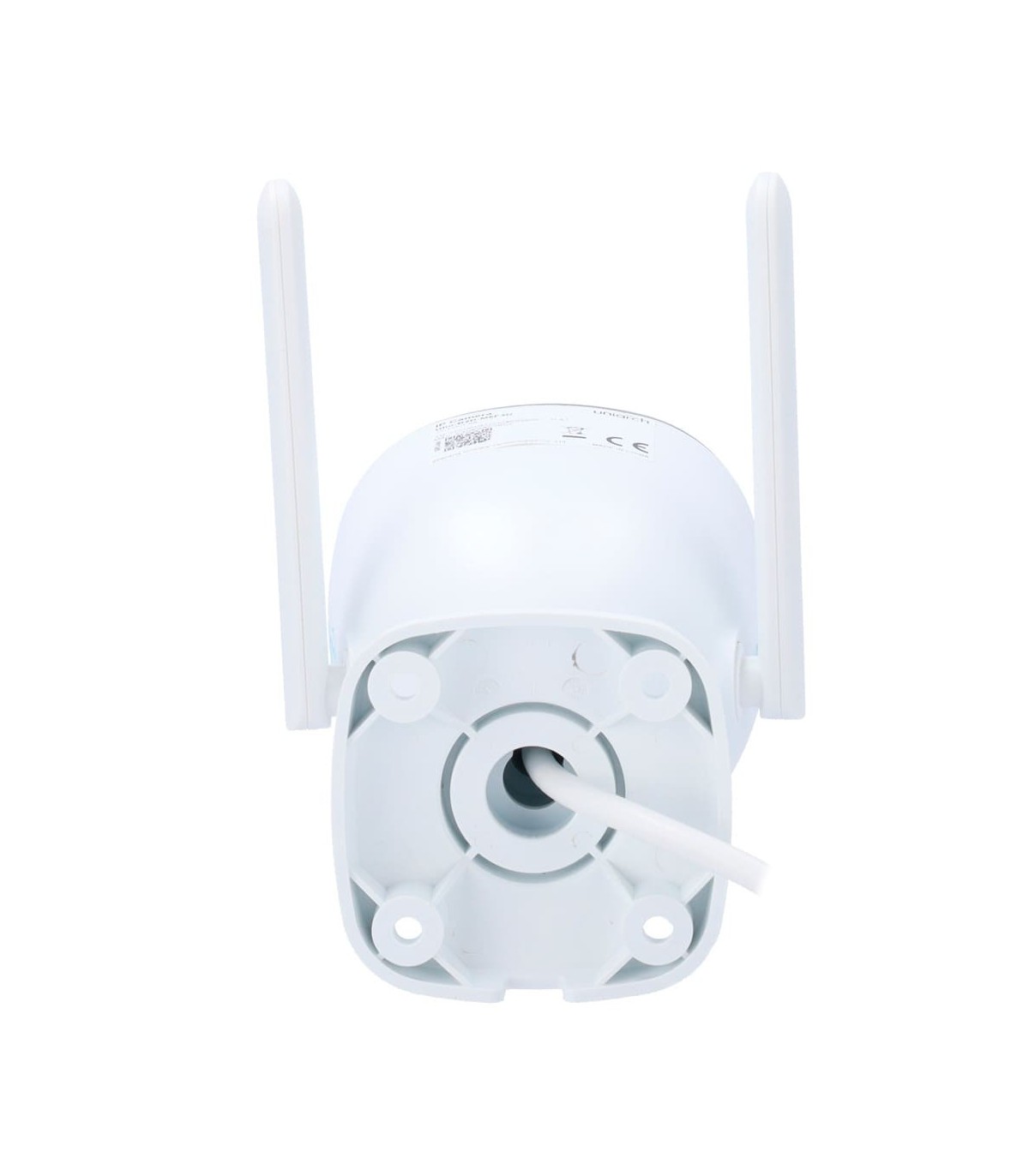

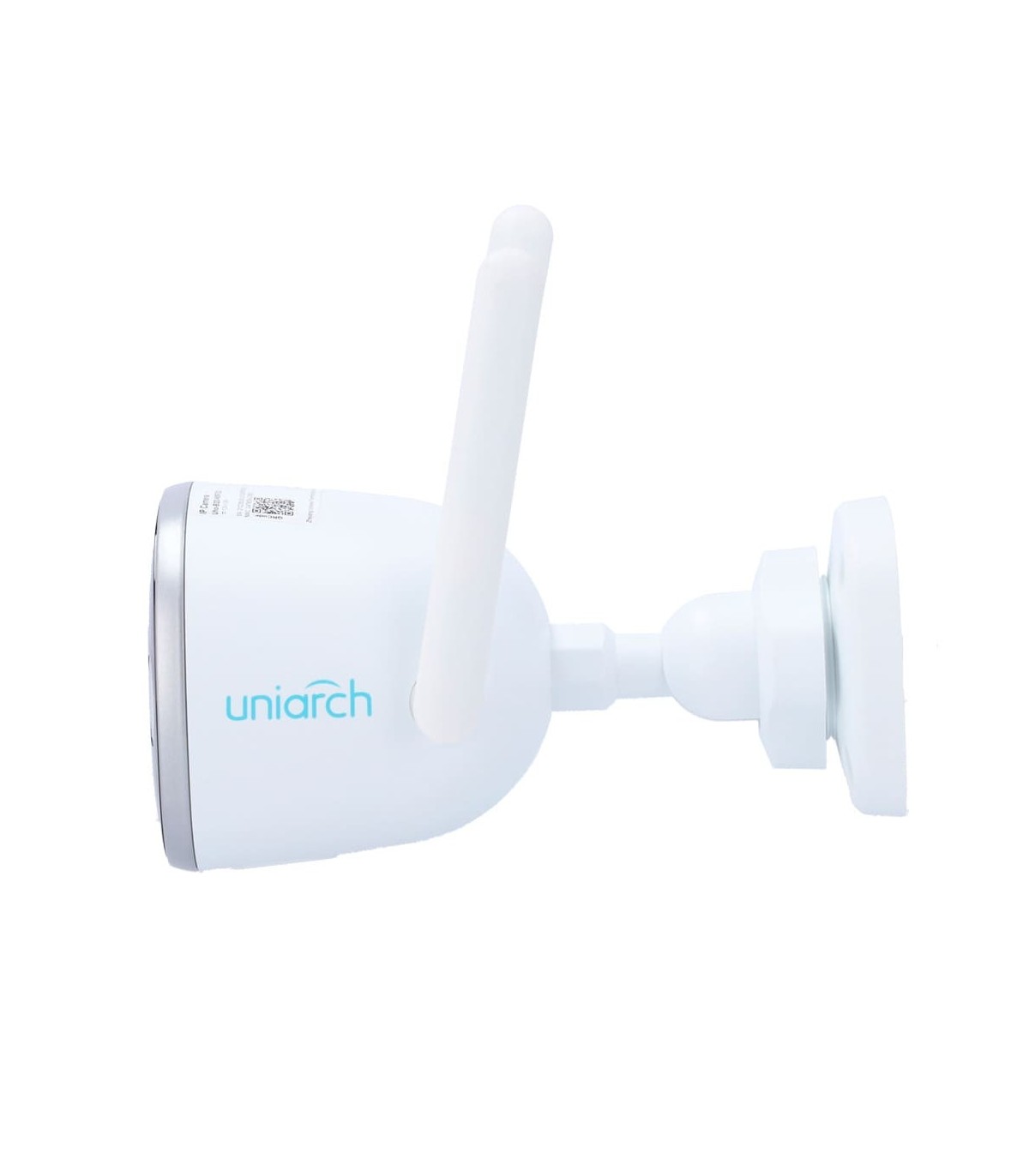

The camera structure provides manual adjustment on three axes, with Pan from 0° to 360°, Tilt from 0° to 90° and Rotation from 0° to 360°. These are mechanical adjustments used to position the camera during installation. They do not correspond to motorised PT movements.

The IP67 protection rating allows the camera to be installed in outdoor environments. Power is supplied via 12V DC ±25%. The combination of 5MP resolution, 4mm lens, Smart IR 20m, Dual Light, WiFi, MicroSD 512GB and two-way audio makes this model suitable for a wide range of IP video surveillance projects.
