Uho-S3S-M33D - Uniarch Dual 3MP+3MP PT IP Camera WiFi

Uho-S3S-M33D - Uniarch Dual 3MP+3MP PT IP Camera WiFi

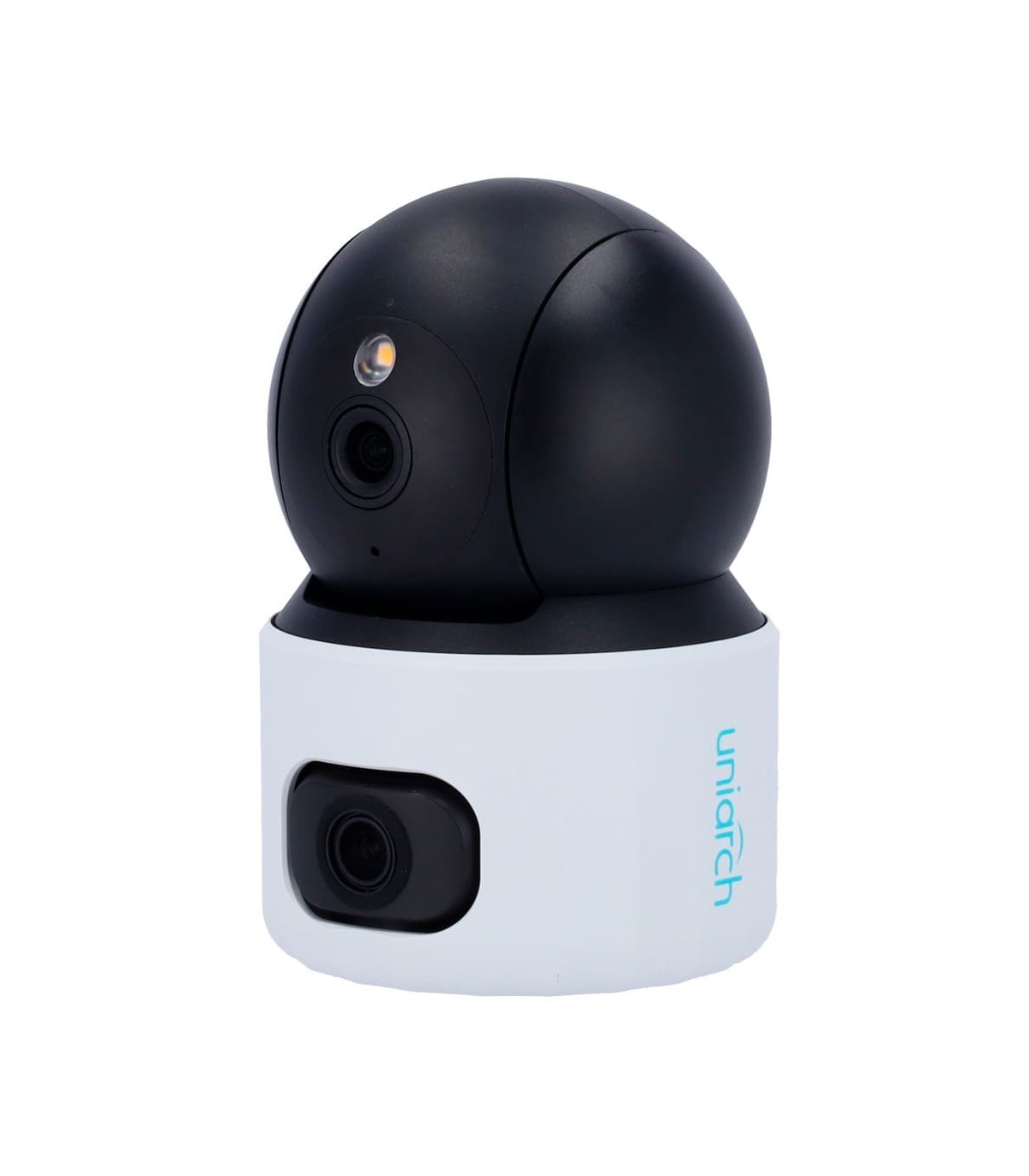

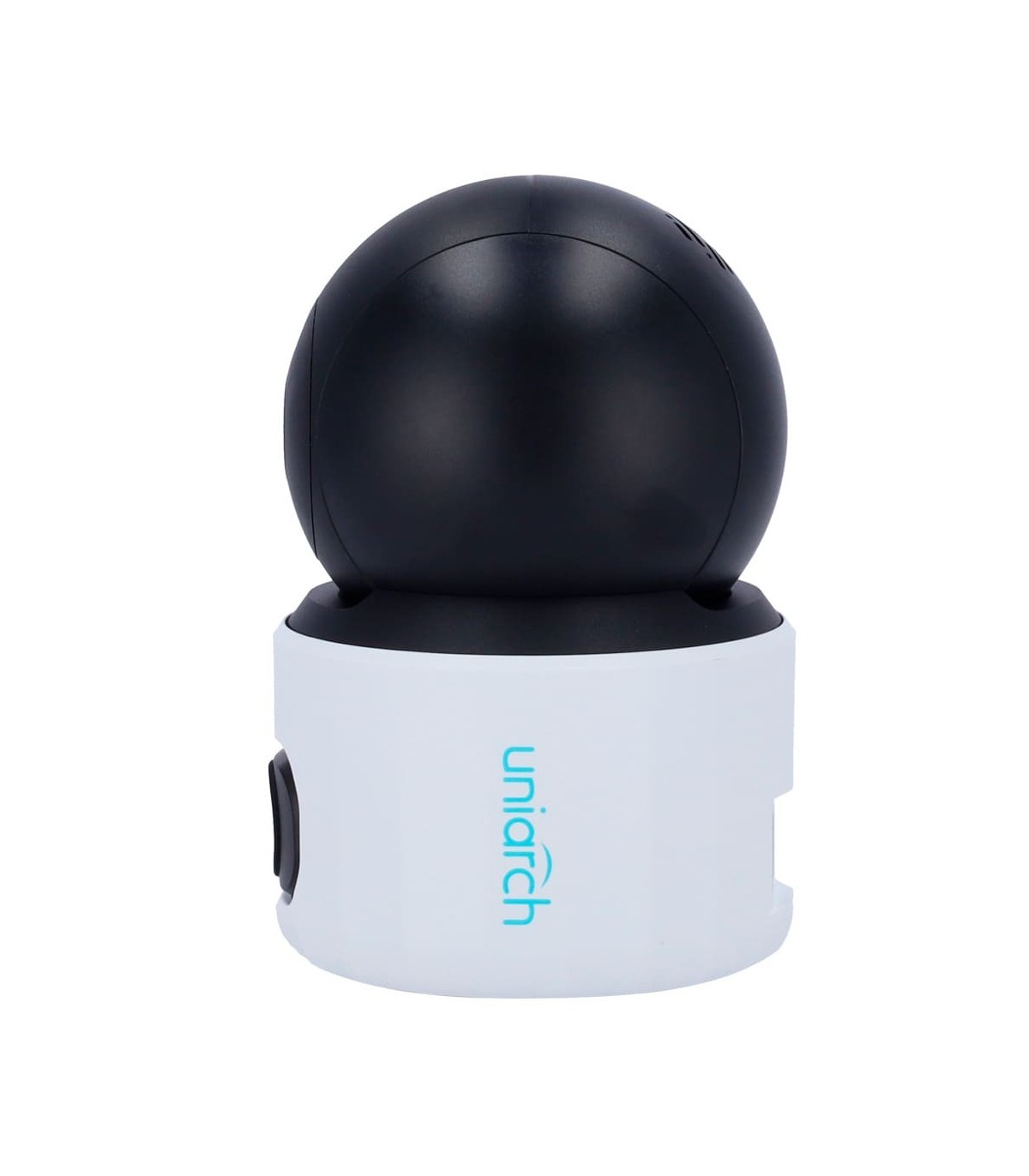

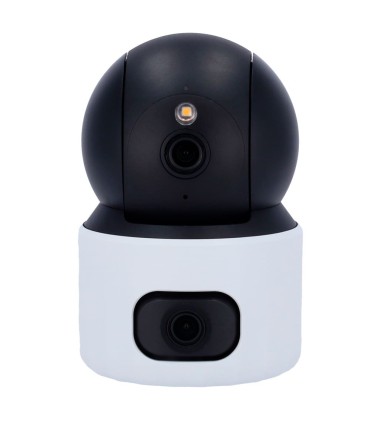

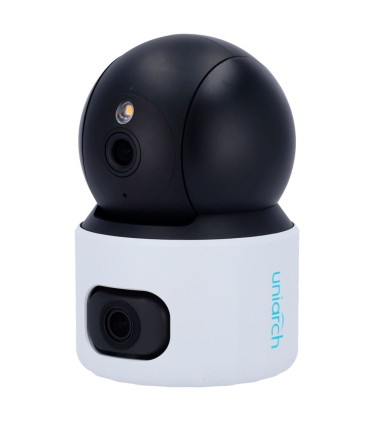

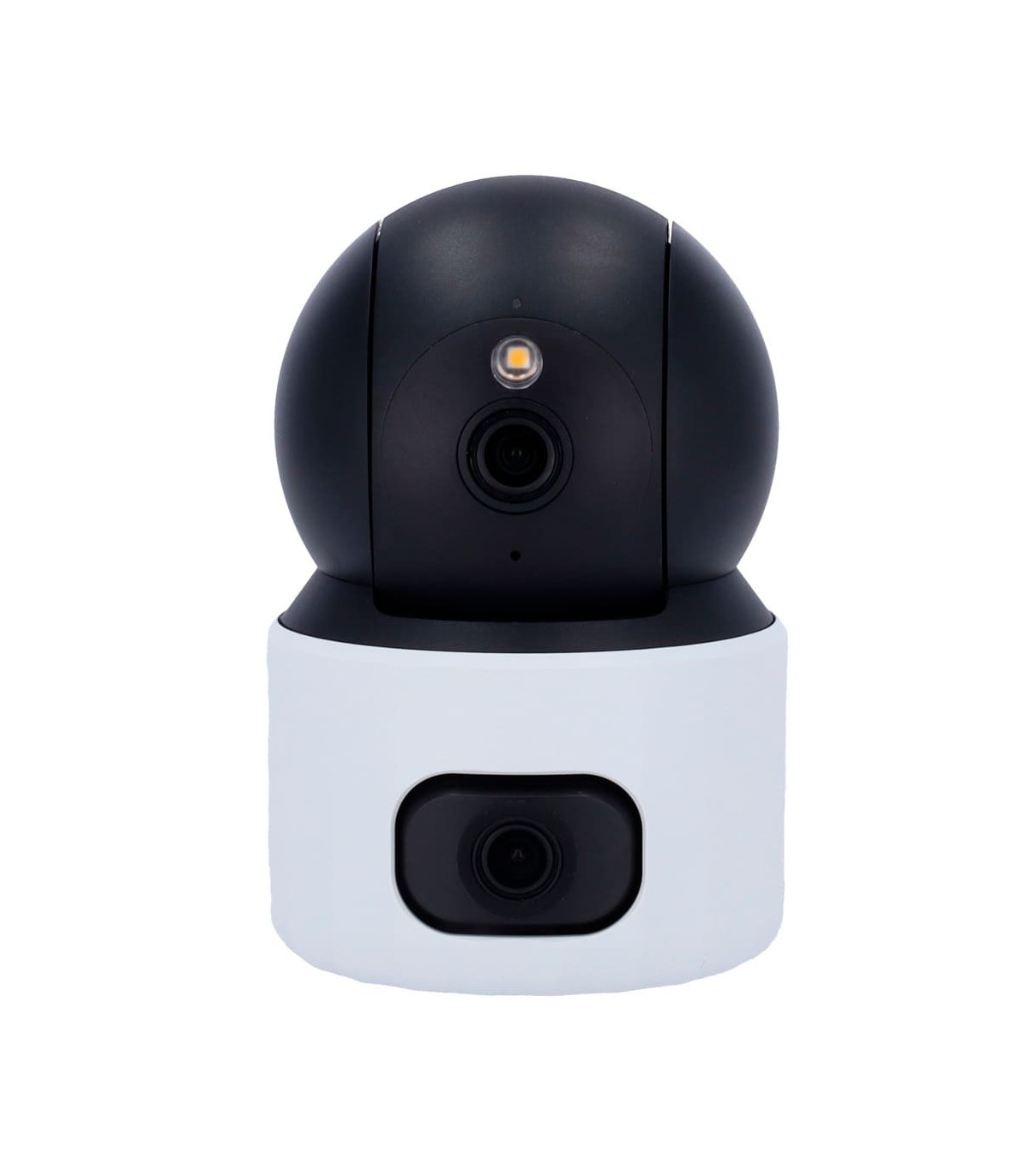

The Uho-S3S-M33D is a Uniarch indoor PT IP camera featuring a dual 3MP+3MP lens system. The combination of a fixed panoramic camera and a detail PT camera makes it possible to monitor two perspectives with a single device. Both video channels are available through a single IP address, simplifying integration and management within the video surveillance system.

Both channels use 3MP CMOS sensors and fixed 4mm F2.0 lenses. This configuration maintains an overview of the monitored area through the panoramic channel, while the second channel can be repositioned using the PT mechanism. The camera also features 2.4GHz WiFi, Ethernet connectivity, MicroSD storage and two-way audio.

Dual 3MP+3MP lens system

The dual lens architecture provides a fixed panoramic channel and a detail PT channel. Both deliver 3MP resolution and use a fixed 4mm lens. The specified field of view for each channel is 91.5° horizontally, 48.1° vertically and 96.3° diagonally.

The PT channel provides horizontal Pan movement from 0° to 355° and vertical Tilt movement from -15° to 90°. It also supports 20 preset positions. The detail channel features 4X digital zoom for digitally enlarging a selected area of the image. This is digital zoom and does not correspond to an optical zoom lens.

Uho-S3S-M33D with Smart IR and white light

The Uho-S3S-M33D features Smart IR up to 10 m for video surveillance in environments with little or no ambient lighting. The detail PT channel also provides white light with a range of up to 10 m, adding a visible lighting option for use in low-light conditions.

The camera uses automatic day/night switching through ICR and includes DWDR to improve image visibility in scenes with differences in lighting. 2D/3D DNR technologies help reduce digital noise and maintain a cleaner image under different lighting conditions.

Intelligent detection and two-way audio

Analysis functions include Motion Detection and Ultra Motion Detection, with classification of people, vehicles and animals. The camera also supports additional detection functions, including loud sound, crying and tampering. Its built-in sound and light alarm provides local alerts to complement video monitoring.

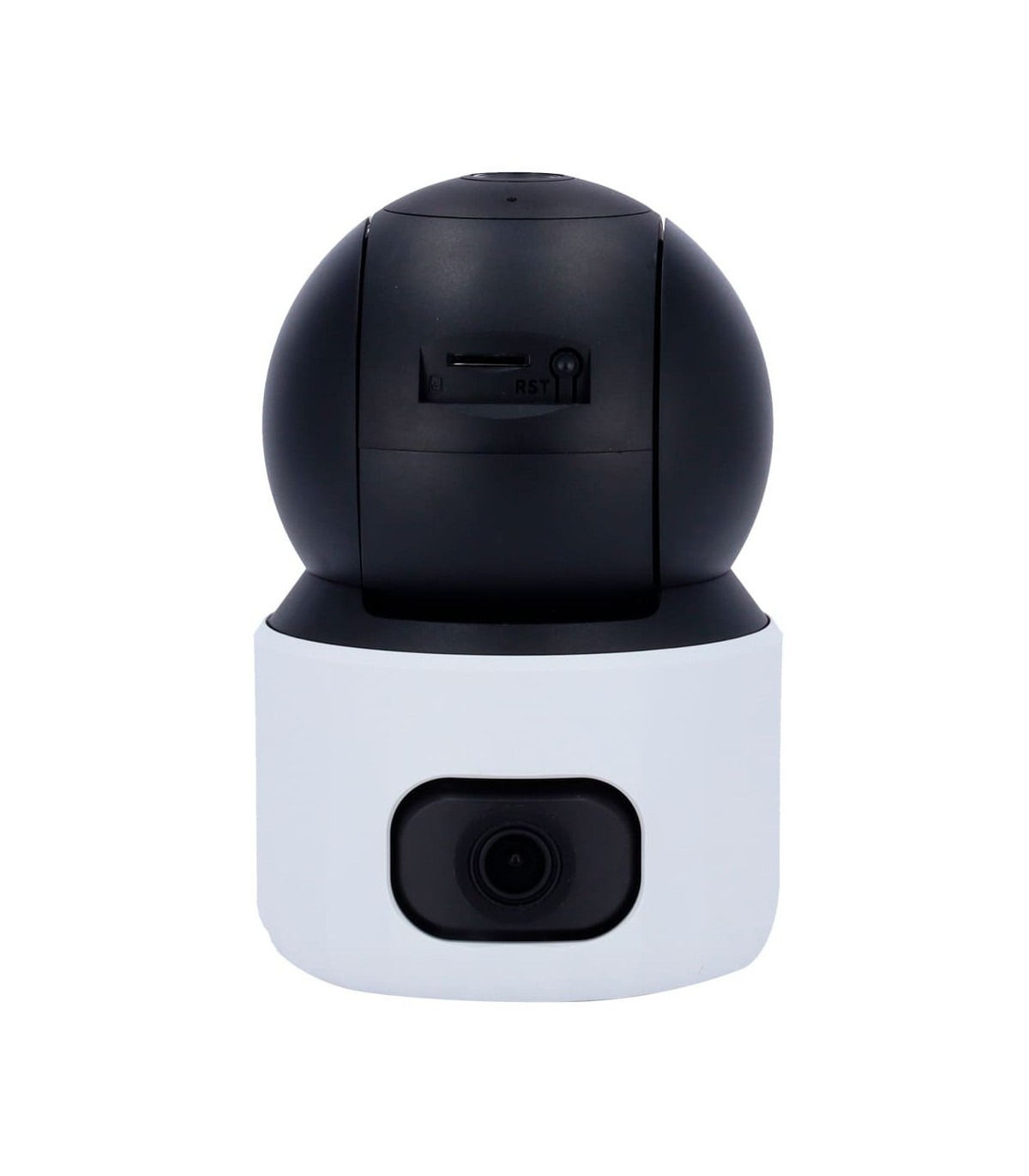

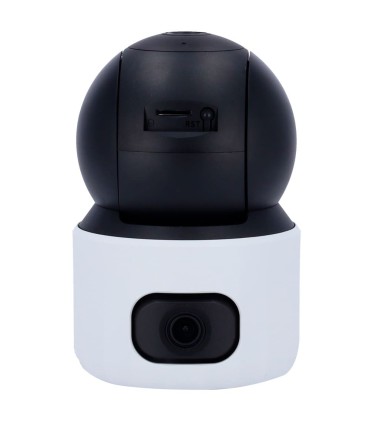

The built-in microphone and speaker provide two-way audio directly through the camera. For video transmission, the device supports Ultra 265, H.265 and H.264 compression. Local recording is available through a MicroSD card up to 512 GB.

WiFi, Ethernet and USB-C power supply

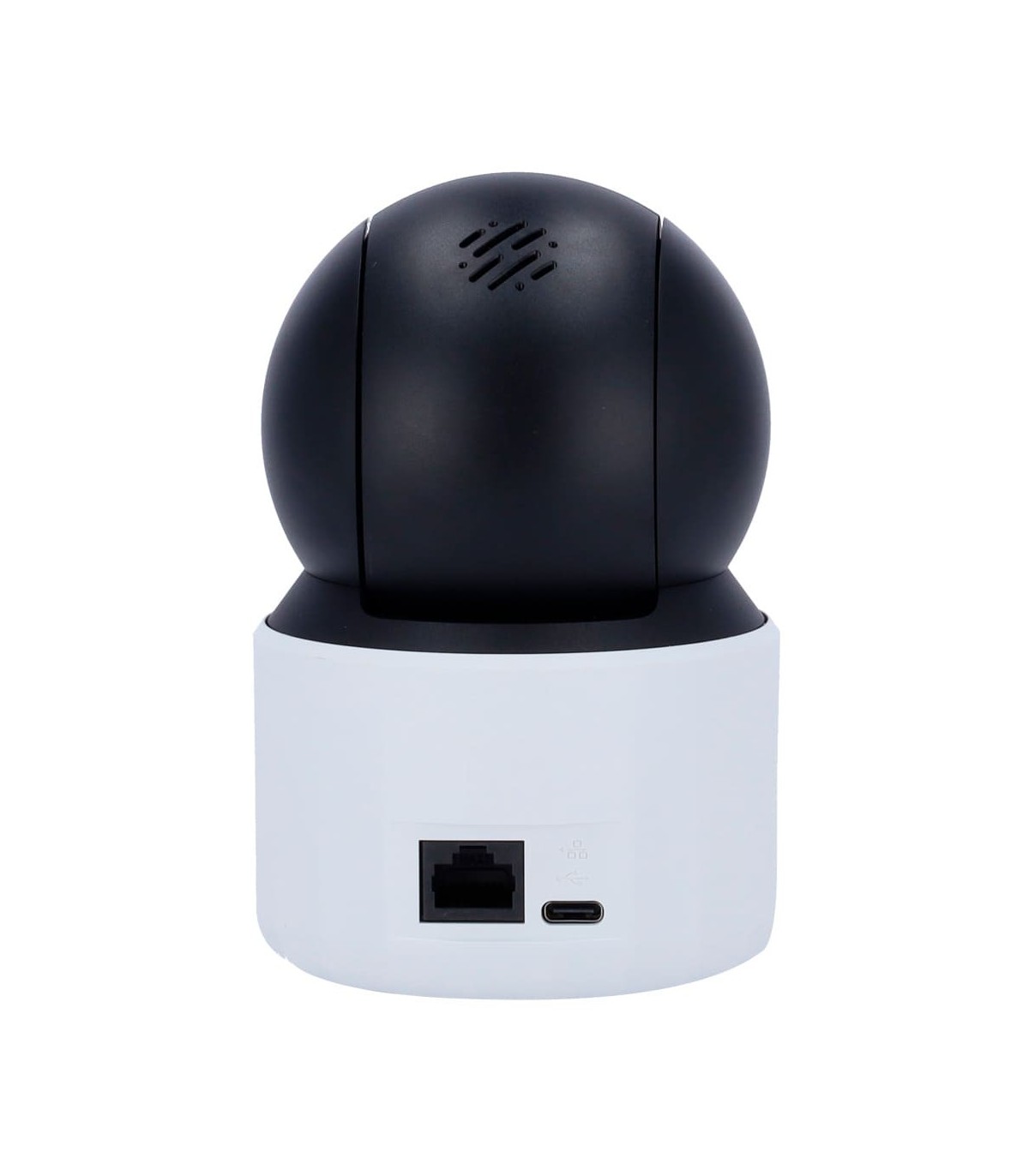

2.4GHz WiFi connectivity allows the camera to connect to the network without an Ethernet cable for data transmission. When a wired connection is preferred, an RJ45 10/100 Mbps Ethernet interface is also available. This flexibility makes it easier to adapt the installation to the existing network infrastructure.

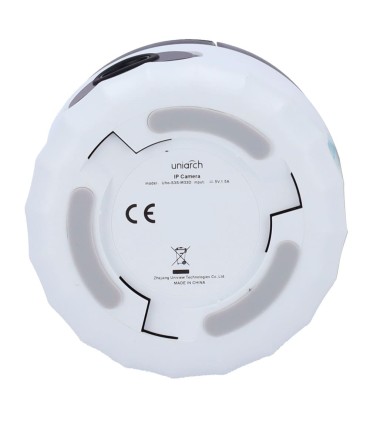

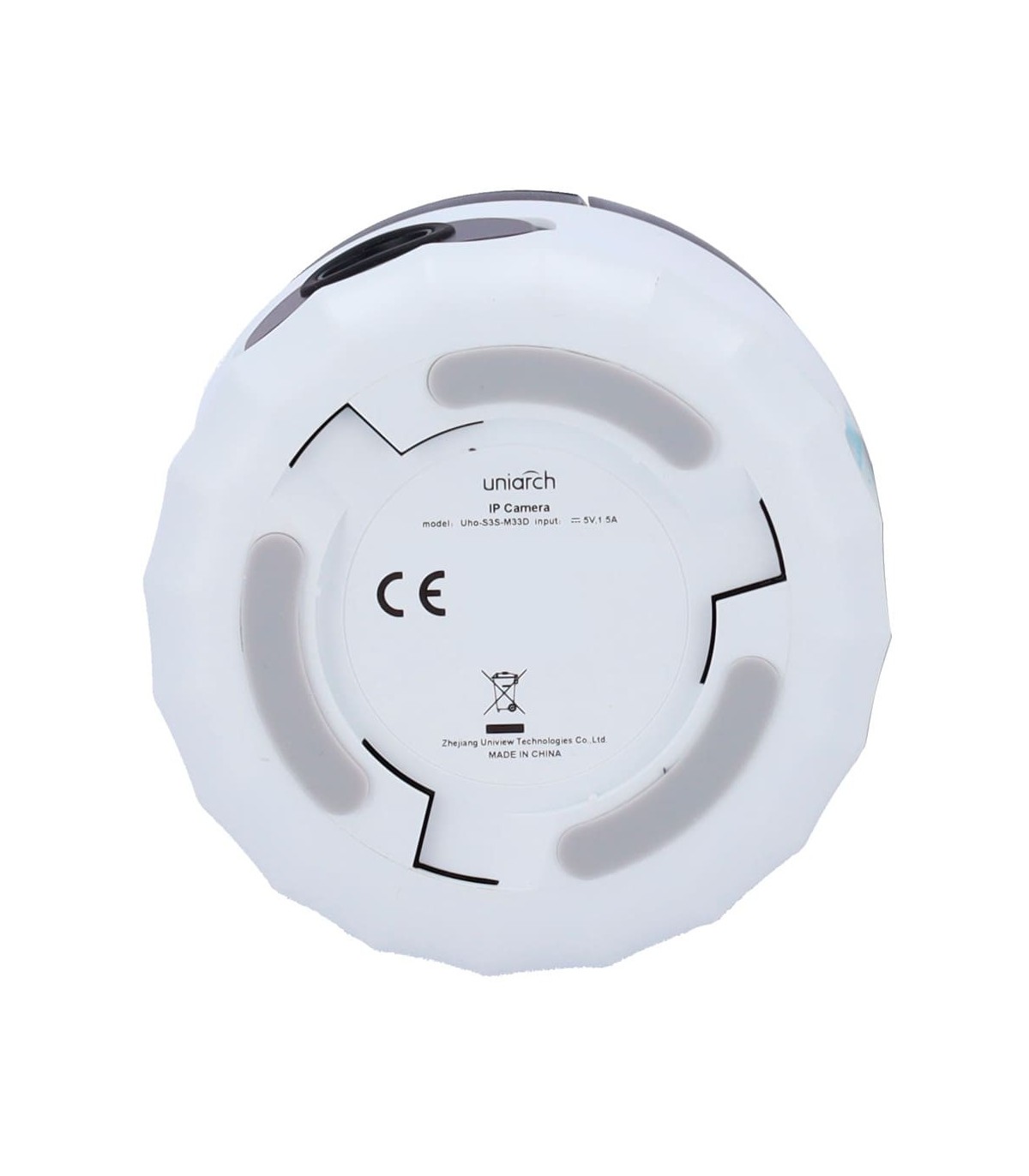

Power is supplied via 5V DC / 1.5A through USB-C. The combination of dual 3MP+3MP lenses, PT movement, Smart IR, white light, intelligent detection, two-way audio, WiFi and MicroSD storage makes this Uniarch solution suitable for indoor video surveillance applications that require a permanent overview together with a second adjustable view.
