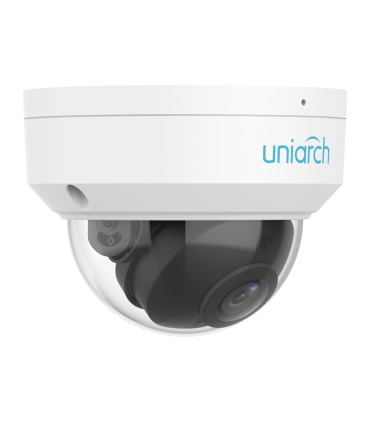

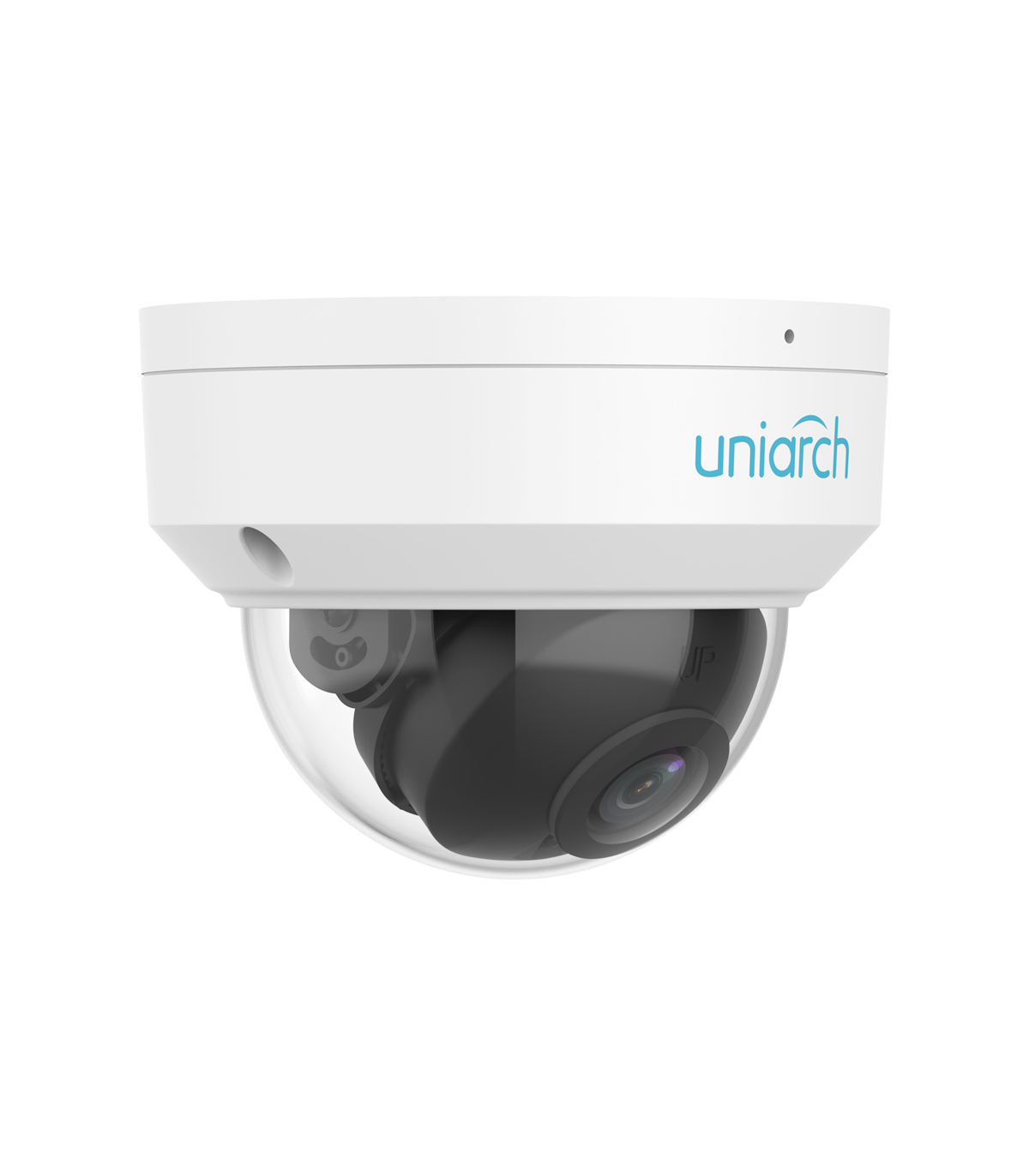

Uho-D1R-M2F3-A - Uniarch WiFi 2MP Dome IP Camera 2.8mm

Uho-D1R-M2F3-A - Uniarch WiFi 2MP Dome IP Camera 2.8mm

The Uho-D1R-M2F3-A is a 2MP Uniarch Dome IP camera designed for video surveillance systems that require WiFi connectivity together with a compact and resistant design. It combines Full HD resolution, a fixed 2.8mm lens, Smart IR illumination and intelligent detection functions. These features make the camera suitable for different professional security applications.

Equipped with a 1/3.0" CMOS sensor, the camera provides a maximum resolution of 2MP (1920 × 1080). Its fixed 2.8mm F2.0 lens provides wide coverage of the monitored area. Minimum illumination in colour mode is 0.01 Lux, allowing the camera to operate in environments with low levels of ambient light.

Uho-D1R-M2F3-A with 2.4GHz WiFi

One of the main features of the Uho-D1R-M2F3-A is its 2.4GHz WiFi connectivity. The camera supports IEEE 802.11b/g/n standards and operates within the 2.4 to 2.4835GHz frequency range. This connection allows the device to be integrated into a compatible wireless network and provides greater flexibility when planning the installation.

In addition to WiFi connectivity, the Uho-D1R-M2F3-A includes an RJ45 10/100 Mbps network interface. Data transmission can therefore also be carried out through a wired network connection when required by the installation.

2MP, 2.8mm lens and Smart IR up to 30 m

The Uho-D1R-M2F3-A combines 2MP resolution with a fixed 2.8mm F2.0 lens. The Smart IR system provides infrared illumination with a range of up to 30 m. This feature helps maintain video surveillance at night or when the available ambient lighting is insufficient.

For the 2.8mm lens, the specified field of view is approximately 103° horizontally, 60.7° vertically and 108.4° diagonally. The DORI distances are 46.7 m for detection and 18.7 m for observation. Recognition reaches 9.3 m, while identification reaches 4.7 m.

Uho-D1R-M2F3-A with UMD for humans and vehicles

The Uho-D1R-M2F3-A integrates UMD for intelligent human and vehicle detection. This function adds analysis capabilities to motion events and helps focus detection on these types of targets within the functions supported by the camera.

DWDR technology helps improve the visibility of areas with different lighting levels. For video transmission and recording, the camera supports Ultra 265, H.265 and H.264 compression formats. These technologies contribute to efficient use of network bandwidth and storage resources.

Built-in microphone and MicroSD up to 512GB

The Uho-D1R-M2F3-A includes a built-in microphone for capturing audio together with video. The device also supports local storage using a MicroSD card up to 512GB. This provides an additional option for storing recordings directly on the camera.

The Dome design features 3-axis adjustment, making it easier to correctly position the viewing area during installation. Its metal and plastic construction combines a compact design with characteristics suitable for locations where increased physical resistance is required.

Uho-D1R-M2F3-A with IP67 and IK10 protection

The Uho-D1R-M2F3-A features an IP67 protection rating, making it suitable for outdoor installations. Its IK10 vandal-resistant rating provides additional protection against mechanical impacts. This is particularly useful in locations where the camera may be physically accessible.

Power is supplied through 12V DC ±25%, with a specified maximum consumption of only 2.2W. With 2MP resolution, a 2.8mm lens, 2.4GHz WiFi, Smart IR up to 30 m, UMD for humans and vehicles, MicroSD support up to 512GB, IP67 and IK10 protection, the Uho-D1R-M2F3-A provides a versatile solution for professional IP video surveillance projects.
