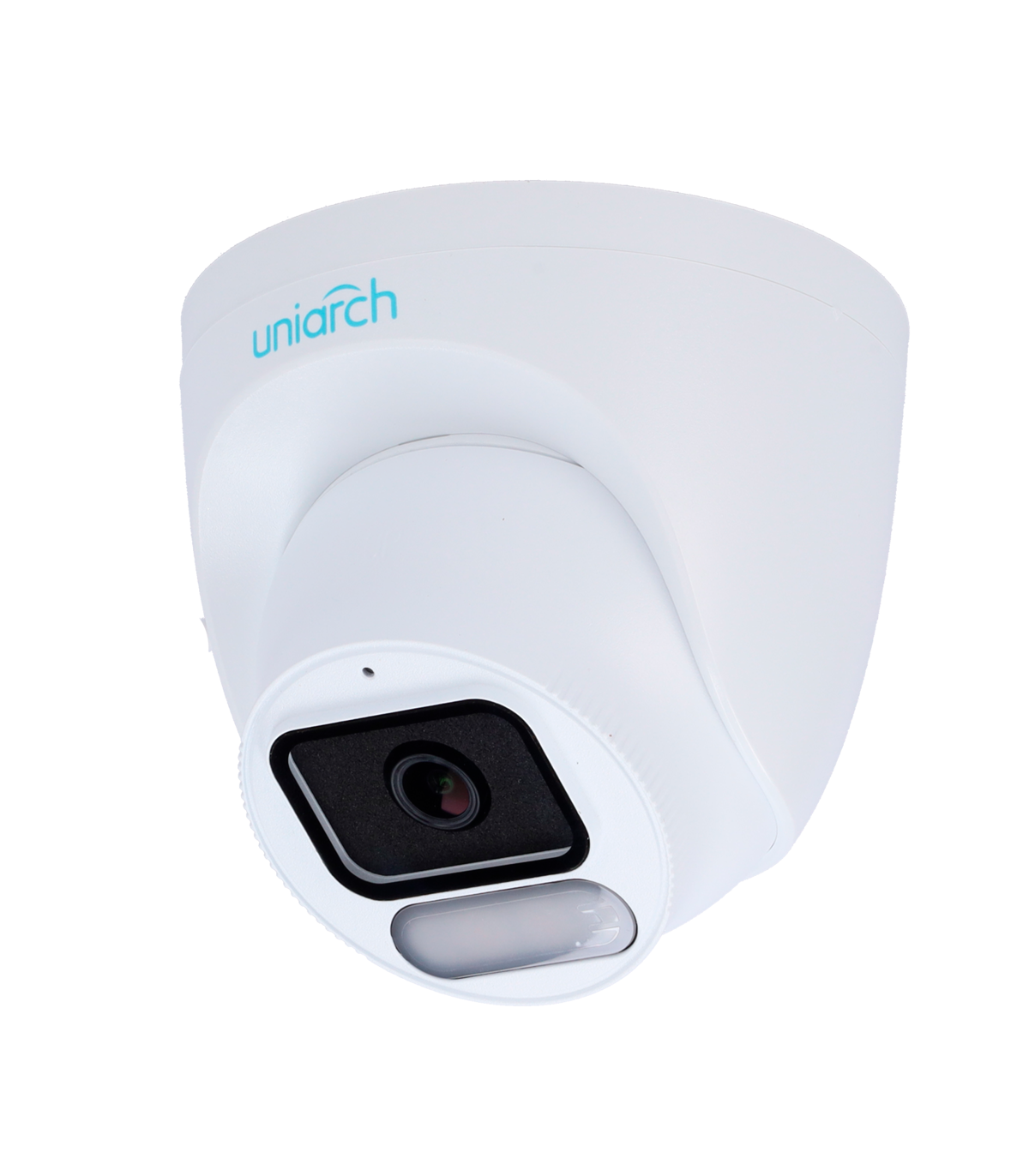

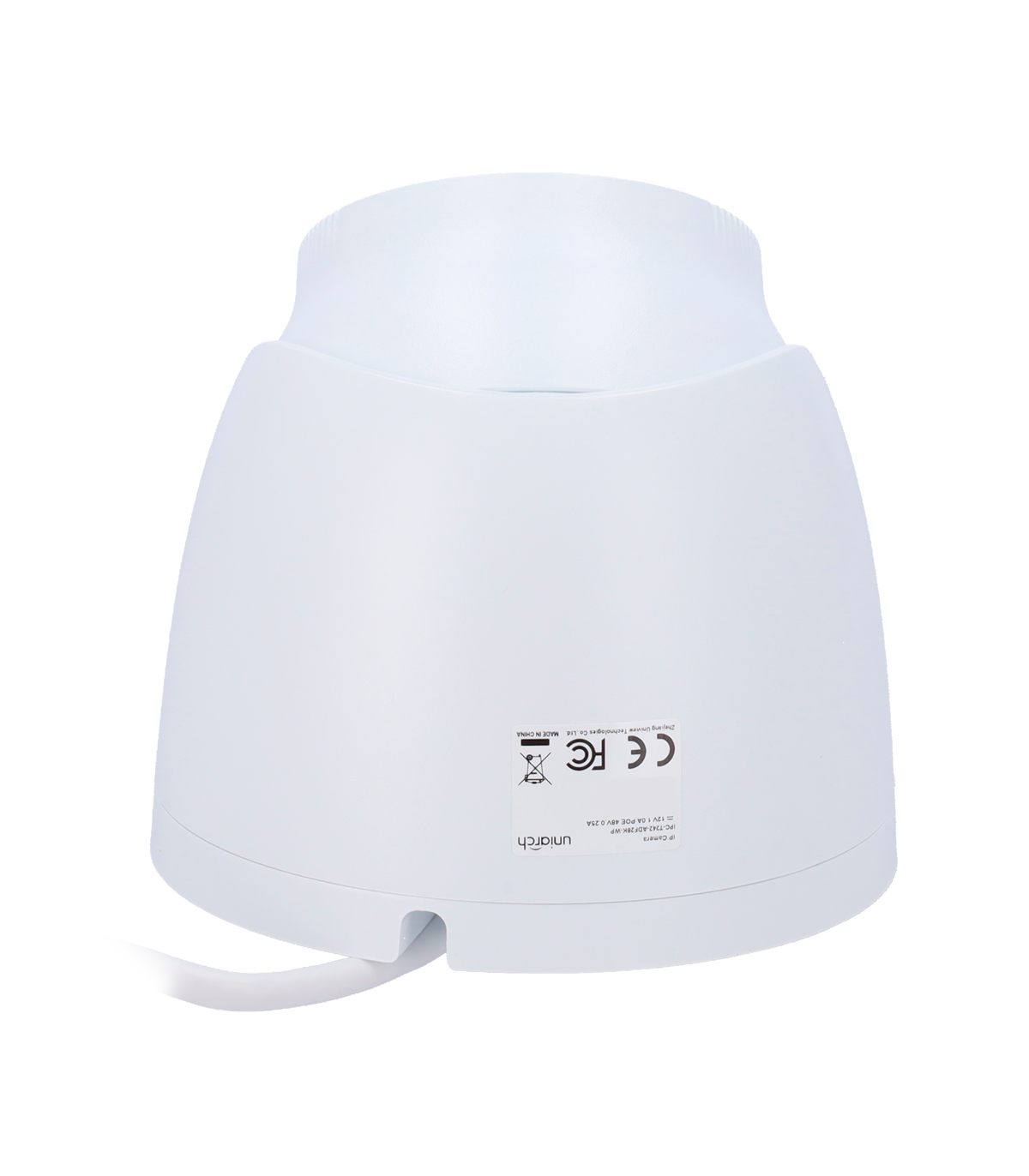

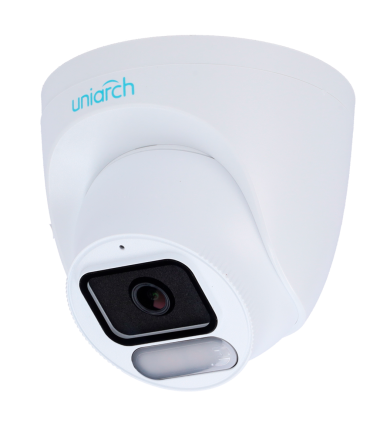

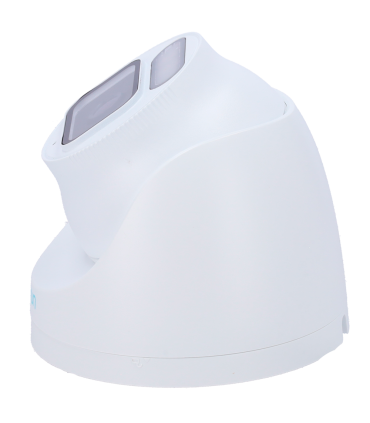

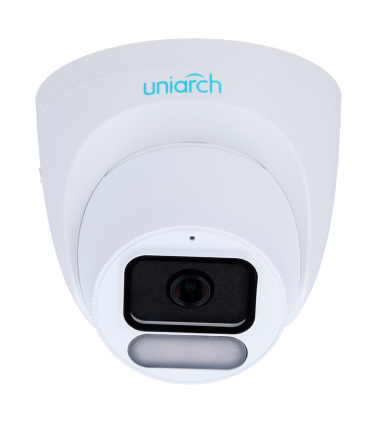

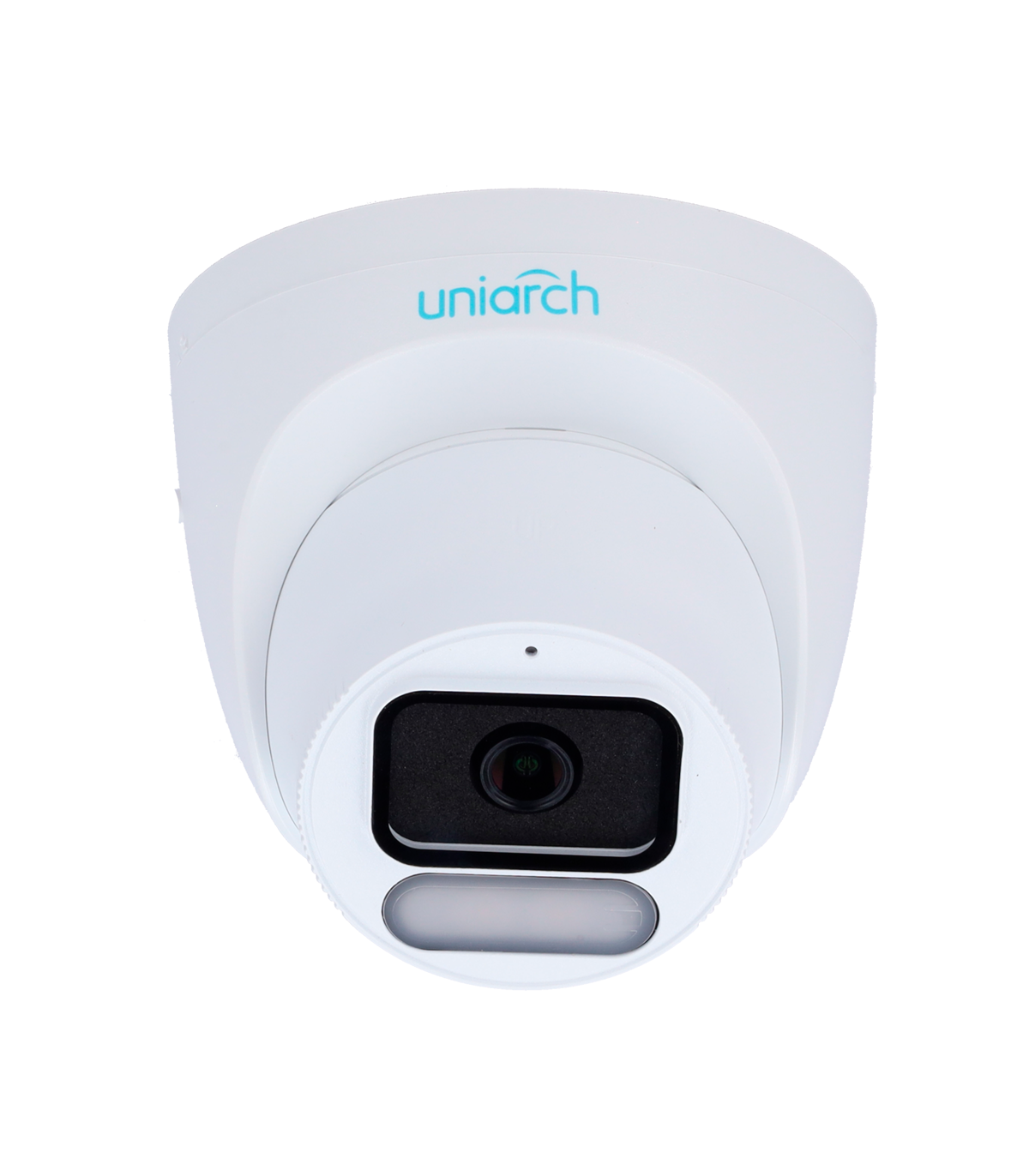

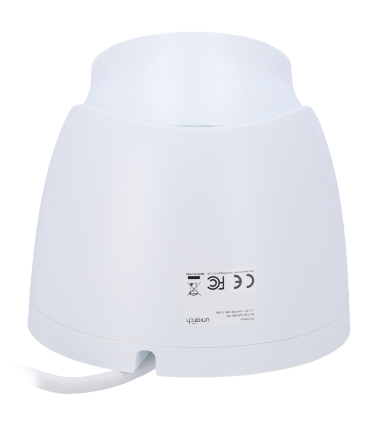

IPC-T242-ADF28K-WP - Uniarch ColorHunter 2MP Turret IP Camera 2.8mm

IPC-T242-ADF28K-WP - Uniarch ColorHunter 2MP Turret IP Camera 2.8mm

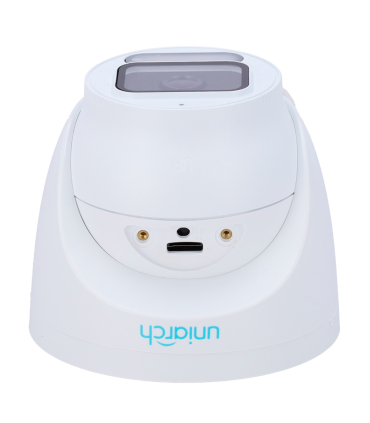

The IPC-T242-ADF28K-WP is a 2MP Uniarch Turret IP camera designed for professional video surveillance systems. It combines ColorHunter with Wise-ISP technology, a large F1.0 aperture lens and supplementary warm light. This combination enables colour images to be captured in environments with low illumination levels. The camera therefore provides a versatile solution for both indoor and outdoor security applications.

The 1/2.7" CMOS sensor enables the IPC-T242-ADF28K-WP to provide a maximum resolution of 2MP (1920 × 1080). Its fixed 2.8mm F1.0 lens provides a wide field of view. The 2.8mm version covers 99° horizontally, 53° vertically and 118° diagonally. This configuration is particularly suitable for areas requiring broad surveillance coverage.

IPC-T242-ADF28K-WP with ColorHunter and Wise-ISP

ColorHunter with Wise-ISP is one of the main technologies incorporated into the IPC-T242-ADF28K-WP. Combined with the F1.0 aperture, it allows the camera to make effective use of the available ambient light. Minimum illumination is 0.0003 Lux (F1.0, AGC ON). The camera can also operate at 0 Lux when supplementary illumination is active.

The integrated warm light has a range of up to 30 m. This supplementary illumination helps maintain colour images when ambient lighting is insufficient. The IPC-T242-ADF28K-WP also incorporates a mechanical ICR filter for day and night operation.

2MP, 2.8mm lens and True WDR 120dB

The IPC-T242-ADF28K-WP provides Full HD video with a maximum resolution of 2MP (1920 × 1080) at up to 30fps. To optimise bandwidth and storage requirements, the camera supports Ultra 265, H.265 and H.264 video compression.

True WDR 120dB improves image reproduction when bright and dark areas are present simultaneously in the same scene. The camera also includes AGC and 2D/3D digital noise reduction. ROI and privacy masking provide additional options for adapting the image to the specific requirements of each installation.

IPC-T242-ADF28K-WP with UMD

The IPC-T242-ADF28K-WP incorporates UMD (Ultra Motion Detection), adding intelligent analysis to video surveillance events. The camera also provides motion detection, camera tampering detection and audio detection. These functions help improve the management of relevant events within a professional security system.

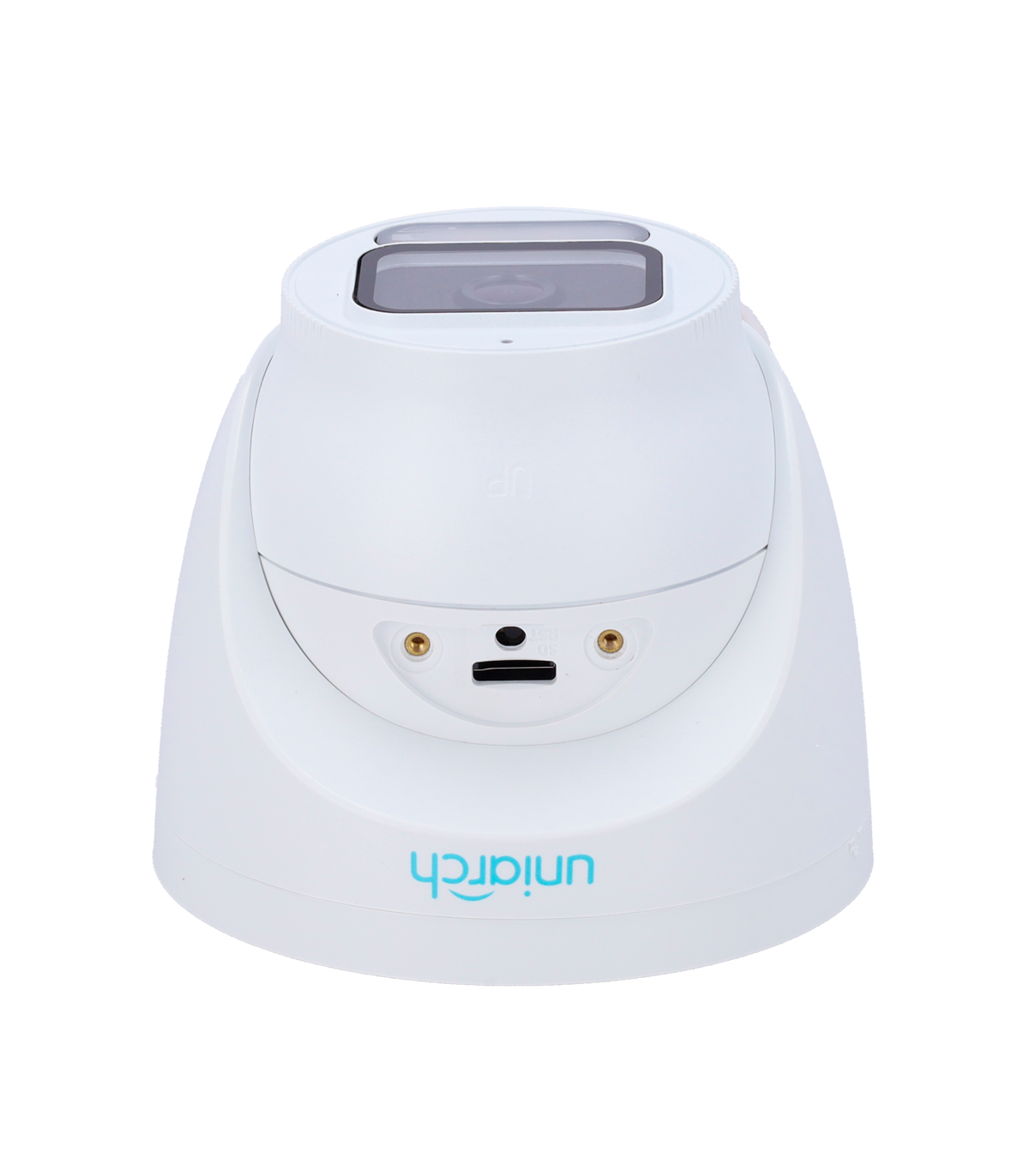

The built-in microphone enables audio to be captured from the monitored area. Local storage is also supported through a MicroSD card up to 512GB. This provides an additional option for recording video directly on the camera.

ONVIF, PoE and MicroSD up to 512GB

The IPC-T242-ADF28K-WP connects to the network through an Ethernet RJ45 10/100 Base-T interface. Support for ONVIF Profile S/T facilitates integration with compatible network video recorders, software and other video surveillance platforms.

For power supply, the camera supports 12V DC and PoE IEEE 802.3af. PoE allows electrical power and network data to be transmitted through the same Ethernet cable. This can simplify installation when compatible PoE network infrastructure is available.

IPC-T242-ADF28K-WP with IP67 protection

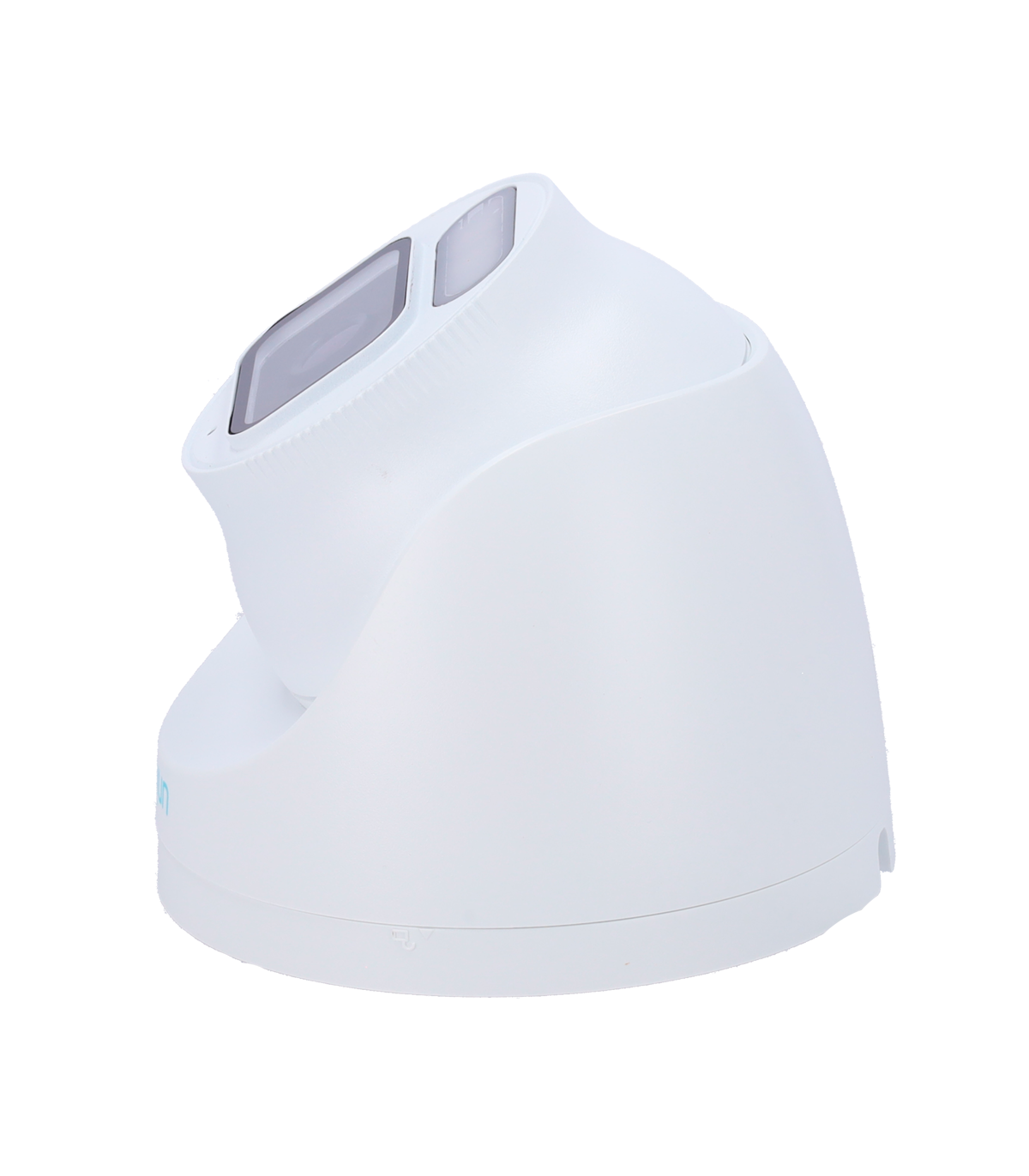

The Turret housing of the IPC-T242-ADF28K-WP has an IP67 protection rating. This makes the camera suitable for both indoor and outdoor installations. Its operating temperature range extends from -30°C to 60°C.

With 2MP resolution, a 2.8mm F1.0 lens, ColorHunter with Wise-ISP, warm light up to 30 m and True WDR 120dB, the IPC-T242-ADF28K-WP provides a strong combination for video surveillance in low-light conditions. UMD, a built-in microphone, MicroSD storage, ONVIF and PoE further provide the functionality required for a wide range of professional security projects.
