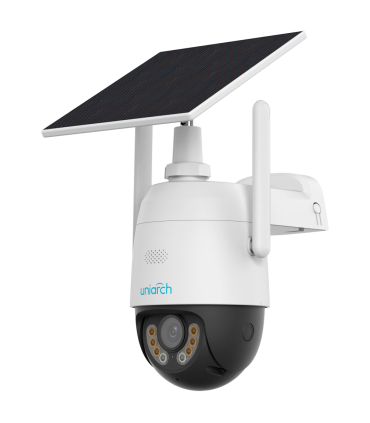

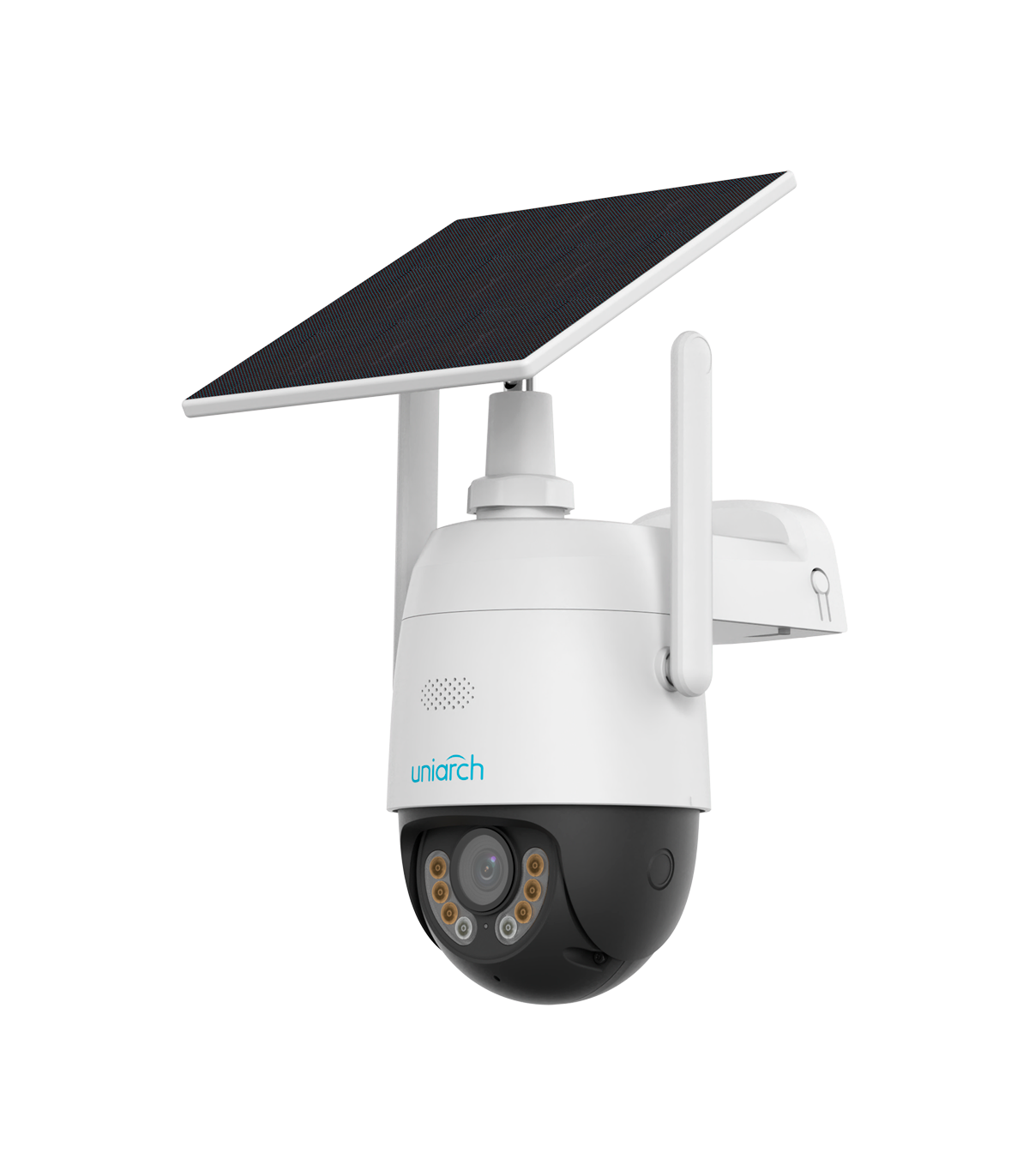

Uho-P2G-M3F4D-EU - Uniarch 4G Solar 3MP PT IP Camera 4mm

Uho-P2G-M3F4D-EU - Uniarch 4G Solar 3MP PT IP Camera 4mm

The Uho-P2G-M3F4D-EU is a 3MP Uniarch PT IP camera designed for video surveillance systems installed in locations where conventional network infrastructure may not be available. Its 4G LTE mobile connection, integrated battery and solar panel provide an autonomous surveillance solution. These features offer greater flexibility for a wide range of outdoor security installations.

The camera provides a maximum resolution of 3MP (2304 × 1296), delivering images with a good level of detail. Its fixed 4mm F1.0 lens provides a horizontal field of view of 87.5°, a vertical field of view of 46.3° and a diagonal field of view of 92.4°. The large F1.0 aperture also helps make effective use of the available light in the monitored environment.

Uho-P2G-M3F4D-EU with 4G LTE connectivity

One of the main features of the Uho-P2G-M3F4D-EU is communication through a 4G LTE mobile network. A NanoSIM card enables a data connection without depending on a local Ethernet or WiFi network. This configuration provides greater freedom when selecting the installation location.

4G connectivity is particularly useful in areas where installing network cabling would be difficult or impractical. The Uho-P2G-M3F4D-EU can therefore be used in different remote video surveillance applications, provided that compatible mobile network coverage is available at the installation site.

3MP, 4mm lens and Smart Dual Light

The Uho-P2G-M3F4D-EU combines 3MP resolution with a fixed 4mm F1.0 lens. Its Smart Dual Light system integrates infrared illumination and warm light, both with a range of up to 30 m. This combination allows the camera's illumination to adapt to different surveillance conditions.

For the 4mm lens, the DORI distances are approximately 62.1 m for detection and 24.8 m for observation. The recognition distance is 12.4 m, while identification reaches 6.2 m. These values provide a technical reference for evaluating the level of detail available according to the distance from the target.

Uho-P2G-M3F4D-EU with AOV and UMD

The AOV (Always-On Video) function supports video surveillance with power management designed for battery-powered equipment. This technology is particularly relevant for an autonomous solution such as the Uho-P2G-M3F4D-EU. Efficient energy management is an important factor in maintaining the operation of the system.

The camera also features UMD (Ultra Motion Detection). This function adds intelligent detection capabilities to motion events and helps manage relevant video surveillance events. The combination of AOV and UMD provides monitoring capabilities while making efficient use of the available energy resources.

PT movement and two-way audio

The Uho-P2G-M3F4D-EU provides horizontal Pan movement up to 345°, allowing the viewing direction of the camera to be adjusted remotely. Since the camera uses a fixed lens, its PT movement physically changes the monitored direction and does not represent an optical zoom system.

The device also features a built-in microphone and speaker. These components enable two-way audio communication through compatible system functions. For local storage, the camera supports MicroSD cards up to 512GB, providing an additional option for storing recordings directly on the device.

Uho-P2G-M3F4D-EU with battery and solar panel

Autonomous operation is a key feature of this Uniarch camera. The Uho-P2G-M3F4D-EU integrates a 10Ah battery and uses a 5W (5V/1A) solar panel for charging. This configuration reduces dependence on a conventional electrical power supply and makes installation easier in locations where cabling is limited.

The IP66 protection rating provides suitable resistance for outdoor installations. With 3MP resolution, 4G LTE connectivity, a 4mm F1.0 lens, Smart Dual Light, AOV, UMD, two-way audio, MicroSD storage up to 512GB and solar power, the Uho-P2G-M3F4D-EU provides an autonomous solution for professional remote video surveillance projects.
