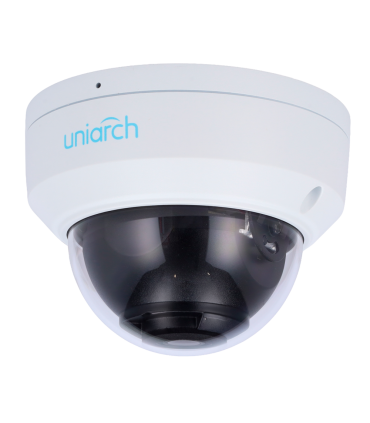

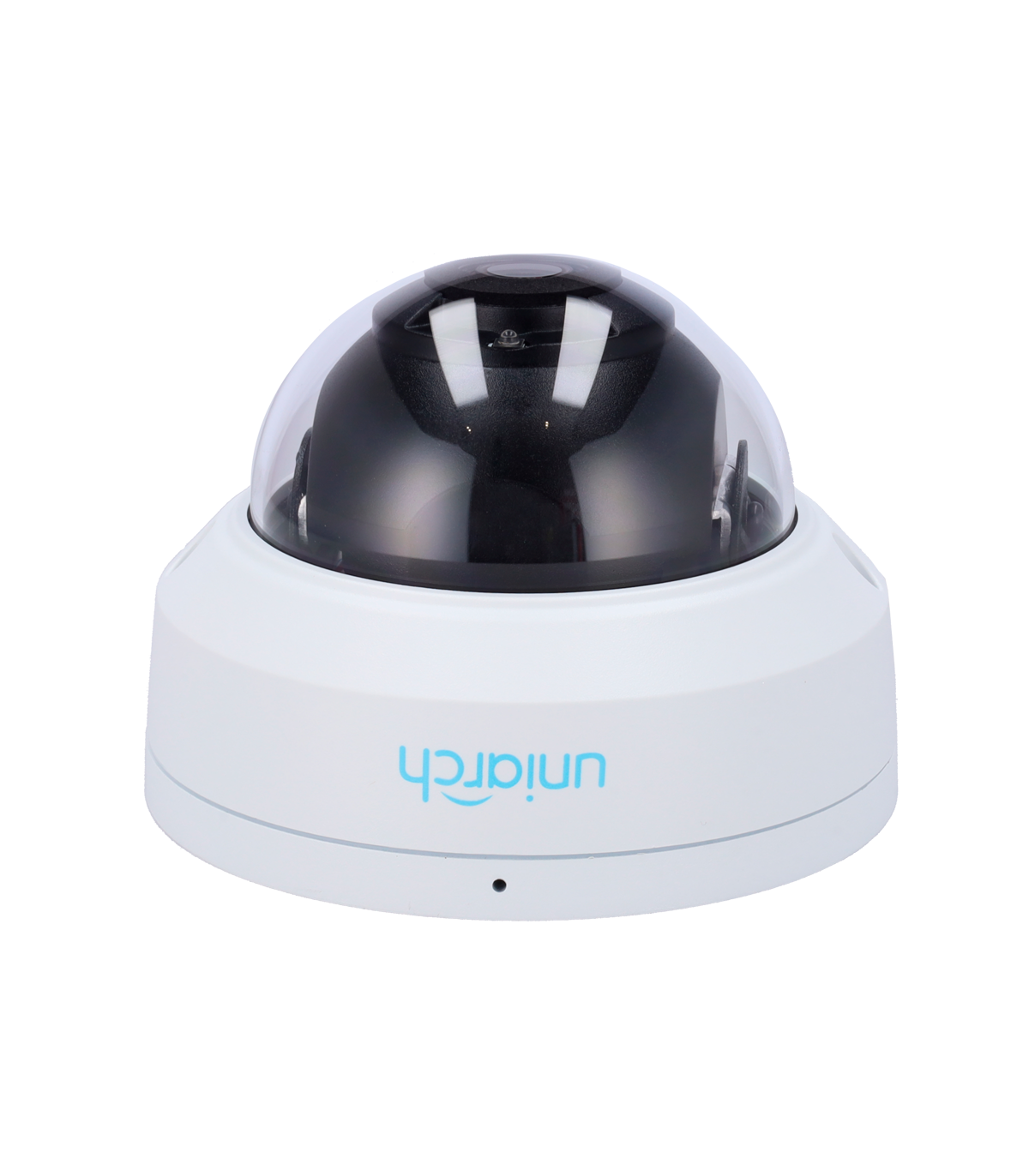

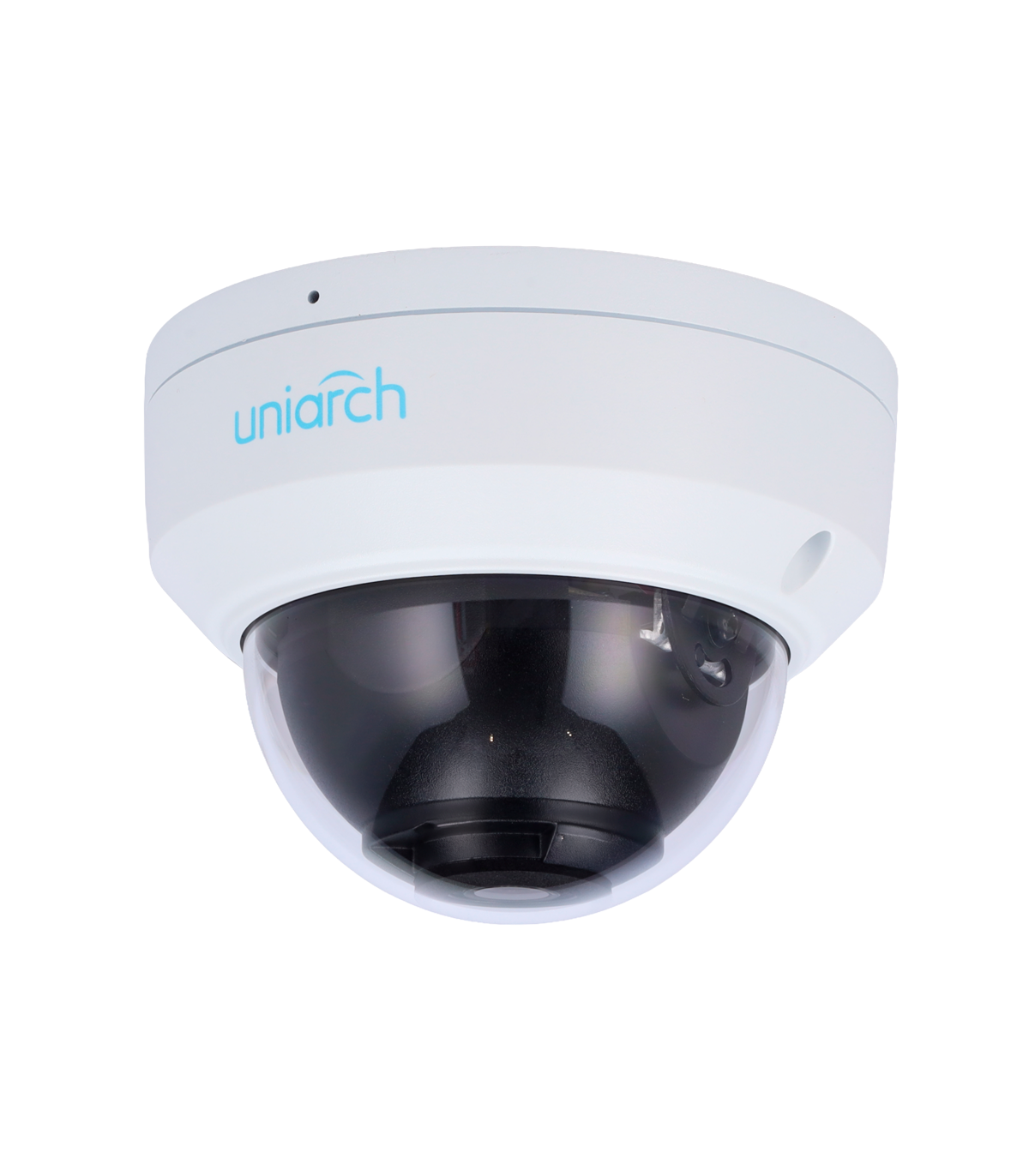

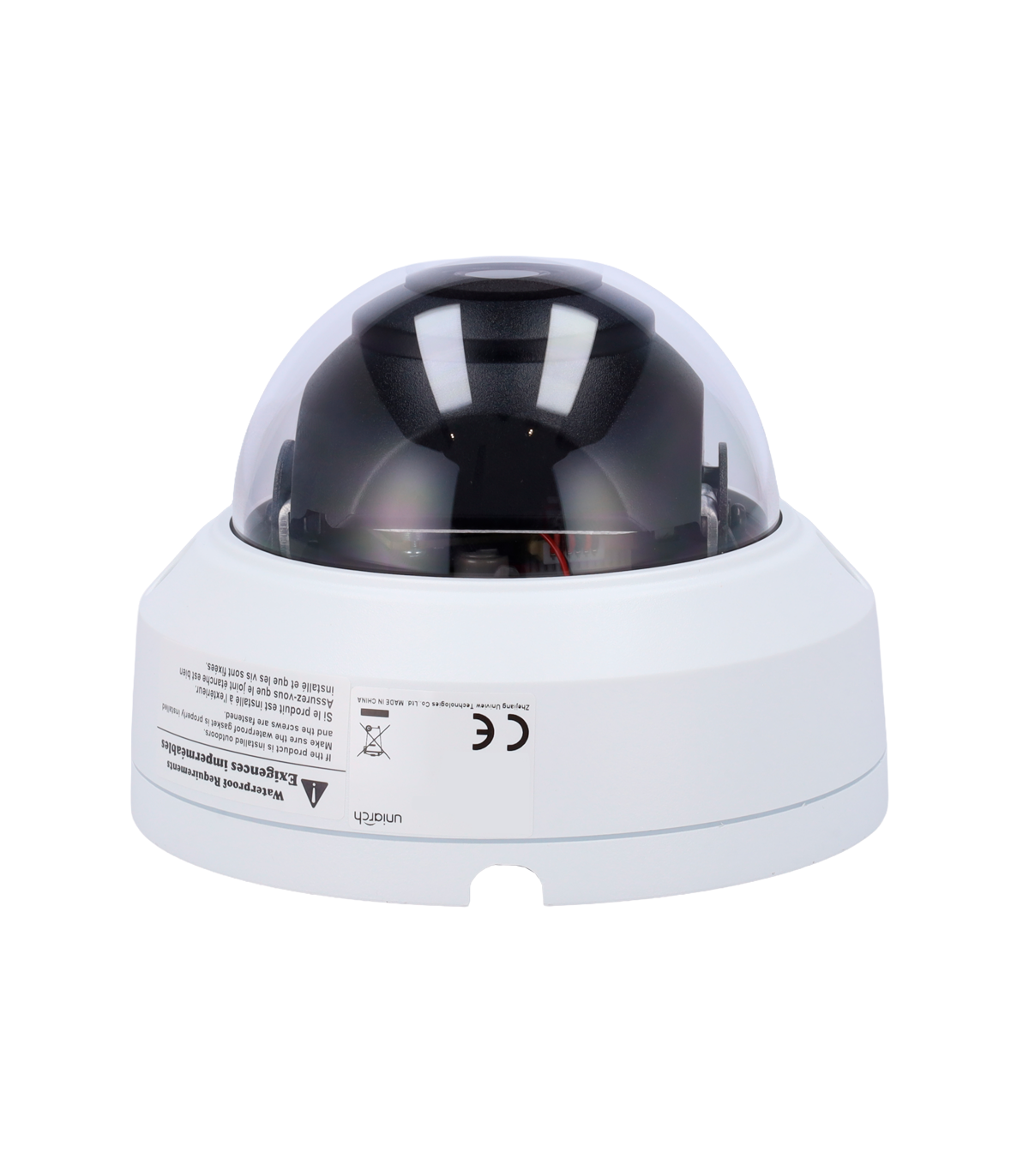

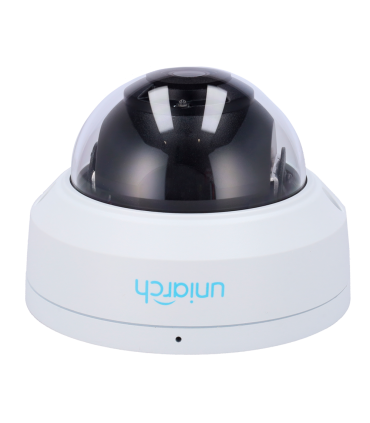

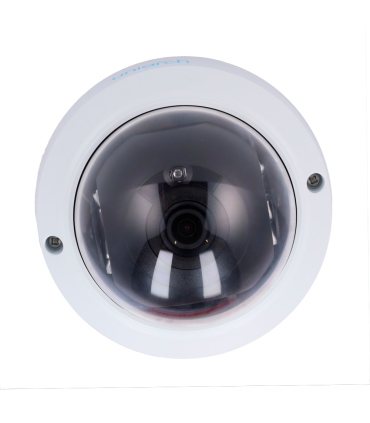

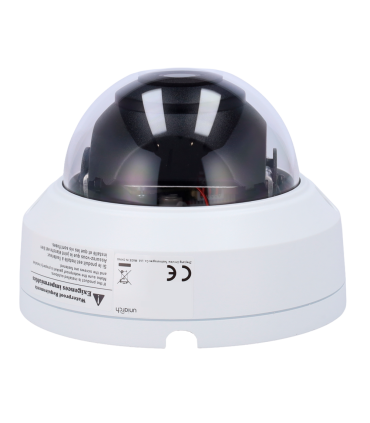

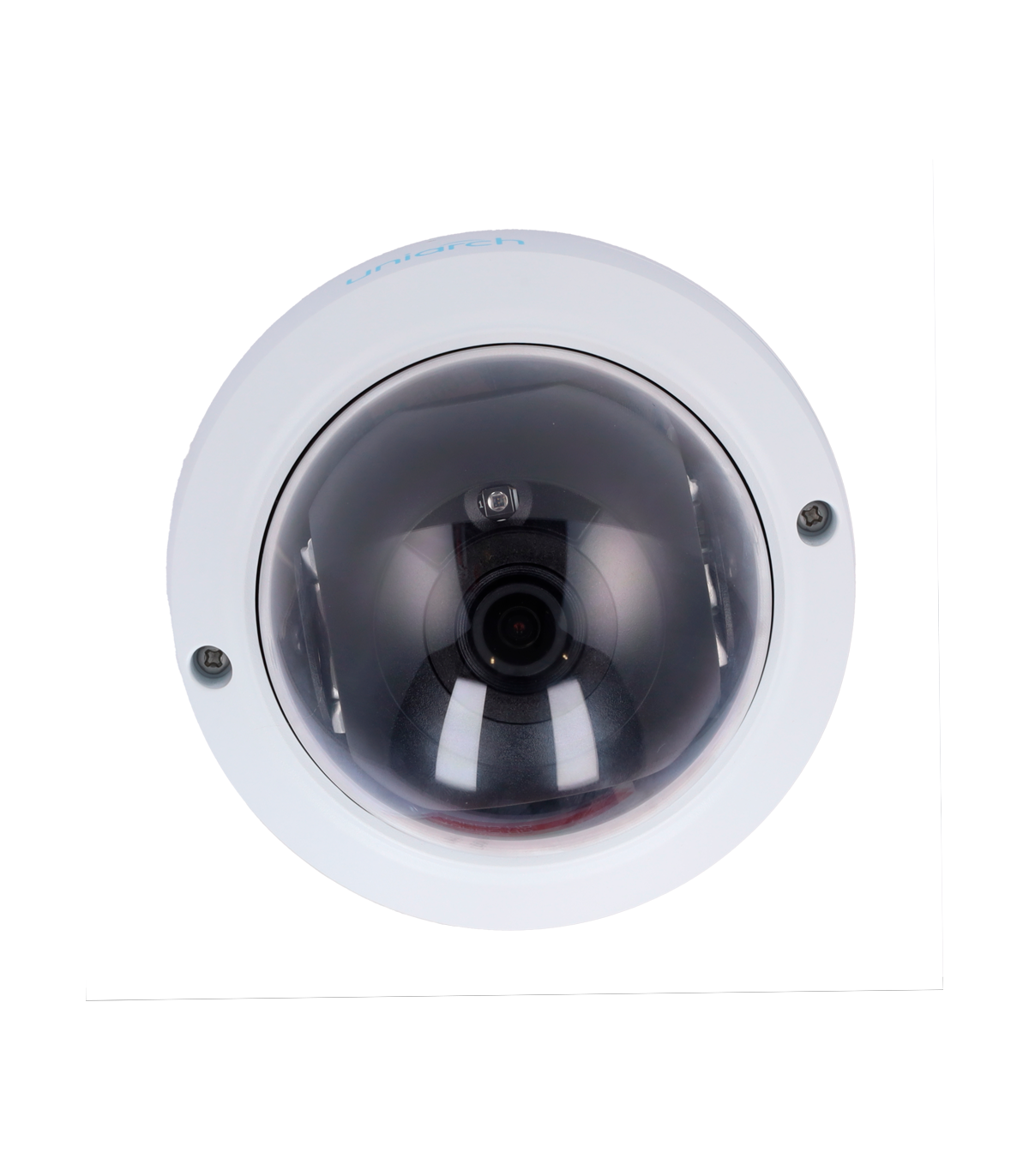

IPC-D134-AF28 - Uniarch 4MP Dome IP Camera 2.8mm

IPC-D134-AF28 - Uniarch 4MP Dome IP Camera 2.8mm

The IPC-D134-AF28 is a Uniarch Dome IP camera designed for professional video surveillance systems. With a maximum resolution of 4MP (2560 × 1440), it provides detailed images for monitoring shops, offices, warehouses, entrances, residential areas and other locations requiring a compact and robust IP security solution.

This model uses a 1/3" CMOS sensor and features a fixed 2.8mm lens with an F2.0 aperture. This focal length provides a wide viewing perspective. It is therefore suitable for general surveillance applications where a significant area needs to be monitored with a single camera.

IPC-D134-AF28 with 4MP resolution and 2.8mm lens

The 4MP resolution provides a higher level of detail than Full HD. The IPC-D134-AF28 also supports different resolutions and video streams. This allows video transmission to be adapted to the requirements of each installation. For efficient bandwidth and storage management, the camera supports Ultra 265, H.265, H.264 and MJPEG video compression.

The fixed 2.8mm lens is designed to provide a wide and balanced viewing perspective. This makes the camera suitable for entrances, commercial areas, open spaces and outdoor environments. It is particularly useful when a general overview of the monitored area is required.

Smart IR up to 30 metres

For night surveillance and environments with limited lighting, the IPC-D134-AF28 features Smart IR with a range of up to 30 m. This infrared illumination allows the camera to continue capturing images when the available ambient light is insufficient.

Smart IR helps manage infrared illumination according to the monitored scene. The camera also features automatic switching between day and night modes through an ICR filter. In addition, DWDR helps improve image visibility in scenes containing areas with different lighting levels.

IPC-D134-AF28 with Human Body Detection 2.0

Human Body Detection 2.0 allows the IPC-D134-AF28 to identify events associated with human presence. This function adds an additional level of analysis compared with conventional motion detection. It can therefore help provide more efficient management of events relevant to video surveillance.

The camera also features a built-in microphone, allowing audio to be captured together with the video. Recordings can therefore include sound from the monitored area without requiring the installation of an external microphone.

PoE and ONVIF compatibility

Network connectivity is provided through an RJ45 Ethernet interface. The IPC-D134-AF28 can be powered using PoE IEEE 802.3af or 12 V DC. With PoE, network data and electrical power can be transmitted through the same Ethernet cable. This helps simplify cabling in professional installations.

ONVIF compatibility facilitates integration with compatible video surveillance equipment and platforms. This feature is particularly useful for professional installations combining IP cameras, network video recorders and other compatible security equipment.

IPC-D134-AF28 with IP67 and IK10 protection

The Dome housing of the IPC-D134-AF28 features IP67 protection against water and dust. In addition, its IK10 rating provides resistance against mechanical impacts. These protection levels make the camera suitable for demanding indoor and outdoor installations.

The combination of 4MP resolution, fixed 2.8mm lens, Smart IR up to 30 m and Human Body Detection 2.0 provides a balanced surveillance solution. The built-in microphone, PoE, ONVIF compatibility, IP67 and IK10 protection further increase its versatility. The IPC-D134-AF28 is therefore a practical choice for professional projects requiring a compact and robust Dome IP camera.
