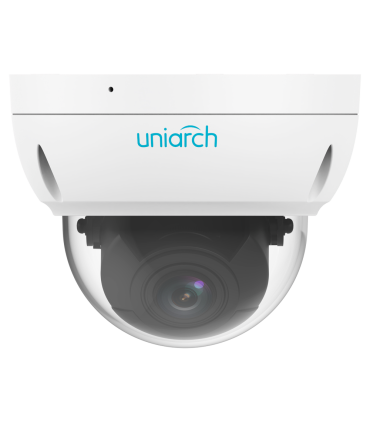

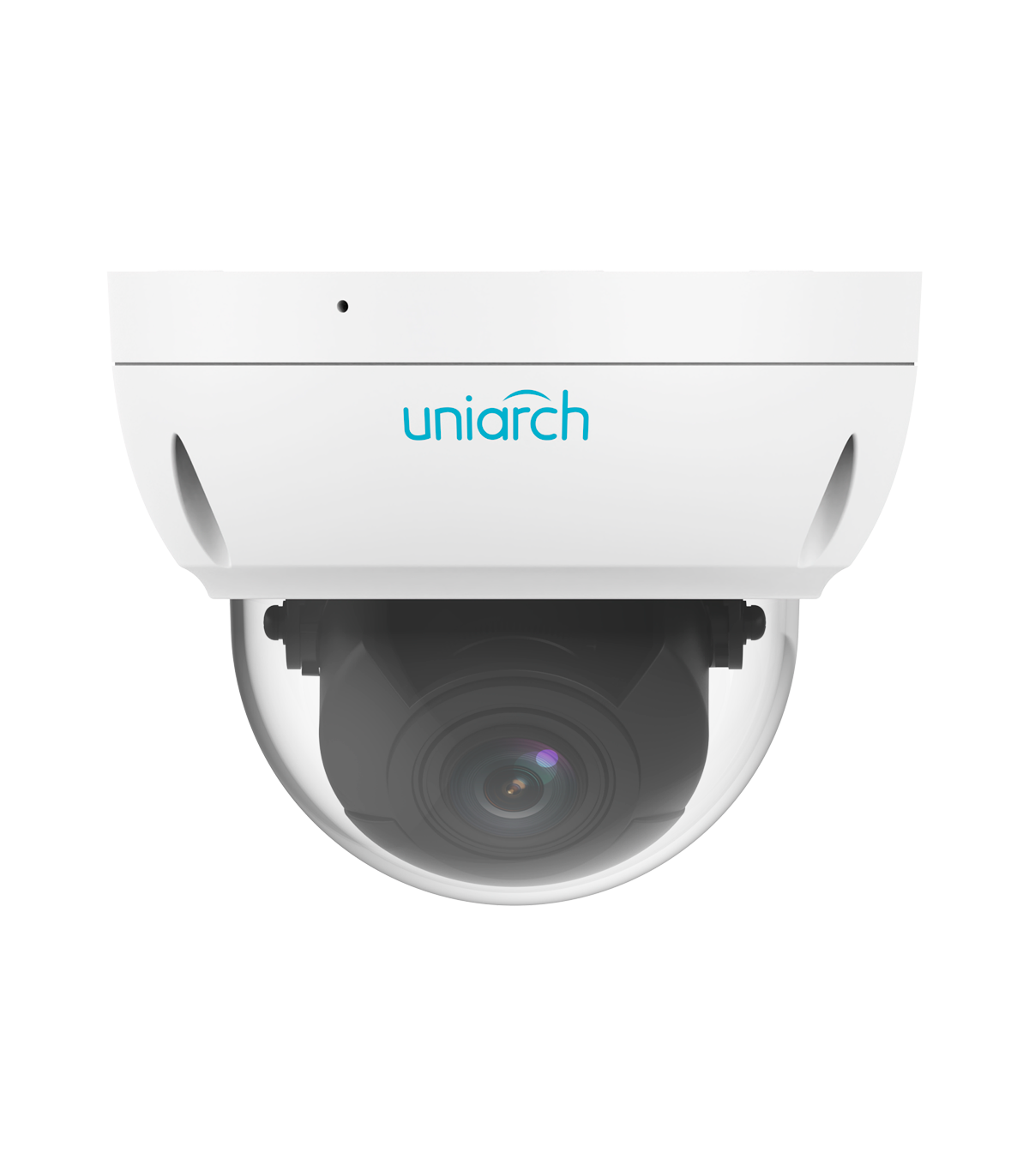

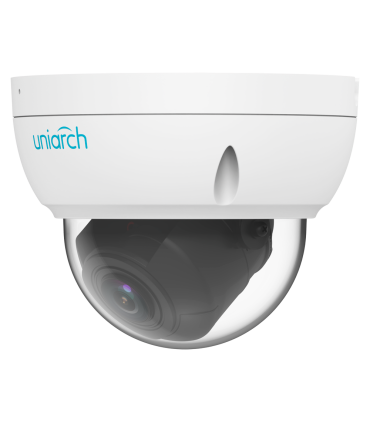

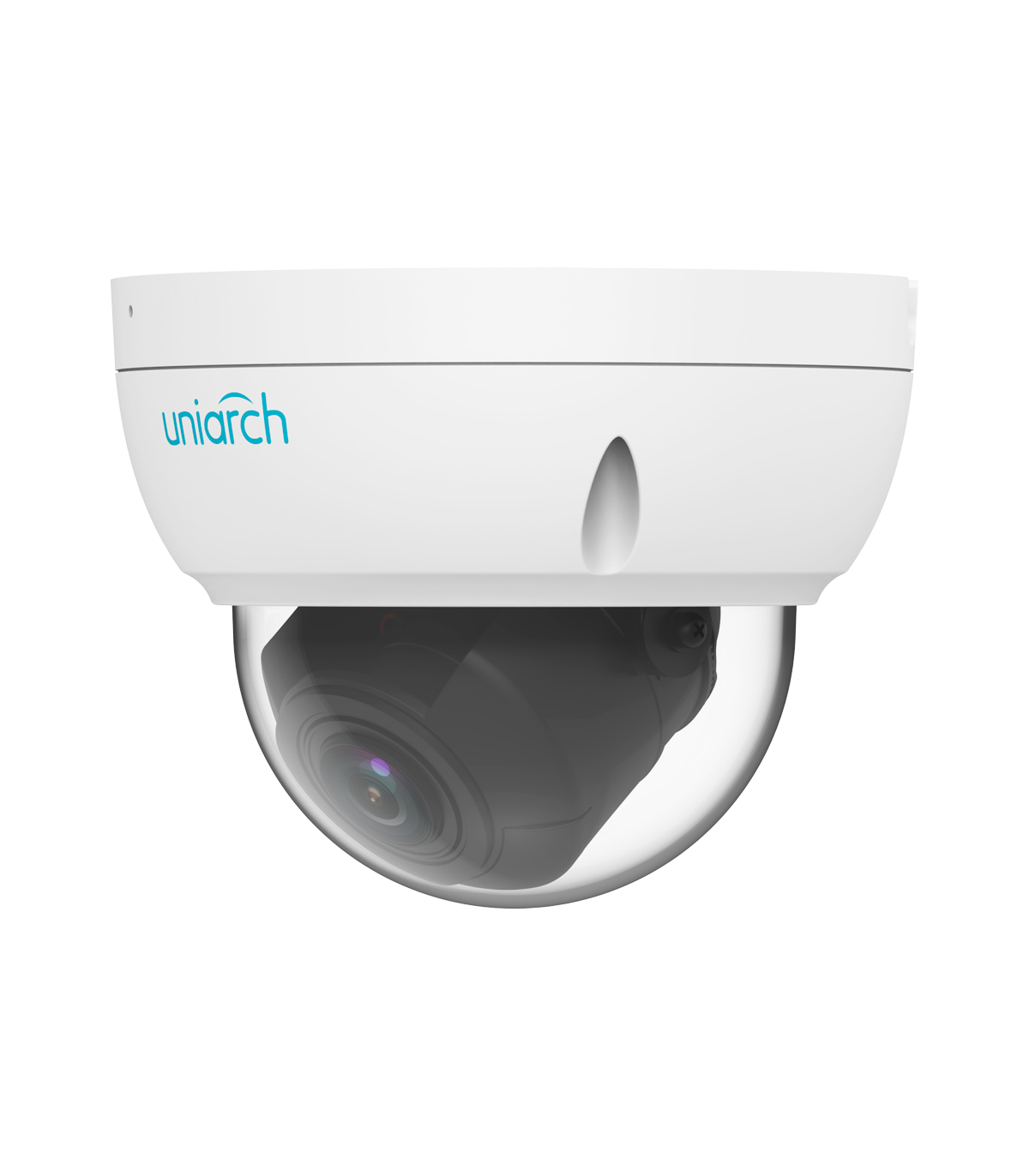

The IPC-D314-ADZK is a 4MP Uniarch Dome IP camera designed for professional video surveillance systems. It features a 1/2.7" CMOS sensor and a motorized 2.8-12mm varifocal lens, allowing the field of view to be adjusted according to the requirements of each installation. Its maximum 4MP resolution provides a high level of detail for monitoring entrances, commercial areas, business premises and outdoor environments.

The camera supports a maximum resolution of 4MP (2560 × 1440) at up to 25 fps. At 3MP (2304 × 1296), 1080P and 720P, it can operate at up to 30 fps. To optimise bandwidth and storage usage, the IPC-D314-ADZK supports Ultra 265, H.265, H.264 and MJPEG video compression. U-Code and dual video streams are also available.

IPC-D314-ADZK with motorized 2.8-12mm lens

The motorized 2.8-12mm lens allows the viewing angle to be adjusted without replacing the lens. At the wide-angle position, the horizontal field of view reaches 102.8°. At the telephoto position, it narrows to 35.8°. The vertical field of view ranges from 55.6° to 20.3°, while the diagonal field of view varies from 122.0° to 41.2°.

DORI distances also change according to the lens setting. Detection ranges from 42 to 180 m, while observation ranges from 21 to 90 m. Recognition distances vary from 10.1 to 43.2 m, and identification ranges from 6.3 to 27 m. This allows the IPC-D314-ADZK to be configured for different surveillance distances and viewing requirements.

Smart IR up to 30 metres and 120 dB WDR

The IPC-D314-ADZK features Smart IR illumination with a range of up to 30 m and an infrared wavelength of 850 nm. IR control can operate automatically or be adjusted manually. Minimum illumination is 0.003 Lux in colour mode and reaches 0 Lux when infrared illumination is active.

For environments with significant differences between bright and dark areas, the camera provides 120 dB True WDR. It also includes 2D/3D DNR, HLC, BLC and Digital Defog. These image processing functions help improve image quality under different environmental and lighting conditions.

IPC-D314-ADZK with UMD and human and vehicle detection

UMD - Ultra Motion Detection provides detection of humans and vehicles. The IPC-D314-ADZK also supports conventional motion detection, tampering alarm and audio detection. For more targeted analytics, it offers line crossing and intrusion detection based on human detection.

The camera features a built-in microphone and supports G.711U, G.711A and AAC-LC audio compression. This model does not include a built-in speaker and does not support two-way audio. Up to four OSD areas, four privacy masks and eight ROI regions can also be configured.

PoE, ONVIF and MicroSD up to 512 GB

Network connectivity is provided through an RJ45 10/100 Base-TX Ethernet interface. The camera can be powered using PoE IEEE 802.3af or 12 V DC. PoE simplifies installation by allowing network data and power to be transmitted through a single Ethernet cable.

Compatibility with ONVIF Profile S, Profile G and Profile T, API and SDK facilitates integration with compatible video surveillance systems. The IPC-D314-ADZK also supports local storage using a MicroSD card up to 512 GB, together with ANR and NAS network storage via NFS.

IPC-D314-ADZK with IP67 and IK10 protection

The IPC-D314-ADZK combines a metal and plastic housing with IP67 and IK10 protection ratings. IP67 makes the camera suitable for outdoor installation, while IK10 provides increased resistance against mechanical impacts and vandalism.

The camera operates in temperatures from -30 °C to 60 °C and supports relative humidity of up to 95% without condensation. It also includes 4 kV surge protection. Its combination of 4MP resolution, motorized 2.8-12mm lens, Smart IR, UMD, PoE, ONVIF, MicroSD, IP67 and IK10 makes it a versatile solution for professional video surveillance projects.
