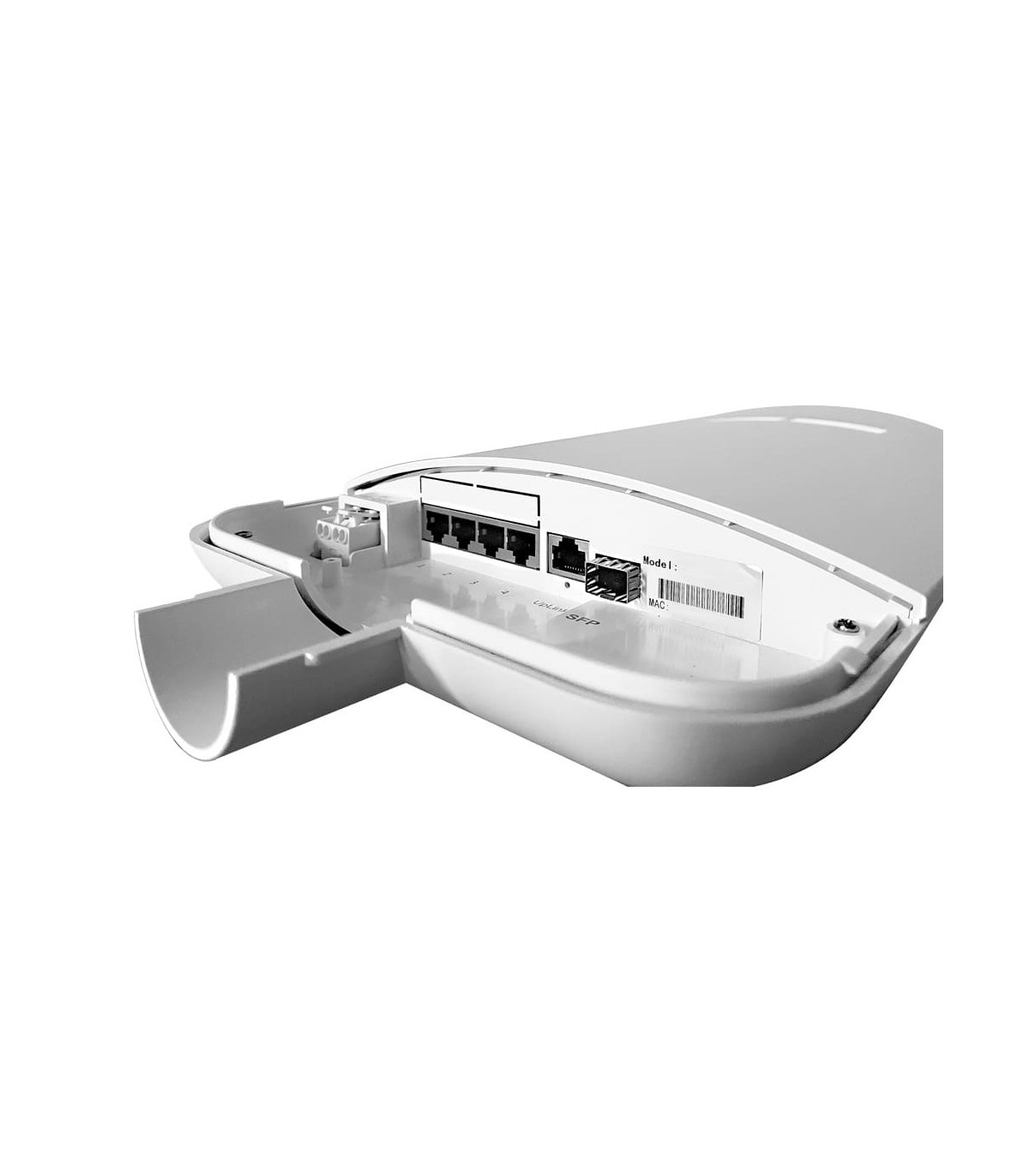

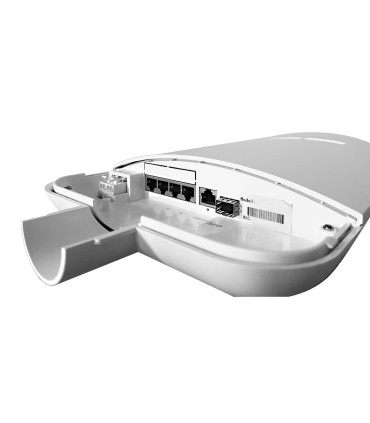

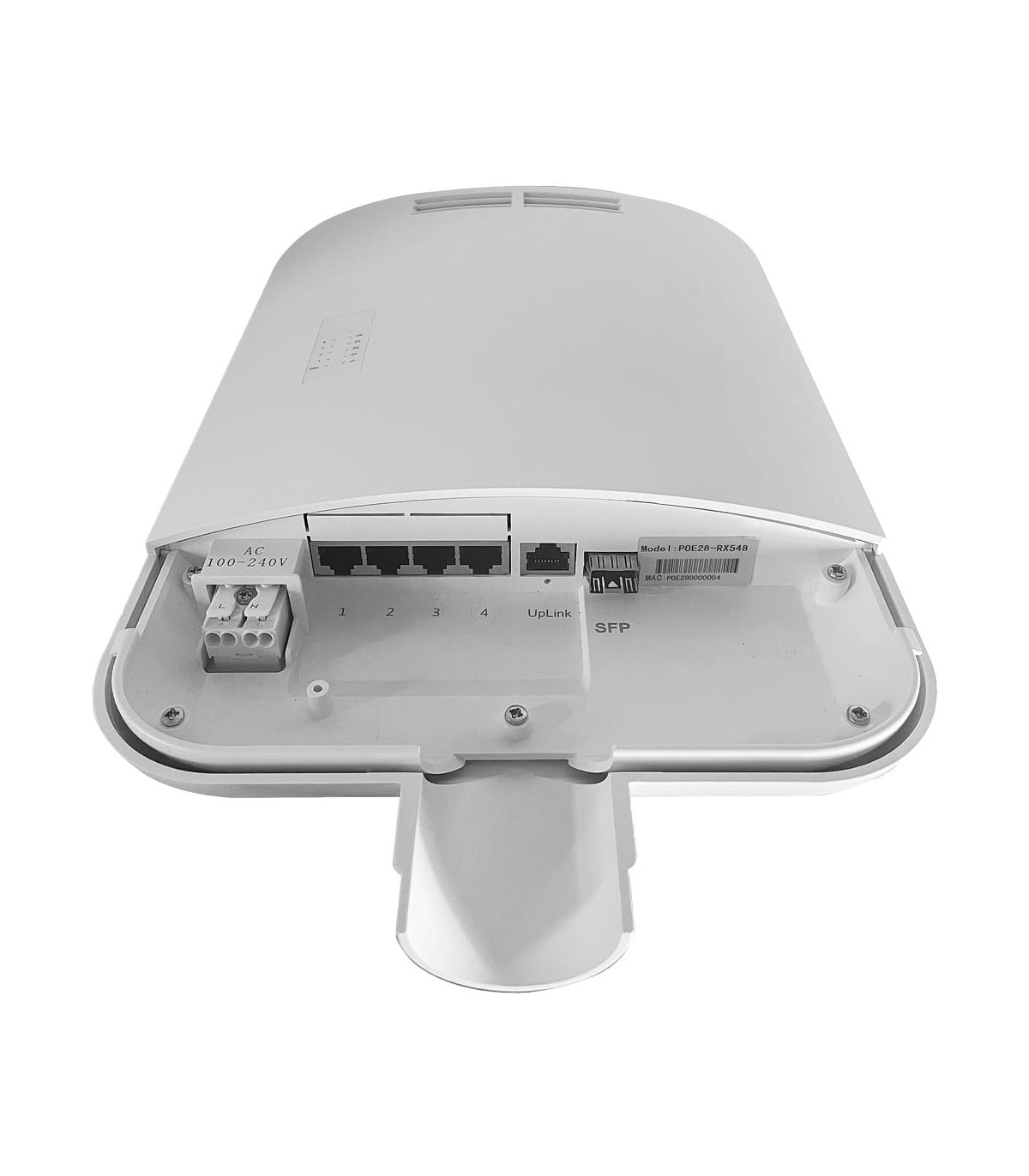

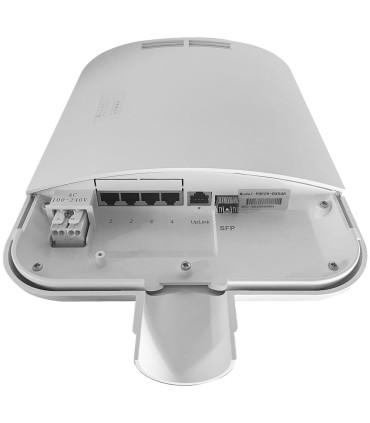

Outdoor PoE Switch SW0504POE-G-60-OUT (4 Gigabit PoE Ports + 1 Uplink 60W IP65)

The SW0504POE-G-60-OUT model is an unmanaged switch specially designed for harsh outdoor installations and challenging weather conditions. Featuring an IP65-rated weatherproof enclosure, it delivers complete protection against rain, dust, and temperature extremes, making it the ideal choice for extending IP networks and perimeter video surveillance systems without needing additional weatherproof junction boxes.

Full Gigabit Performance and 60W PoE Power

Equipped with 4 Gigabit access ports (10/100/1000 Mbps) with PoE/PoE+ support (IEEE 802.3af/at), it delivers up to 30W per port with a total power budget of 60W. It is perfectly suited for powering outdoor PTZ cameras, Wi-Fi access points, and IP intercoms. The dedicated Gigabit Uplink port ensures smooth data transmission to the main network or NVR without bandwidth bottlenecks.

Built for Outdoor Reliability (IP65)

Its rugged, sealed design eliminates the requirement for bulky external enclosures. Waterproof cable glands are included to shield RJ45 connections from corrosion and moisture ingress.

Key Benefits

• Certified IP65 Protection: Water and dustproof housing built for direct outdoor mounting.
• Full Gigabit Throughput: High-speed data delivery across all ports to eliminate bottlenecks.
• 60W Total Power Budget: Ample power output to drive multiple high-demand outdoor IP devices.

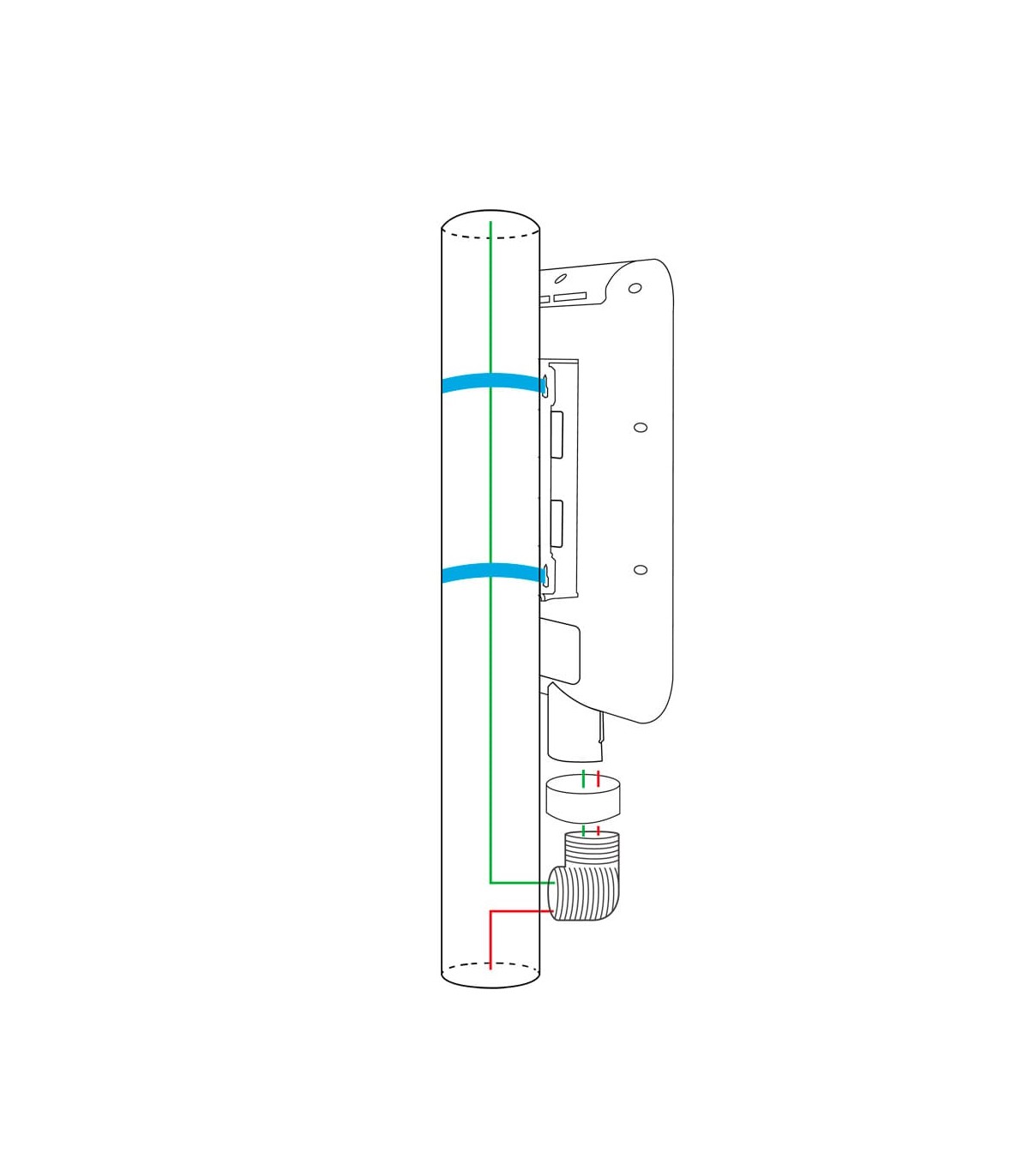

• Effortless Installation: Direct wall or pole mounting with included sealed gland fittings.
