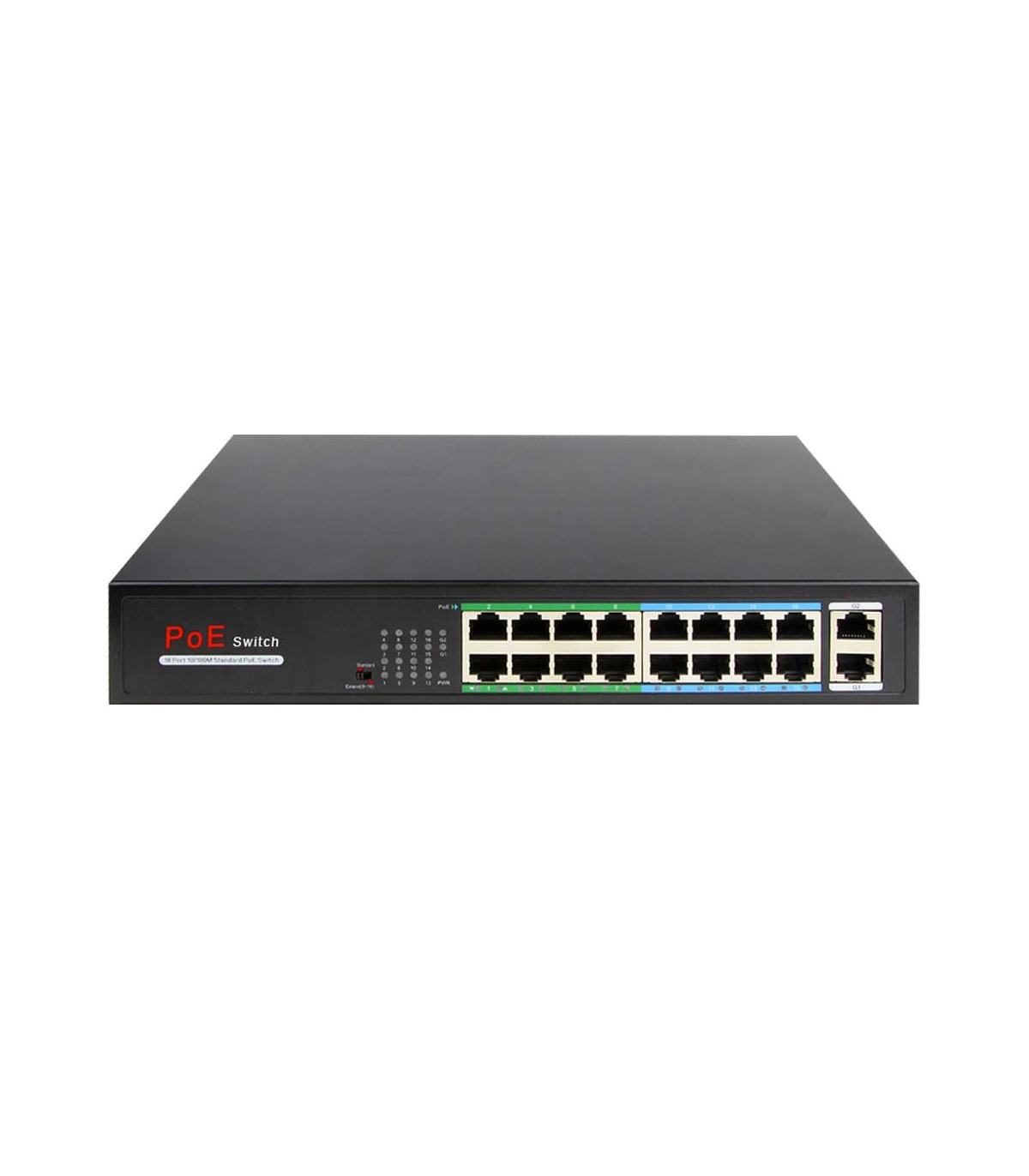

PoE Switch SW1816POE-160-E (16 PoE Ports + 2 Gigabit Uplink 160W)

The SW1816POE-160-E model is an 18-port unmanaged switch engineered to centralize and optimize network infrastructures and IP video surveillance systems (CCTV) requiring high-density, reliable PoE power.

Flexible Connectivity and 160W PoE+ Power Output

It features 16 Fast Ethernet access ports (10/100 Mbps) equipped with PoE/PoE+ technology (IEEE 802.3af/at) capable of supplying up to 30W per port, with a total power budget of 160W. It is the ideal solution to directly power IP cameras, Wi-Fi access points, and VoIP phones. Additionally, it integrates 2 Gigabit Uplink ports (10/100/1000 Mbps) to ensure high-speed uplink connections to NVRs or main routers without bandwidth bottlenecks.

Extend Mode for Long Distances Up to 250 Meters

Designed specifically for video surveillance, the switch supports the Extend feature on ports 9 to 16. By activating this mode, the data transmission and PoE power delivery range can be extended up to 250 meters over standard Ethernet cables (at a capped speed of 10 Mbps), eliminating the need for extra network repeaters.

Key Benefits

• 18 Total Ports: 16 PoE ports for edge devices and 2 dedicated Gigabit ports for Uplink connection.
• High Power Budget (160W): Intelligent power management capable of driving multiple high-power PoE+ devices.
• Extended Range up to 250m: Extend mode perfectly suited for long-run perimeter camera deployments.
• Plug & Play & Sturdy Build: Zero configuration required, durable metallic enclosure, and included brackets for 19" rack installation.
