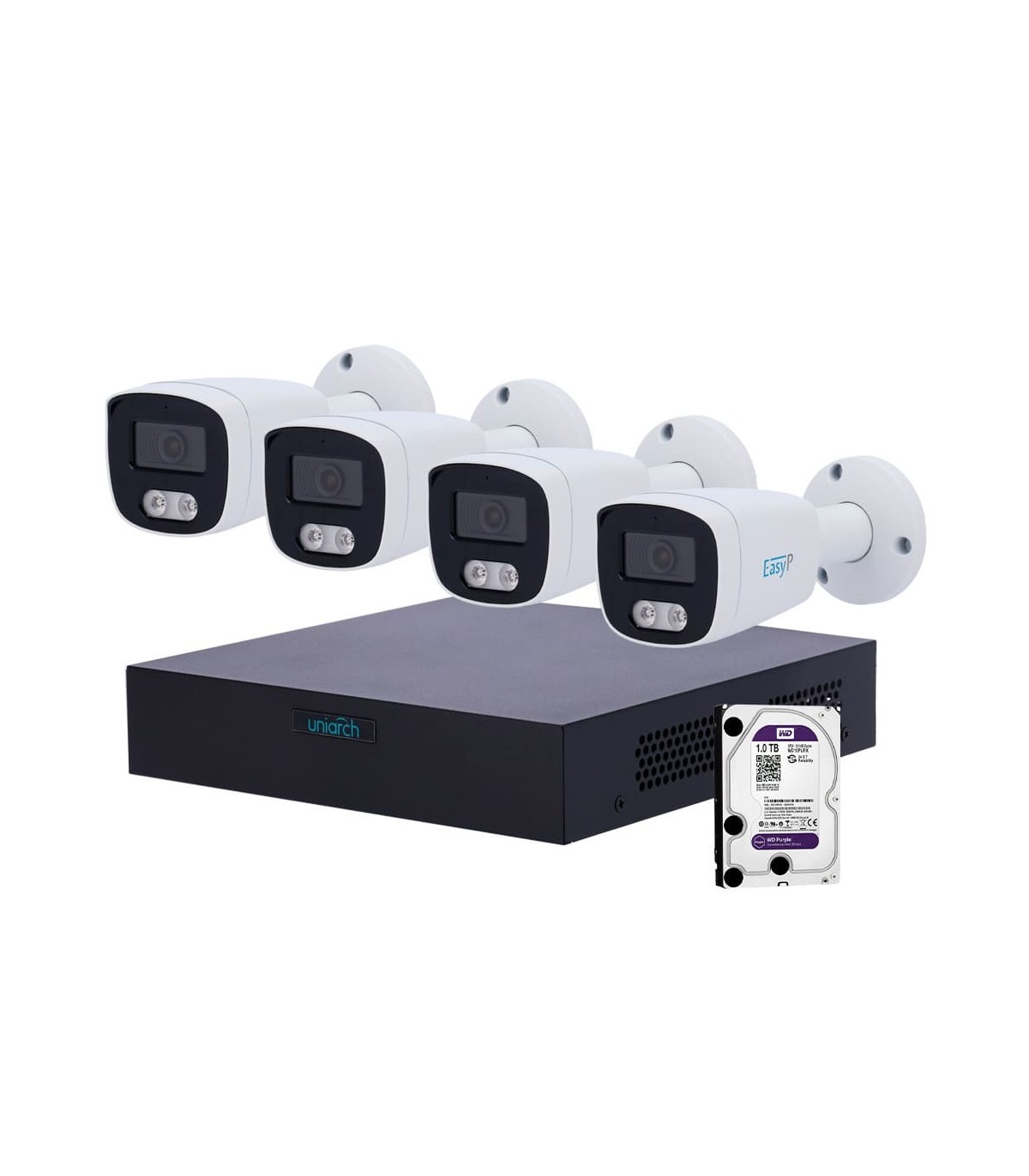

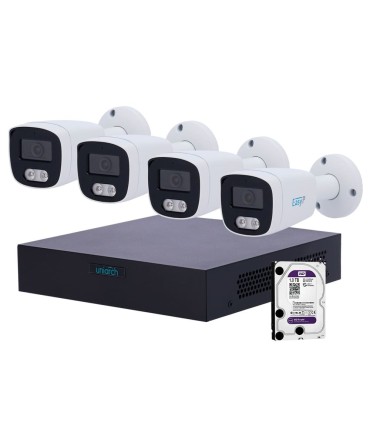

The NVRKIT108B-4 is a Uniarch IP surveillance kit with 4 Bullet cameras featuring 4MP resolution and an 8-channel PoE NVR. It also includes a 1TB hard drive for storing video recordings.

This solution provides high-resolution monitoring, PoE power and centralised recording. The kit includes the UV-NVR-108S3-P8-ECO recorder and four EP-IPB120A-4 cameras.

It also offers infrared night vision, IP67 protection and efficient video compression. Remote access allows users to view camera footage from compatible devices.

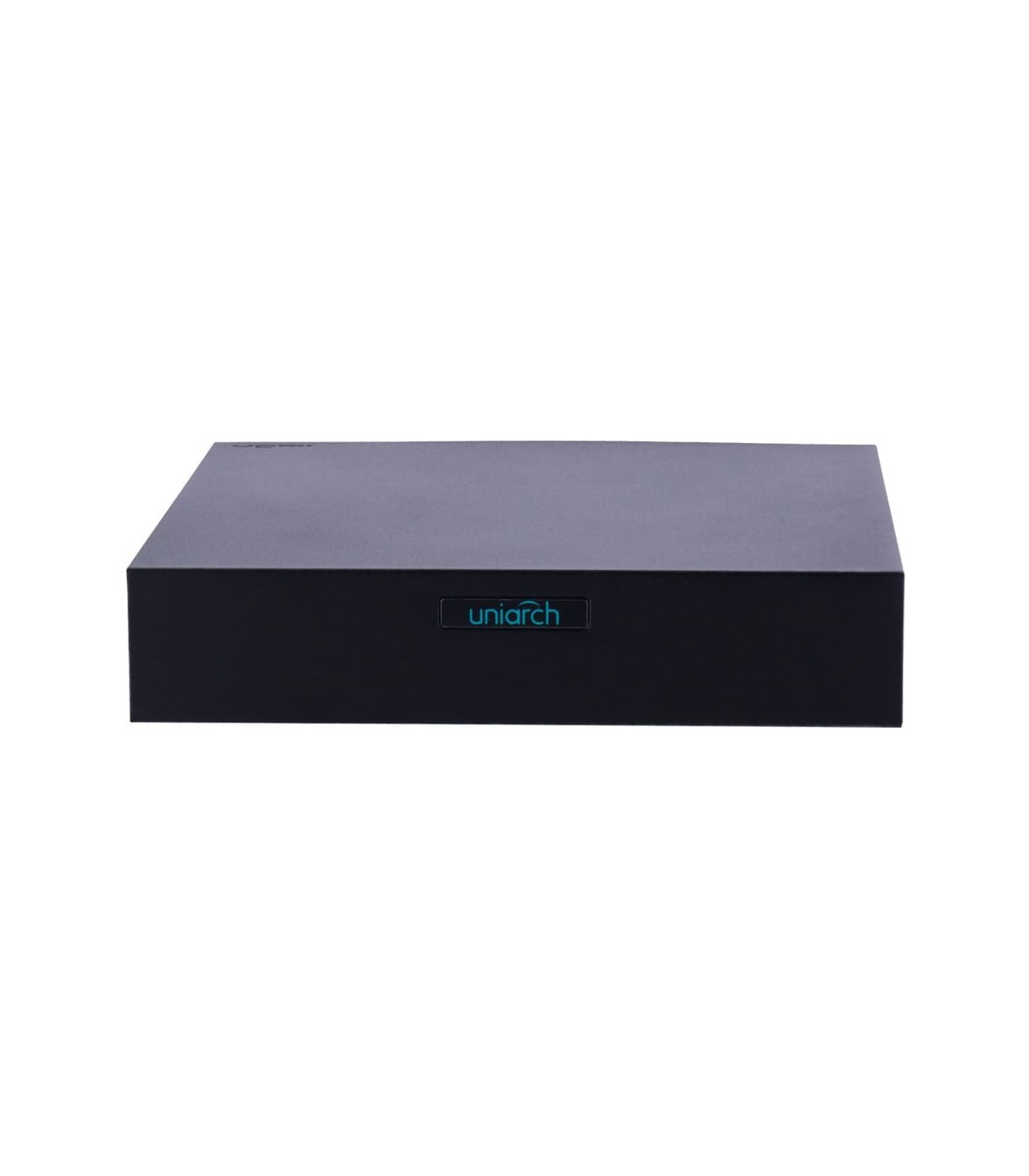

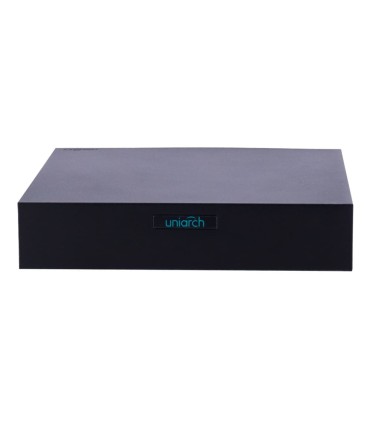

Uniarch 8-Channel PoE Network Video Recorder

The UV-NVR-108S3-P8-ECO recorder can manage up to 8 IP cameras. It features 8 PoE ports supporting IEEE 802.3af and IEEE 802.3at standards.

PoE technology transmits data and electrical power through a single Ethernet cable. This simplifies installation and reduces the need for separate power adapters near the cameras.

Although the kit includes four cameras, the recorder supports eight IP channels. The system can therefore be expanded with additional compatible equipment.

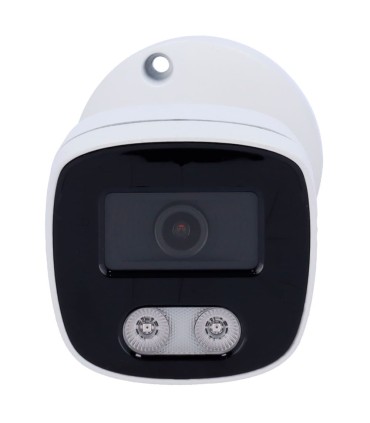

Four Uniarch 4MP Bullet IP Cameras

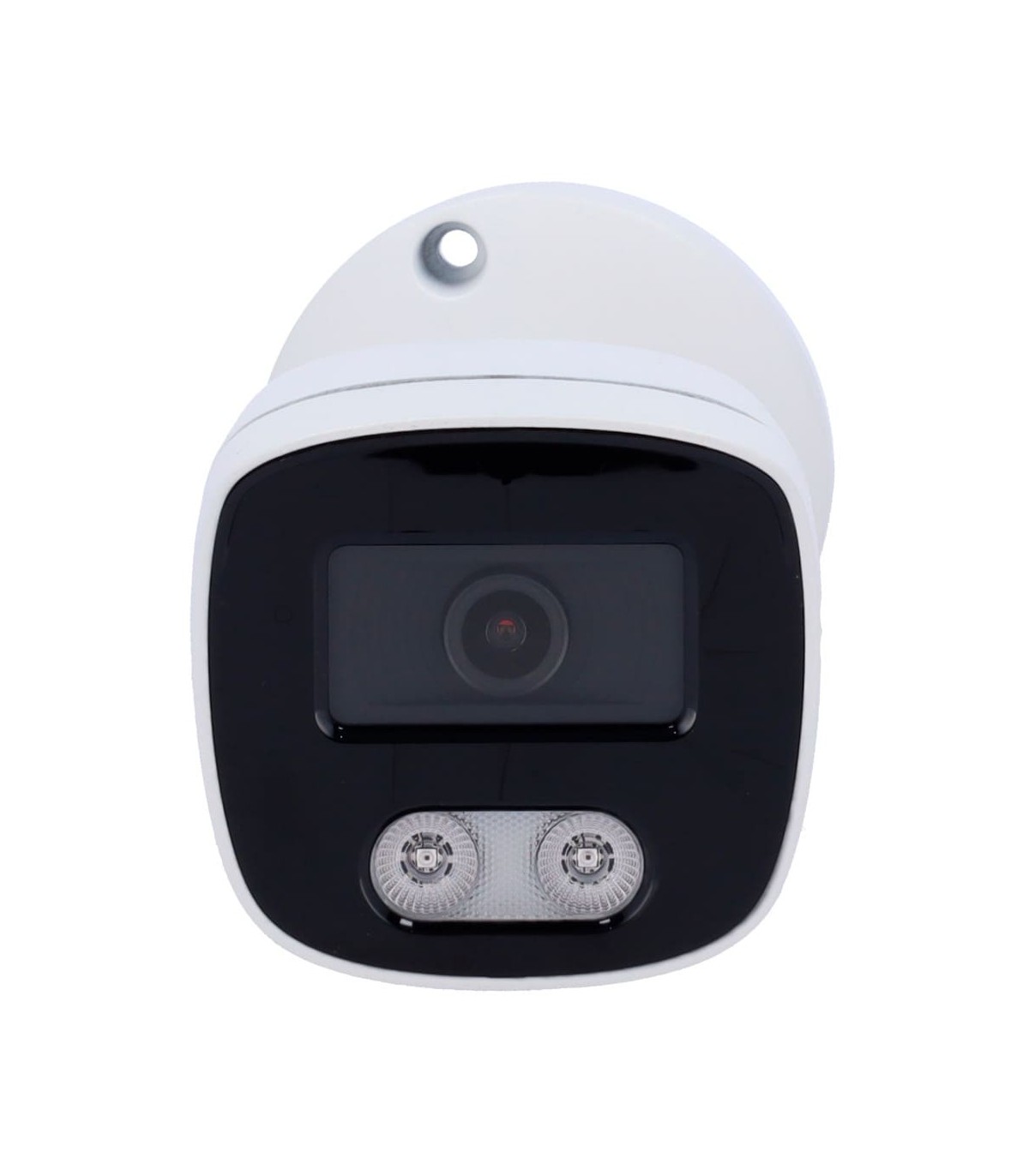

The kit includes 4 Uniarch EP-IPB120A-4 Bullet IP cameras. Each camera features a 1/3" 4MP Progressive Scan image sensor. The maximum resolution is 2688 × 1512 pixels.

The fixed 2.8mm lens allows monitoring of different areas. These cameras are suitable for residential, commercial and professional environments.

They also support video at up to 30fps and Ultra H.265, H.265, Ultra H.264 and H.264 compression. These technologies help optimise bandwidth usage and storage capacity.

Infrared Night Vision up to 25m

The Uniarch Bullet cameras feature infrared illumination with a range of up to 25m. This function enables image capture at night or in poorly lit environments.

Minimum illumination is 0.03Lux in colour mode. In black-and-white mode, the cameras operate at 0Lux using infrared illumination.

Image Enhancement and Motion Detection

The cameras include image processing technologies such as 3D-NR, HLC, BLC and OSD. Privacy masking (PM), ROI and motion detection (MD) are also available.

These functions improve image presentation and help manage areas of interest. Motion events can also be used to configure recording settings.

IP67 Protection for Outdoor Installation

All four Bullet cameras feature an IP67 protection rating. They are suitable for outdoor installation when the manufacturer's mounting recommendations are followed.

Each camera measures 70 × 67.5 × 169mm and weighs approximately 600g. Power is supplied via PoE or DC 12V, with a maximum consumption of 9W.

Plug & Play Installation with PoE Power

The system supports Plug & Play technology. This function enables automatic detection and addition of compatible cameras.

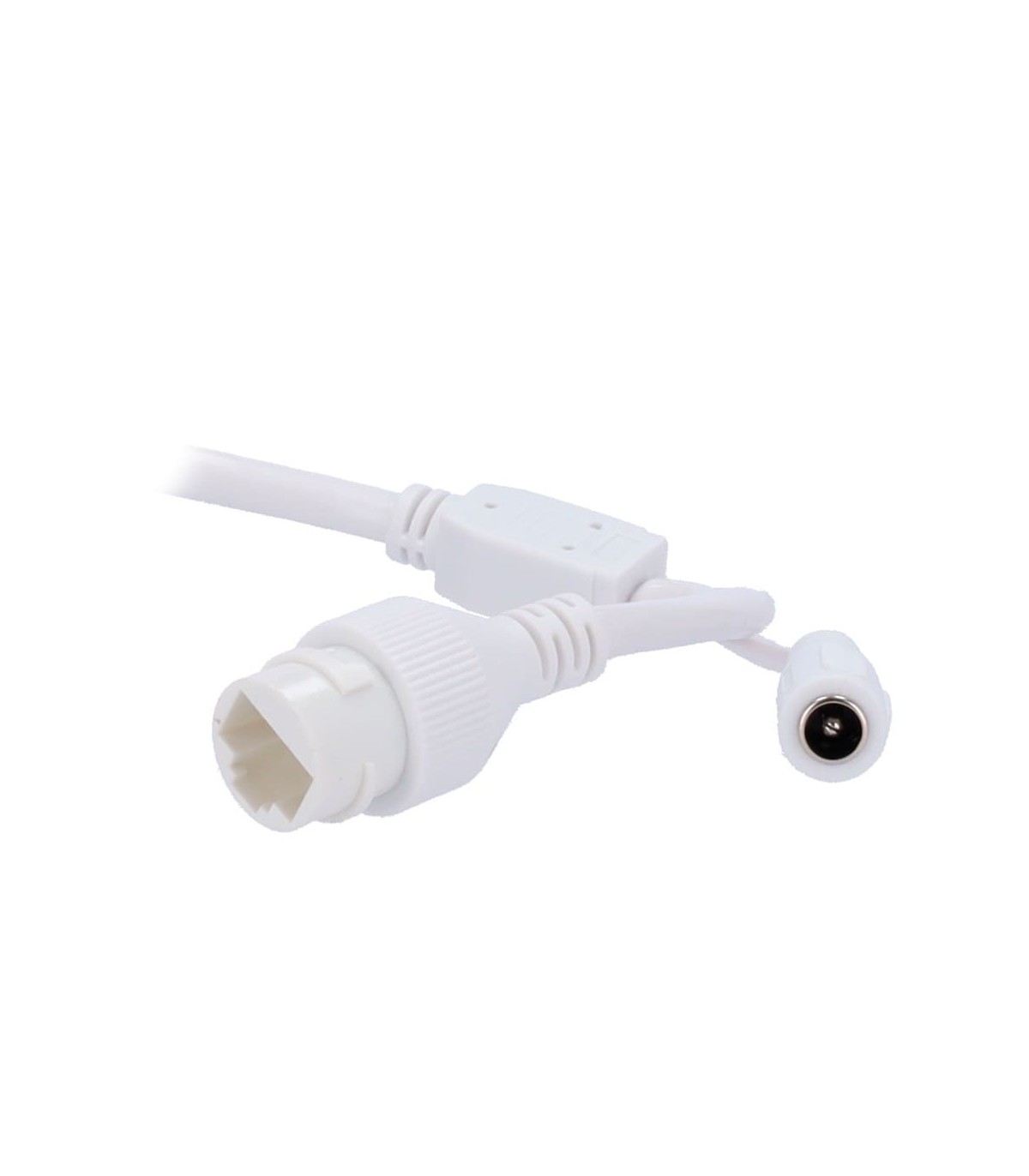

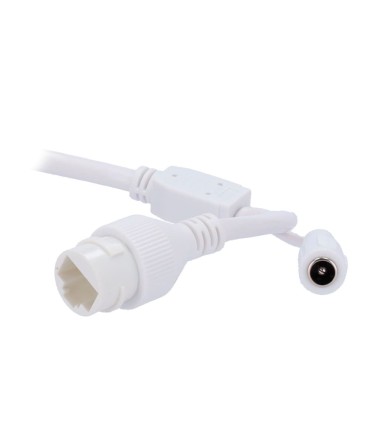

The cameras use a 10/100 Base-T Ethernet connection. Meanwhile, the recorder provides eight PoE ports supporting IEEE 802.3af/at.

Network communication and electrical power can therefore use the same cable. This makes installation simpler and more organised.

1TB Hard Drive Included

The NVRKIT108B-4 includes a 1TB hard drive. Centralised recording storage is therefore available without initially purchasing another HDD.

The recorder supports 1 SATA 3.5" hard drive up to 6TB. If necessary, the included drive can be replaced with a compatible higher-capacity model.

Recording retention depends on resolution, compression and frame rate. It also varies according to recording mode and the activity captured.

Recording up to 6MP and Ultra H.265 Compression

The NVR supports 6MP, 5MP, 4MP, 3MP, 1080p, 960p and 720p recording resolutions. D1, 2CIF and CIF formats are also supported.

Ultra H.265, H.265 and H.264 compression enables efficient video data management. Maximum bandwidth reaches 64Mbps incoming and 48Mbps outgoing.

Three main recording modes are available: manual, scheduled and motion detection. These options allow the system to meet different surveillance requirements.

4K HDMI and VGA Outputs

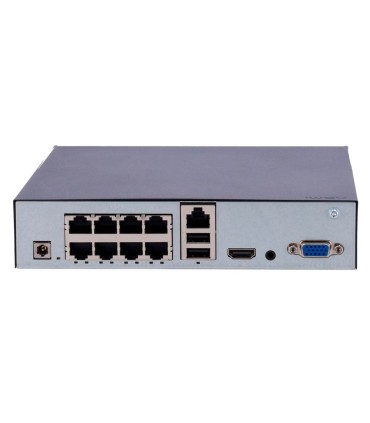

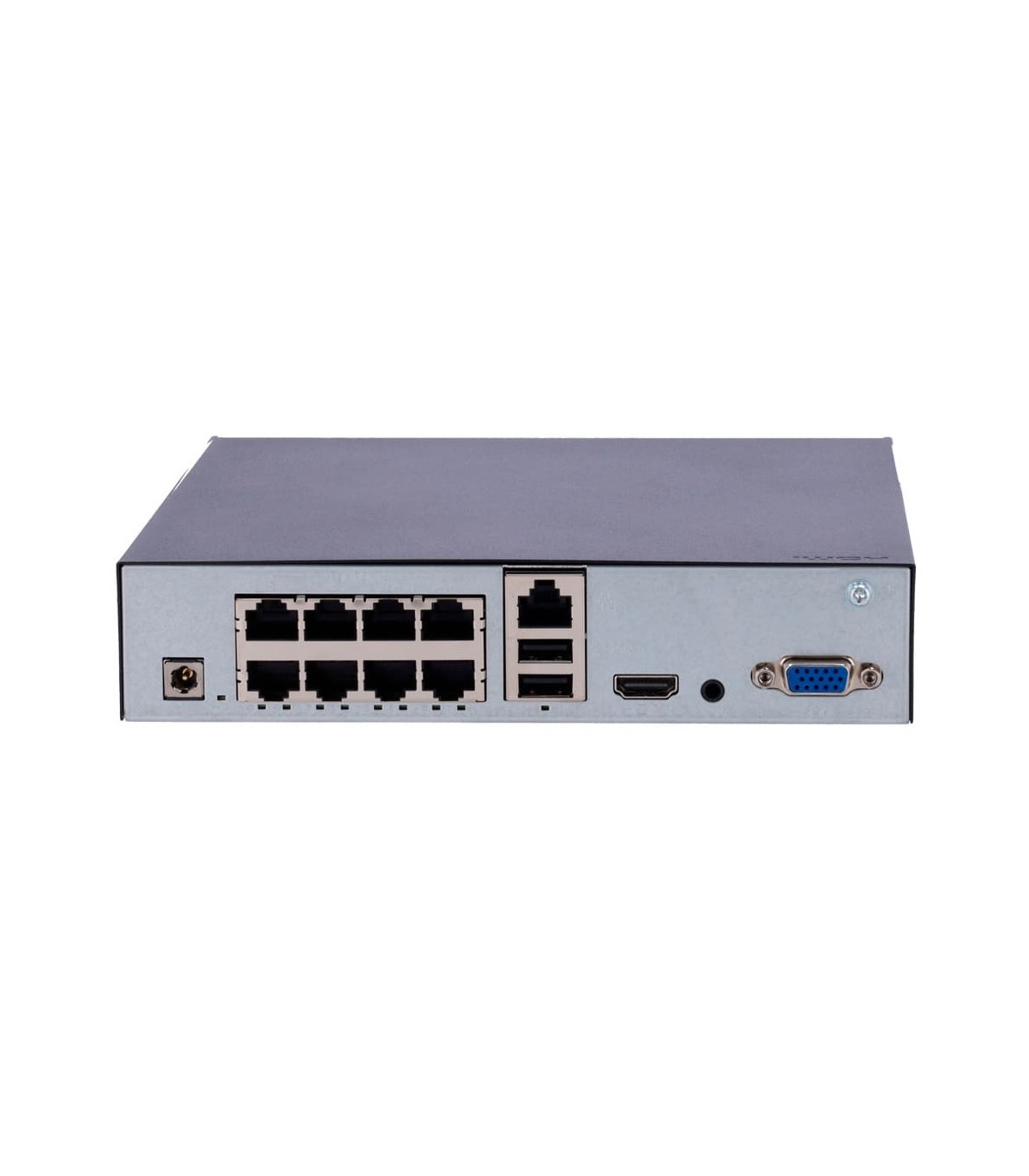

The UV-NVR-108S3-P8-ECO recorder features 1 × 4K HDMI output and 1 × VGA output. Both allow compatible monitors to be connected for local viewing and management.

Supported display resolutions include 3840 × 2160, 1920 × 1080 and 1600 × 1200. The recorder also supports 1280 × 1024, 1280 × 720 and 1024 × 768.

Remote Access and Application-Based Management

The system supports remote access through a web browser and EZStation management software. It also supports EZView and EZLive mobile applications, depending on compatibility and configuration.

For local management, the NVR provides 2 USB ports and an RJ45 Ethernet connection. The USB interfaces allow mouse connection and data backups.

Expandable IP Video Surveillance Solution

The NVRKIT108B-4 combines four 4MP Bullet cameras, an eight-channel PoE recorder and a 1TB HDD. This solution is suitable for monitoring different environments.

Key advantages include night vision up to 25m and IP67 protection. PoE power, 4K HDMI output and recording up to 6MP complete the system.

Furthermore, its eight-channel capacity allows future expansion with compatible IP cameras.
