KIT114-B42W - Uniview Wi-Fi Surveillance Kit 4-Channel NVR + 4 Bullet 2MP Cameras

KIT114-B42W - Uniview Wi-Fi Surveillance Kit 4-Channel NVR + 4 Bullet 2MP Cameras

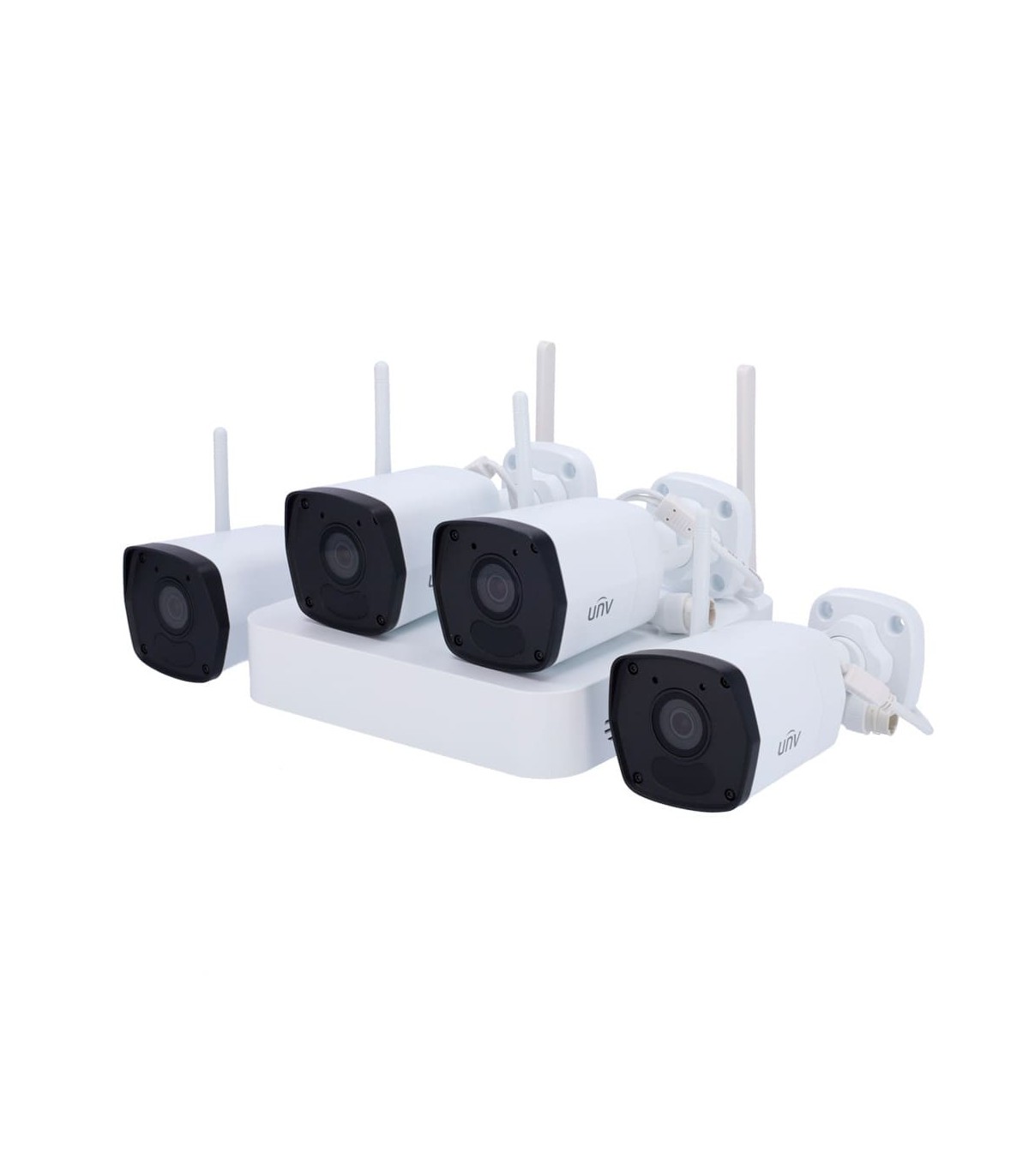

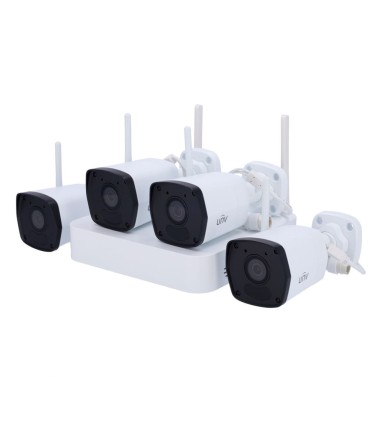

The KIT114-B42W is a Uniview Wi-Fi video surveillance kit consisting of a 4-channel network video recorder and 4 Full HD 2MP IP Bullet cameras. Designed for residential and commercial video surveillance installations, it enables the monitoring of different areas using cameras with wireless connectivity, infrared night vision and protection suitable for outdoor use.

The kit includes the NVR301-04LS3-W recorder and four IPC2122LB-AF28WK-G cameras, combining Ultra H.265 compression, Plug & Play installation, cascading Wi-Fi technology, motion detection recording and remote access. The NVR supports a SATA 3.5" hard drive up to 6TB, sold separately.

Uniview NVR301-04LS3-W 4-Channel Recorder

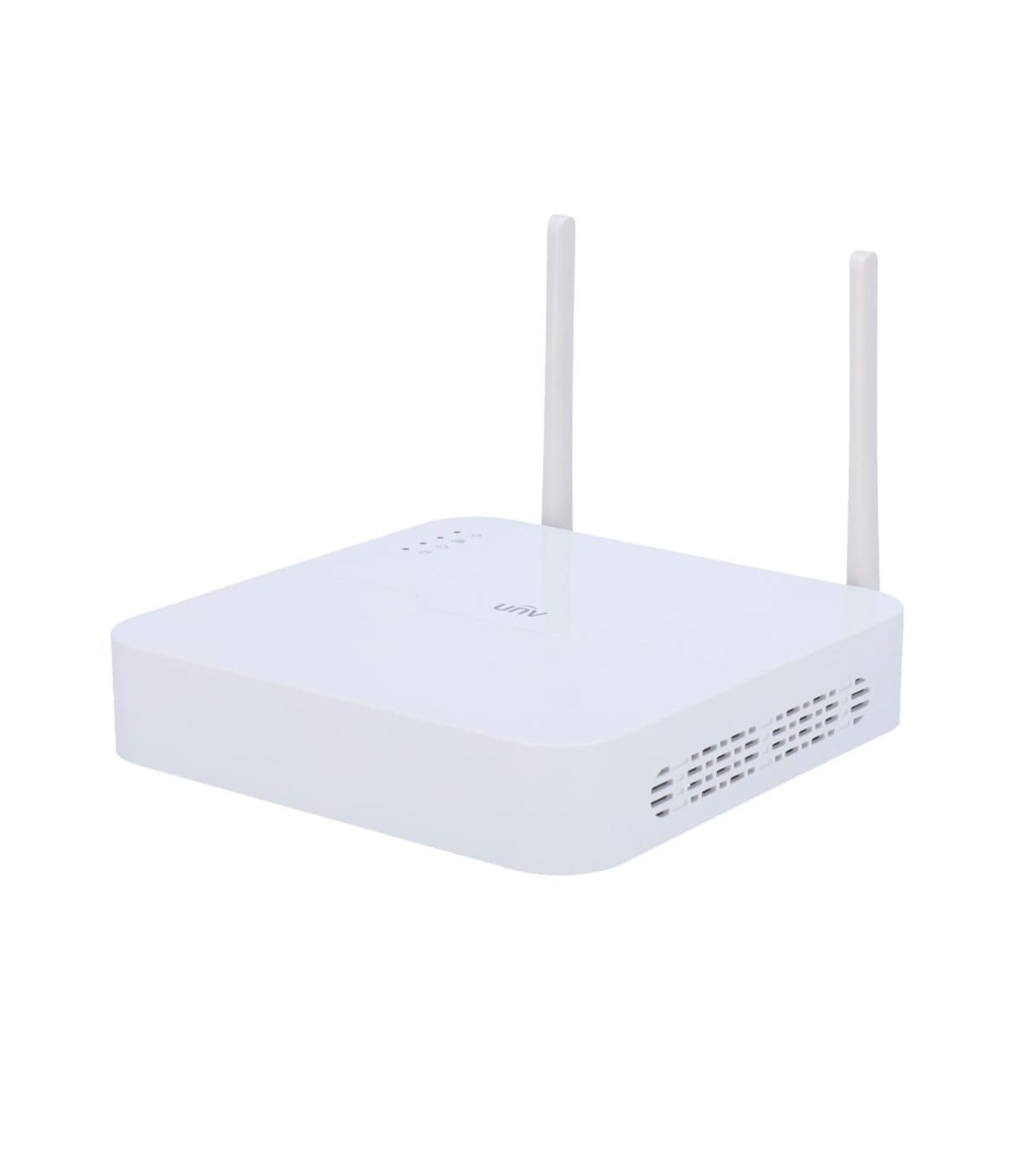

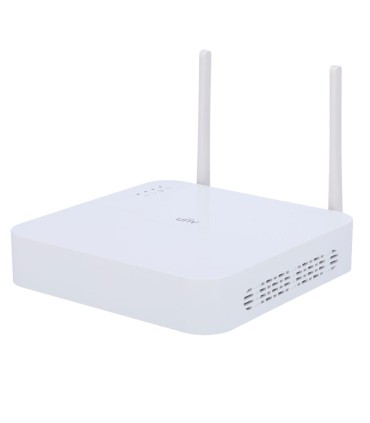

The NVR301-04LS3-W is a Uniview network video recorder capable of managing up to 4 IP channels. It features built-in Wi-Fi connectivity and an RJ45 Ethernet interface, allowing compatible system cameras to be connected and managed.

The device supports Ultra H.265, H.265, Ultra H.264 and H.264 video compression, recording up to 1080p and Full HD HDMI and VGA video outputs. Display resolutions include 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720 and 1024 × 768.

Four Uniview Full HD Wi-Fi Bullet Cameras

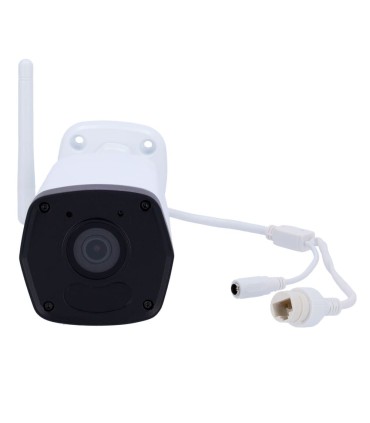

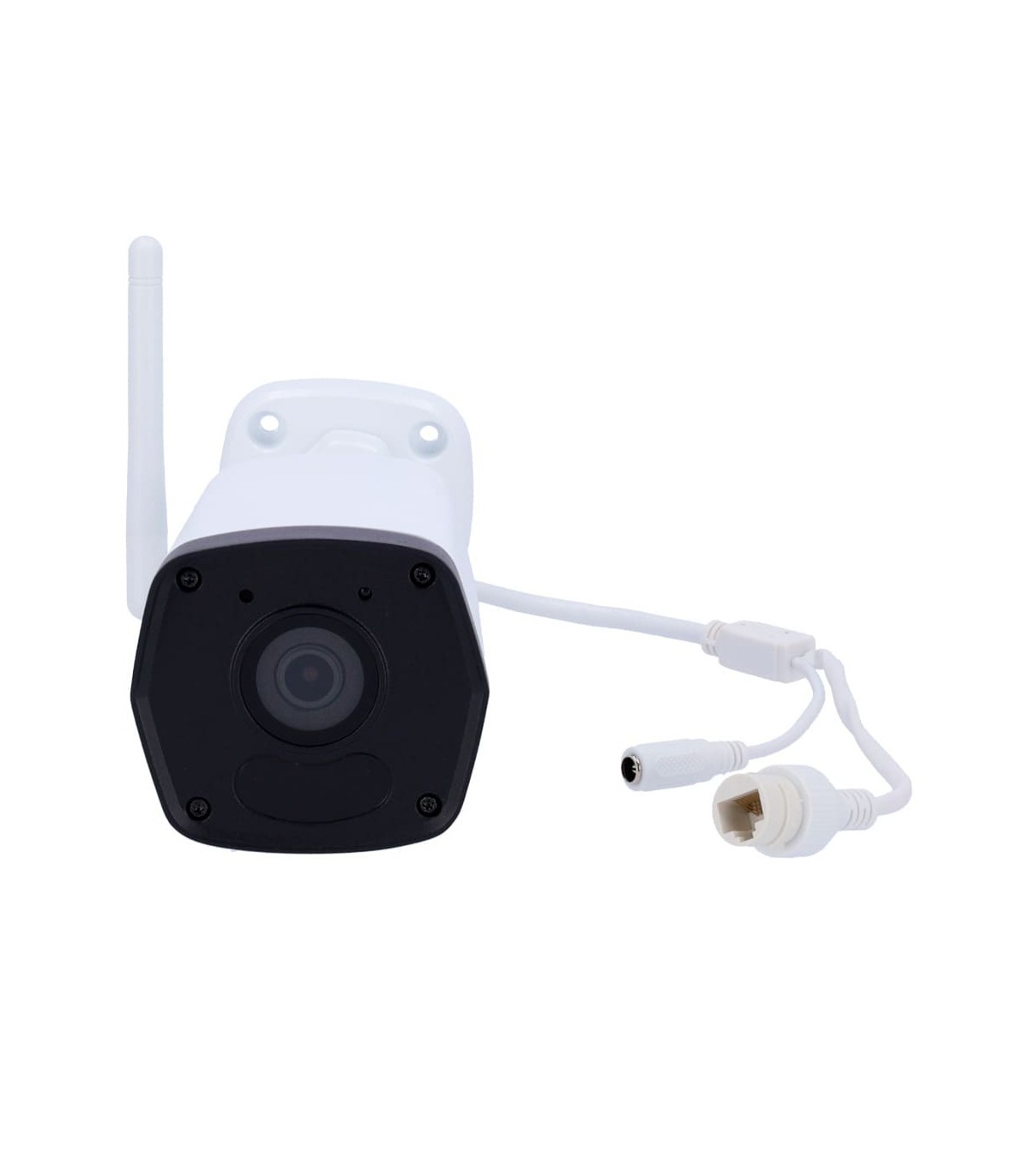

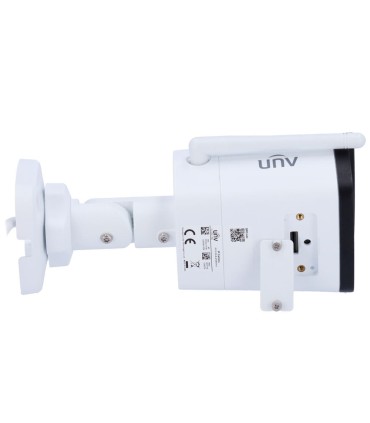

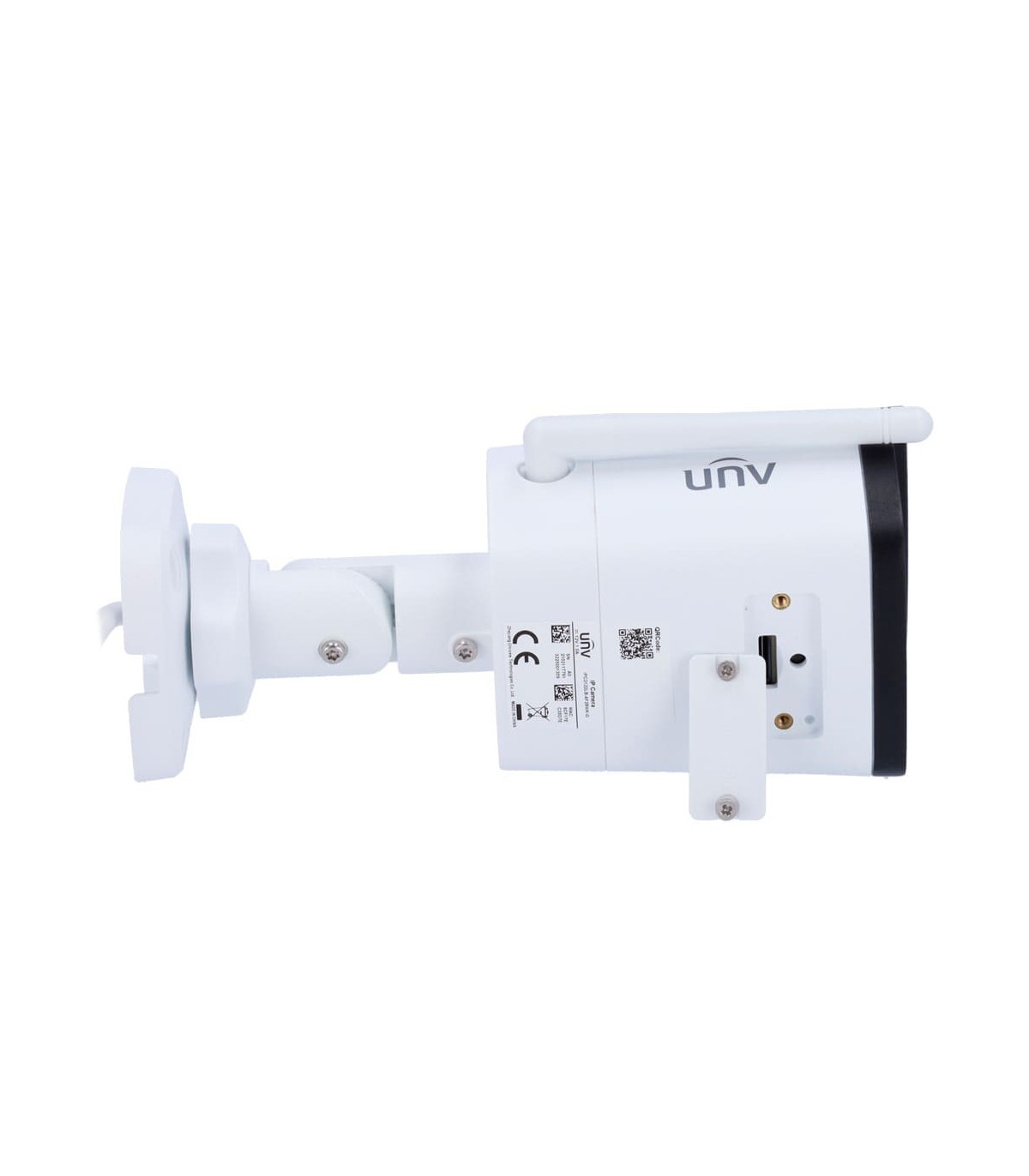

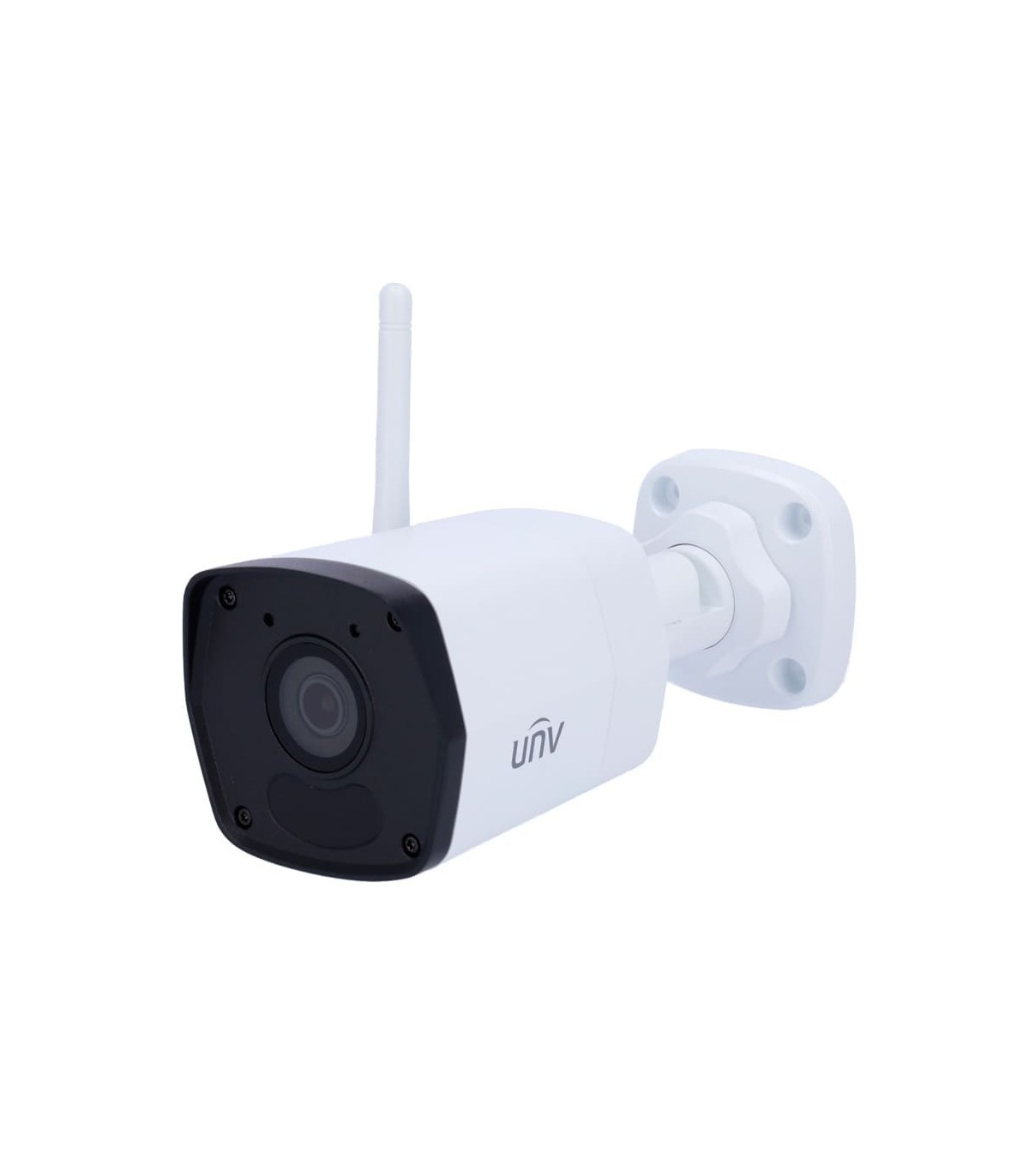

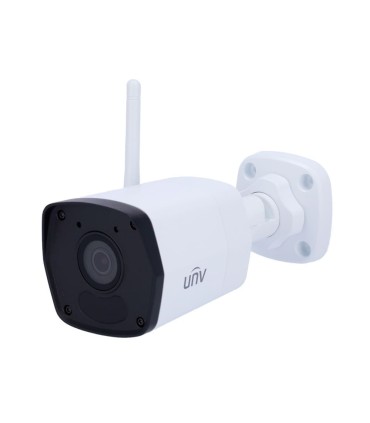

The kit includes 4 Uniview IPC2122LB-AF28WK-G Wi-Fi Bullet cameras, equipped with a 1/2.9" Progressive Scan CMOS image sensor and 2MP (1920 × 1080) resolution. The fixed 2.8mm lens enables image capture suitable for monitoring different environments.

The cameras support video transmission at up to 30fps and Ultra H.265, H.265, Ultra H.264 and H.264 compression. They feature IEEE 802.11b/g/n Wi-Fi connectivity and a 10/100 Base-T Ethernet interface.

Infrared Night Vision up to 30m

The Uniview Bullet cameras incorporate infrared illumination with a range of up to 30m, enabling image capture in environments with little or no visible lighting.

They feature a minimum illumination of 0.01Lux in colour mode and 0Lux in black-and-white mode with infrared illumination. Image processing functions include 3D-NR, HLC, BLC, OSD, privacy masking, ROI and motion detection.

Plug & Play Installation and Cascading Wi-Fi

The system features Plug & Play technology, enabling automatic detection and addition of compatible cameras. This functionality simplifies the initial configuration of the video surveillance system.

Cascading Wi-Fi technology allows the cameras to act as wireless signal relay points, helping to extend network coverage in installations where the distance between the cameras and the recorder requires a more flexible connection. Performance depends on installation site conditions.

Built-in Microphone and MicroSD Storage

The cameras include a built-in microphone, enabling audio capture alongside video surveillance images, depending on the system configuration.

They also support local storage via a MicroSD card up to 128GB, providing an additional recording option directly on the camera alongside centralised storage on the NVR.

IP67 Protection for Outdoor Installation

The four Bullet cameras feature an IP67 protection rating, making them suitable for outdoor installation, provided the manufacturer's mounting and power supply requirements are followed.

Each camera uses a DC 12V / 4W power supply, measures 172 × 76 × 72mm and has an approximate weight of 250g.

Recording and Storage up to 6TB

The NVR301-04LS3-W recorder features a bay for 1 SATA 3.5" hard drive up to 6TB, intended for storing video surveillance recordings. The hard drive is not included in the kit.

The system supports manual, scheduled and motion detection recording. Pentaplex operation provides live viewing, recording, playback, backup and remote access.

Remote Access and Application-Based Management

Remote access to the system is available through a web browser, EZStation management software and EZView / EZLive mobile applications, depending on device configuration and compatibility.

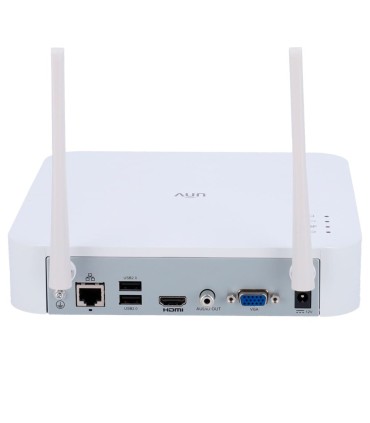

The NVR incorporates an RJ45 Ethernet connection, Wi-Fi connectivity and USB interfaces for connecting a mouse and performing backups, allowing the main video surveillance functions to be managed.

Kit with Installation Accessories

The KIT114-B42W includes the 4-channel recorder, four Wi-Fi Bullet cameras, their corresponding power adapters, a USB mouse and operating instructions, bringing together the main components required to implement the system.

Plug & Play installation and wireless connectivity help simplify commissioning. To store recordings on the NVR, a compatible hard drive must be installed and is sold separately.

Complete Wi-Fi IP Video Surveillance Solution

The KIT114-B42W combines four Uniview Full HD Bullet cameras with a 4-channel NVR, offering a video surveillance solution with Wi-Fi transmission, night vision up to 30m and centralised recording.

IP67 protection, Ultra H.265 compression, cascading Wi-Fi technology, the built-in microphone and remote access make this kit suitable for various residential and commercial monitoring applications.
