YALE-CYLINDER-HSK-3530 - Yale HS-K Linus High Security Cylinder 35x30mm

YALE-CYLINDER-HSK-3530 - Yale HS-K Linus High Security Cylinder 35x30mm

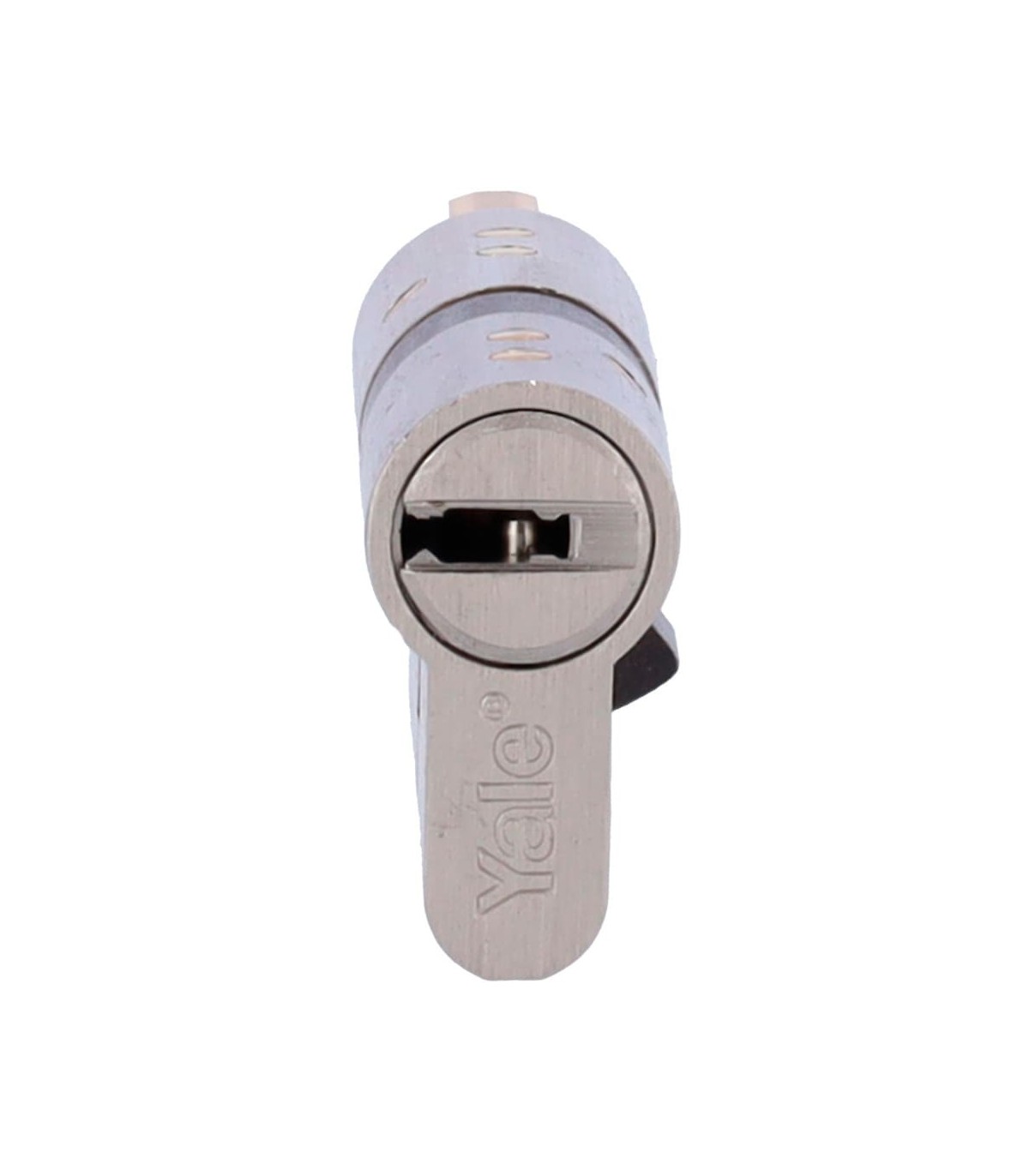

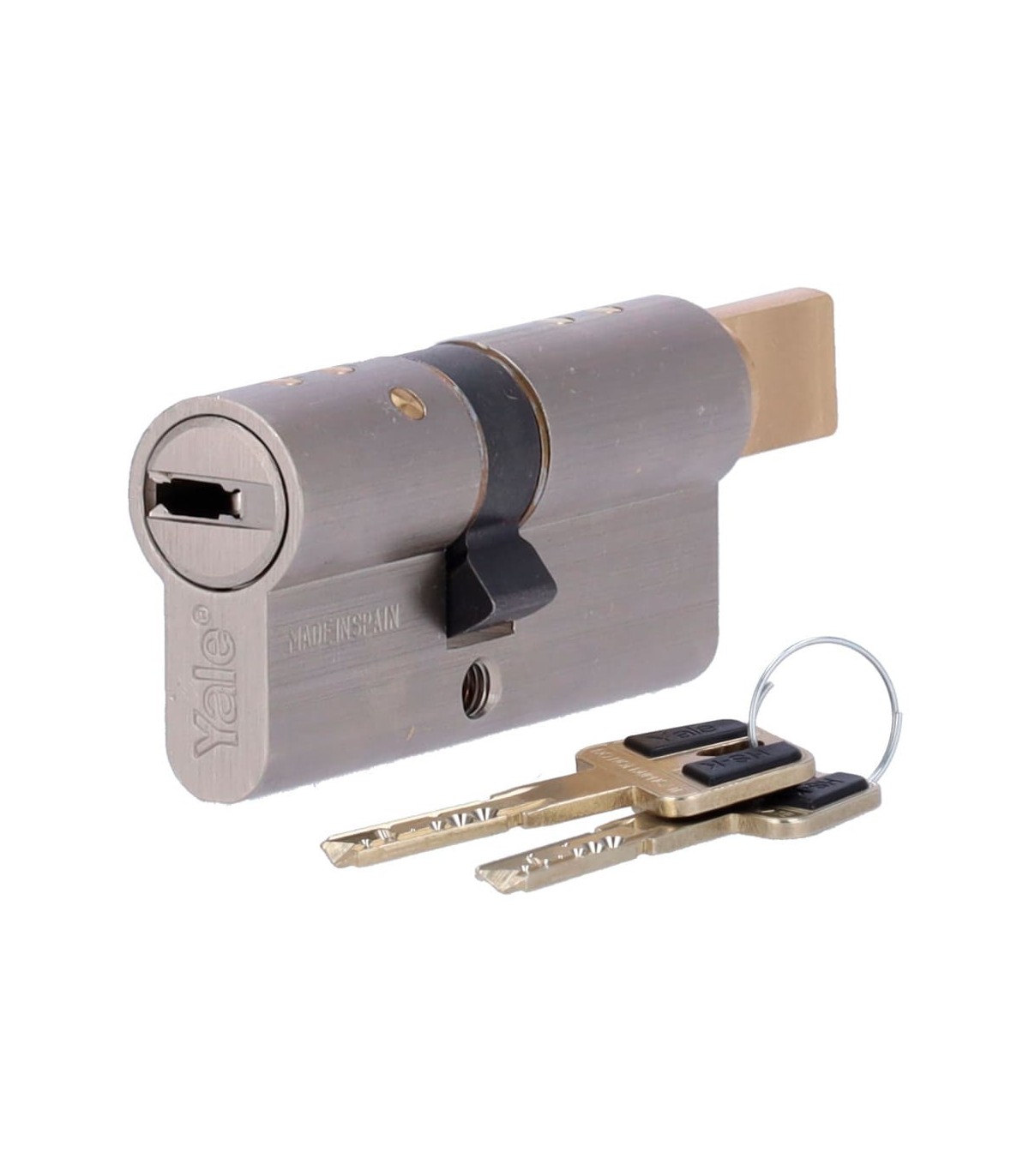

The YALE-CYLINDER-HSK-3530 is a Yale high security cylinder specifically designed for the Yale Linus Smart Lock.

This patented cylinder combines a double clutch mechanism with several mechanical security features. It is designed to ensure proper operation with the Yale Linus system.

With 35x30mm dimensions, it incorporates 7 active pins and 2 sensors. It also includes two reversible keys and a property card.

YALE-CYLINDER-HSK-3530 - Yale High Security Cylinder

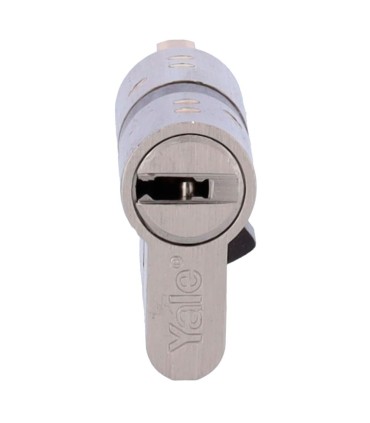

The YALE-CYLINDER-HSK-3530 belongs to the Yale HS-K Linus range. It is a patented cylinder designed for residential access control installations.

Its mechanism provides protection against different attack methods. The design is intended to strengthen the mechanical security of the door.

This Yale cylinder complements installations equipped with the Yale Linus Smart Lock.

Compatibility with Yale Linus Smart Lock

The Yale HS-K Linus cylinder has been specially developed for use with the Yale Linus Smart Lock.

Its configuration provides a mechanical connection between the cylinder and the Linus unit. The drive component is designed to ensure suitable engagement.

Before installation, the required door dimensions must be checked.

Double Clutch Mechanism

The YALE-CYLINDER-HSK-3530 incorporates a double clutch mechanism.

This system allows mechanical operation using a key, even when another key is inserted on the opposite side, provided the installation is compatible.

The double clutch mechanism is particularly useful in installations combining a smart lock with physical key access.

Anti-Bumping Protection

The Yale HS-K Linus cylinder features anti-bumping protection.

This feature is designed to make opening attempts using percussion techniques more difficult.

Anti-bumping protection forms part of the cylinder's mechanical security system.

Anti-Picking Protection

The YALE-CYLINDER-HSK-3530 provides anti-picking protection.

This feature is designed to make manipulation of the internal components using lock-picking tools more difficult.

Combined with the other mechanisms, it helps protect against unauthorised access attempts.

Anti-Drilling Protection

The Yale high security cylinder includes anti-drilling protection.

This feature is designed to resist attempts to damage the mechanism using drilling tools.

Anti-drilling protection is among the security features specified by Yale for the HS-K Linus range.

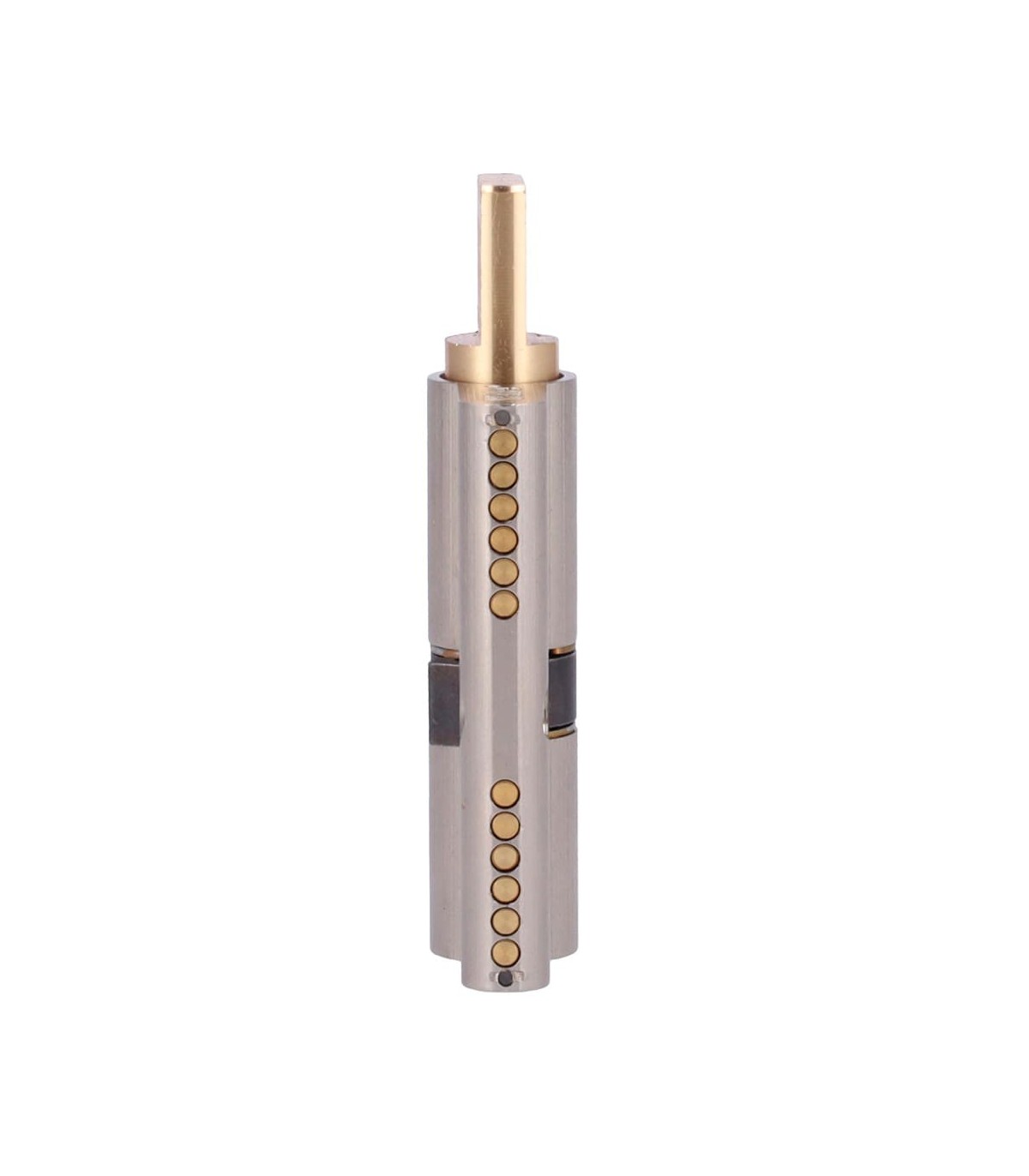

Mechanism with 7 Active Pins and 2 Sensors

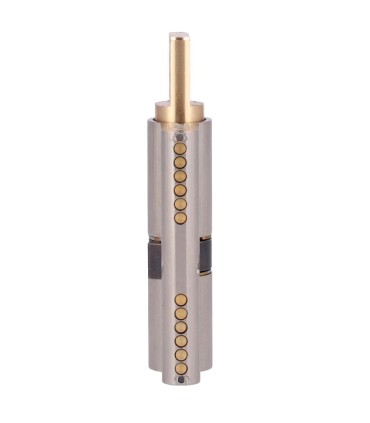

The YALE-CYLINDER-HSK-3530 incorporates a mechanism with 7 active pins and 2 sensors.

This configuration forms part of the patented HS-K cylinder security system.

The mechanism is designed to provide enhanced mechanical access control.

UNE EN 1303:2016 Standard

The Yale HS-K Linus cylinder complies with the UNE EN 1303:2016 standard.

This standard establishes requirements and testing methods for lock cylinders.

The manufacturer specifies the classification 1 6 0 B 0 B 6 D for this model.

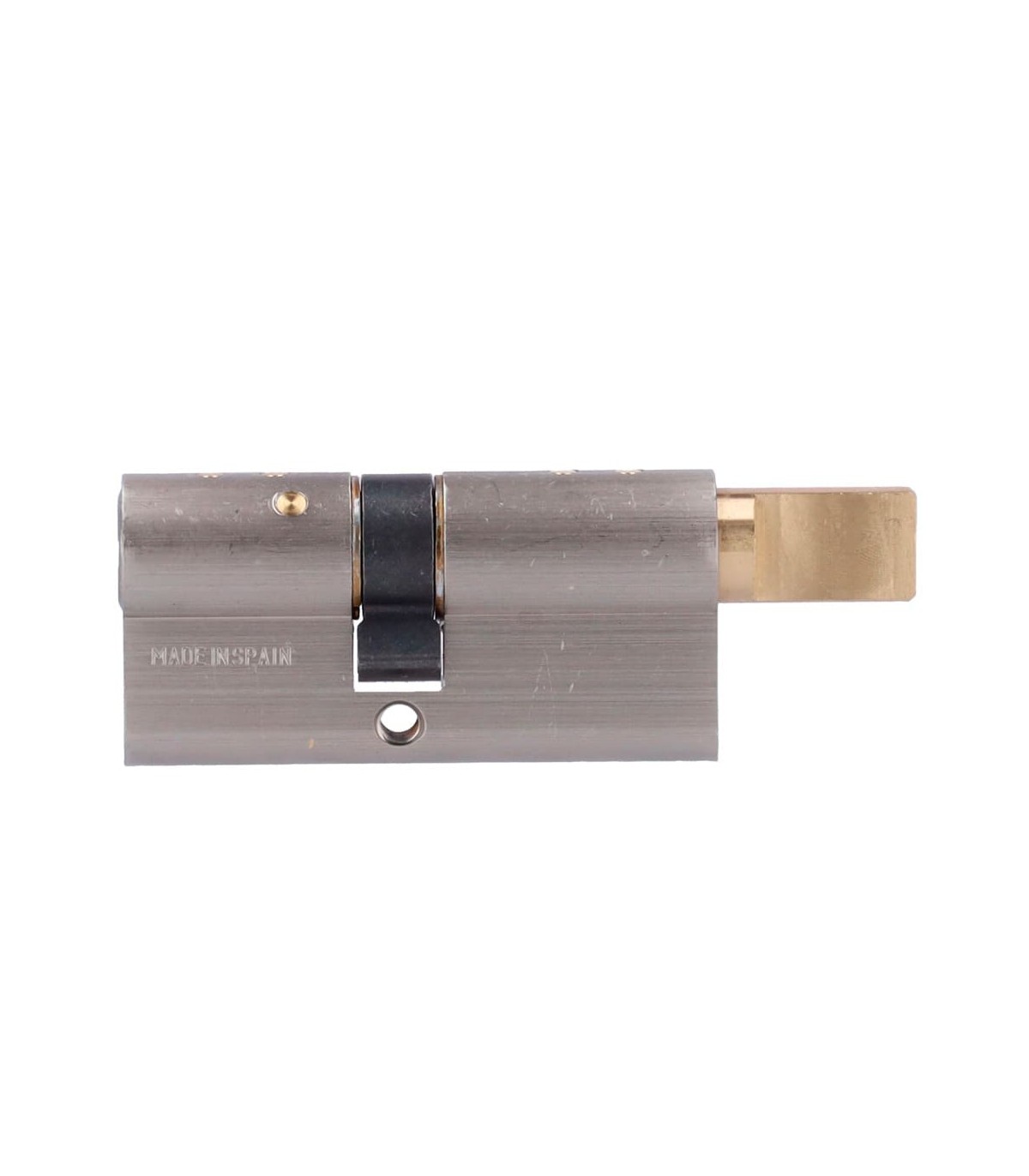

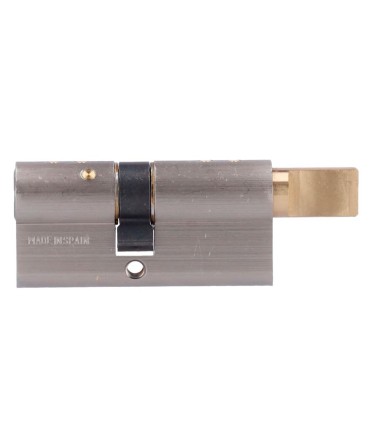

YALE-CYLINDER-HSK-3530 - 35x30mm Dimensions

The YALE-CYLINDER-HSK-3530 has an internal dimension of 35mm and an external dimension of 30mm.

These measurements are taken from the centre of the cylinder cam.

Dimensions should be checked before replacing the existing cylinder. Selecting the correct size supports proper installation.

How to Measure the Yale HS-K Linus Cylinder

The manufacturer specifies a measurement procedure for selecting the correct cylinder dimensions.

For the internal dimension, measure the existing cylinder from its end to the centre of the cam. Then add 5mm to allow the Linus unit to be fitted.

For the external dimension, use the measurement from the end of the existing cylinder to the centre of the cam. No additional 5mm is required.

For this reference, the final dimensions are 35mm internally and 30mm externally.

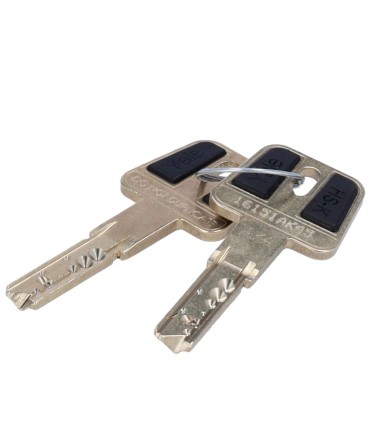

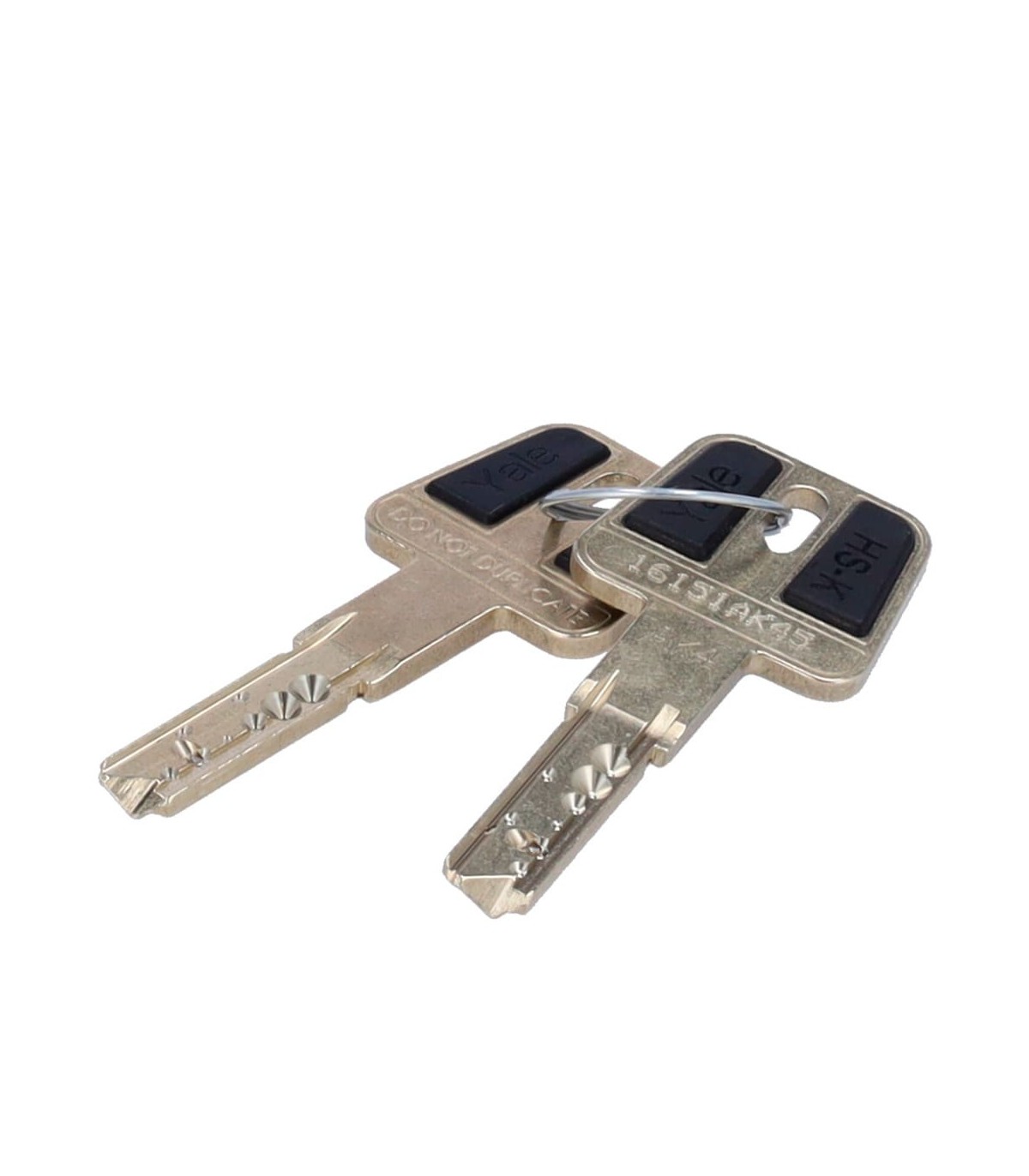

Reversible Flat Keys

The YALE-CYLINDER-HSK-3530 includes 2 reversible flat keys made from nickel silver.

These keys allow mechanical operation of the cylinder.

The reversible design makes everyday use easier. The key does not need to be inserted in a specific orientation.

Yale Property Card

The Yale HS-K Linus cylinder is supplied with a property card.

According to the manufacturer, this card is required to obtain duplicate keys.

It is recommended to keep the card in a secure location, separate from the keys used every day.

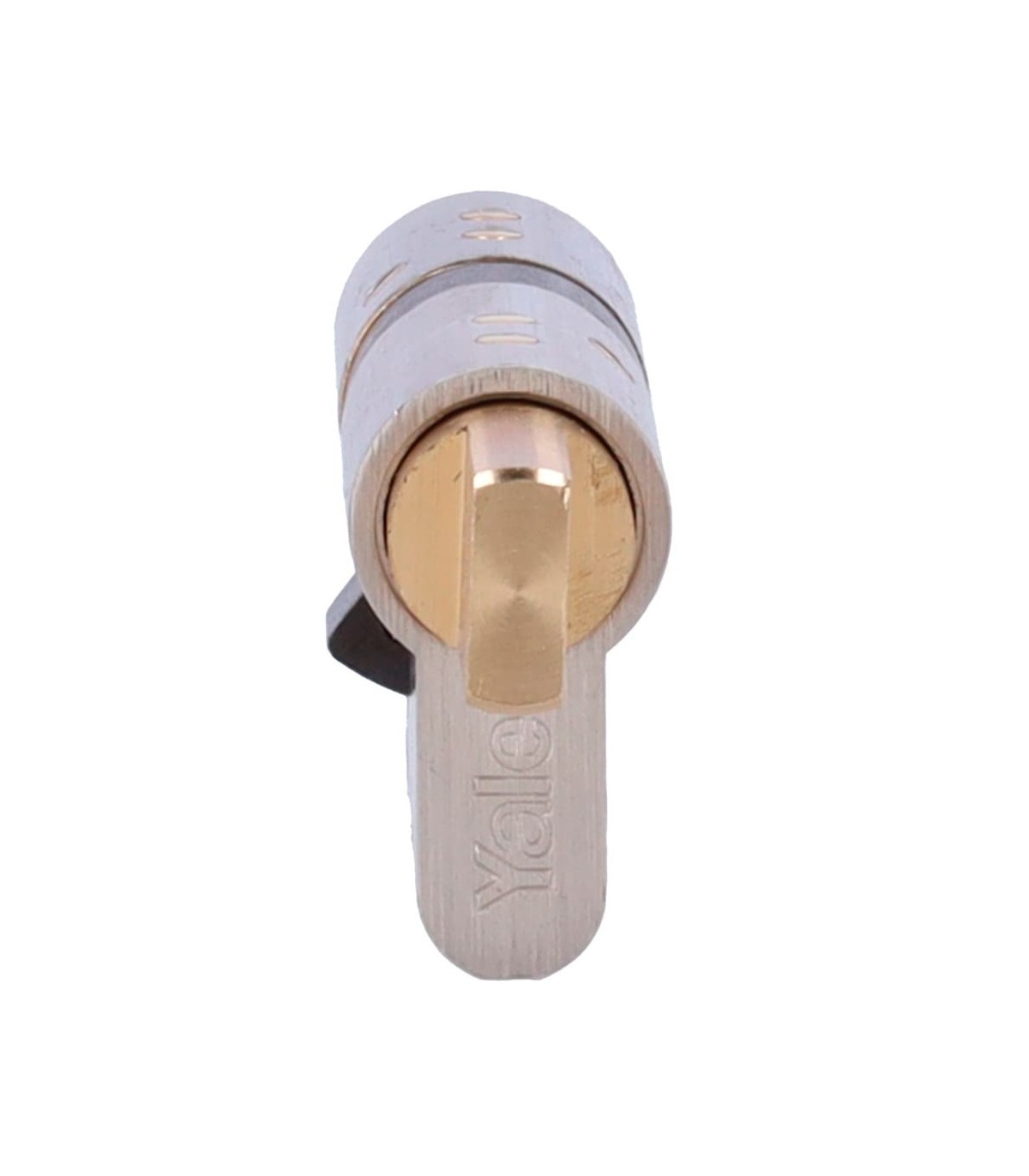

Drive Component for Yale Linus

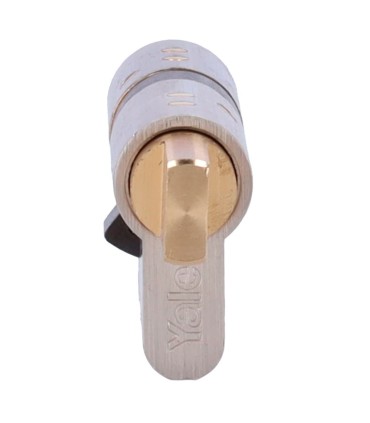

The YALE-CYLINDER-HSK-3530 incorporates a drive component specifically designed for the Linus Smart Lock.

This configuration provides suitable engagement between the cylinder and the smart lock mechanism.

The system is designed to support the combined operation of both components.

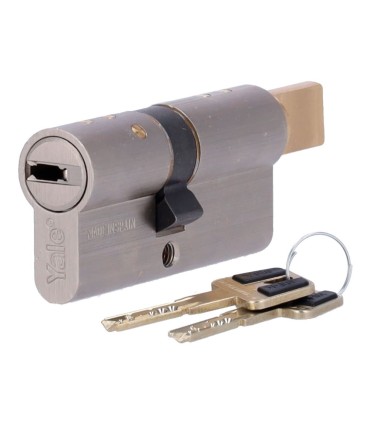

Package Contents

The package includes 1 Yale HS-K Linus cylinder and 1 fixing screw.

It also contains 2 reversible flat keys and 1 property card.

These components correspond to the package contents specified in the manufacturer's datasheet.

YALE-CYLINDER-HSK-3530 - Security Solution for Yale Linus

The YALE-CYLINDER-HSK-3530 combines a patented mechanism with anti-bumping, anti-picking and anti-drilling protection.

Its double clutch mechanism allows a smart lock to be combined with mechanical key access.

With 35x30mm dimensions, this Yale high security cylinder is designed for installations compatible with the Yale Linus Smart Lock.

The two reversible keys and property card complete this mechanical access solution.
