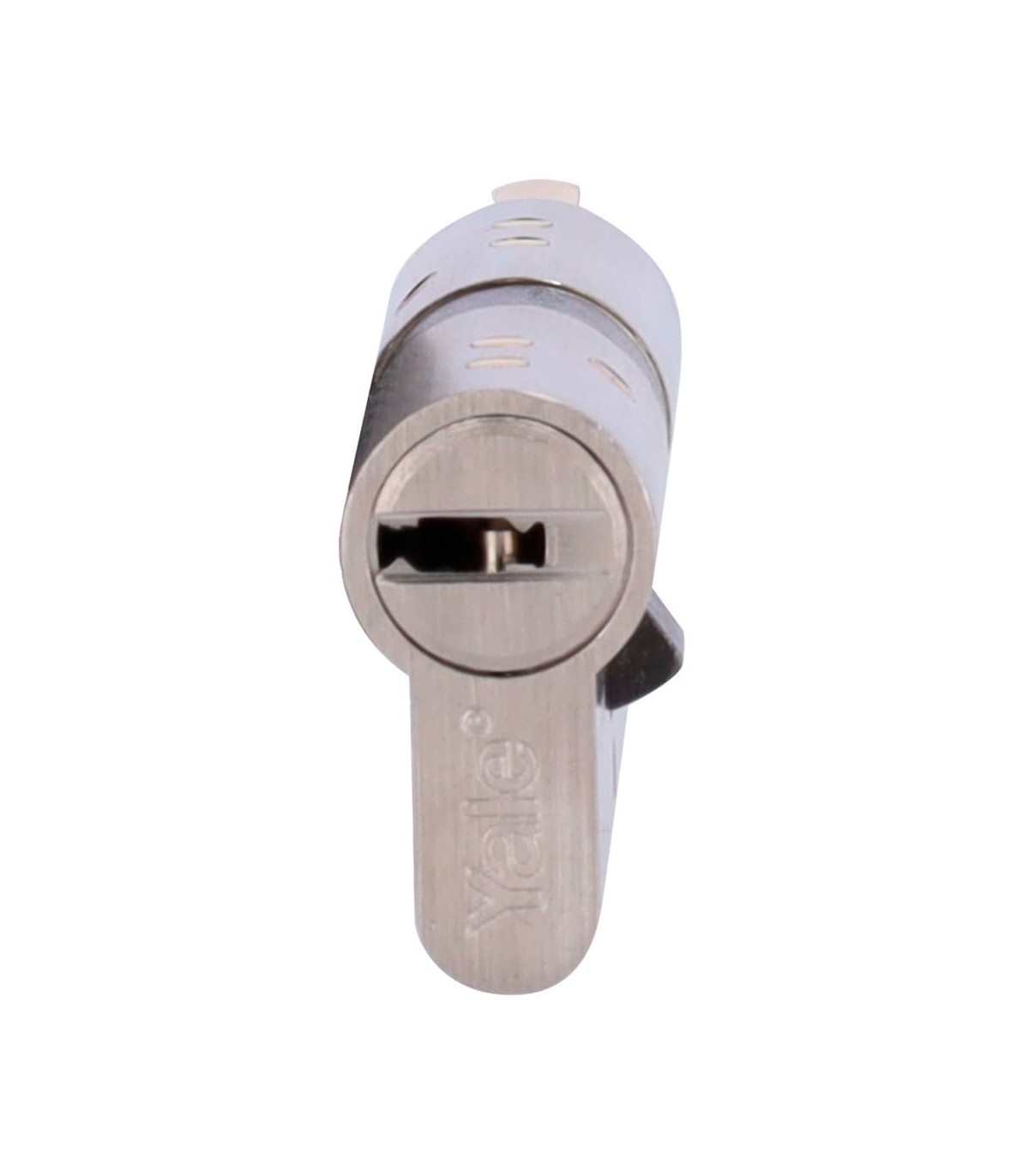

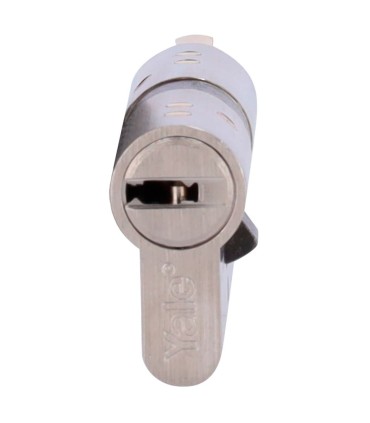

The CYLINDER-HSK-3535 is a Yale high security cylinder from the HS-K Linus range, featuring 35x35mm dimensions.

This patented cylinder is specifically designed for the Yale Linus Smart Lock. It combines a double clutch mechanism with several mechanical security features.

Its mechanism incorporates 7 active pins and 2 sensors. The package also includes two reversible keys and a property card.

CYLINDER-HSK-3535 - Yale High Security Cylinder

The CYLINDER-HSK-3535 belongs to the patented Yale HS-K Linus cylinder range.

Its mechanism is designed to enhance the mechanical security of the door. It incorporates several protective features against unauthorised opening techniques.

This Yale cylinder is suitable for compatible residential installations.

Compatibility with Yale Linus Smart Lock

The Yale HS-K Linus cylinder has been specifically developed for use with the Yale Linus Smart Lock.

Its configuration provides a mechanical connection between the cylinder and the Linus unit. The drive component is designed for suitable engagement.

Before installation, the cylinder dimensions and door requirements must be checked.

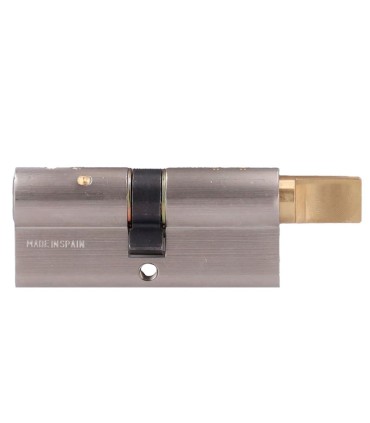

Double Clutch Mechanism

The CYLINDER-HSK-3535 incorporates a double clutch mechanism.

This system allows a key to be operated from one side, even when another key is inserted on the opposite side.

The double clutch mechanism is particularly useful in installations combining a smart lock with mechanical key access.

Anti-Bumping Protection

The Yale HS-K Linus cylinder features anti-bumping protection.

This feature is designed to make opening attempts using percussion techniques more difficult.

It contributes to the mechanical security of the cylinder.

Anti-Picking Protection

The CYLINDER-HSK-3535 incorporates anti-picking protection.

This system is designed to make manipulation of internal components using lock-picking tools more difficult.

Combined with the other protective features, it contributes to the security of the locking mechanism.

Anti-Drilling Protection

The Yale high security cylinder includes anti-drilling protection.

This feature is designed to make attacks involving drilling tools more difficult.

It complements the anti-bumping and anti-picking protection of the HS-K Linus range.

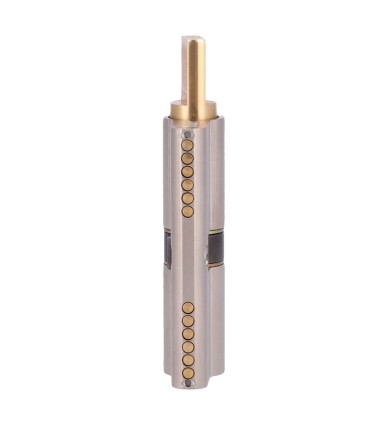

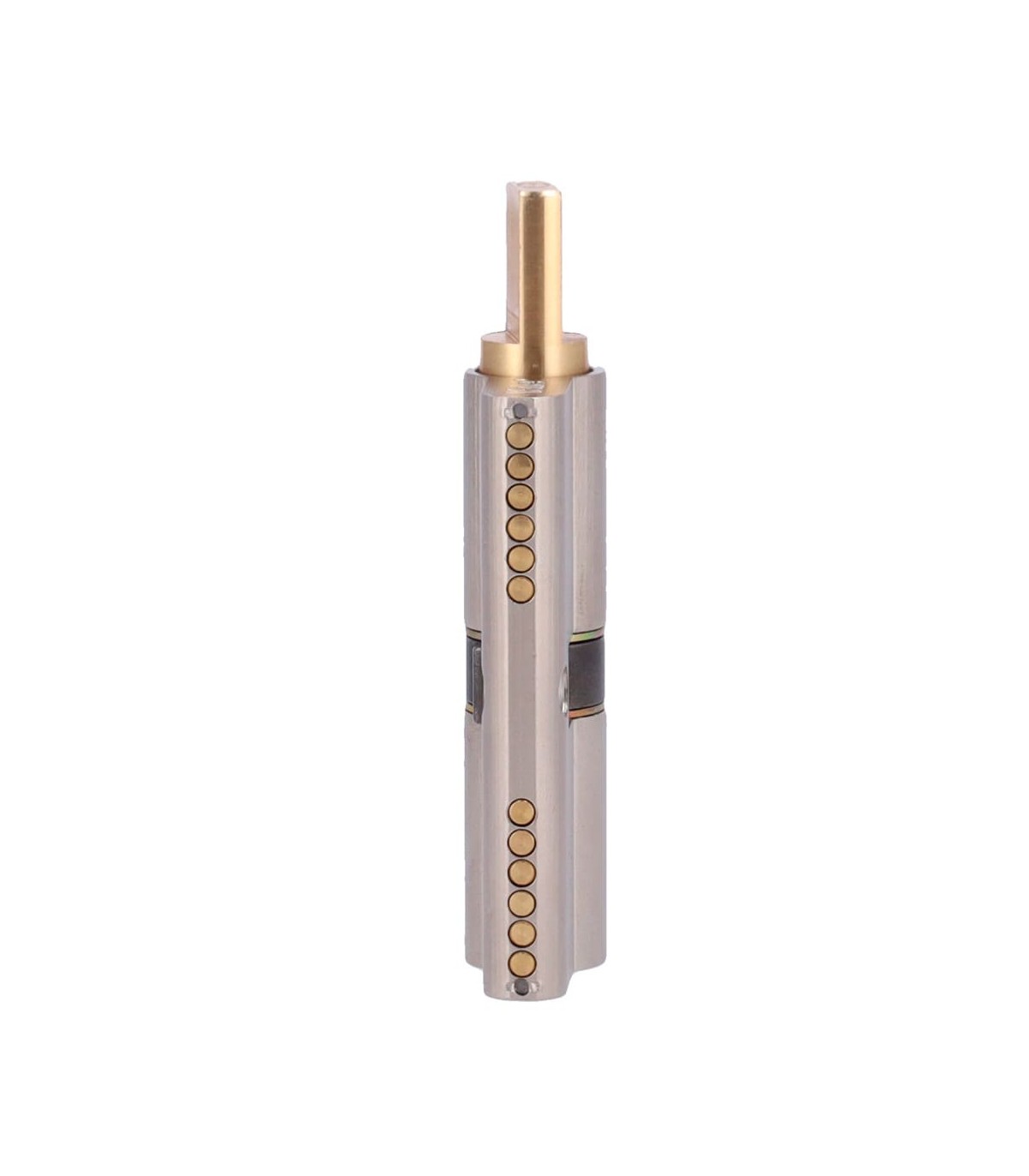

Mechanism with 7 Active Pins and 2 Sensors

The CYLINDER-HSK-3535 uses a mechanism with 7 active pins and 2 sensors.

This configuration forms part of the patented Yale HS-K security system.

The mechanism is designed to provide enhanced mechanical protection.

UNE EN 1303:2016 Standard

The Yale HS-K Linus cylinder complies with the UNE EN 1303:2016 standard.

This standard establishes requirements and testing methods applicable to lock cylinders.

The manufacturer specifies the classification 1 6 0 B 0 B 6 D.

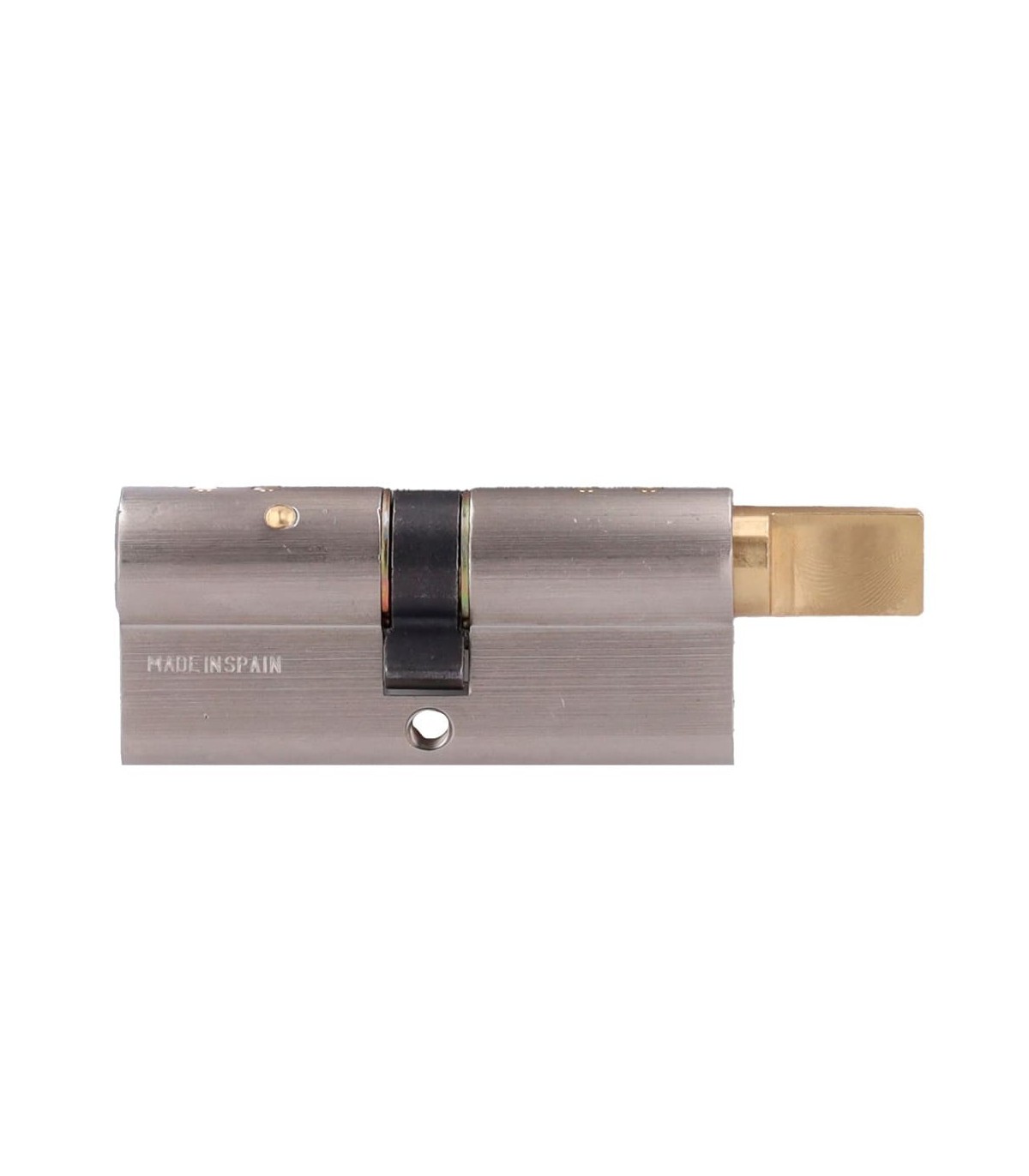

CYLINDER-HSK-3535 - 35x35mm Dimensions

The CYLINDER-HSK-3535 has an internal dimension of 35mm and an external dimension of 35mm.

These dimensions are measured from the centre of the cylinder cam.

Measurements should be checked before replacing the existing cylinder.

How to Measure the Yale HS-K Linus Cylinder

The manufacturer specifies a measurement procedure to determine the required cylinder dimensions.

For the internal dimension, measure the existing cylinder from its end to the centre of the cam. Then add 5mm to allow the Linus unit to be fitted.

For the external dimension, use the measurement from the cylinder end to the centre of the cam, without adding the extra 5mm.

For this reference, the final dimensions are 35mm internally and 35mm externally.

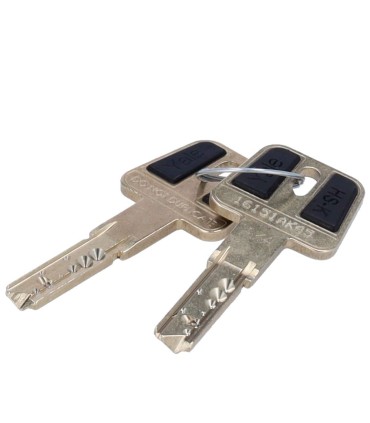

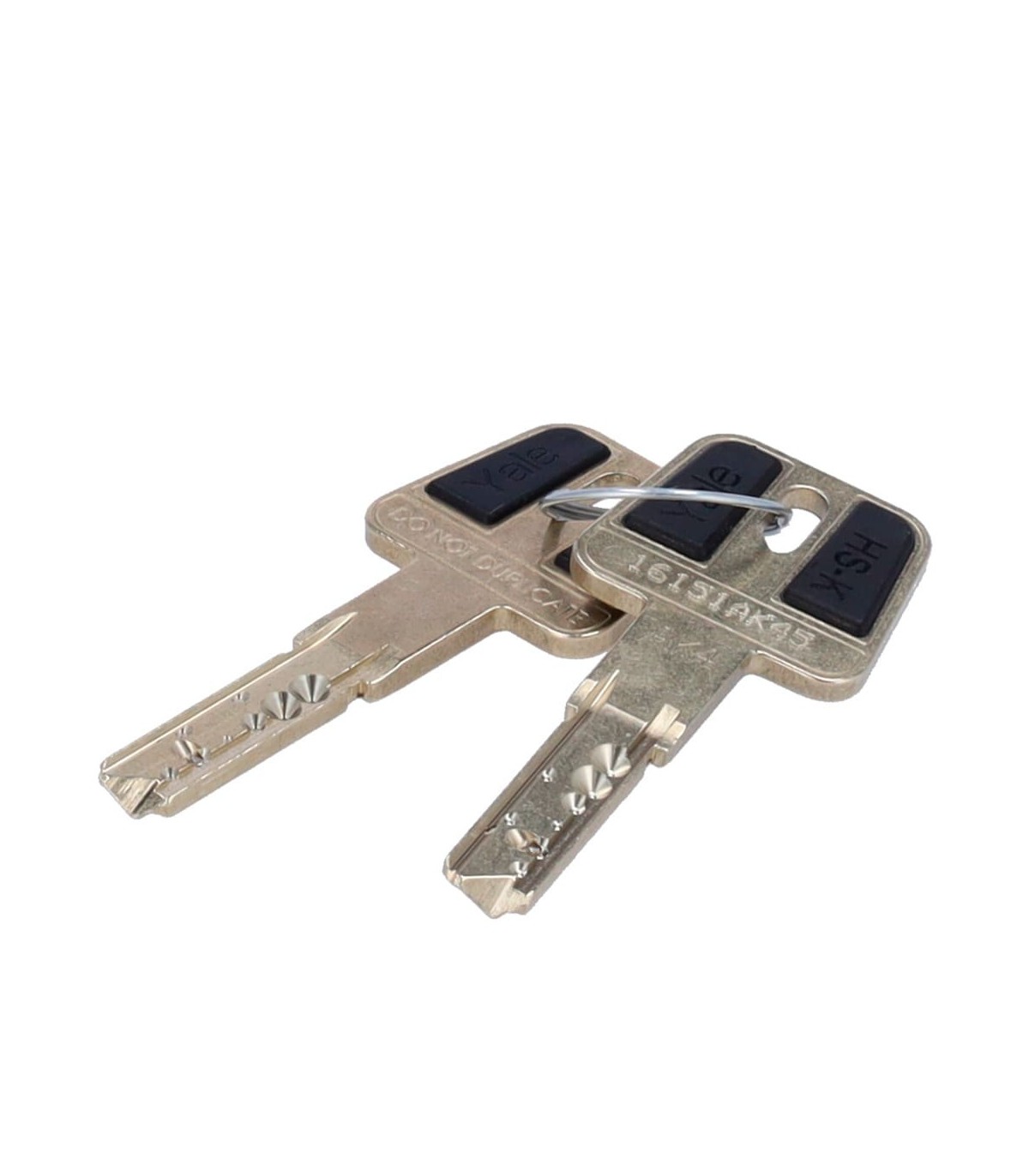

Reversible Flat Keys

The CYLINDER-HSK-3535 is supplied with 2 reversible flat keys made from nickel silver.

These keys allow mechanical operation of the cylinder.

The reversible design makes everyday use easier, without requiring a specific key orientation.

Yale Property Card

The Yale HS-K Linus cylinder includes a property card.

According to the manufacturer, this card is required to obtain duplicate keys.

It is recommended to store the card securely, separately from the keys.

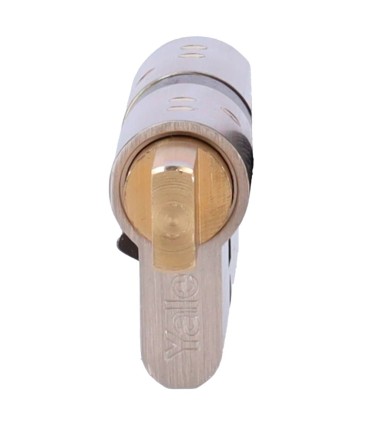

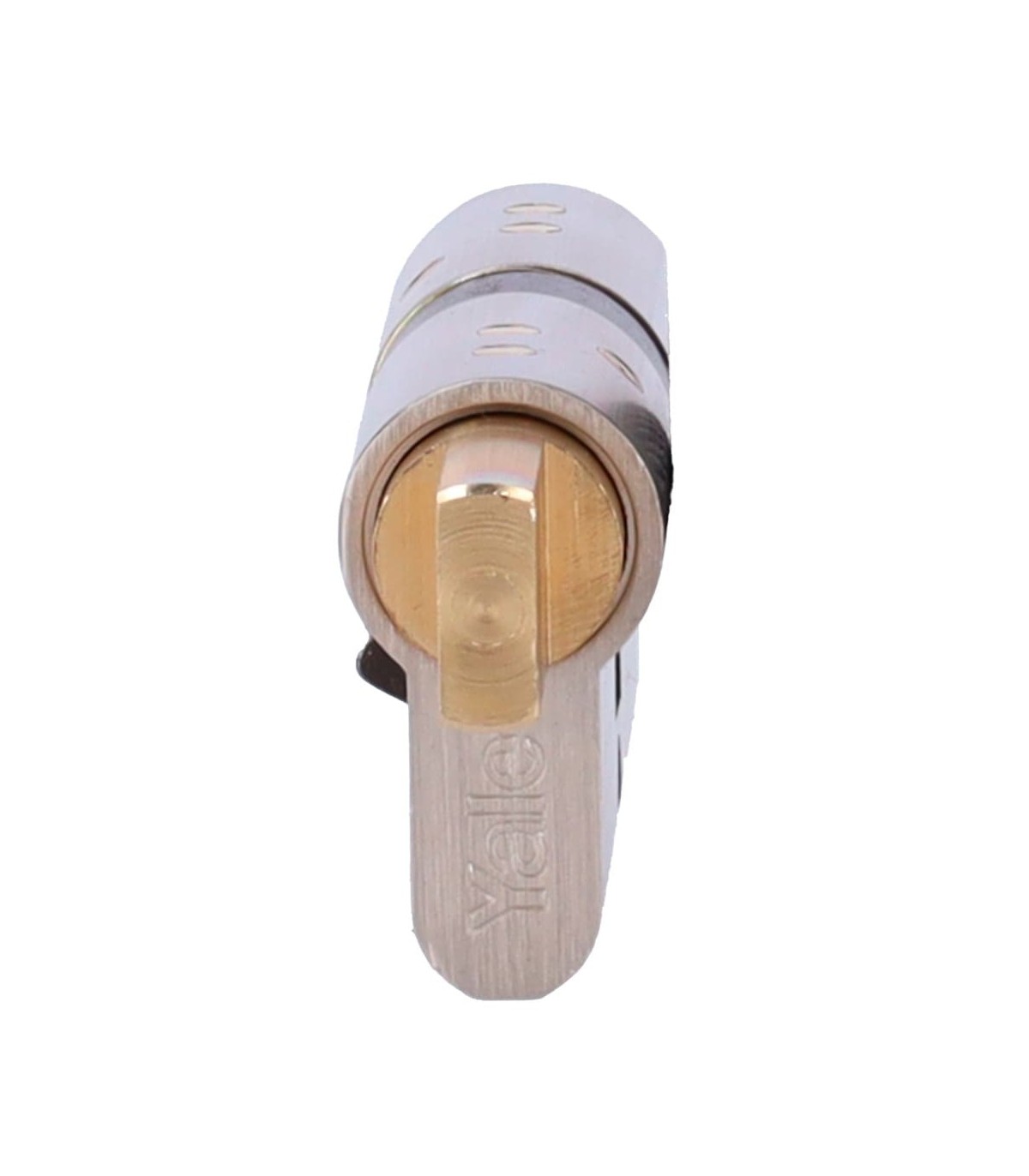

Drive Component for Yale Linus

The CYLINDER-HSK-3535 belongs to a range specifically developed for the Yale Linus Smart Lock.

Its drive component provides suitable mechanical engagement between the cylinder and the smart lock.

This configuration supports the combined operation of both components.

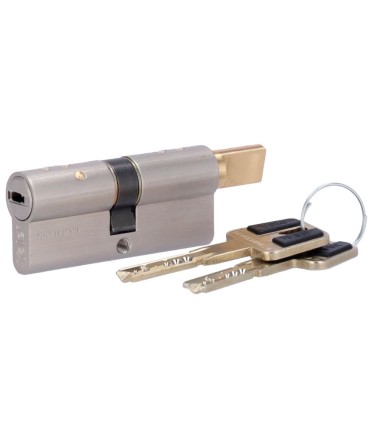

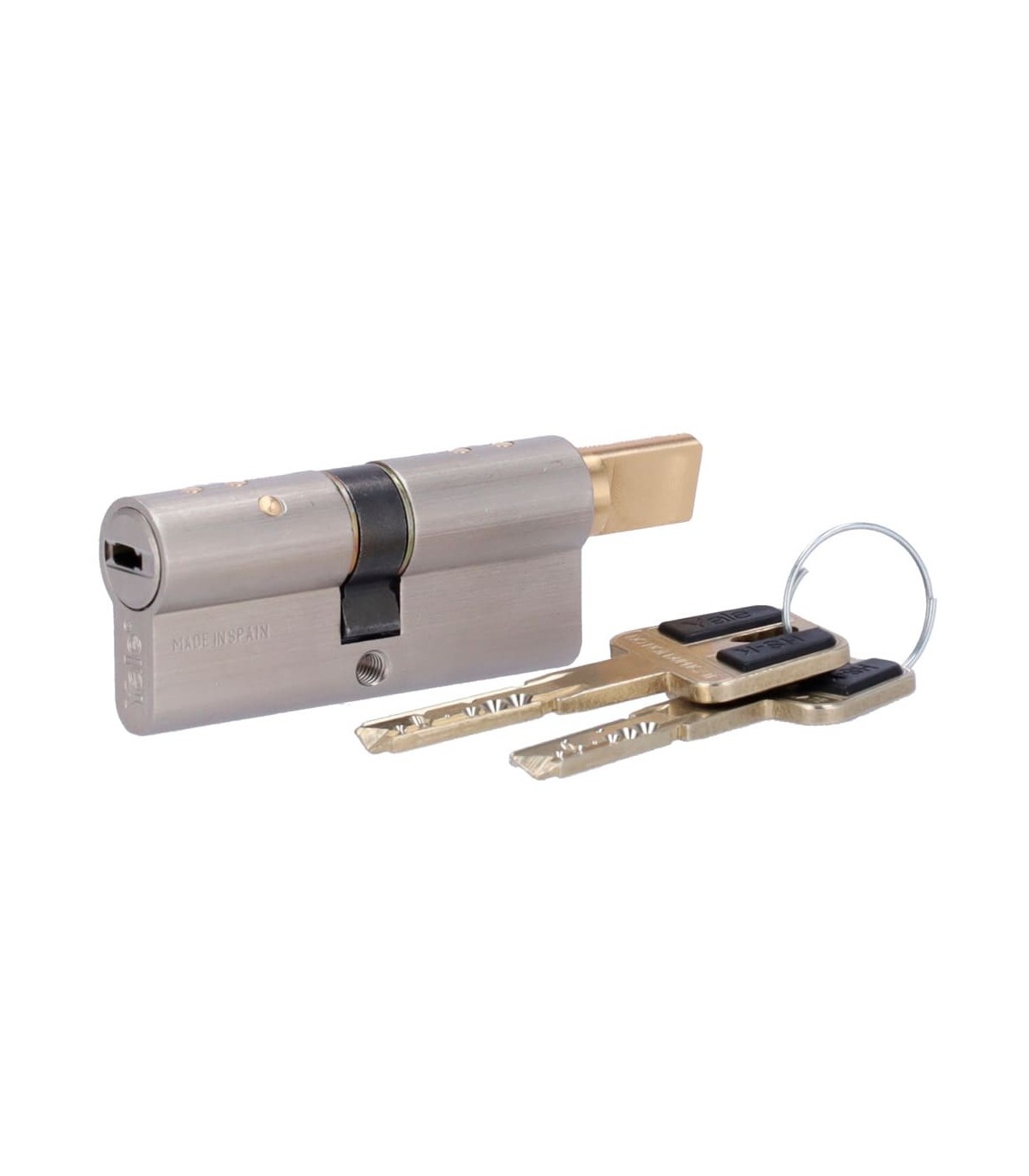

Package Contents

The package includes 1 Yale HS-K Linus cylinder and 1 fixing screw.

It also contains 2 reversible flat keys and 1 property card.

These components correspond to the package contents specified in the official Yale datasheet.

CYLINDER-HSK-3535 - Security Solution for Yale Linus

The CYLINDER-HSK-3535 combines a patented mechanism with anti-bumping, anti-picking and anti-drilling protection.

Its double clutch mechanism allows a smart lock to be combined with mechanical key access.

With 35x35mm dimensions, this Yale high security cylinder is designed for installations compatible with the Yale Linus Smart Lock.

The two reversible keys and property card complete this mechanical security solution.
