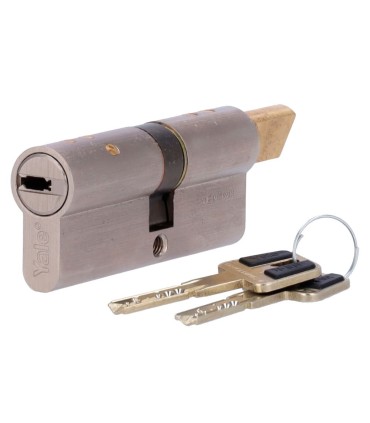

YALE-CYLINDER-HSK-3540 - Yale HS-K Linus High Security Cylinder 35x40mm

YALE-CYLINDER-HSK-3540 - Yale Cylinder 35x40mm

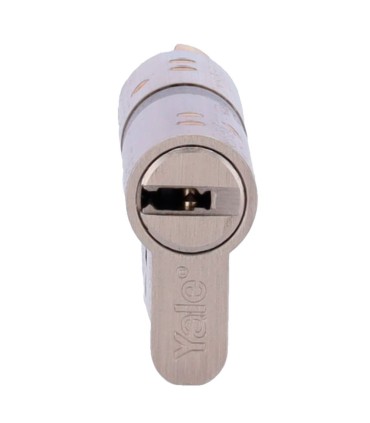

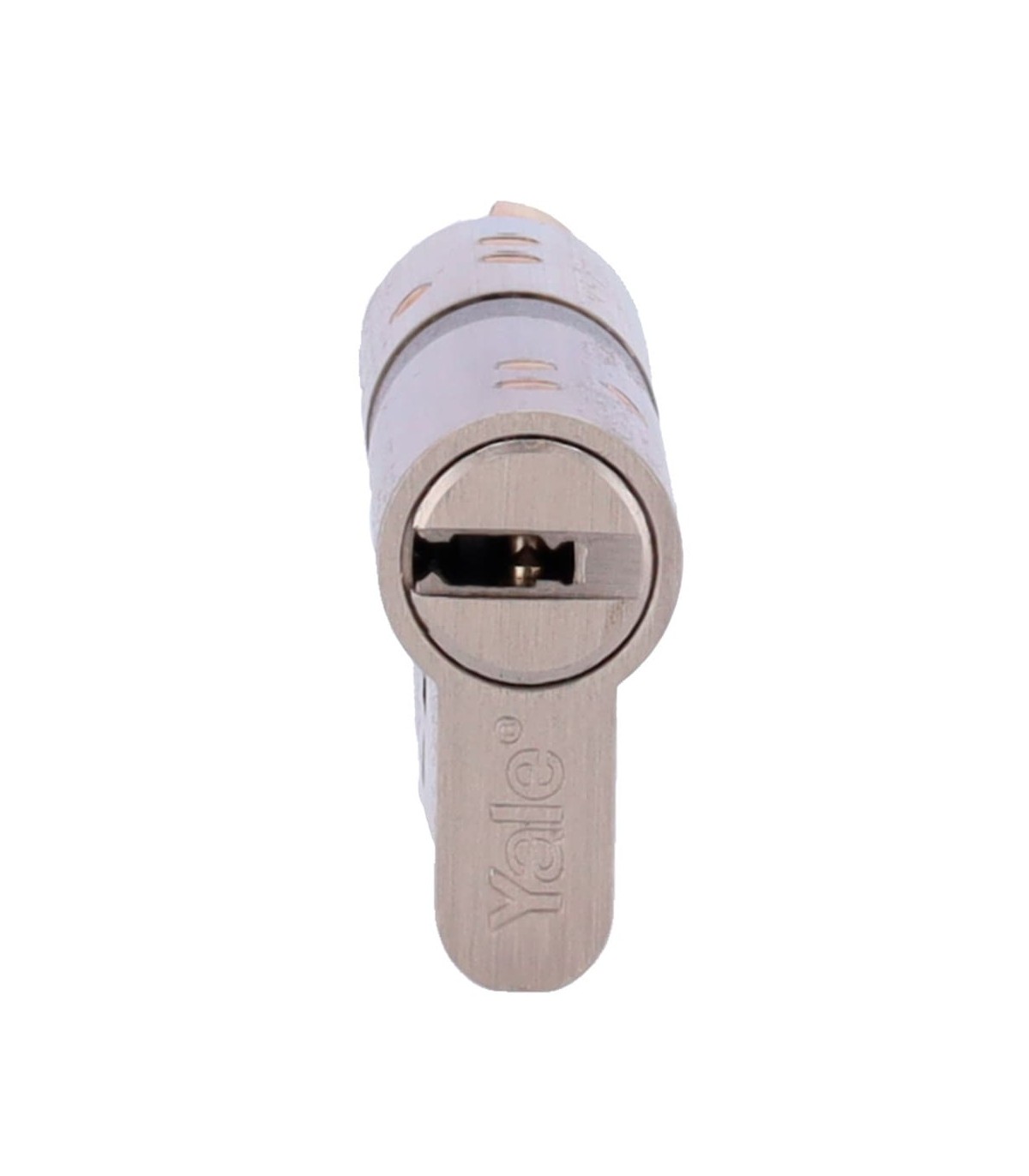

The YALE-CYLINDER-HSK-3540 is a Yale cylinder from the patented HS-K Linus high security range. It features 35x40mm dimensions and is specifically designed for Yale Linus Smart Lock.

This high security Yale cylinder combines a double clutch mechanism with anti-bumping, anti-picking and anti-drilling protection. Its mechanical design supports secure operation in compatible smart lock installations.

The mechanism incorporates 7 active pins and 2 sensors. The cylinder is supplied with two reversible flat keys, a property card and a fixing screw.

YALE-CYLINDER-HSK-3540 - High Security Yale Cylinder

The YALE-CYLINDER-HSK-3540 belongs to the patented Yale HS-K Linus cylinder range.

This Yale cylinder incorporates several mechanical security features designed to make unauthorised opening attempts more difficult.

Its design provides a security solution for compatible residential door installations.

YALE-CYLINDER-HSK-3540 - Yale Linus Compatibility

The YALE-CYLINDER-HSK-3540 is specifically designed for use with Yale Linus Smart Lock.

The cylinder features a drive cam designed to provide a suitable mechanical connection with the Linus smart lock unit.

Before installation, check the door configuration and cylinder measurements to confirm compatibility.

Yale Cylinder with Double Clutch Mechanism

The YALE-CYLINDER-HSK-3540 features a double clutch mechanism.

This double clutch system allows a key to operate the cylinder from one side even when another key is inserted on the opposite side.

The double clutch feature is particularly useful when combining a smart lock with mechanical key access.

Yale Cylinder Anti-Bumping Protection

This Yale cylinder includes anti-bumping protection.

Anti-bumping protection is designed to make opening attempts using percussion-based techniques more difficult.

It contributes to the overall mechanical security of the Yale HS-K Linus cylinder.

YALE-CYLINDER-HSK-3540 - Anti-Picking Protection

The YALE-CYLINDER-HSK-3540 incorporates anti-picking protection.

This feature is designed to resist attempts to manipulate the internal locking components with picking tools.

Anti-picking protection complements the other security features of the Yale cylinder.

Yale Cylinder Anti-Drilling Protection

The YALE-CYLINDER-HSK-3540 includes anti-drilling protection.

This protection is designed to make attacks using drilling tools more difficult.

It works alongside the anti-bumping and anti-picking features of the patented HS-K system.

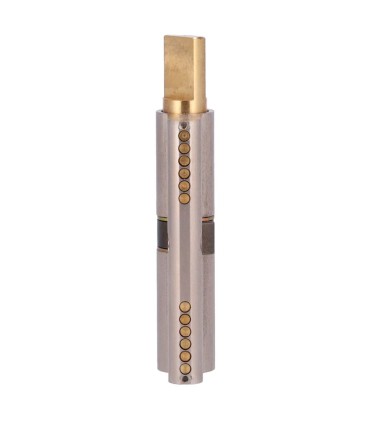

Security Mechanism with 7 Active Pins and 2 Sensors

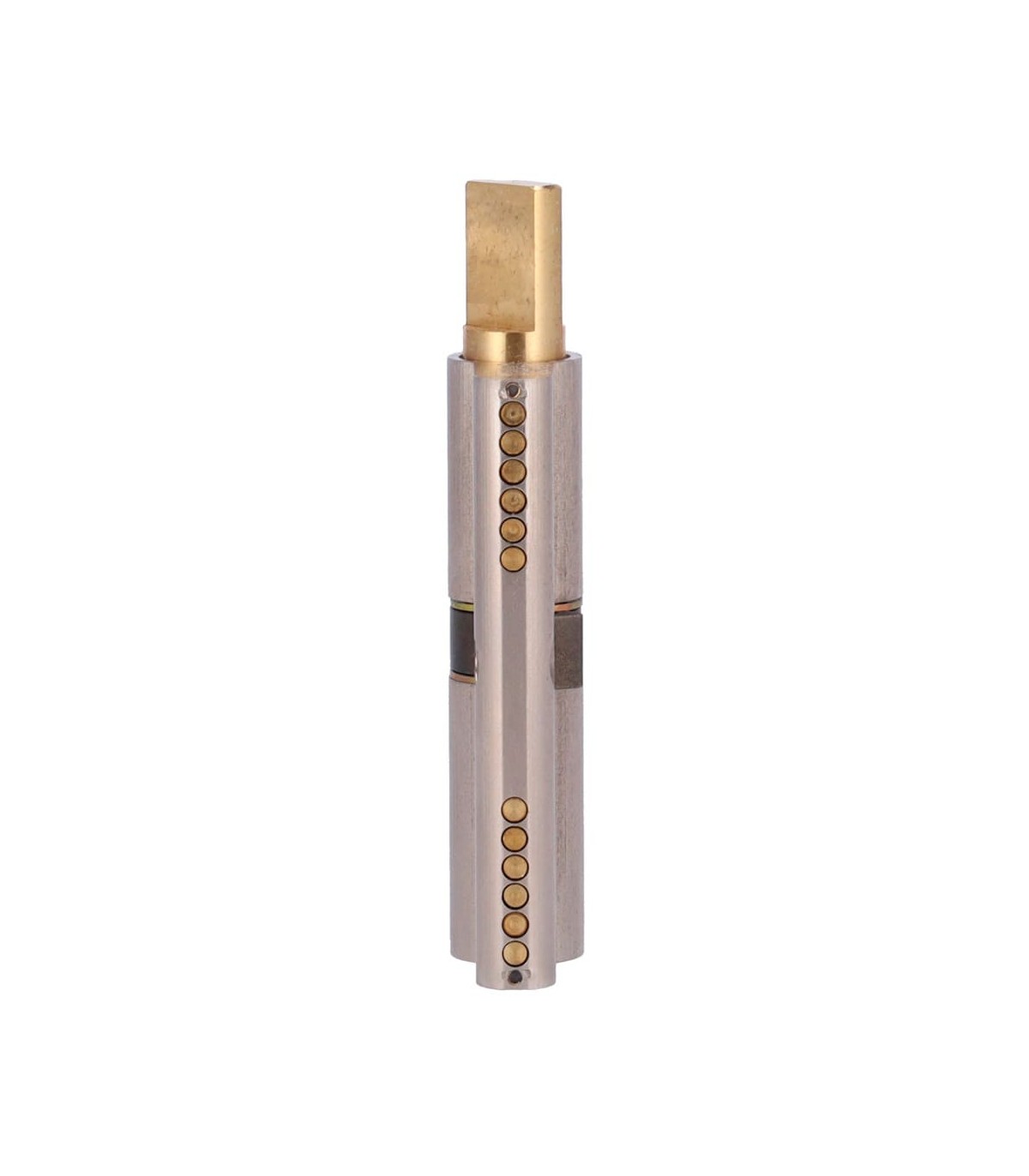

The YALE-CYLINDER-HSK-3540 incorporates 7 active pins and 2 sensors.

This configuration is part of the patented Yale HS-K security mechanism.

The system is designed to provide enhanced mechanical security for compatible door locks.

YALE-CYLINDER-HSK-3540 - UNE EN 1303:2016 Standard

The Yale HS-K Linus cylinder is specified according to the UNE EN 1303:2016 standard.

This standard establishes requirements and testing methods for cylinders used in locks.

The manufacturer specifies the classification 1 6 0 B 0 B 6 D.

YALE-CYLINDER-HSK-3540 - 35x40mm Dimensions

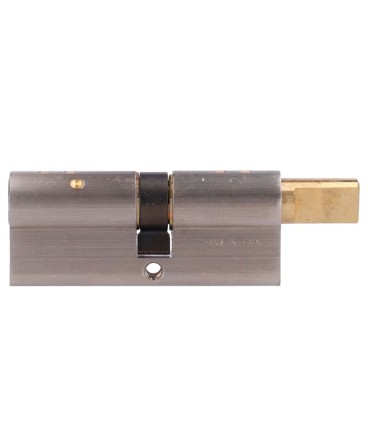

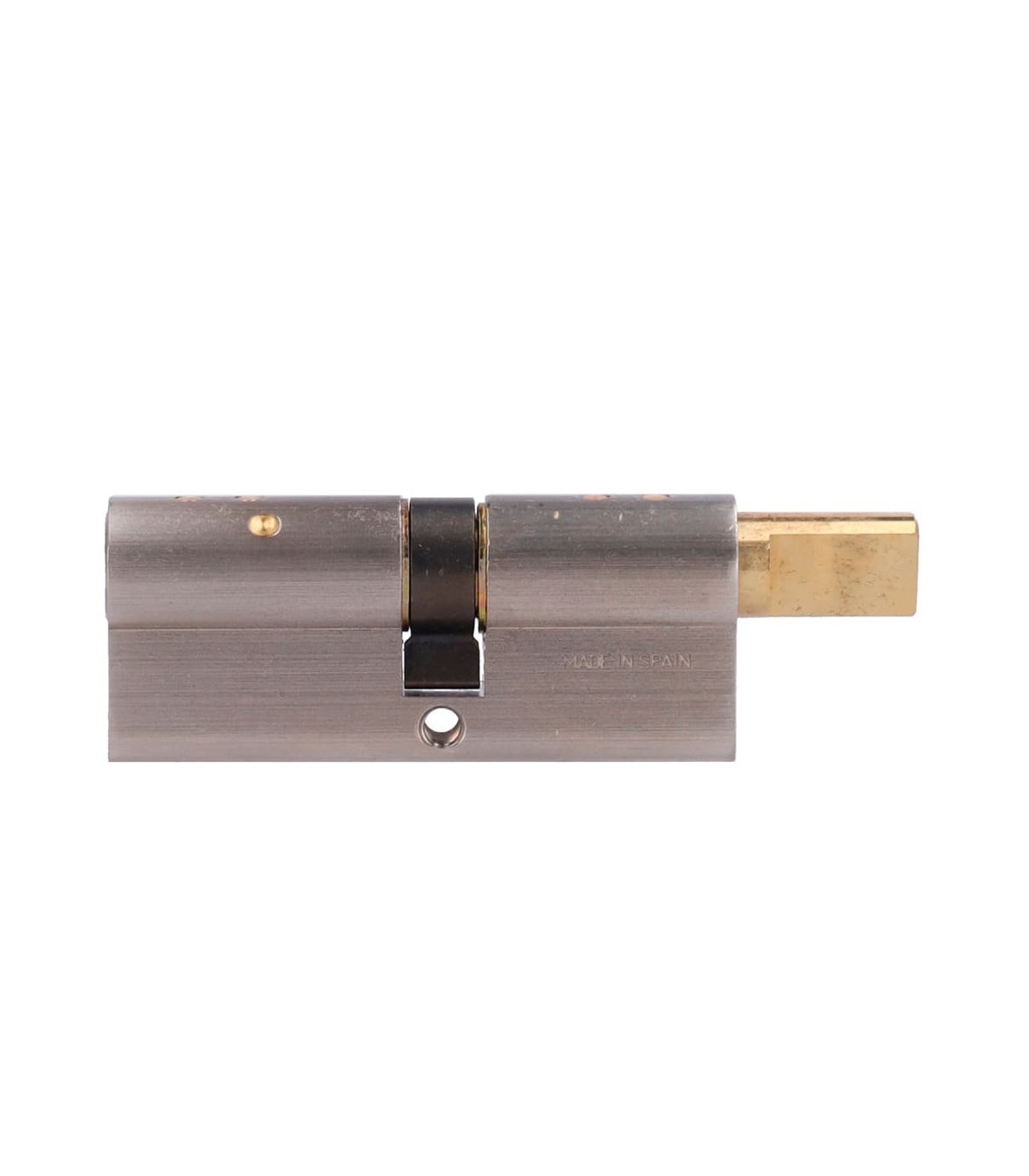

The YALE-CYLINDER-HSK-3540 has a 35mm internal dimension and a 40mm external dimension.

These measurements are taken from the cylinder ends to the centre of the cam.

Correct measurements are essential when selecting a replacement Yale cylinder for a compatible installation.

How to Measure the Yale HS-K Linus Cylinder

The manufacturer provides specific measurement instructions for the Yale HS-K Linus range.

For the internal dimension, measure the existing cylinder from its inner end to the centre of the cam. Add 5mm to allow the Linus unit to be fitted.

For the external dimension, measure from the outer end of the existing cylinder to the centre of the cam, without adding the extra 5mm.

For this model, the resulting dimensions are 35mm internally and 40mm externally.

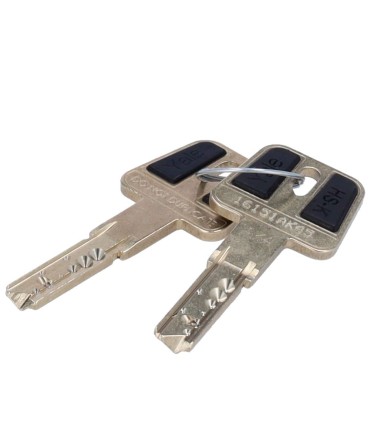

Two Reversible Flat Keys

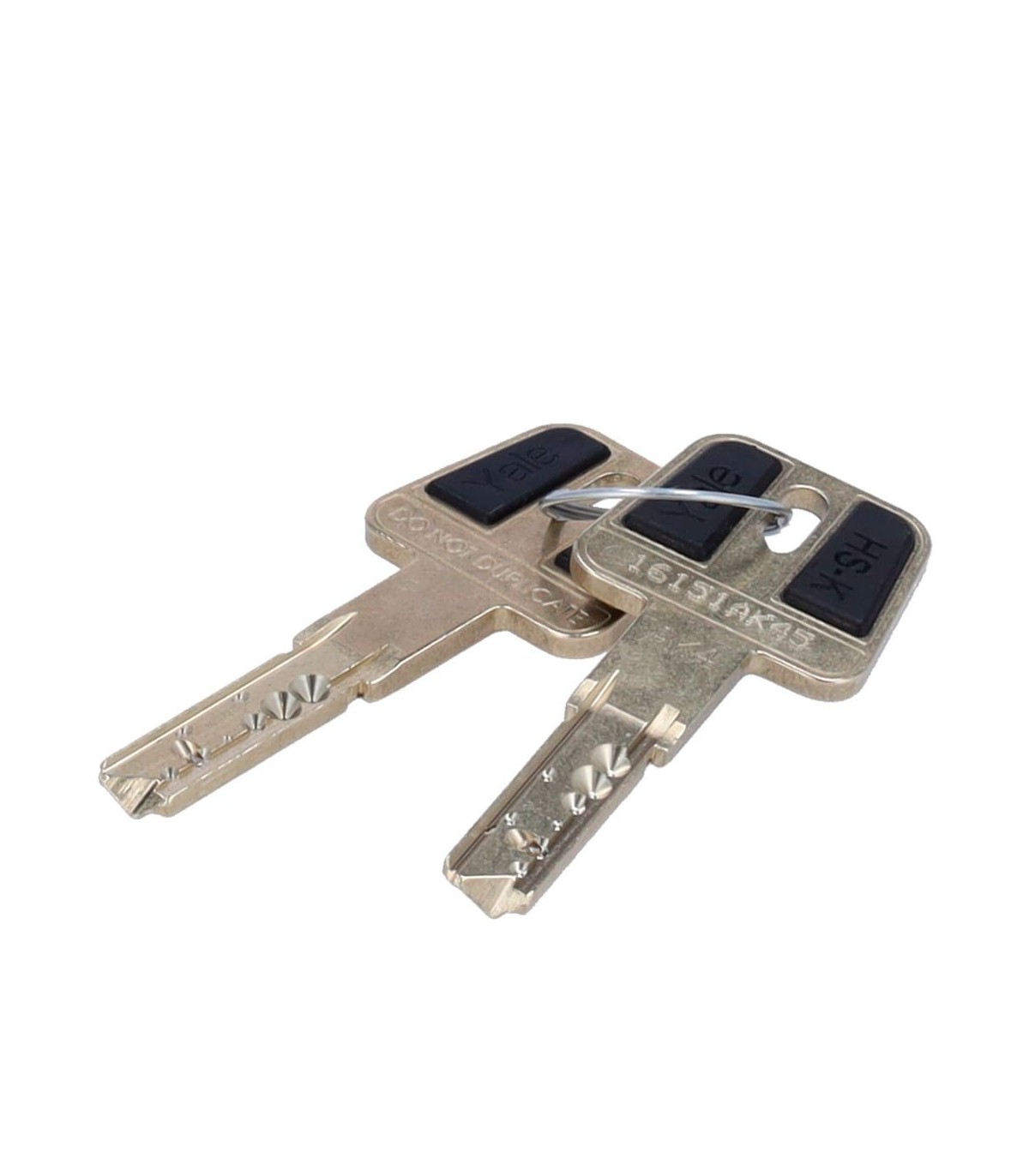

The YALE-CYLINDER-HSK-3540 is supplied with 2 reversible flat keys made from nickel silver.

These keys provide mechanical access through the cylinder.

The reversible key design allows convenient insertion without requiring a specific orientation.

Yale Cylinder Property Card

This Yale cylinder includes a property card.

According to the manufacturer, the property card is required when requesting duplicate keys.

The card should be stored securely and separately from the supplied keys.

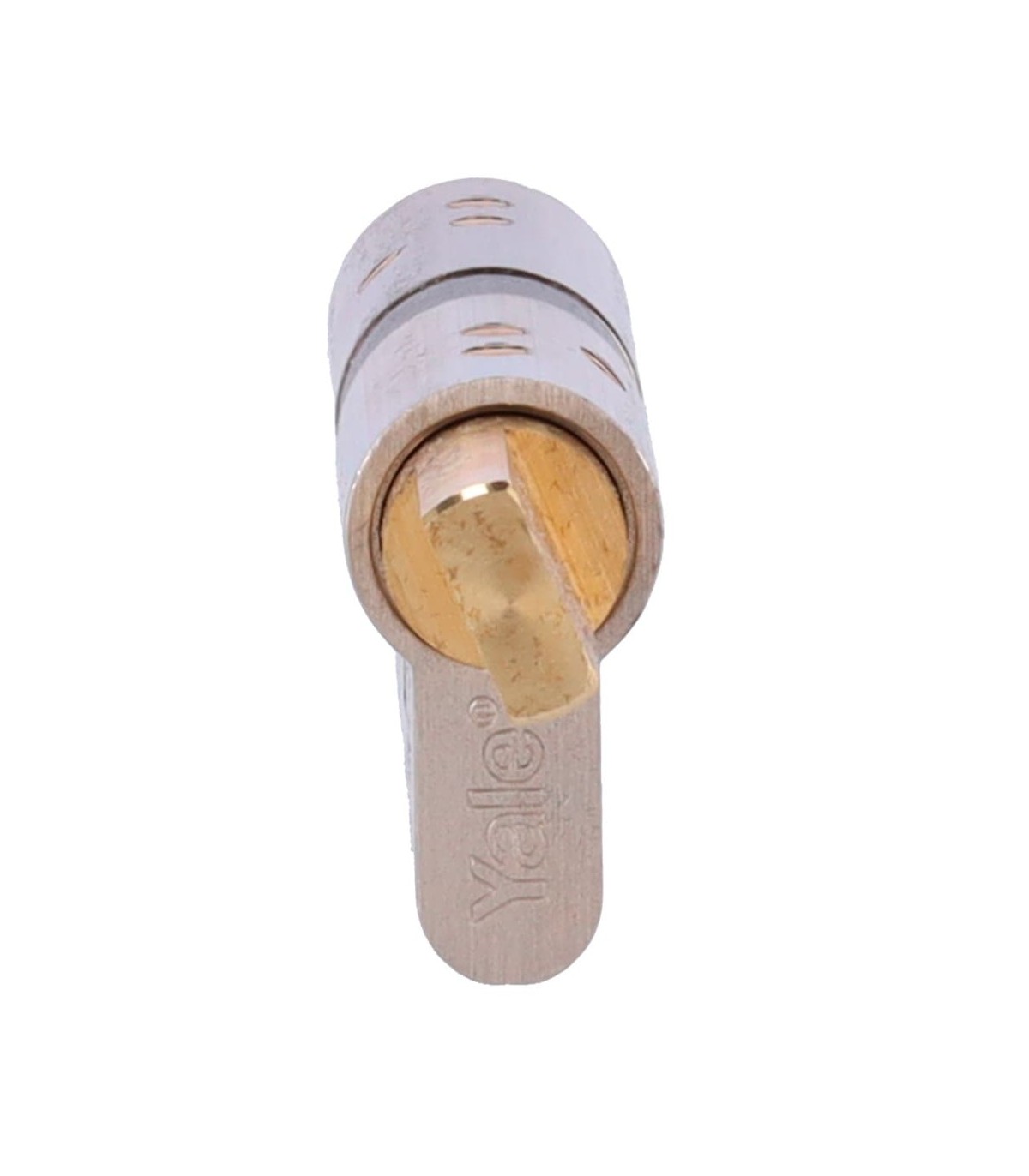

Drive Cam Designed for Yale Linus

The YALE-CYLINDER-HSK-3540 is part of a cylinder range developed specifically for Yale Linus Smart Lock.

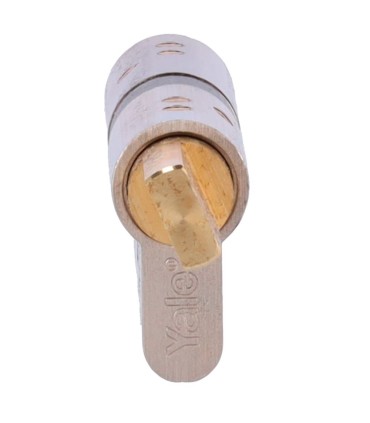

Its drive cam is designed to provide a suitable mechanical connection between the cylinder and the smart lock.

This configuration supports the combined operation of the mechanical cylinder and compatible Linus unit.

YALE-CYLINDER-HSK-3540 - Package Contents

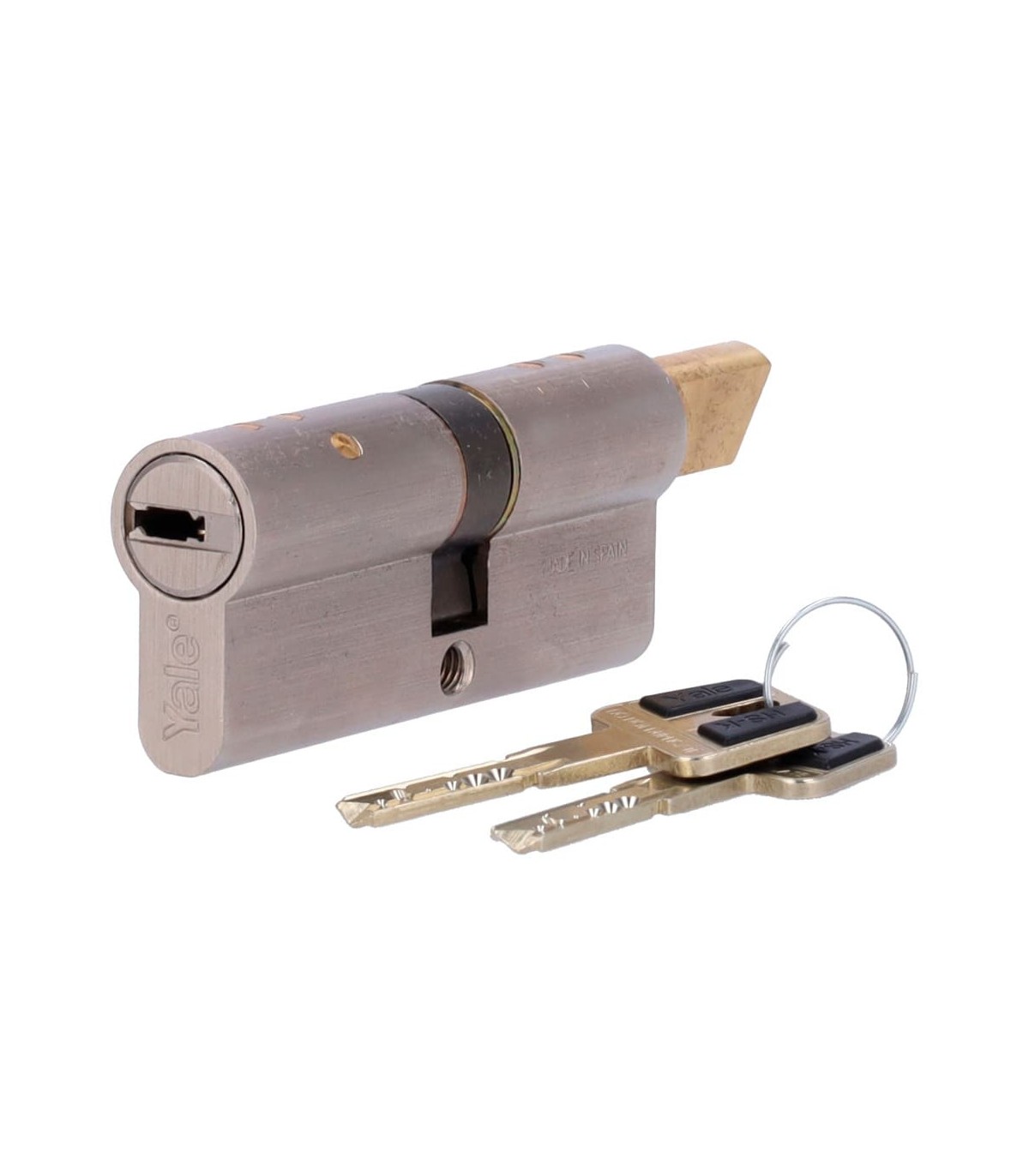

The package contains 1 Yale HS-K Linus cylinder and 1 fixing screw.

It also includes 2 reversible flat keys and 1 property card.

These components correspond to the package contents specified in the official Yale technical documentation.

YALE-CYLINDER-HSK-3540 - Yale Cylinder Security Features

The YALE-CYLINDER-HSK-3540 combines a patented security mechanism with anti-bumping, anti-picking and anti-drilling protection.

Its double clutch mechanism allows mechanical key operation from one side even when another key is inserted on the opposite side.

With 35x40mm dimensions, this Yale cylinder is designed for compatible Yale Linus Smart Lock installations.

The supplied reversible keys and property card complete this high security mechanical cylinder solution.
