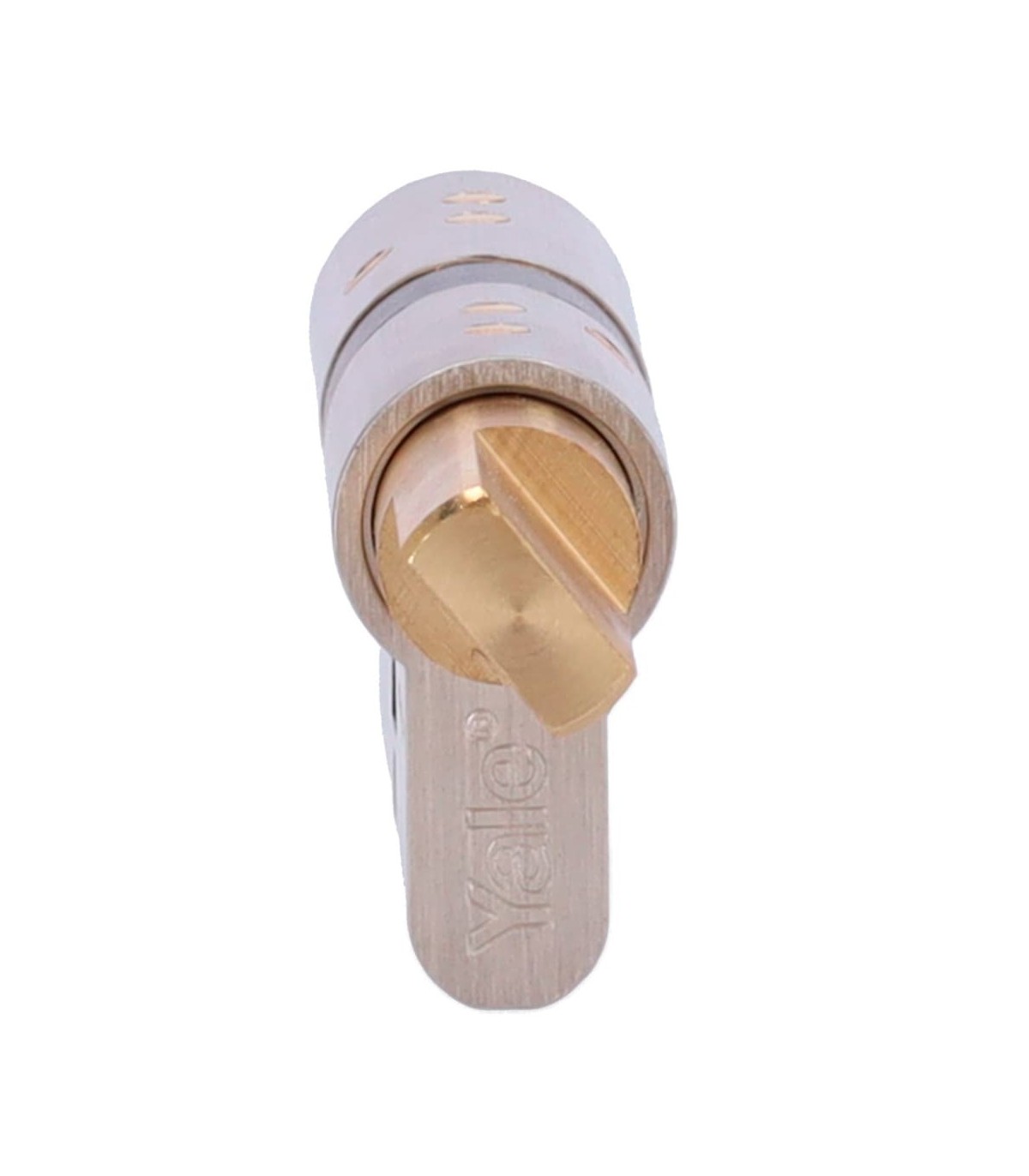

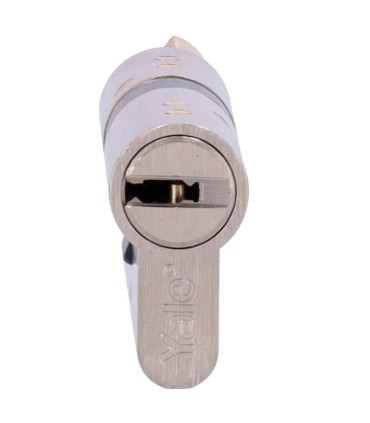

YALE-CYLINDER-HSK-3035 - Yale HS-K Linus High Security Cylinder 30x35mm

YALE-CYLINDER-HSK-3035 - Yale High Security Cylinder 30x35mm

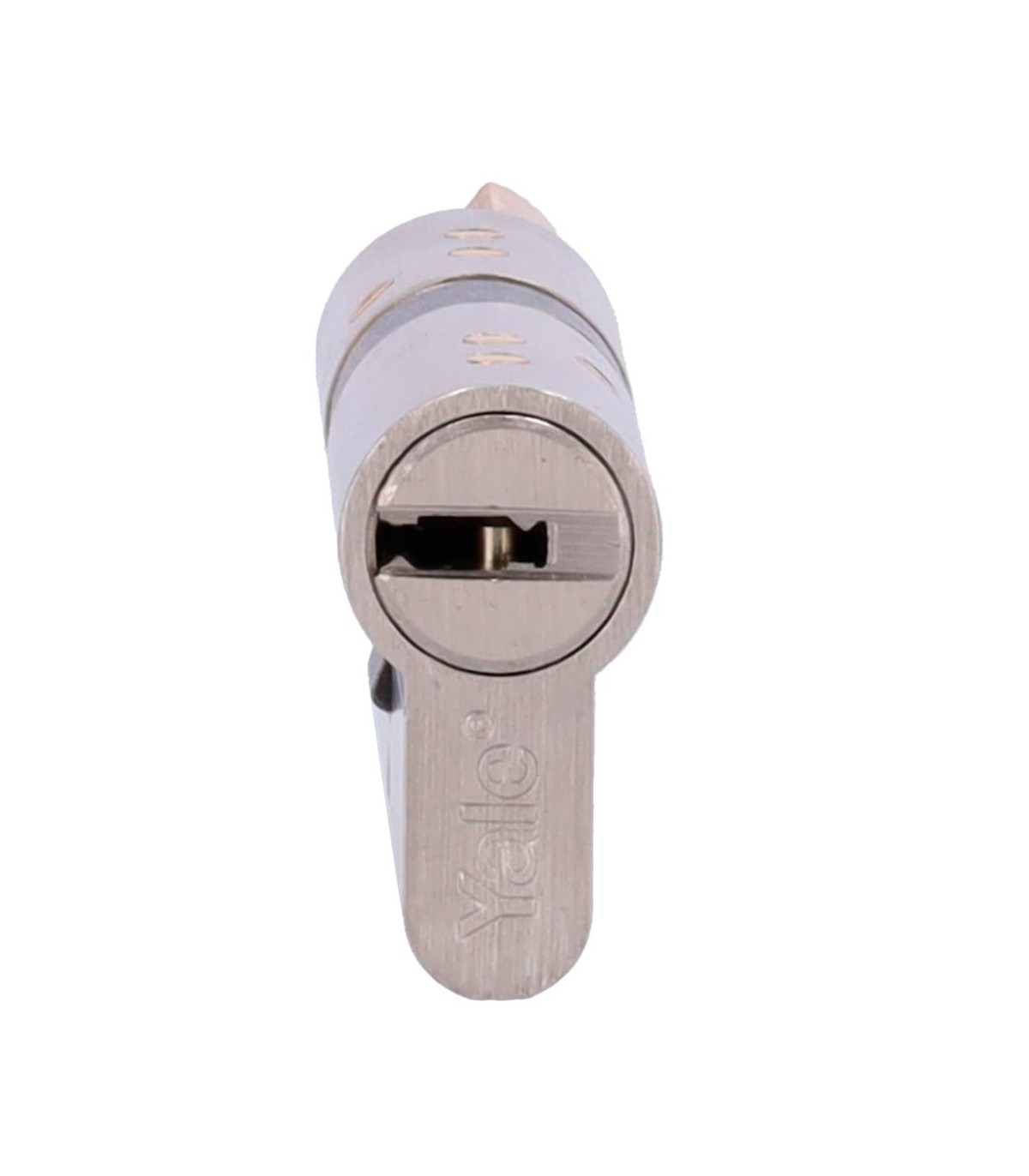

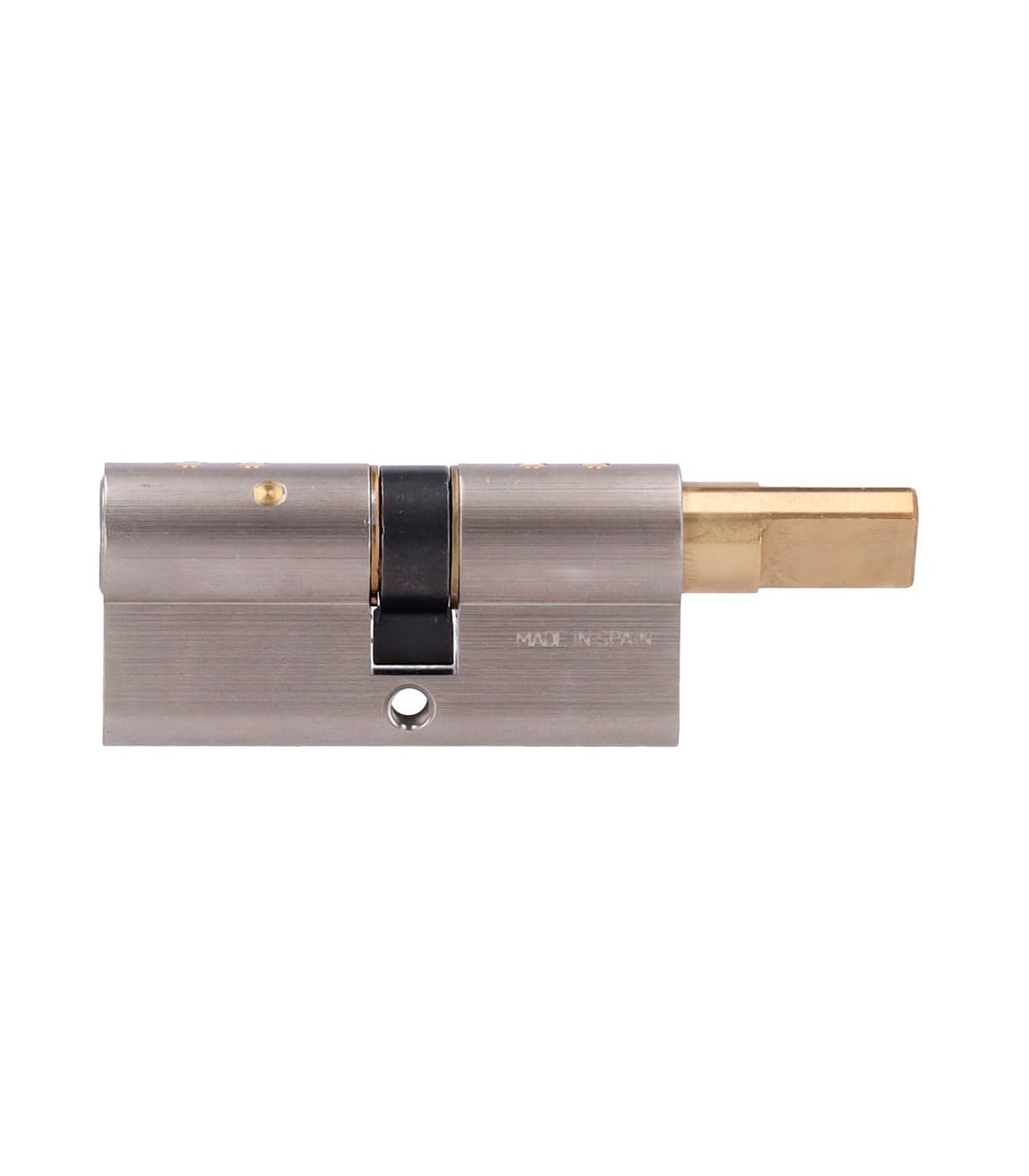

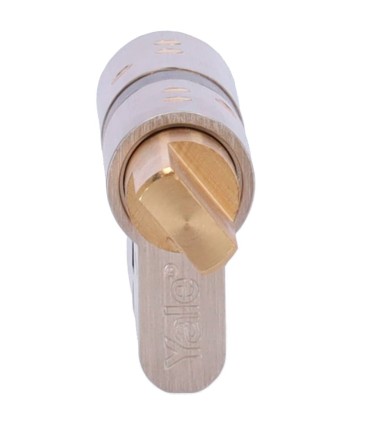

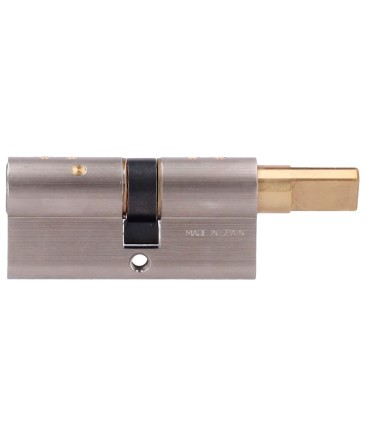

The YALE-CYLINDER-HSK-3035 is a Yale high security cylinder from the HS-K Linus range, featuring 30x35mm dimensions. It is designed for use with the Yale Linus L2 smart lock.

This Yale cylinder incorporates a double clutch mechanism, allowing the cylinder to be operated with a key even when another key is inserted on the opposite side.

Its security system combines anti-bumping, anti-picking, anti-drilling and anti-snapping protection. The mechanism also features 7 active pins and 2 sensors.

YALE-CYLINDER-HSK-3035 - Yale High Security Cylinder

The YALE-CYLINDER-HSK-3035 belongs to the Yale HS-K Linus security cylinder range.

This Yale cylinder incorporates several mechanical security features designed to make unauthorised opening attempts more difficult.

With compact 30x35mm dimensions, it provides a solution for doors requiring this specific cylinder configuration.

YALE-CYLINDER-HSK-3035 - Yale Linus L2 Compatibility

The YALE-CYLINDER-HSK-3035 is indicated for use with the Yale Linus L2 smart lock.

Its configuration allows a suitable mechanical connection between the cylinder and the smart lock operating mechanism.

Before installation, check the existing cylinder dimensions and door compatibility.

Yale Cylinder with Double Clutch Mechanism

The YALE-CYLINDER-HSK-3035 features a double clutch mechanism.

This system allows a key to operate the cylinder from one side even when another key is inserted on the opposite side.

The double clutch feature facilitates the combination of a smart lock with mechanical key access.

Yale Cylinder Anti-Bumping Protection

The Yale HS-K Linus cylinder includes anti-bumping protection.

This feature is designed to make opening attempts using percussion-based techniques on the internal mechanism more difficult.

Anti-bumping protection contributes to the mechanical security of the cylinder.

YALE-CYLINDER-HSK-3035 - Anti-Picking Protection

The YALE-CYLINDER-HSK-3035 incorporates anti-picking protection.

This feature is designed to make manipulation of the internal components with picking tools more difficult.

It complements the other security features of the Yale HS-K Linus range.

Yale Cylinder Anti-Drilling Protection

The Yale high security cylinder features anti-drilling protection.

This protection is designed to make attacks involving drilling tools more difficult.

It complements the cylinder's anti-bumping and anti-picking features.

Yale Cylinder Anti-Snapping Protection

The YALE-CYLINDER-HSK-3035 also features anti-snapping protection.

This characteristic is designed to make forced entry attempts involving cylinder breakage more difficult.

Anti-snapping protection contributes to the overall mechanical security of the locking system.

YALE-CYLINDER-HSK-3035 - 7 Active Pins and 2 Sensors

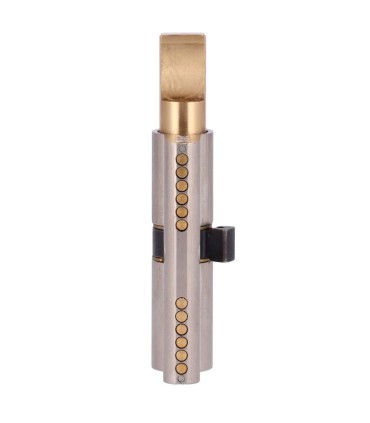

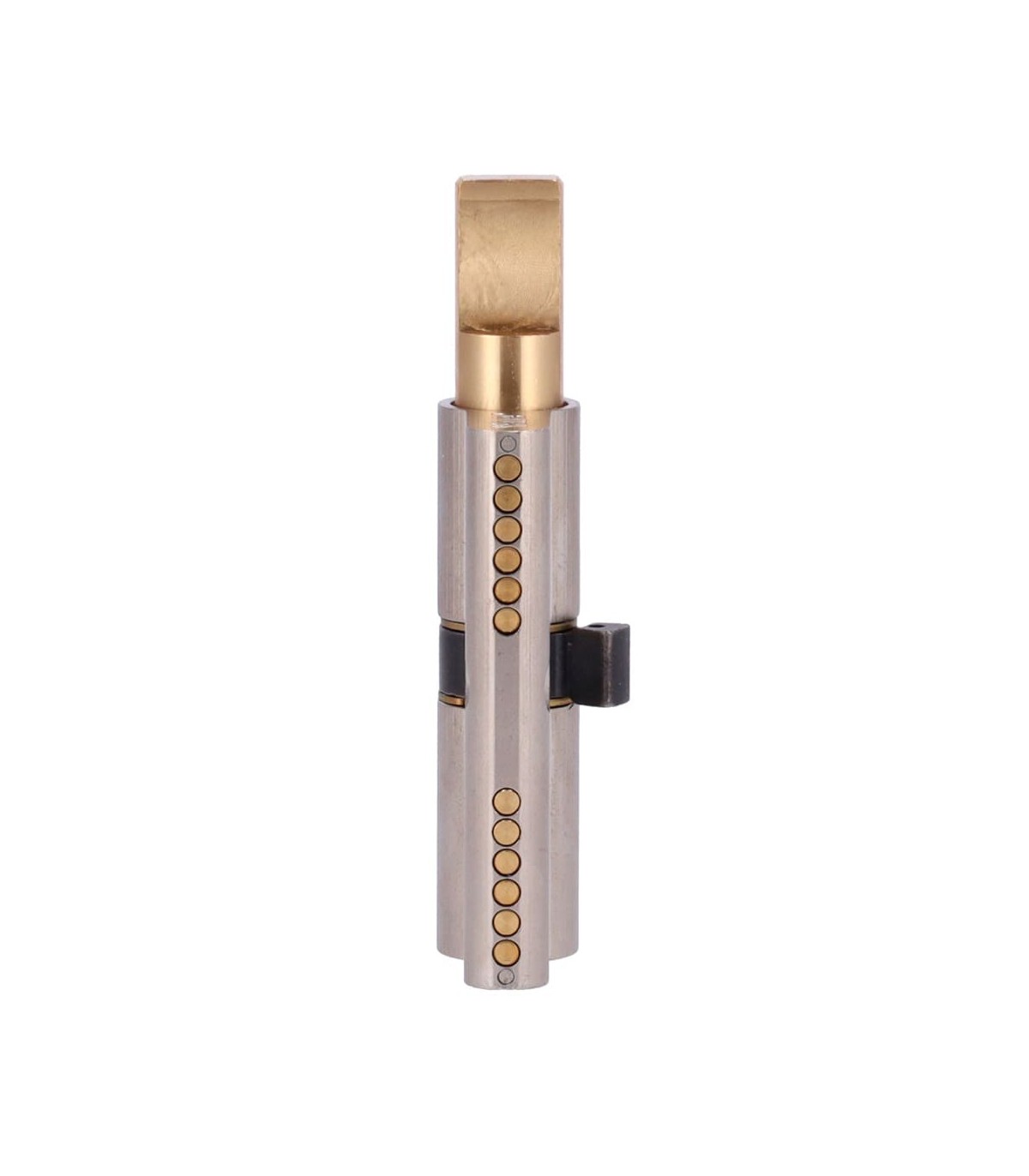

The YALE-CYLINDER-HSK-3035 incorporates a security mechanism with 7 active pins and 2 sensors.

This configuration is part of the Yale HS-K Linus security system.

It is designed to improve the cylinder's resistance to unauthorised manipulation attempts.

YALE-CYLINDER-HSK-3035 - 30x35mm Dimensions

The YALE-CYLINDER-HSK-3035 has an internal dimension of 30mm and an external dimension of 35mm.

Measurements are taken from the centre of the cam to the respective ends of the cylinder.

Selecting the correct dimensions is essential to ensure proper installation.

How to Measure the Yale HS-K Linus Cylinder

To select a Yale HS-K Linus cylinder, the existing cylinder must be measured correctly.

According to Yale's general instructions for this range, the internal dimension is measured from the inner end to the centre of the cam. An additional 5mm must then be added to allow installation of the Linus unit.

The external dimension is measured from the outer end to the centre of the cam, without adding the extra 5mm.

For the YALE-CYLINDER-HSK-3035, the final dimensions are 30mm internally and 35mm externally.

Physical Keys for Mechanical Access

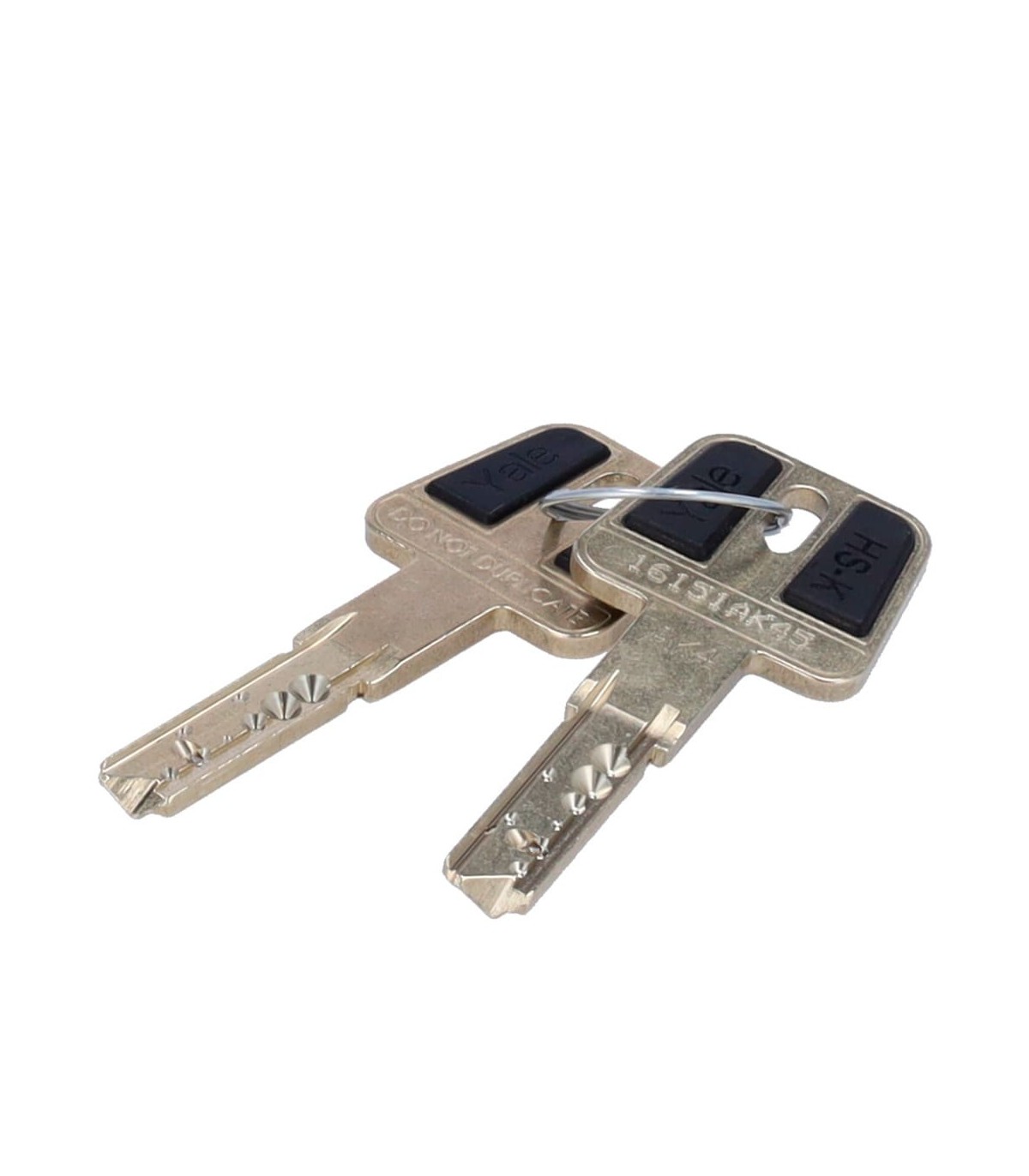

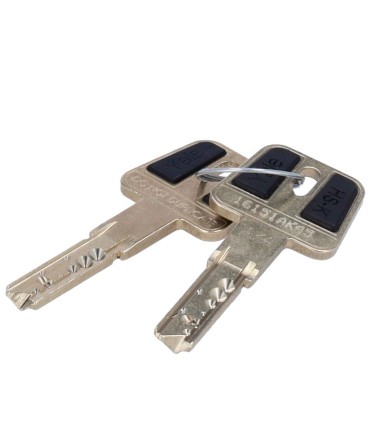

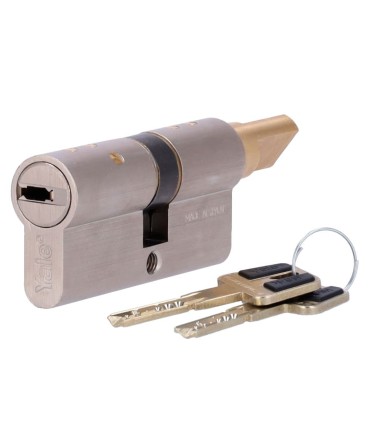

The YALE-CYLINDER-HSK-3035 is supplied with 2 physical keys.

These keys allow mechanical operation of the cylinder in a compatible installation.

They provide a mechanical access option alongside the operation of the smart lock.

Yale Cylinder Property Card

The Yale HS-K Linus cylinder includes a property card.

According to the product information, this card is required when requesting duplicate keys.

It is recommended to store the property card securely and separately from the keys.

Yale HS-K Linus Cylinder Weight

The YALE-CYLINDER-HSK-3035 has a specified weight of 150g.

This value corresponds to the technical specifications of the HS-K Linus 30x35mm version.

The weight and dimensions help identify this specific variant within the range.

YALE-CYLINDER-HSK-3035 - Package Contents

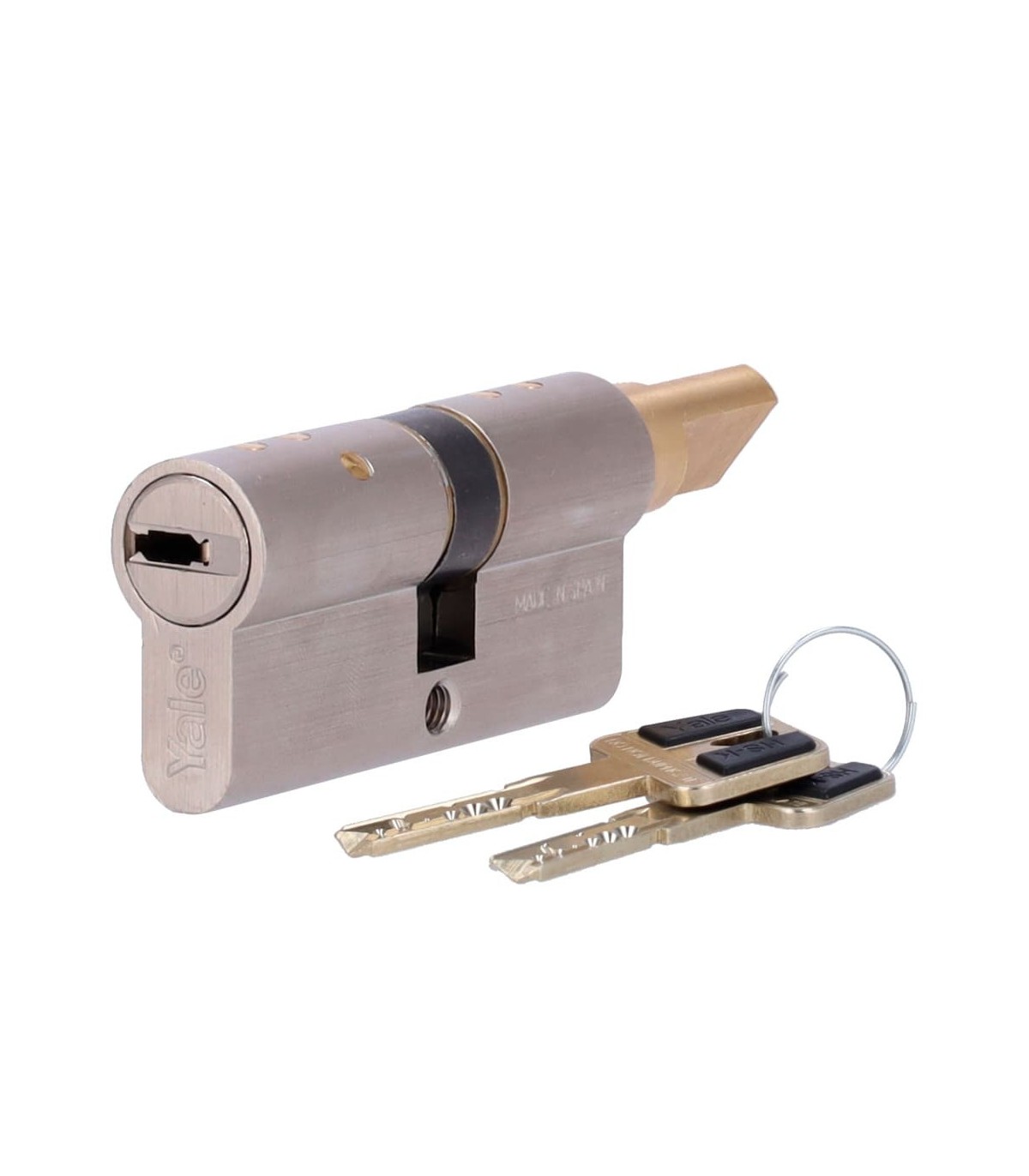

The package includes 1 Yale HS-K Linus cylinder, mounting hardware and operating instructions.

It also contains 2 physical keys and 1 property card.

These items correspond to the specified package contents for the product.

YALE-CYLINDER-HSK-3035 - Security for Yale Linus L2

The YALE-CYLINDER-HSK-3035 combines a double clutch mechanism with anti-bumping, anti-picking, anti-drilling and anti-snapping protection.

Its 7 active pins and 2 sensors complement the mechanical security features of this Yale cylinder.

With 30x35mm dimensions and indicated compatibility with Yale Linus L2, this reference is intended for installations requiring a suitable high security cylinder.
