YALE-CYLINDER-ADJ - Yale Linus Adjustable Double Clutch Cylinder

YALE-CYLINDER-ADJ - Yale Linus Adjustable High Security Cylinder

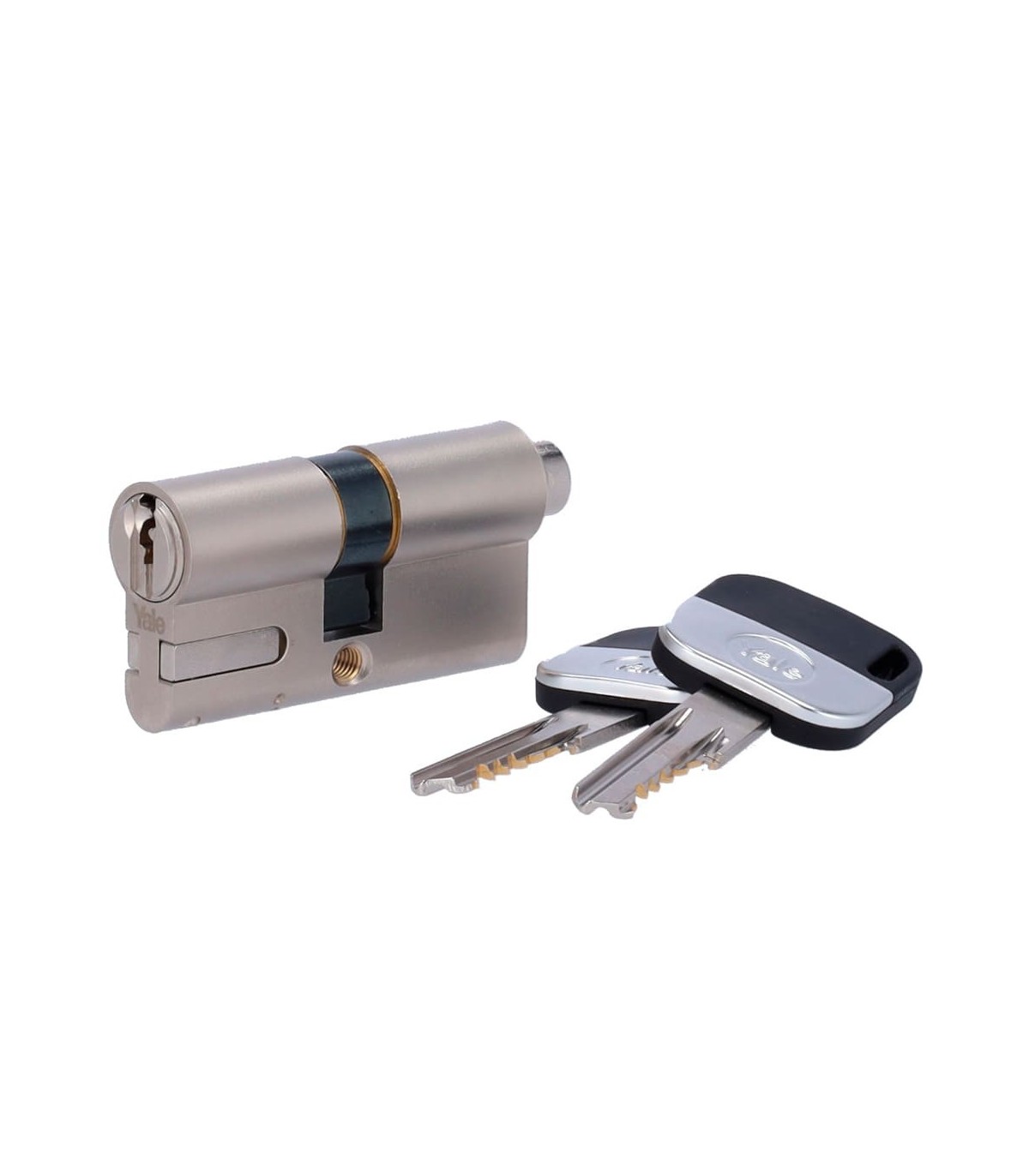

The YALE-CYLINDER-ADJ is a Yale adjustable cylinder from the Linus range, designed to adapt doors with Euro profile cylinders for use with Yale Linus smart locks.

This modular cylinder allows the internal length to be adjusted from 30mm to 65mm and the external length from 30mm to 60mm, using extensions with 5mm adjustment increments.

The Yale adjustable cylinder incorporates a double clutch mechanism, a 6-pin security system and several protection features designed to resist manipulation attempts and mechanical attacks.

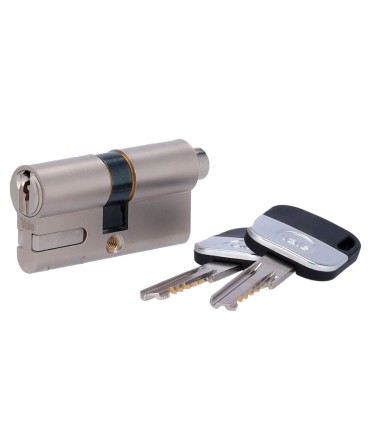

YALE-CYLINDER-ADJ - Yale Linus Adjustable Cylinder

The YALE-CYLINDER-ADJ has been developed to provide a modular solution for adapting Euro profile cylinders.

Unlike a fixed-length cylinder, this system allows different configurations to be selected using the supplied internal and external extensions.

This flexibility facilitates the installation of a Yale Linus smart lock on doors with different thicknesses.

Compatibility with Yale Linus L2 Smart Lock

The YALE-CYLINDER-ADJ is compatible with the Yale Linus L2 smart lock, commercially identified by reference YALE-LINUS-L2.

The cylinder provides the mechanical connection between the door locking mechanism and the smart lock operating system.

Before installation, it is recommended to verify door and lock compatibility using the information provided by Yale.

Yale Cylinder with Double Clutch Mechanism

The YALE-CYLINDER-ADJ incorporates a double clutch mechanism.

This mechanism allows a key to operate the cylinder from one side even when another key remains inserted on the opposite side.

The double clutch feature is particularly useful in smart lock installations where mechanical key access must remain available.

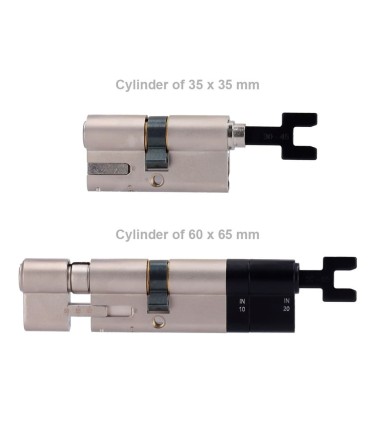

YALE-CYLINDER-ADJ - Modular Length Adjustment

The Yale adjustable cylinder uses a modular extension system to adapt its length to the installation.

The extensions allow different dimensions to be configured without purchasing a separate fixed-length cylinder for each door.

Adjustments are made in 5mm increments, within the limits specified by the manufacturer.

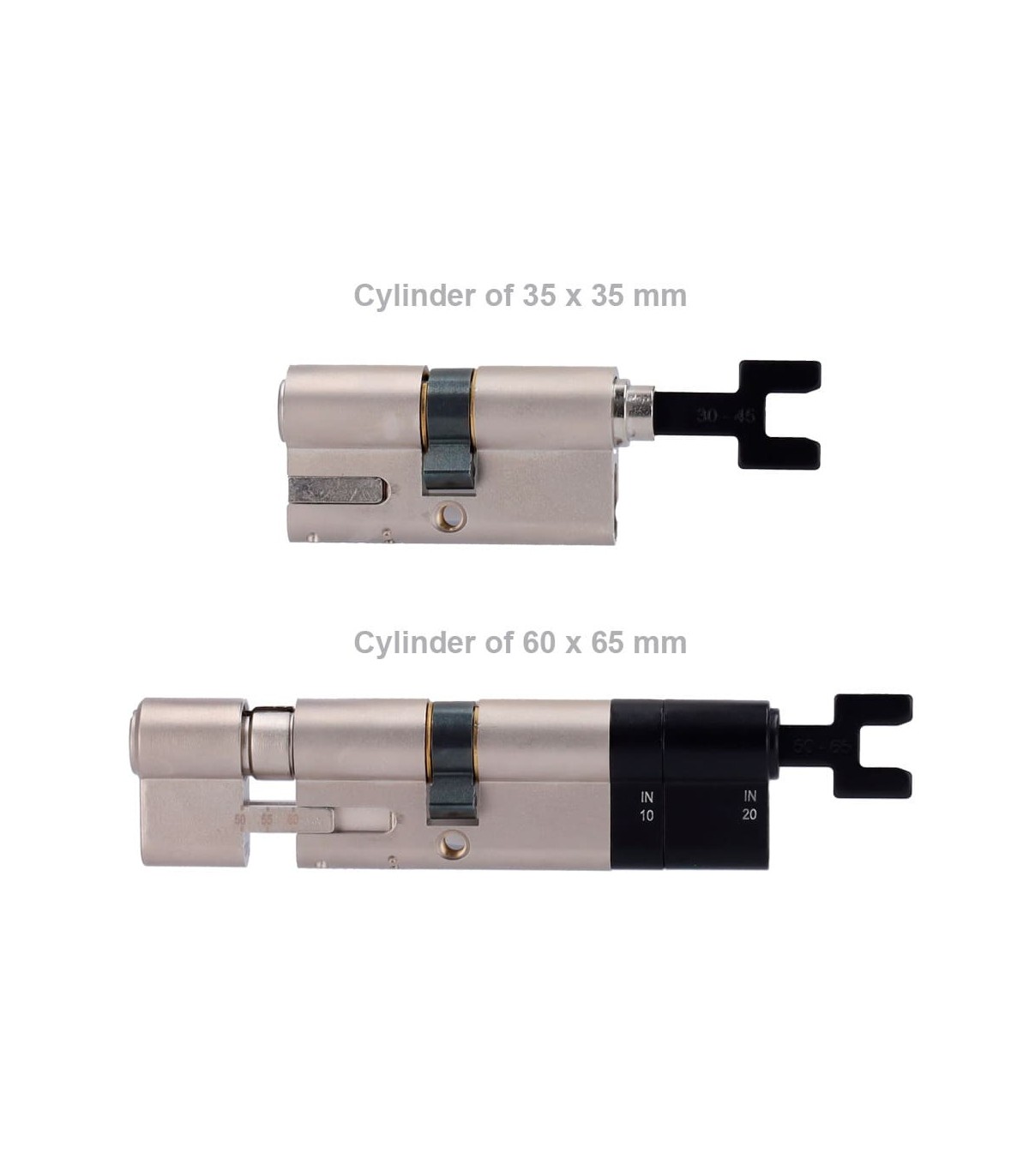

Adjustable Internal Length from 30mm to 65mm

The YALE-CYLINDER-ADJ allows the internal side length to be adjusted from 30mm to 65mm.

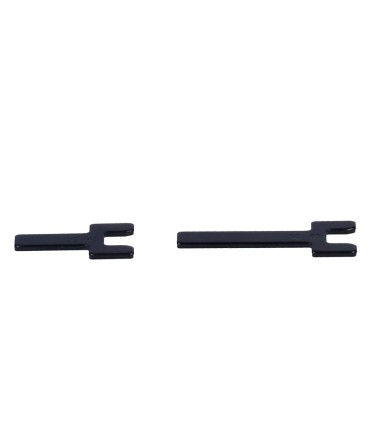

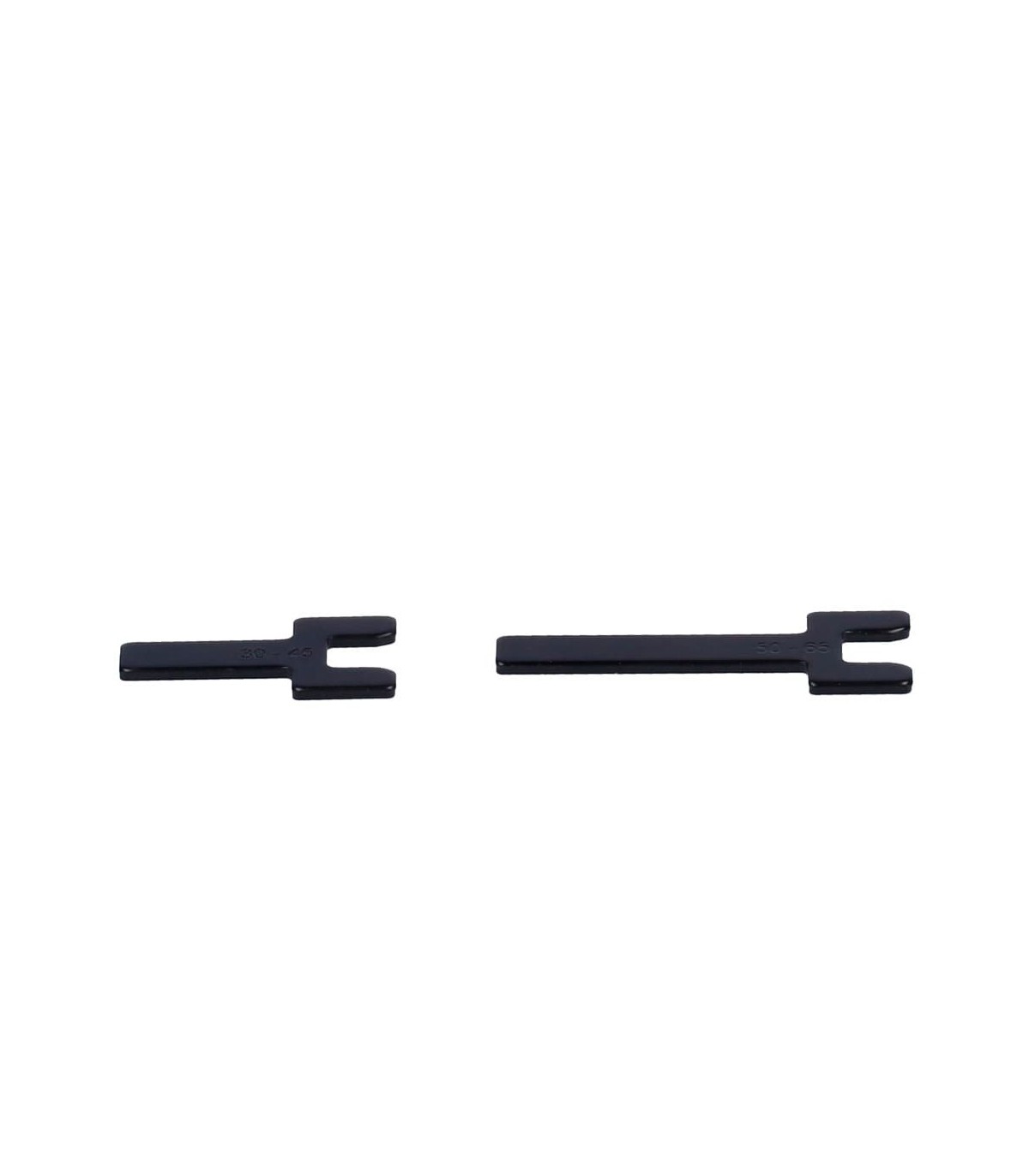

Adjustment is carried out using the internal extensions supplied with the cylinder.

The appropriate configuration should be selected according to the door characteristics and installation instructions.

Adjustable External Length from 30mm to 60mm

The Yale adjustable cylinder allows the external side length to be configured from 30mm to 60mm.

The supplied external extensions and finishing components allow the assembly to be adapted to different configurations.

Correct adjustment contributes to proper cylinder installation in the door.

YALE-CYLINDER-ADJ - 6-Pin Security System

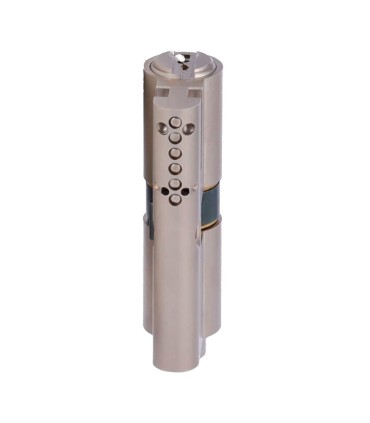

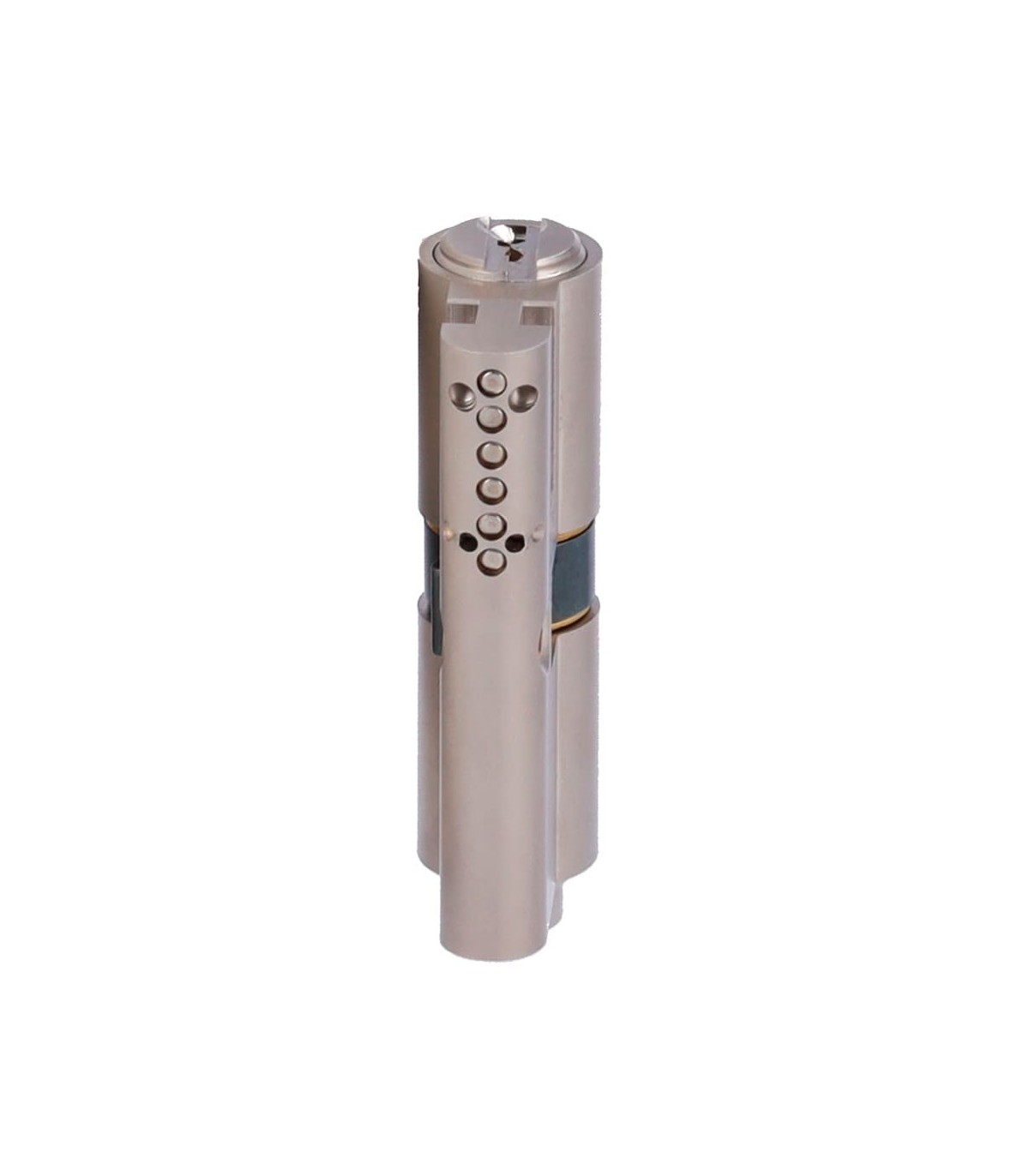

The YALE-CYLINDER-ADJ incorporates a 6-pin security mechanism.

This system forms part of the mechanical construction of the Yale Linus modular cylinder.

The 6-pin mechanism is complemented by additional protection features against manipulation and mechanical attacks.

Yale Cylinder Anti-Bumping Protection

The Yale adjustable cylinder features anti-bumping protection.

This feature is designed to make opening attempts using percussion techniques applied to the internal mechanism more difficult.

Anti-bumping protection contributes to the mechanical security of the door.

Anti-Picking Protection

The YALE-CYLINDER-ADJ incorporates anti-picking protection.

This protection is designed to make manipulation of the internal pins using lock-picking tools more difficult.

It complements the other security features of the Yale adjustable cylinder.

Anti-Drilling Protection

The Yale adjustable cylinder includes anti-drilling protection.

This feature is designed to make attacks involving drilling tools more difficult.

Anti-drilling protection forms part of the product's mechanical security characteristics.

Anti-Extraction Protection

The YALE-CYLINDER-ADJ includes protection features against forced extraction attempts.

Yale specifies an extraction resistance of 7kN in the official technical specifications for this cylinder.

This characteristic complements the anti-bumping, anti-picking and anti-drilling protection features.

YALE-CYLINDER-ADJ - EN 1303 Security Classification

The YALE-CYLINDER-ADJ features a security classification according to the European standard EN 1303:2015.

The classification specified by the manufacturer is 1 6 0 B 0 C 5 D.

This information identifies the declared performance and mechanical security characteristics of the cylinder.

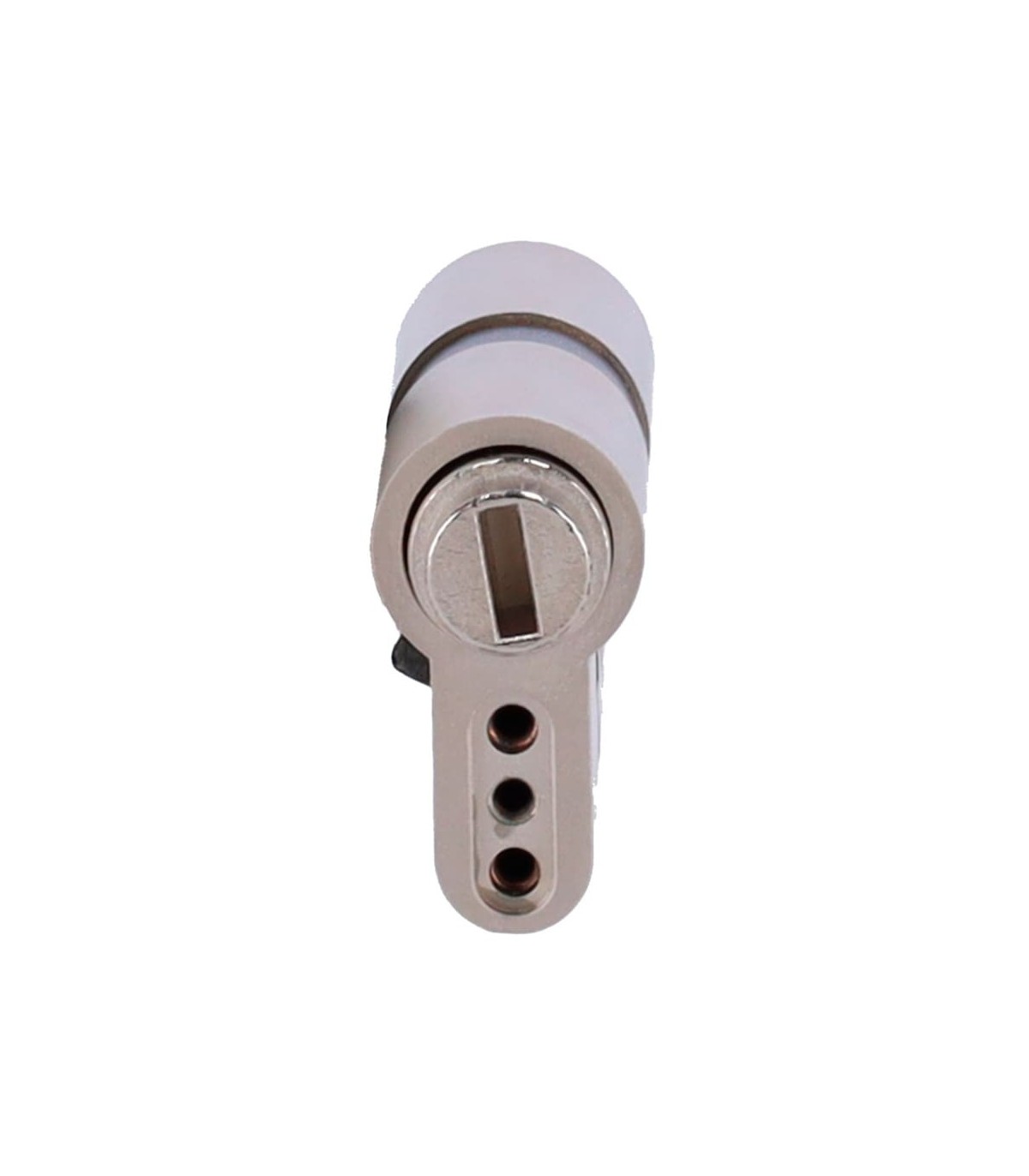

Euro Profile and Brass Construction

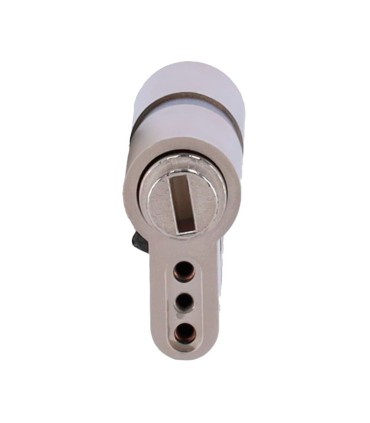

The Yale adjustable cylinder features a modular Euro profile construction.

The manufacturer identifies brass as the cylinder material and specifies that the cam complies with DIN 18252.

The Euro profile configuration allows installation on doors compatible with this type of cylinder.

When to Use the Yale Linus Adjustable Cylinder

The YALE-CYLINDER-ADJ may be required when the existing cylinder does not allow keys to be used simultaneously from the inside and outside.

Yale also recommends checking whether replacement is necessary when the door has a cylinder with an internal thumbturn, when the key thickness exceeds 6mm or when the key protrudes more than 40mm from the cylinder.

Yale's compatibility checker can be used to assess the installation configuration before mounting.

Yale Adjustable Cylinder Installation

The YALE-CYLINDER-ADJ is designed for modular installation using the supplied extensions and accessories.

The package includes Allen keys, screws, adaptation components and a quick start guide.

Installation should follow the manufacturer's instructions to ensure correct positioning of the cylinder and fastening components.

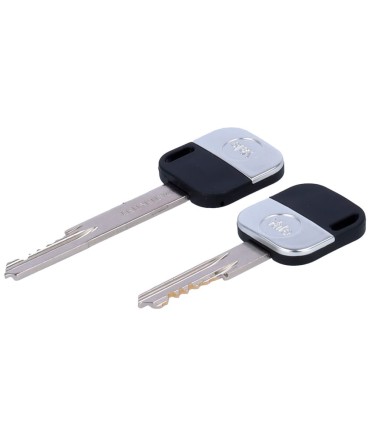

Physical Keys and Property Card

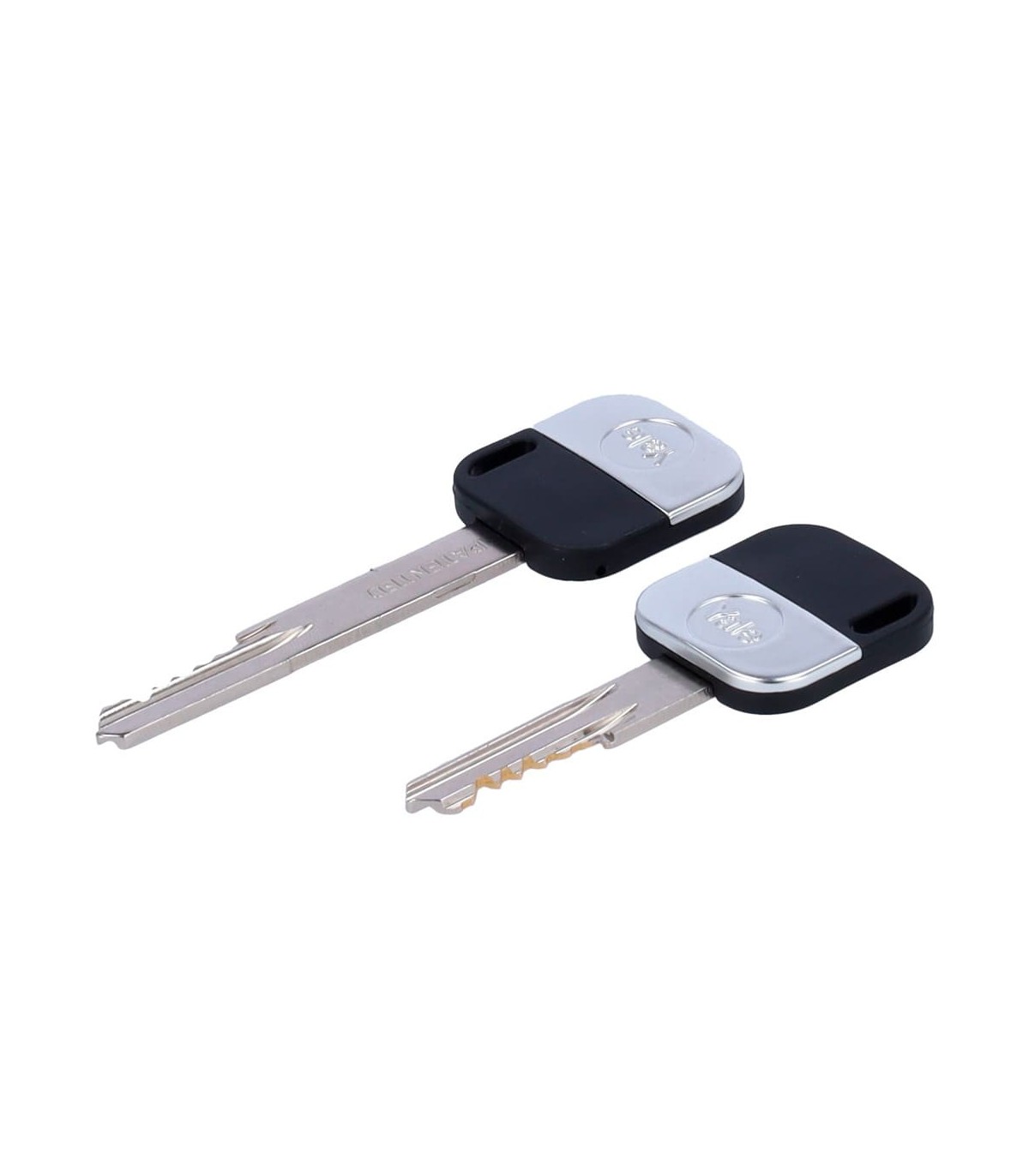

The Yale adjustable cylinder is supplied with 2 physical keys.

These keys allow mechanical operation of the cylinder in an installation compatible with Yale Linus.

The kit also includes a property card intended to control key duplication.

YALE-CYLINDER-ADJ - Package Contents

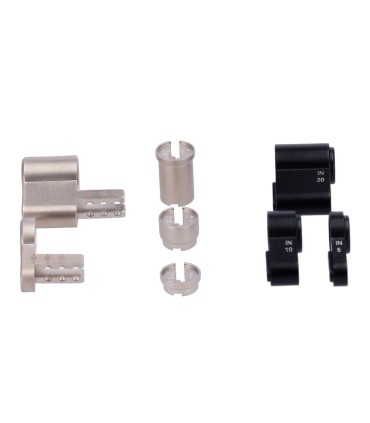

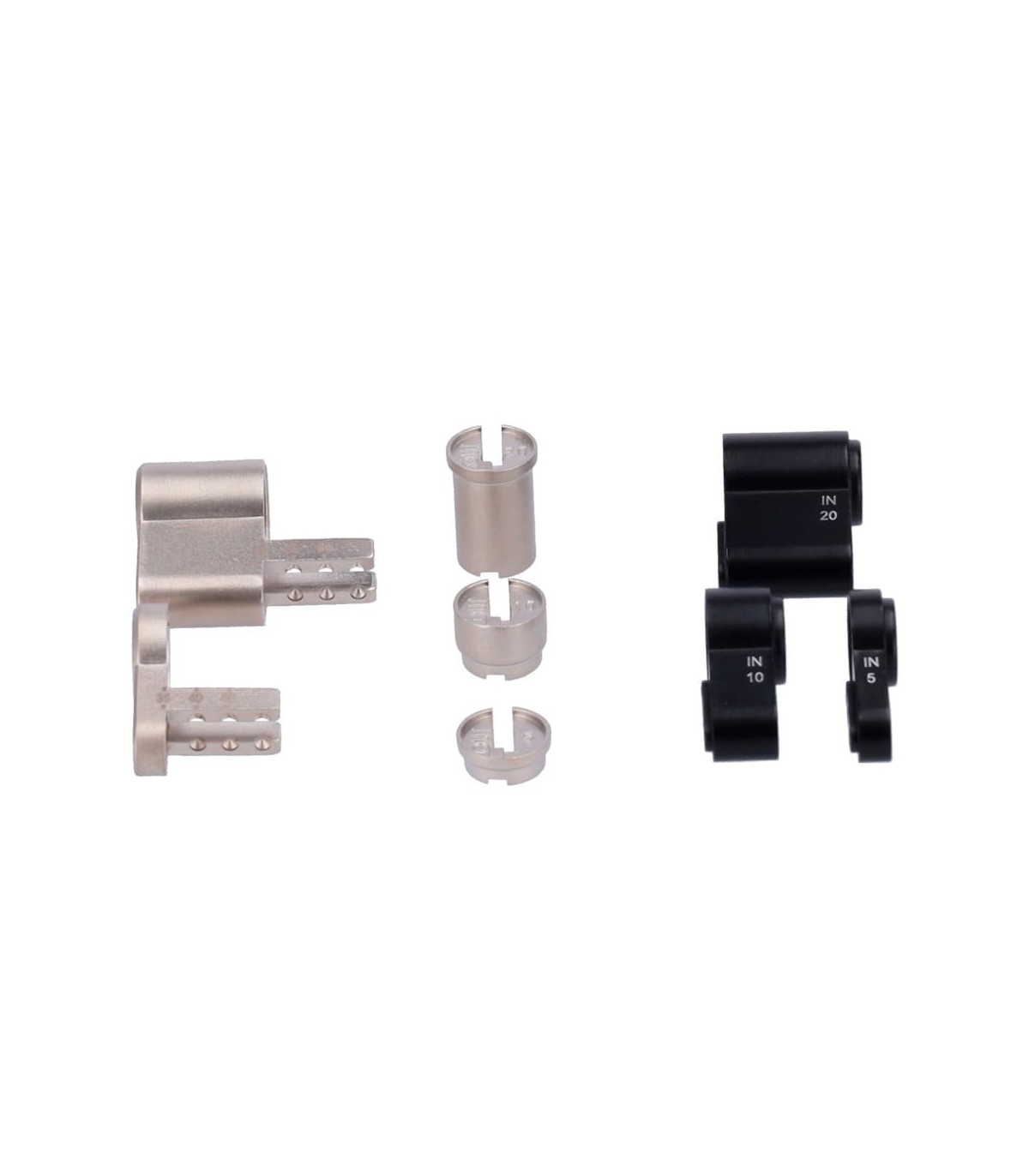

The YALE-CYLINDER-ADJ includes a Yale Linus adjustable cylinder, internal and external extensions, finishing components and mounting accessories.

The package also contains 2 physical keys, 2 Allen keys, screws, a property card and a quick start guide.

The included components allow the cylinder to be configured within the adjustment ranges specified by the manufacturer.

YALE-CYLINDER-ADJ - Modular Solution for Yale Linus L2

The YALE-CYLINDER-ADJ combines an adjustable modular system, a double clutch mechanism and 6-pin mechanical security.

The Yale adjustable cylinder provides configurable dimensions in 5mm increments, with internal lengths from 30mm to 65mm and external lengths from 30mm to 60mm.

With indicated compatibility for Yale Linus L2, it offers a solution for installations requiring the adaptation of a door cylinder to a smart lock.
