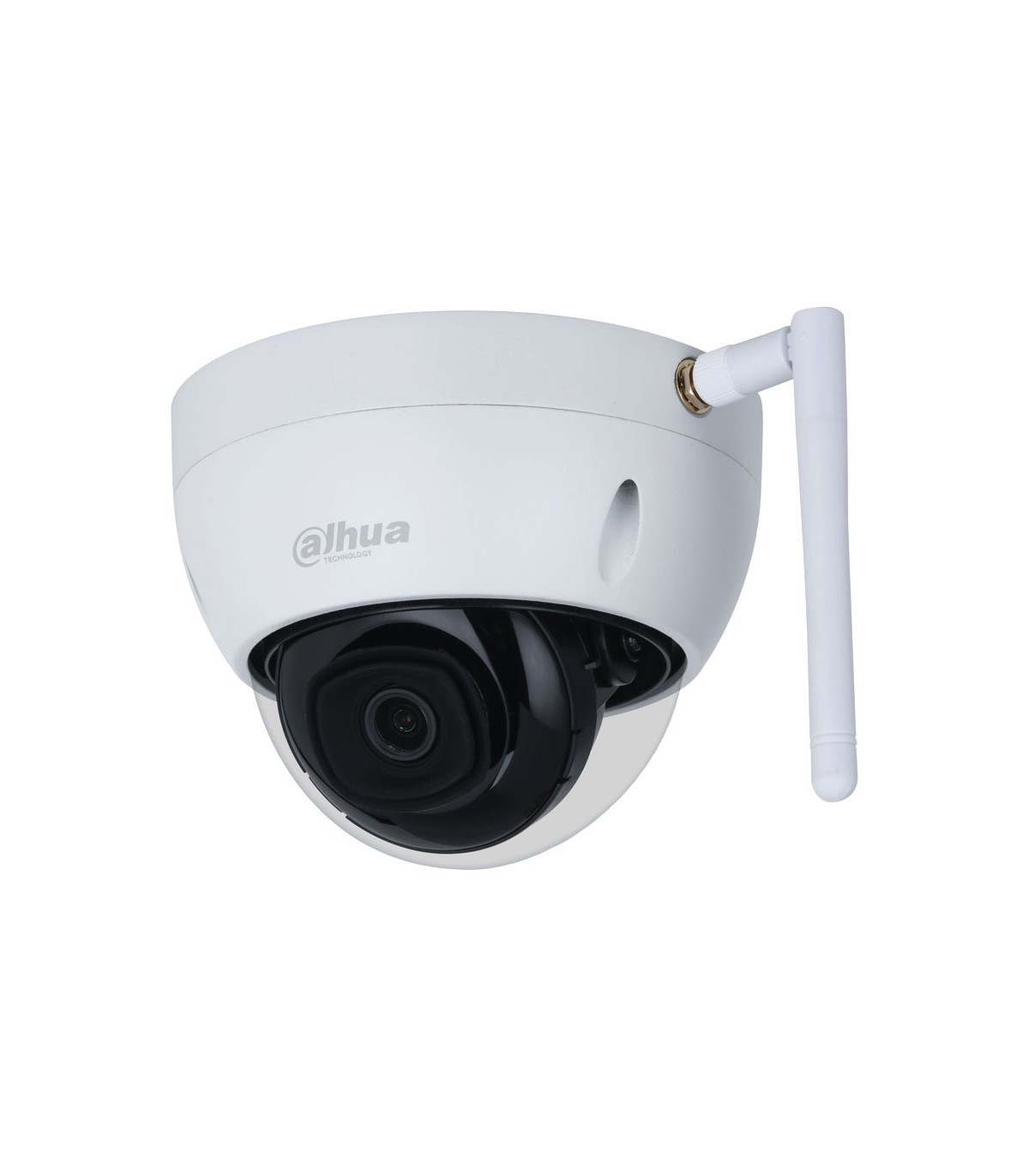

IPC-HDBW1430DE-SW - 4MP Wi-Fi Dome IP Camera IR 30m 2.8mm

IPC-HDBW1430DE-SW - 4MP Wi-Fi Dome IP Camera IR 30m 2.8mm

The IPC-HDBW1430DE-SW is a Dahua 4MP Wi-Fi Dome IP camera equipped with a fixed 2.8mm lens, IR illumination up to 30m and 2.4 GHz wireless connectivity. With Micro SD storage, ONVIF compatibility, IP67 protection and IK10 vandal resistance, it provides a versatile solution for video surveillance systems requiring either wireless or Ethernet network connectivity.

IPC-HDBW1430DE-SW with 4MP resolution

The IPC-HDBW1430DE-SW uses a 1/3" CMOS sensor and provides a maximum resolution of 2560 × 1440. Its 4MP resolution delivers detailed images for monitoring homes, offices, retail premises and other security areas.

Fixed 2.8mm lens with 90° field of view

The fixed 2.8mm lens version provides a 90° horizontal, 50° vertical and 107° diagonal field of view. This configuration offers wide coverage suitable for entrances, corridors, rooms, commercial spaces and other areas requiring a broad field of view.

Built-in 2.4 GHz Wi-Fi

The IPC-HDBW1430DE-SW features IEEE 802.11b/g/n Wi-Fi on the 2.4 GHz band, allowing video and data transmission over a wireless network. The Wi-Fi range can reach up to 80m, although actual performance depends on the installation environment, obstacles and interference.

Wi-Fi or RJ-45 Ethernet connection

In addition to Wi-Fi, the camera includes a 10/100 Base-T RJ-45 network interface. This allows the IPC-HDBW1430DE-SW to operate either over a wireless network or through a wired Ethernet connection, depending on the installation requirements.

IR illumination up to 30m

The IPC-HDBW1430DE-SW integrates 3 IR LEDs with an infrared illumination range of up to 30m. Smart Illumination helps manage IR intensity, maintaining effective video surveillance in low-light or dark environments.

Day/Night mode and Smart Illumination

The camera supports automatic Day/Night operation with ICR, Color and B/W modes and Smart Illumination. These functions allow the image to adapt to changing lighting conditions during daytime and night-time surveillance.

Smart H.265+ and Smart H.264+

The IPC-HDBW1430DE-SW supports Smart H.265+ and Smart H.264+ codecs, designed to optimise bandwidth and storage usage. The camera provides two video streams to adapt transmission to different viewing and recording requirements.

Micro SD up to 256 GB

For local storage, the IPC-HDBW1430DE-SW supports a Micro SD card up to 256 GB. This makes it possible to record directly on the camera and use local storage as an alternative or complement to a network video recording system.

ONVIF for professional integration

ONVIF Profile S and Profile G compatibility, together with CGI and P2P, facilitates integration of the IPC-HDBW1430DE-SW with compatible video surveillance equipment and platforms. The camera can be managed through Smart PSS, DSS and DMSS.

Image processing and motion detection

The camera supports DWDR, BLC, 3D NR, ROI and motion detection. Motion detection can be configured across up to 4 rectangular areas, while ROI allows up to 4 regions of interest to be defined to optimise transmission of the most important image areas.

IP67 protection and IK10 vandal resistance

The IPC-HDBW1430DE-SW features IP67 protection against water and dust and IK10 vandal resistance. Its metal housing and operating range from -40 °C to +60 °C make the camera suitable for installations requiring a robust design.

12 VDC power supply

The IPC-HDBW1430DE-SW is powered by 12 VDC, with a maximum specified consumption of 4.9 W. This model does not support PoE, so even when using the RJ-45 Ethernet connection, a separate 12 VDC power supply is required.
