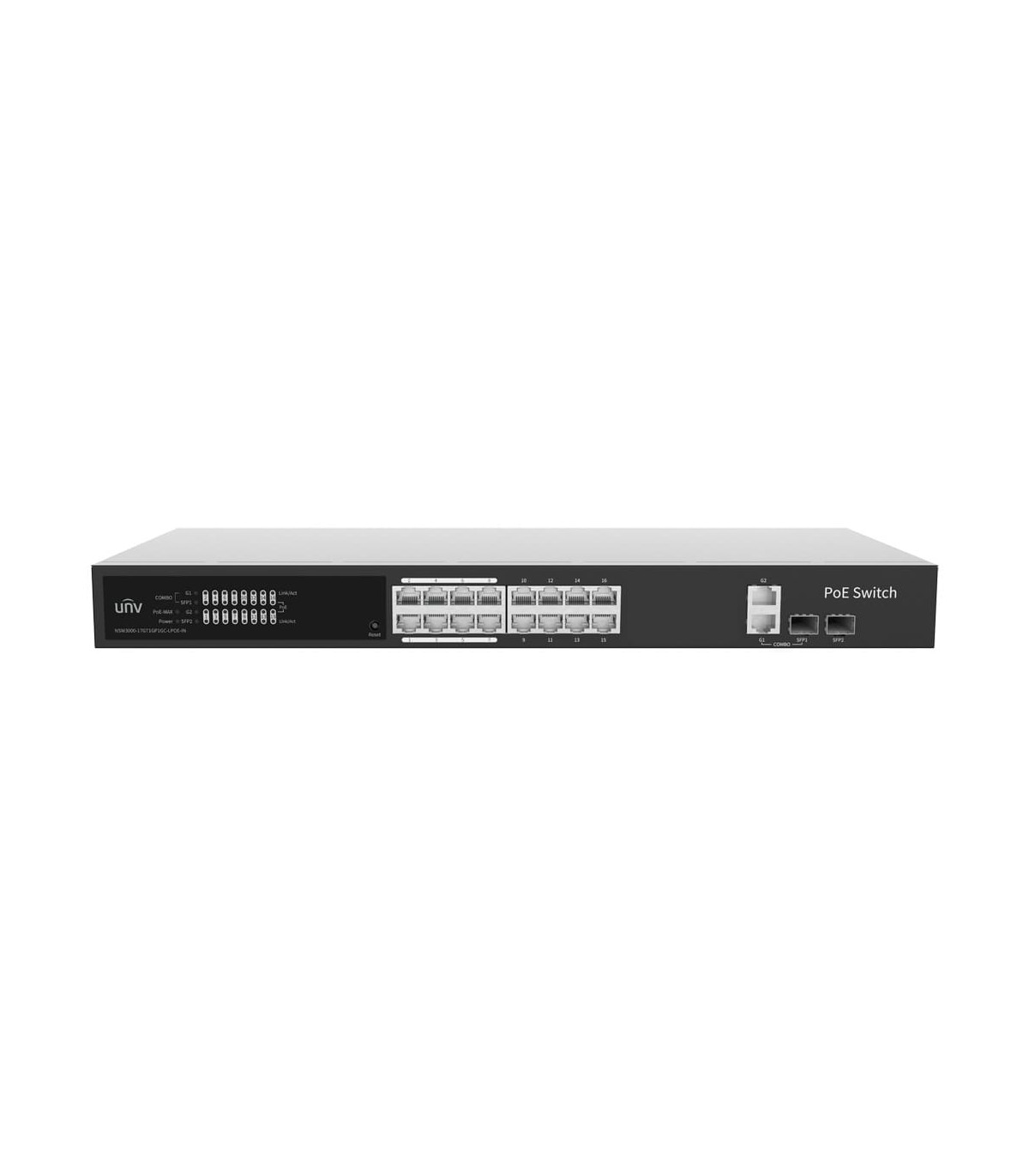

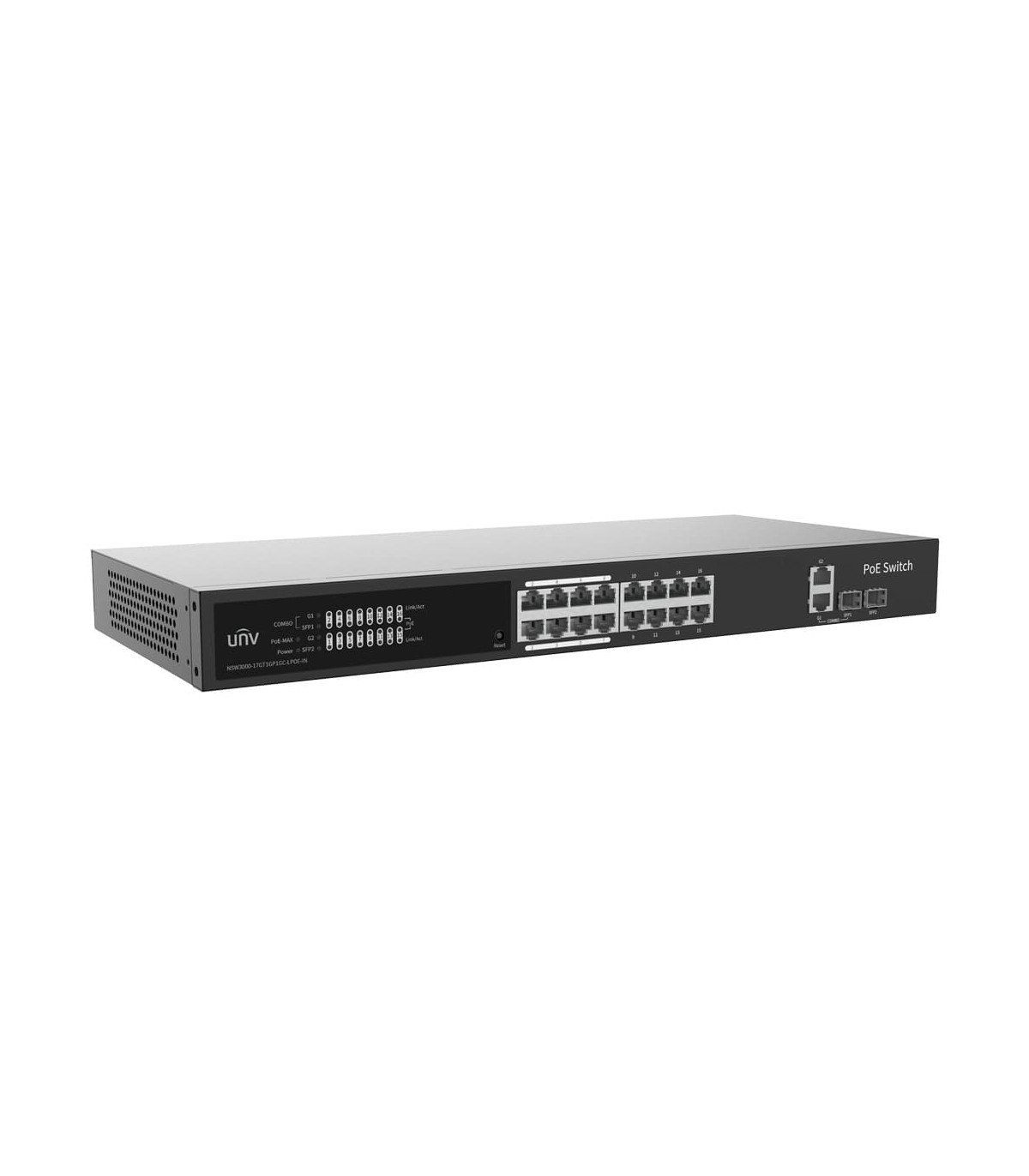

Uniview UV-NSW3000-17GT1GP1GC-LPOE-IN - 19-Port Gigabit Cloud Managed PoE Switch:
The Uniview UV-NSW3000-17GT1GP1GC-LPOE-IN is a high-performance Gigabit Cloud-managed PoE switch engineered for IP security camera networks and commercial IT environments. Fully integrated into Uniview's Cloud ecosystem, it provides rapid deployment via QR code scanning, automatic network topology discovery, and instant anomaly notifications without physical service calls.
Featuring 16 Gigabit RJ45 PoE ports (10/100/1000 Mbps), this switch guarantees smooth data flow for high-resolution IP cameras, wireless APs, and VoIP phones. For core switch or NVR connections, it includes 3 dedicated Gigabit Uplink ports: 1 Gigabit RJ45 port, 1 Gigabit SFP fiber port, and 1 Gigabit Combo port (RJ45/SFP).
In full compliance with IEEE 802.3af/at standards, it delivers a total PoE power budget of 150W (up to 30W per port). Smart port prioritization on ports 1 through 8 ensures power and data delivery remain uninterrupted for critical devices during high traffic load.
Built with a 1U heavy-duty fanless metal chassis, the Uniview UV-NSW3000-17GT1GP1GC-LPOE-IN operates silently, making it ideal for noise-sensitive office spaces and control rooms. The built-in Extend Mode extends PoE power supply and data signal transmission up to 250 meters over standard twisted-pair cabling.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand / Manufacturer | Uniview |
| Model / Reference | UV-NSW3000-17GT1GP1GC-LPOE-IN |
| Device Type | Cloud Managed PoE Switch |
| RJ45 PoE Ports (Access) | 16× Gigabit RJ45 Ethernet (10/100/1000 Mbps) PoE/PoE+ |
| Uplink Ports | 1× Gigabit RJ45 + 1× Gigabit SFP + 1× Gigabit Combo (RJ45/SFP) |
| PoE Standards & Management | IEEE 802.3af / IEEE 802.3at | Total budget: 150W (Max. 30W/port) | Priority ports: 1 to 8 |
| Cloud Features | Web/App remote management, visual topology map, anomaly alerts, remote PoE reboot, and extend mode (up to 250m at 10 Mbps) |
| Network Performance | Switching capacity: 38 Gbps | Forwarding rate: 28.272 Mpps | MAC address table: 8K |
| Power Supply | AC 100~240V, 50/60 Hz (Max consumption: 165W) |
| Operating Temperature | 0 ºC to +45 ºC |
| Housing & Mounting | 1U heavy-duty metal chassis (Fanless / Silent) - 19" Rackmount or Desktop Installation |
