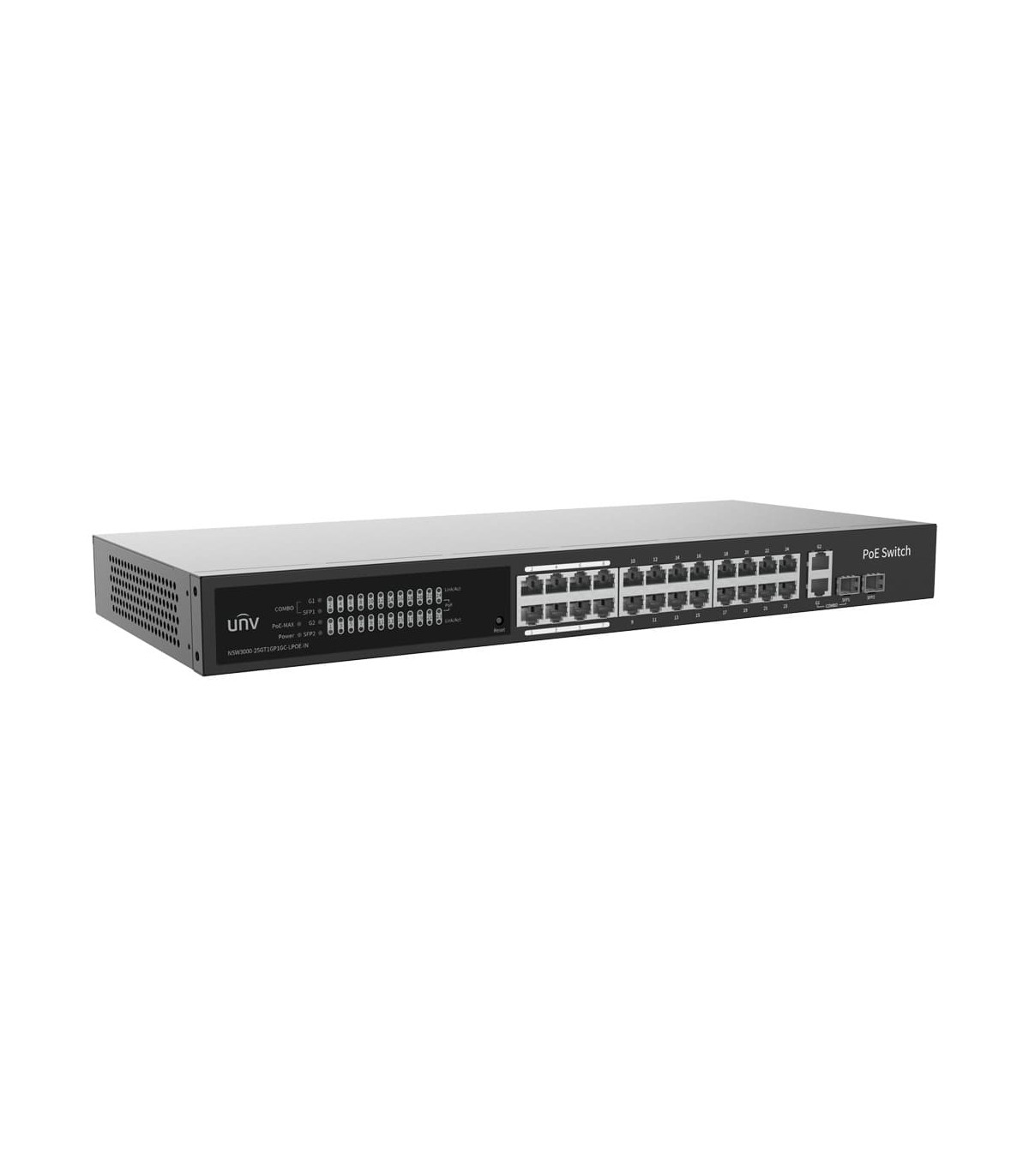

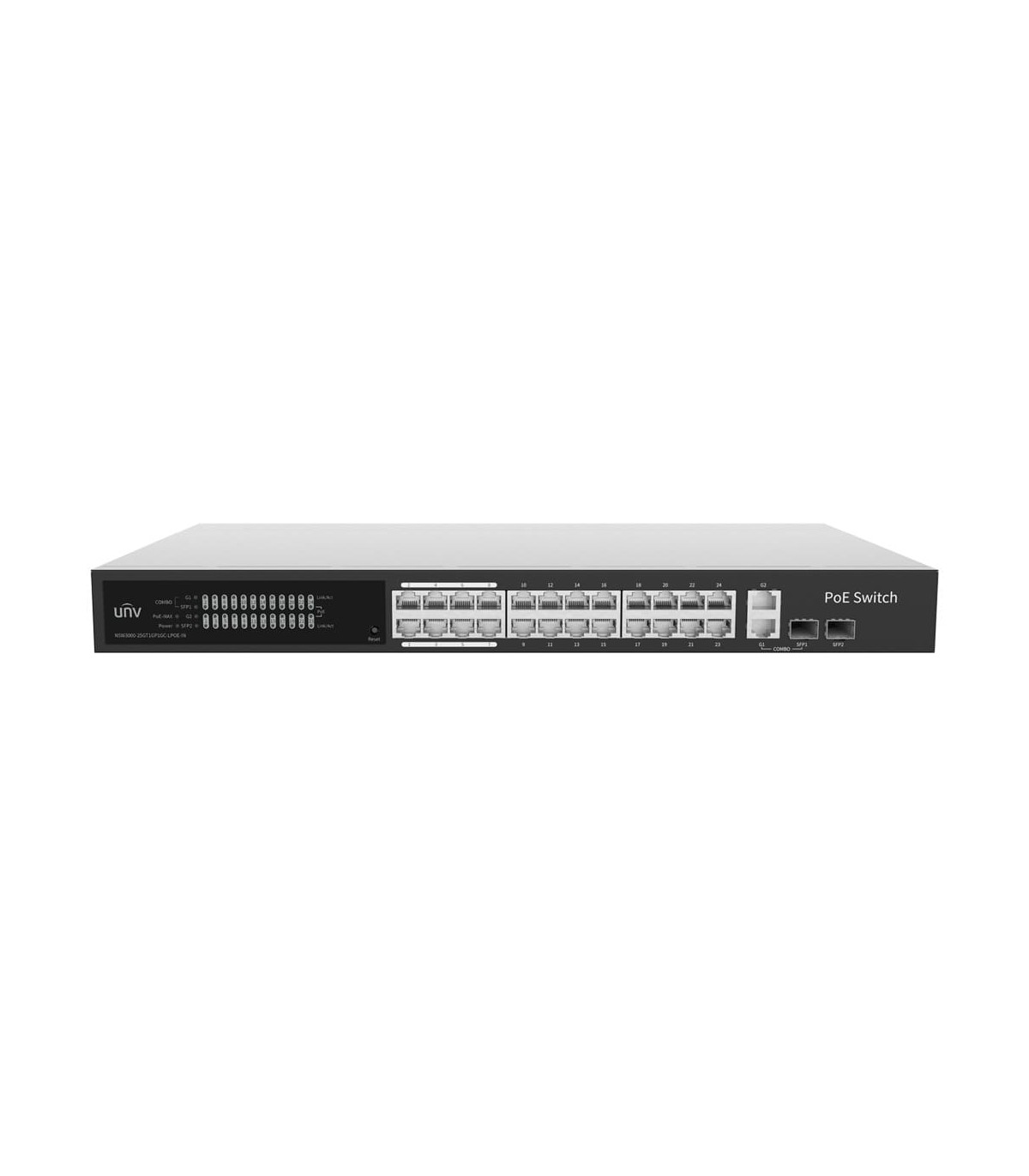

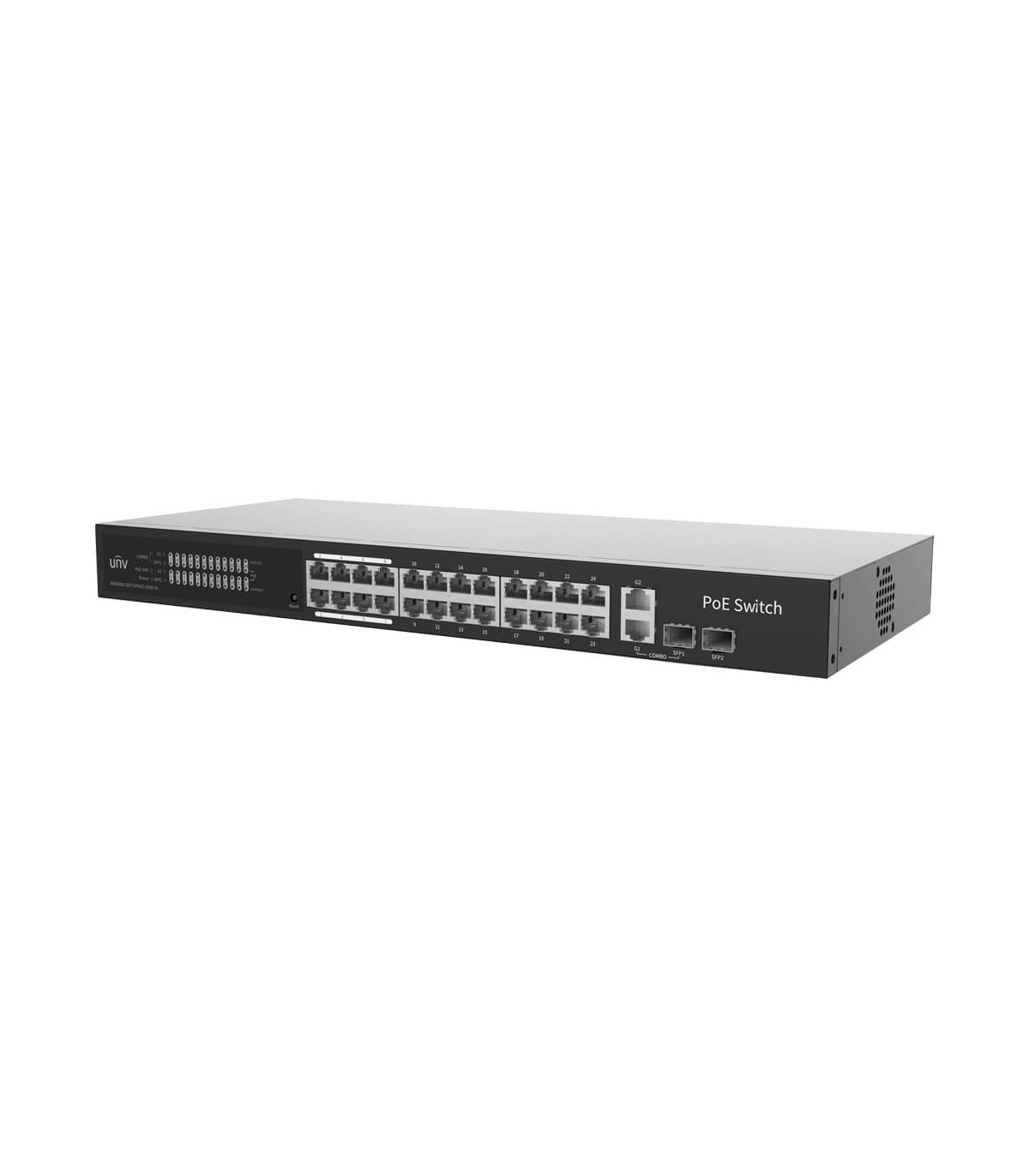

Uniview UV-NSW3000-25GT1GP1GC-LPOE-IN - Cloud Managed PoE Switch 24-Port Gigabit PoE + 3 Uplinks

Uniview UV-NSW3000-25GT1GP1GC-LPOE-IN 27-Port Cloud Managed Gigabit PoE Switch

The Uniview UV-NSW3000-25GT1GP1GC-LPOE-IN is an intelligent Cloud-managed Gigabit PoE switch engineered for high-definition IP security camera networks and high-bandwidth commercial IT environments. Fully integrated into Uniview's Cloud ecosystem, it provides rapid deployment via QR code scanning, automatic network topology discovery, and instant anomaly notifications without physical service calls.

Network Access and Triple Gigabit Uplinks

Featuring 24 Gigabit Ethernet RJ45 PoE ports (10/100/1000 Mbps), this switch provides high-speed power and data transmission for IP surveillance cameras and access points. For smooth connections to NVR recorders or the network backbone, it includes 3 dedicated Gigabit Uplink ports: 1 Gigabit RJ45 port, 1 dedicated Gigabit SFP fiber port, and 1 Gigabit Combo port (RJ45/SFP).

In full compliance with IEEE 802.3af/at standards, it delivers a total PoE power budget of 230W (up to 30W per port). Smart port prioritization on ports 1 through 8 ensures power and data delivery remain uninterrupted for critical devices during high traffic load.

High Network Capacity and 250m Extended Transmission

Built with a 1U heavy-duty metal chassis, the Uniview UV-NSW3000-25GT1GP1GC-LPOE-IN features a 54 Gbps switching capacity and 40.176 Mpps forwarding rate to prevent packet loss. The built-in Extend Mode extends PoE power supply and data signal transmission up to 250 meters at 10 Mbps over standard twisted-pair cabling.

Uniview UV-NSW3000-25GT1GP1GC-LPOE-IN Key Highlights

• Cloud Administration: Real-time topology views, cable testing, and remote port-by-port PoE reboots via Web or Mobile App.
• Triple Gigabit Uplink Design: RJ45 port, dedicated SFP fiber port, and Combo RJ45/SFP port for copper or fiber optic connectivity.
• Priority Ports 1 to 8: Guarantees bandwidth and power to key surveillance cameras during network congestion.
• Long-Range PoE (250m): Simplifies long-distance device installations without additional hardware.
