Uniview UV-NSW3000-16T1GT1GC-LPOE-IN - 18-Port Cloud Managed PoE Switch (16 FE PoE + 2 Gigabit):

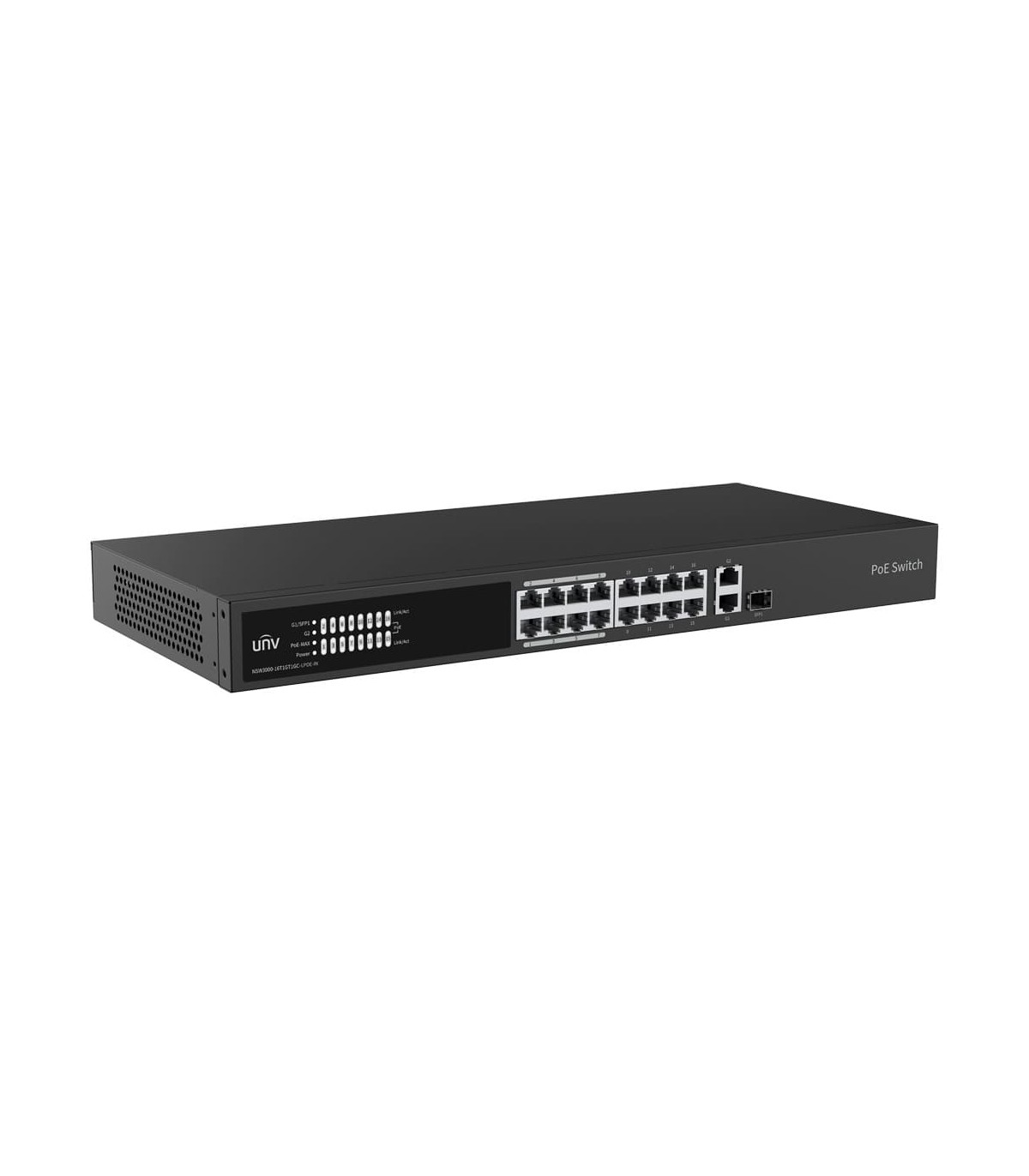

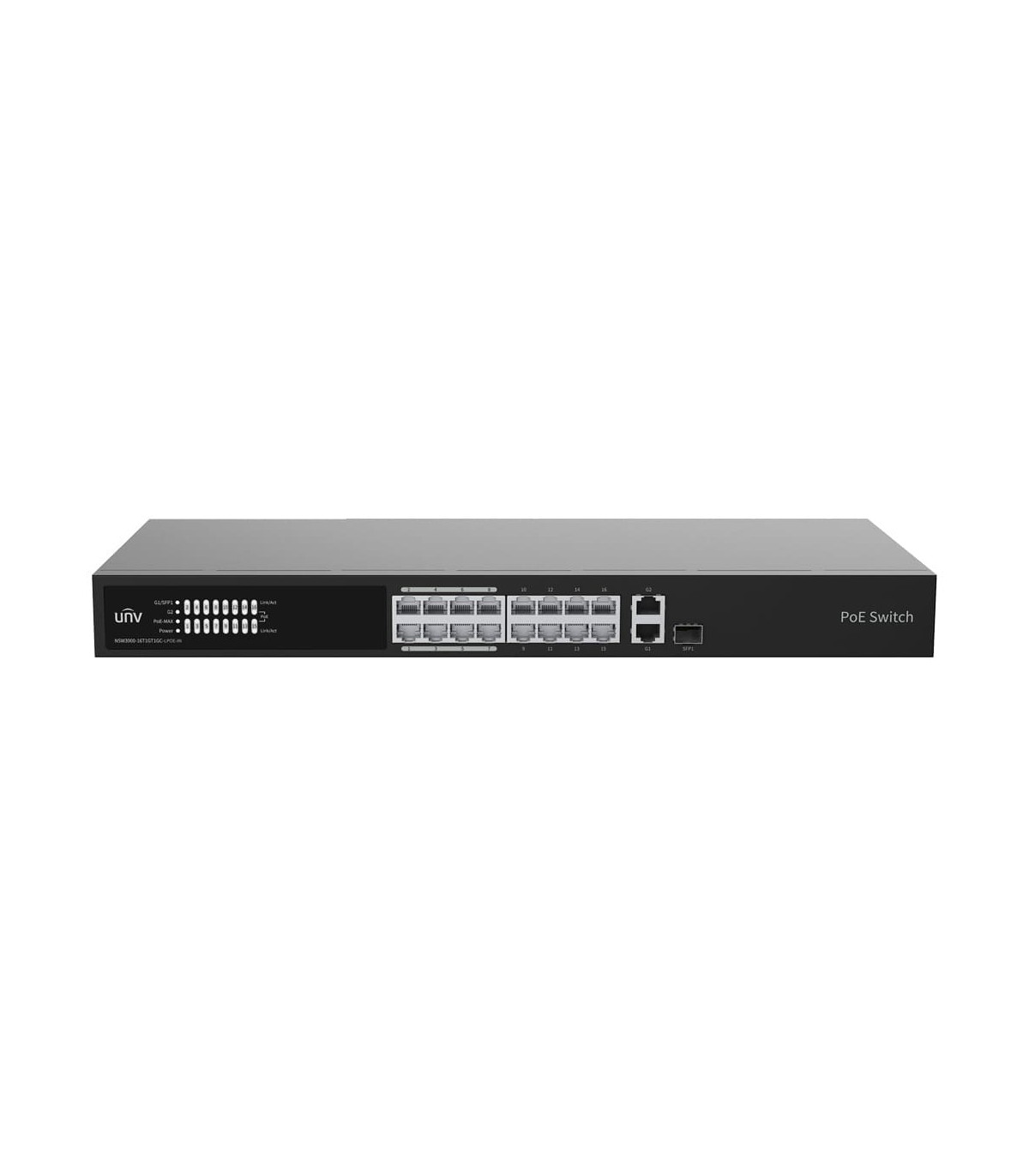

The Uniview UV-NSW3000-16T1GT1GC-LPOE-IN is an intelligent Cloud-managed PoE switch engineered for IP security camera networks and commercial IT environments. Fully integrated into Uniview's Cloud ecosystem, it provides rapid deployment via QR code scanning, automatic network topology discovery, and instant anomaly notifications without physical service calls.
### Network Access and High-Speed Uplinks
Featuring 16 Fast Ethernet RJ45 PoE ports (10/100 Mbps), this switch provides stable power and data transmission for IP surveillance cameras. For smooth connections to NVR recorders or the network core, it includes 2 dedicated Gigabit Uplink ports: 1 Gigabit RJ45 port (10/100/1000 Mbps) and 1 Gigabit Combo port (RJ45/SFP fiber).
In full compliance with IEEE 802.3af/at standards, it delivers a total PoE power budget of 150W (up to 30W per port). Smart port prioritization on ports 1 through 8 ensures power and data delivery remain uninterrupted for critical devices during high traffic load.
### Fanless Silent Operation and 250m Extended Transmission
Built with a 1U heavy-duty fanless metal chassis, the Uniview UV-NSW3000-16T1GT1GC-LPOE-IN operates silently, making it ideal for noise-sensitive office spaces and control rooms. The built-in Extend Mode extends PoE power supply and data signal transmission up to 250 meters at 10 Mbps over standard twisted-pair cabling.
### Uniview UV-NSW3000-16T1GT1GC-LPOE-IN Key Highlights
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand / Manufacturer | Uniview |
| Model / Reference | UV-NSW3000-16T1GT1GC-LPOE-IN |
| Device Type | Cloud Managed PoE Switch |
| RJ45 PoE Ports (Access) | 16× Fast Ethernet RJ45 (10/100 Mbps) PoE/PoE+ |
| Uplink Ports | 1× Gigabit RJ45 (10/100/1000 Mbps) + 1× Gigabit Combo (RJ45/SFP) |
| PoE Standards & Management | IEEE 802.3af / IEEE 802.3at | Total budget: 150W (Max. 30W/port) | Priority ports: 1 to 8 |
| Cloud Features | Web/App remote management, visual topology map, anomaly alerts, remote PoE reboot, and extend mode (up to 250m at 10 Mbps) |
| Network Performance | Switching capacity: 7.2 Gbps | Forwarding rate: 5.356 Mpps | MAC address table: 8K |
| Power Supply | AC 100~240V, 50/60 Hz (Max consumption: 165W) |
| Operating Temperature | 0 ºC to +45 ºC |
| Housing & Mounting | 1U heavy-duty metal chassis (Fanless / Silent) - 19" Rackmount or Desktop Installation |
