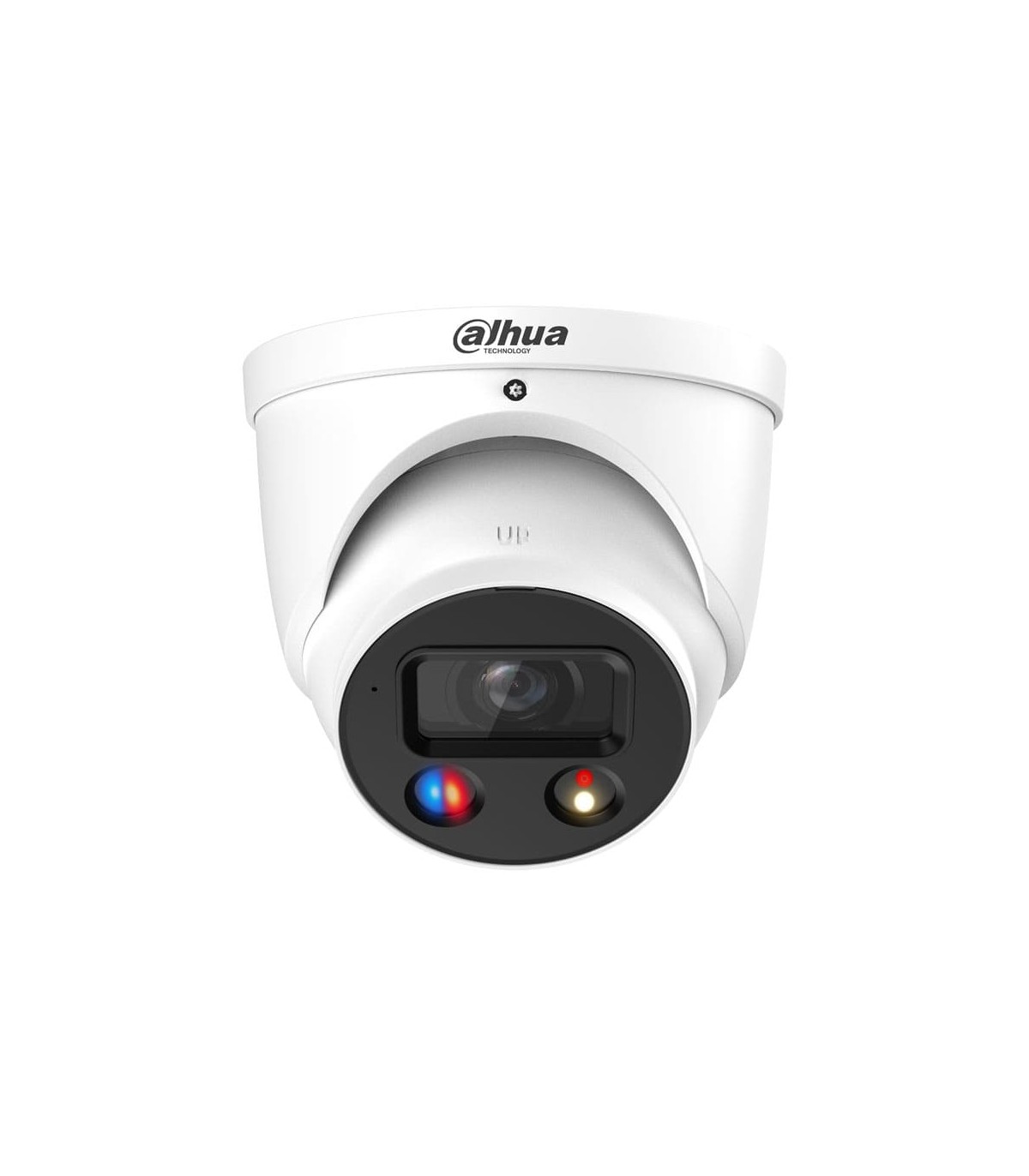

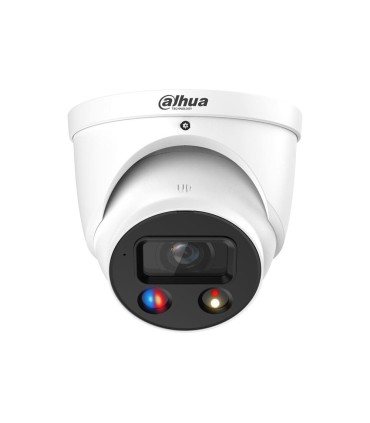

IPC-HDW3849H-AS-PV-S5 - Dome IP 8MP Smart Dual Light outdoor
Dahua WizSense IP Dome
8MP@25/30ips, AI H.265+, Smart H.265+
ICR, 0.004/0.0004 lux, Smart Dual Light 30m
2.8mm fixed optics
WDR 120dB, 3D-NR, 4 ROI
Perimeter protection and SMD 4.0
Active deterrence
Incorporates microphone and speaker
1 input / 1 audio output
1 input / 1 output alarm
MicroSD slot, RJ45, Onvif, IP67, 3AXIS, PoE.
8-megapixel 1/2.7" CMOS sensor
AI-H.265, AI-H.264, Smart H.265+, Smart H.264+, H.265, H.264, H.264, MJPEG video formats
Digital resolution: 8MP (3840x2160), 6MP (3072x2048), 5MP (3072x1728, 2592x1944), 4MP (2688x1520), 3.6MP (2560x1440), 3MP (2304x1296, 2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576, 704x480), VGA (640x480), CIF (352x288, 352x240)
Stream 1: 8MP (1~25/30 ips)
Stream 2: D1 (1~25/30 fps)
Stream 3: 1080P (1~25/30 ips)
Day/Night mode with removable mechanical filter (ICR)
Smart Dual Light: 1 IR led + 1 warm light led, 30 meters
0.004 lux F1.0 (color), 0.0004 lux F1.0 (B/W), 0 lux with activated illumination
2.8 mm fixed optics
Angle of view: 106°(H), 55°(V), 125°(D)
Imaging modes: BLC, HLC, WDR 120dB, SSA, 3D-NR, Mirror, Defog.
Built-in Lens Distortion Correction (LDC)
White balance with 6 modes
Automatic gain control
Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask
Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)
SMD 4.0: Less false alarms, longer detection distance
Built-in microphone and speaker
1 audio input / 1 audio output
1 alarm input / 1 alarm output
MicroSD card slot up to 256GB (not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
ONVIF (Profile S/T/G), CGI, SDK and API support
Up to 20 users
Remote viewing via IE, Chrome and Firefox browsers
SmartPSS Lite, DSS, DMSS management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC / PoE (802.3af)
Maximum power consumption: 8.6W (12V) / 10.1W (PoE)
Operating temperature from -40°C ~ +60°C
Relative humidity: ≤95%.
IP67 protection rating
Metal housing
Dimensions: Ø122 x 110.9 (H) mm
Net weight: 750 g
Gross weight: 920 g
3AXIS: 0°~360°(PAN), 0°~78°(TILT), 0°~360°(Rotation)
