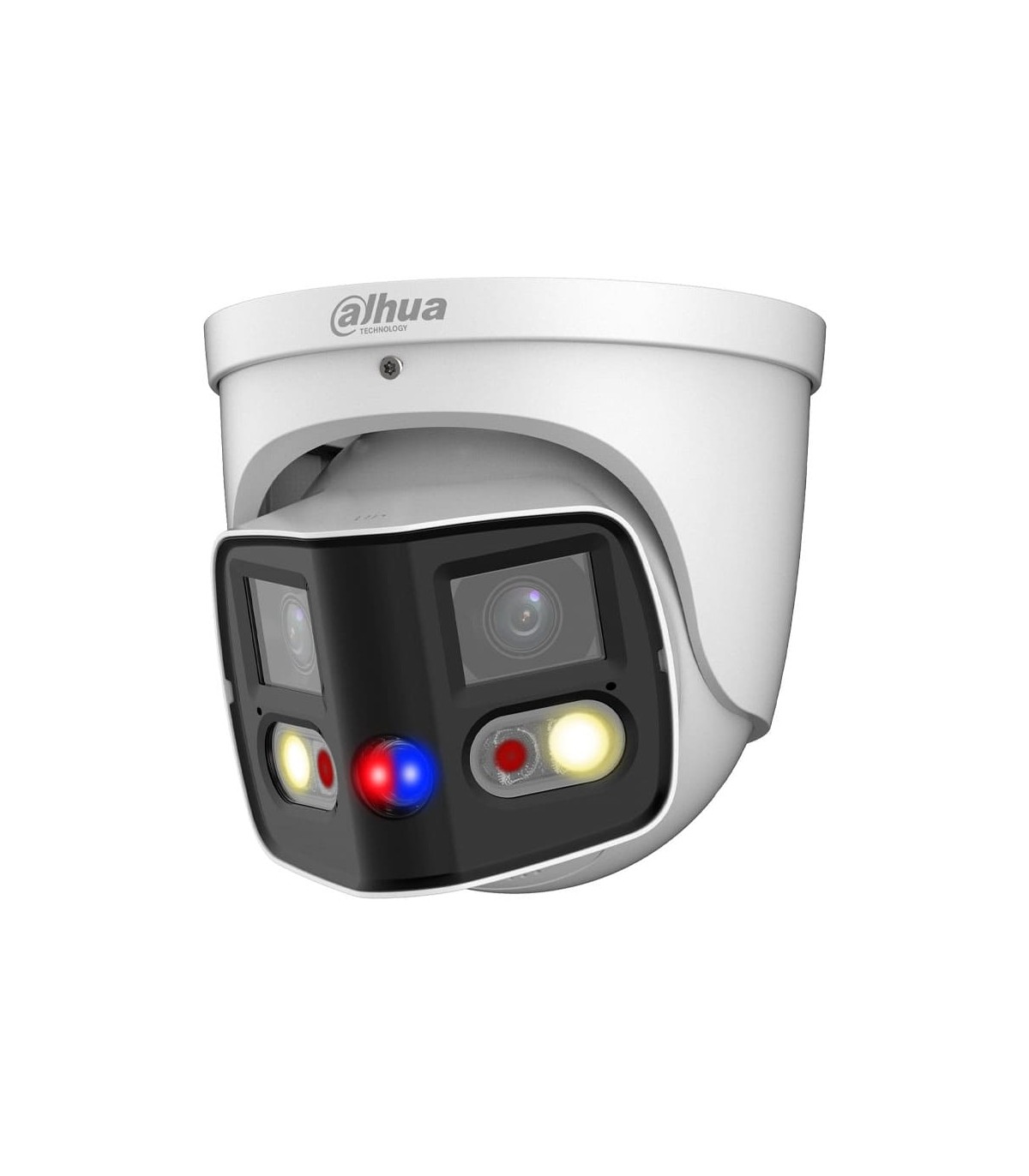

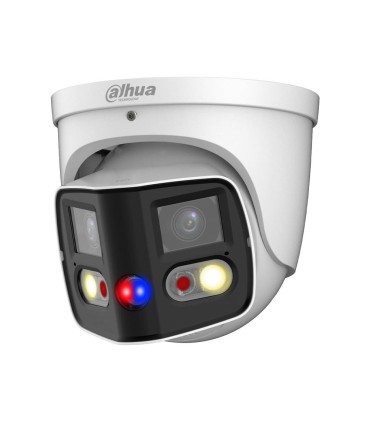

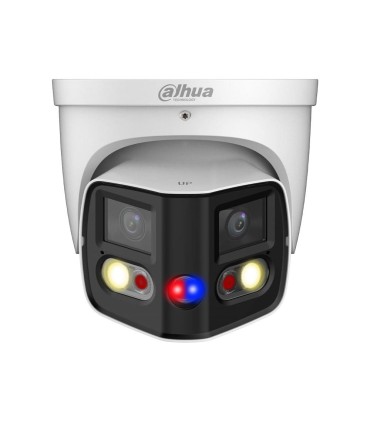

IPC-PDW3849-A180-AS-PV - WizMind dual 4MP IP dome

4 megapixel 1/2.7" dual CMOS sensor

Video formats AI-H.265, AI-H.264, Smart H.265+, Smart H.264+, H.265, H.264, H.264, MJPEG

Digital resolution: 8MP (4096x1860), 6MP (3632x1632), 4MP (3040x1368), 1.6MP (1920x860), 1200x530, 960x432

Stream 1: 8MP (1~20 ips)

Stream 2: 1200x530 (1~20 fps)

Stream 3: 1.6MP (1~20 fps)

Day/night mode with removable mechanical filter (ICR)

Smart Light: 2 IR leds (25 meters) + 2 warm light leds (20 meters)

0.005 lux F1.4 (color), 0.0005 lux F1.4 (B/W), 0 lux with activated illumination

2.8 mm fixed optics

Angle of view: 180°(H), 86°(V)

Imaging modes: BLC, HLC, WDR 120dB, SSA, 3D-NR, Defog

White balance with 6 modes

Automatic gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy masking

Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)

SMD 4.0: Less false alarms, longer detection distance

Built-in dual microphone and dual speaker

1 input / 1 output RCA audio

1 alarm input / 1 alarm output

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

ONVIF (Profile S/G/T), CGI, SDK and API support

Up to 20 users

Remote viewing via IE8 and later, Chrome and Firefox browsers

Smart PSS Lite, DSS, DMSS, Smart PSS Lite management software

Compatible with iOS and Android devices

Power supply: 12V DC (±30%) / PoE (802.3af)

Maximum power consumption: 8.7W (12V), 10.85W (PoE)

Storage temperature from -40°C ~ +60°C

Operating temperature: -40°C ~ +60°C (-40°C ~ +60°C)

Relative humidity: ≤95%.

IP67 protection rating

Metal housing

Dimensions: Ø122 x 135,2 (H) mm

Net weight: 990 g

Gross weight: 1150 g

3AXIS: 0°~360° (Pan), 0°~77° (Tilt), 0°~360° (Rotation)
