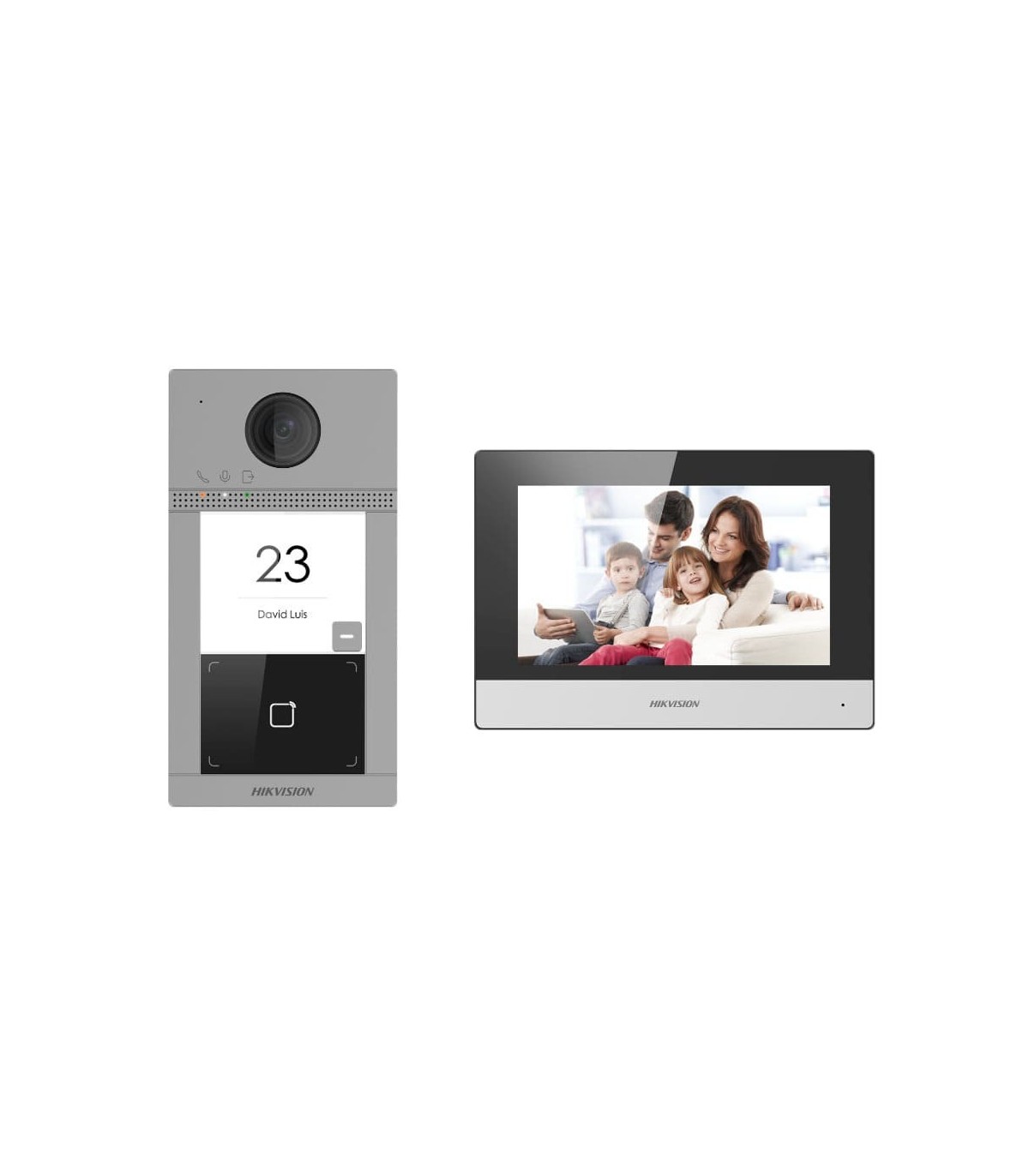

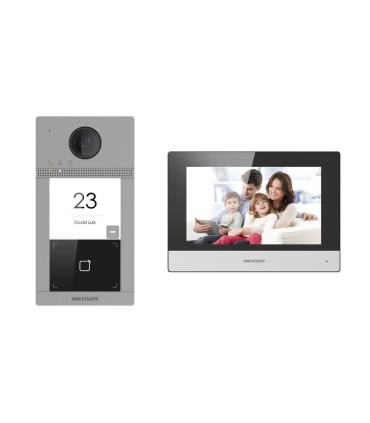

DS-KIS604-P(C) - Hikvision PoE IP Video Intercom Kit with 7" Wi-Fi Monitor and Full HD Camera:
The DS-KIS604-P(C) is a Hikvision IP video intercom kit designed for villas, single-family homes and residential installations. It combines an outdoor door station with a Full HD camera, a 7-inch touchscreen indoor monitor and two-way audio communication with access control functions.
This PoE video intercom kit includes one DS-KV8113-WME1(C) outdoor door station, one DS-KH6320-WTE1 indoor monitor, two power supply units and a 16GB TF memory card. Both devices support standard PoE or 12V DC power, providing flexible installation options.
The Hikvision DS-KIS604-P(C) provides Full HD 1920 × 1080 video, supplementary infrared illumination, WDR technology, Wi-Fi and Ethernet connectivity, and remote unlocking through compatible client software or a mobile client. The outdoor door station features IP65 and IK08 protection ratings.
The DS-KIS604-P(C) is a PoE video intercom kit developed for residential installations requiring visitor identification and communication.
This Hikvision IP video intercom combines Full HD video, a touchscreen indoor monitor and access control functionality.
Its IP network technology allows integration into a compatible residential network using Ethernet or Wi-Fi connectivity.
The Hikvision DS-KIS604-P(C) IP video intercom is designed for residential properties with a single outdoor call point.
The outdoor door station enables communication with the indoor monitor, allowing occupants to identify visitors and manage entry.
The IP-based system includes Ethernet interfaces and Wi-Fi connectivity on both supplied devices.
The DS-KIS604-P(C) includes a DS-KV8113-WME1(C) outdoor door station equipped with a camera and a single call button.
The DS-KH6320-WTE1 indoor monitor features a 7-inch touchscreen and network connectivity.
The kit is also supplied with two power supply units and a 16GB TF memory card, as specified by the manufacturer.
The outdoor door station features a main video stream resolution of 1920 × 1080 pixels.
A secondary video stream with a resolution of 640 × 480 pixels is also available.
These video capabilities allow visitors to be viewed through the IP video intercom system.
The outdoor camera uses H.264 video compression.
This video coding standard enables the transmission of compressed images through the network.
H.264 is the video compression format specified for the outdoor station in the manufacturer's technical documentation.
The outdoor door station includes supplementary infrared illumination.
This feature assists visitor identification in low-light conditions and during night-time operation.
The exact infrared illumination range is not specified in the available technical documentation.
The camera included in the DS-KIS604-P(C) supports WDR technology.
WDR helps improve image representation in scenes containing both bright and dark areas.
This function is particularly useful for entrances exposed to varying lighting conditions.
The outdoor camera provides a 124° horizontal viewing angle.
Its vertical viewing angle is 75°.
These specifications should be considered when selecting the installation position and mounting height of the outdoor door station.
The Hikvision DS-KIS604-P(C) supports two-way audio communication between the outdoor door station and the indoor monitor.
The outdoor station features a built-in omnidirectional microphone and a loudspeaker rated above 80dB at 30cm.
Noise suppression and echo cancellation help improve the clarity of voice communication.
The outdoor door station supports G.711U and G.711A audio compression.
The specified audio bitrate is 64Kbps.
The indoor monitor uses G.711U audio compression, also with a bitrate of 64Kbps.
The DS-KH6320-WTE1 indoor monitor features a 7-inch colour TFT display.
This 7-inch Wi-Fi monitor provides a resolution of 1024 × 600 pixels for displaying images from the outdoor camera.
The 7-inch Wi-Fi monitor also includes a capacitive touchscreen, built-in microphone and loudspeaker.
Both the outdoor door station and indoor monitor support Wi-Fi 802.11b/g/n.
Each device also features 10/100Mbps Ethernet connectivity for integration into a compatible IP network infrastructure.
The outdoor station supports TCP/IP and RTSP protocols, while the indoor monitor supports TCP/IP, SIP and RTSP.
The DS-KIS604-P(C) is a PoE video intercom kit in which both supplied devices support standard PoE or 12V DC power.
The outdoor door station supports the IEEE 802.3af PoE standard.
The outdoor station consumes less than 10W, while the indoor monitor consumes no more than 6W.
The outdoor door station includes two lock control interfaces.
The system supports remote door unlocking through compatible client software or a mobile client.
These features allow the IP video intercom to be integrated into a residential communication and access control system.
The outdoor door station supports up to two exit buttons.
It also provides two door contact inputs.
These interfaces enable the connection of compatible accessories in accordance with the manufacturer's installation and electrical requirements.
The outdoor door station features four alarm inputs and two RS-485 interfaces.
The indoor monitor provides eight alarm inputs, two relay outputs and one RS-485 interface.
These interfaces offer additional integration possibilities with compatible equipment.
The outdoor door station includes a TAMPER switch.
This component is intended to detect certain forms of unauthorised physical interference with the equipment.
Its operation depends on correct installation and configuration in accordance with the manufacturer's instructions.
The outdoor station included in the DS-KIS604-P(C) has an IP65 protection rating.
It also features an IK08 impact resistance rating, indicating its mechanical resistance to impacts.
The unit is designed for outdoor use, with an operating temperature range of -40°C to +53°C.
The outdoor door station has a specified user capacity of 2000.
This capacity forms part of the technical specifications of the outdoor access device.
Available functions depend on the device configuration and the authentication methods supported by the equipment.
The Hikvision video intercom kit supports remote configuration through a Web interface.
This feature provides access to the configuration options offered by the equipment.
Configuration should be performed over a secure network and in accordance with the manufacturer's instructions.
The DS-KIS604-P(C) supports the storage of messages and captured pictures on a TF memory card.
The kit includes a 16GB TF memory card.
The indoor monitor supports TF cards with a maximum capacity of 32GB, using SD 2.0 or an earlier specification, as indicated in the technical documentation.
The DS-KV8113-WME1(C) outdoor door station measures 174 × 91 × 29mm and weighs 380g.
The DS-KH6320-WTE1 indoor monitor measures 200 × 140 × 15.1mm.
The outdoor station is designed for surface mounting, while the indoor monitor should be installed in accordance with the manufacturer's specific instructions.
The DS-KIS604-P(C) combines a Full HD outdoor door station, a 7-inch Wi-Fi touchscreen monitor and communication and access control functions.
This Hikvision IP video intercom supports standard PoE power, infrared night vision, WDR technology, two-way audio communication and remote unlocking.
With IP65 and IK08 protection on the outdoor station, two included power supply units and a 16GB TF memory card, the kit provides a complete IP video intercom solution for residential installations.
| Parameter | Detailed Technical Specifications |
|---|---|
| GENERAL KIT INFORMATION | |
| Product reference | DS-KIS604-P(C) |
| Brand | Hikvision |
| Product type | IP video intercom kit |
| Application | Villas, single-family homes and residential installations |
| Number of call buttons | 1 |
| Included outdoor door station | 1 × DS-KV8113-WME1(C) |
| Included indoor monitor | 1 × DS-KH6320-WTE1 |
| Included power supply units | 2 × PSU |
| Included memory card | 1 × 16GB TF card |
| OUTDOOR DOOR STATION DS-KV8113-WME1(C) - SYSTEM AND VIDEO | |
| Operating system | Embedded Linux |
| Flash memory | 32MB |
| RAM | 256MB |
| Supplementary illumination | Infrared (IR) |
| Main stream resolution | 1920 × 1080 pixels |
| Substream resolution | 640 × 480 pixels |
| Number of lenses | 1 |
| WDR | Supported |
| Horizontal viewing angle | 124° |
| Vertical viewing angle | 75° |
| Video compression | H.264 |
| OUTDOOR DOOR STATION - AUDIO | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker, above 80dB at 30cm |
| Volume adjustment | Adjustable |
| Audio compression | G.711U, G.711A |
| Audio bitrate | 64Kbps |
| Audio processing | Noise suppression and echo cancellation |
| Audio communication | Two-way audio |
| OUTDOOR DOOR STATION - NETWORK AND CAPACITY | |
| User capacity | 2000 |
| Network protocols | TCP/IP, RTSP |
| Wi-Fi | 802.11b/g/n |
| Wired network | 10/100Mbps self-adaptive Ethernet |
| 3G/4G | Not available |
| Bluetooth | Not available |
| OUTDOOR DOOR STATION - INTERFACES AND ACCESS CONTROL | |
| Network interface | 1 |
| RS-485 interfaces | 2 |
| Wiegand interface | 0 |
| Lock control interfaces | 2 |
| Exit buttons | Up to 2 |
| Door contacts | 2 |
| Alarm inputs | 4 |
| Alarm outputs | 0 |
| Power interface | 1 |
| TAMPER switch | 1 |
| USB interface | 0 |
| TF card interface | 1, reserved |
| OUTDOOR DOOR STATION - POWER AND PHYSICAL SPECIFICATIONS | |
| Call buttons | 1 |
| Power consumption | Less than 10W |
| Indicators | 3 |
| Power supply | Standard PoE IEEE 802.3af / 12V DC |
| Operating temperature | -40°C to +53°C |
| Operating humidity | 10% to 95% |
| Dimensions | 174 × 91 × 29mm |
| Installation | Surface mounting |
| Operating environment | Outdoor |
| Protection rating | IP65, IK08 |
| Weight | 380g |
| INDOOR MONITOR DS-KH6320-WTE1 - SYSTEM AND DISPLAY | |
| Operating system | Embedded Linux |
| RAM | 128MB |
| Flash memory | 32MB |
| Display type | Colour TFT |
| Display size | 7 inches |
| Display resolution | 1024 × 600 pixels |
| Operating method | Capacitive touchscreen |
| INDOOR MONITOR - AUDIO | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio processing | Noise suppression and echo cancellation |
| Audio compression | G.711U |
| Audio bitrate | 64Kbps |
| INDOOR MONITOR - NETWORK AND INTERFACES | |
| Wired network | 10/100Mbps self-adaptive Ethernet |
| Network interface | 1 × RJ45 10/100Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11b/g/n |
| Network protocols | TCP/IP, SIP, RTSP |
| RS-485 interface | 1 |
| Alarm inputs | 8 channels |
| Relay outputs | 2 |
| TF memory card | Up to 32GB, SD 2.0 or earlier |
| INDOOR MONITOR - POWER AND PHYSICAL SPECIFICATIONS | |
| Power supply | Standard PoE / 12V DC |
| Power consumption | 6W or less |
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 90% |
| Dimensions | 200 × 140 × 15.1mm |
