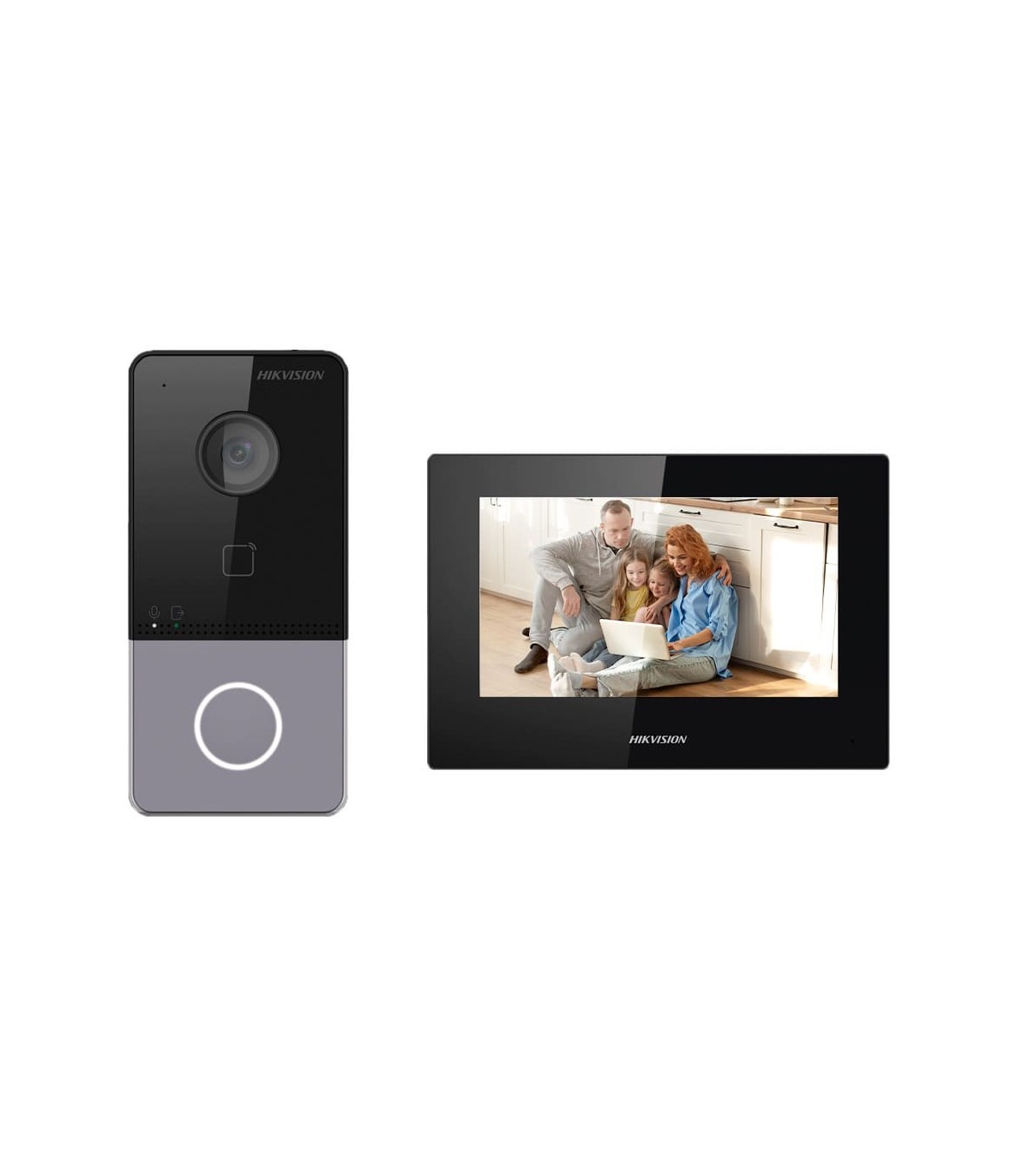

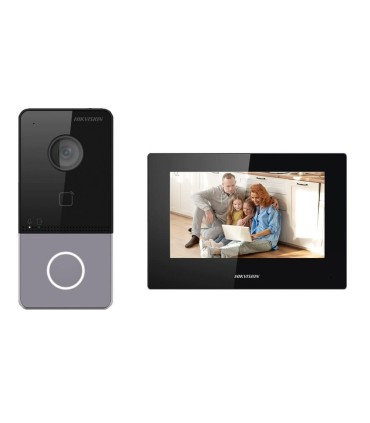

DS-KIS605-P(C) - Hikvision IP Video Intercom Kit with 7" Touchscreen Monitor and 2MP Camera PoE:
The DS-KIS605-P(C) is a Hikvision IP video intercom kit designed for audiovisual communication and access control in residential installations. It combines an outdoor station equipped with a 2MP HD camera and an indoor monitor featuring a 7-inch capacitive touchscreen. Network communication enables users to view visitors and establish two-way audio conversations.
The outdoor station provides Full HD video, infrared night vision, True WDR technology and access control functions. It features Ethernet connectivity, standard PoE power support and 2.4GHz Wi-Fi connectivity. Its enclosure offers IP65 protection and is designed for surface mounting.
The indoor monitor features a resolution of 1024 × 600 pixels and supports live video viewing from the outdoor station and associated cameras. It includes a built-in microphone and speaker, a 10/100Mbps network connection and power options through standard PoE or 12V DC. These features make the kit a versatile solution for communication and entrance management.
The Hikvision DS-KIS605-P(C) uses network technology to establish communication between the outdoor station and the indoor monitor. This architecture allows the video intercom to be integrated into a compatible Ethernet infrastructure.
The system is designed to facilitate communication with visitors and support entrance management. The outdoor station provides access control functions and auxiliary interfaces.
IP communication makes this kit suitable for residential projects requiring video, audio and integration with entrance devices.
The kit consists of an outdoor station with a 2MP camera and an indoor monitor equipped with a 7-inch screen. These two devices provide the main video capture, communication and viewing functions.
The outdoor station receives visitor calls and transmits images over the network. The indoor monitor allows users to view the video feed and communicate with the person at the entrance.
The technical datasheet identifies the main devices but does not provide a complete list of accessories included in the package. The inclusion of power adapters or additional accessories should be confirmed against the commercial package contents.
The outdoor station of the DS-KIS605-P(C) features a 2-megapixel HD camera. The main video stream supports resolutions up to 1920 × 1080 pixels.
The device supports video transmission at different resolutions. The main stream operates at 1080p with 30fps or 720p with 25fps.
The camera provides images suitable for observing visitors at the entrance. Actual performance depends on installation conditions and available lighting.
The Hikvision outdoor station features infrared illumination for environments with limited ambient lighting. The technical datasheet specifies an infrared range of 3 metres.
This function enables image capture when ambient light is reduced. It is particularly useful for observing the area immediately surrounding the entrance.
The effective infrared range depends on environmental conditions, mounting position and the characteristics of the surfaces being observed.
The camera incorporates True WDR technology. This function helps balance bright and dark areas within the same image.
The device also supports BLC backlight compensation. This feature is useful when strong lighting is present behind a visitor.
Both technologies contribute to improved visibility in entrances with challenging lighting conditions.
The system supports DNR digital noise reduction. This technology helps reduce visual interference in captured images.
The outdoor station also supports motion detection. This capability allows the device to identify activity within the camera's field of view.
The availability and use of these functions depend on device configuration and the options supported by the system.
The outdoor camera provides a 129° horizontal viewing angle and a 75° vertical viewing angle.
This wide field of view allows a larger area in front of the entrance to be observed. It also helps capture visitors standing close to the outdoor station.
The mounting position should be selected according to entrance height and the area that needs to be monitored.
The DS-KIS605-P(C) uses H.264 video compression. This format supports video transmission over an IP network.
The main stream supports 1080p at 30fps and 720p at 25fps. The sub-stream uses D1 resolution at 25fps.
The device also provides a secondary resolution of 704 × 576 pixels. Configuration should take into account viewing requirements and network capabilities.
The Hikvision video intercom kit supports two-way audio communication. Users can speak with visitors through the indoor monitor.
The outdoor station includes a built-in omnidirectional microphone and speaker. The system provides noise suppression and echo cancellation functions.
These technologies help improve conversation clarity. The outdoor station uses G.711U audio compression at 64Kbps.
The indoor monitor features a 7-inch TFT LCD screen with a resolution of 1024 × 600 pixels.
Its interface uses capacitive touchscreen technology, allowing users to interact directly with the functions available on the display.
The monitor supports live video viewing from the outdoor station and associated cameras. Its design is intended for wall-mounted installation.
The indoor monitor supports live video viewing from outdoor stations and associated cameras. This capability expands the viewing options available within the installation.
The use of additional cameras depends on equipment compatibility and network configuration.
This function allows different video sources to be viewed from a single indoor monitor.
The outdoor station of the DS-KIS605-P(C) supports 2.4GHz Wi-Fi, as indicated in the main features of the technical datasheet.
The device also provides a 10/100Mbps Ethernet connection. This interface enables communication through a wired network infrastructure.
The indoor monitor uses a 10/100Mbps Ethernet connection. The technical datasheet does not confirm built-in Wi-Fi connectivity for the indoor monitor.
The outdoor station supports power through IEEE 802.3af PoE or 12V DC. Its specified power consumption is below 10W.
The indoor monitor can also be powered by standard PoE or 12V DC. Its maximum power consumption is 6W.
PoE technology enables data transmission and power delivery through a compatible Ethernet connection. Power connections must comply with the electrical requirements of each device.
The outdoor station includes access control functions. The technical datasheet specifies 1 relay for integration with compatible devices.
The device features a card reading frequency of 13.56MHz. This specification relates to its radio-frequency reading interface.
Compatibility with specific card types or credentials should be verified before installation. The datasheet does not identify every supported identification technology.
The outdoor station provides 4 alarm inputs. These interfaces allow compatible auxiliary devices to be connected.
The device also includes an RS-485 interface and a debugging port. The technical datasheet additionally identifies a grounding connection.
The indoor monitor features 8 alarm input zones. It also includes one reserved RS-485 interface and two reserved relay outputs.
The outdoor station is equipped with a TAMPER switch. This component enables detection of certain unauthorised handling or opening conditions.
Anti-tamper protection is particularly useful for devices installed outdoors. It complements the equipment's other security-related features.
Correct operation depends on appropriate installation and configuration.
The Hikvision outdoor station supports remote configuration through a Web interface. This function simplifies the management of available device settings.
The device runs an embedded Linux operating system. It supports TCP/IP and RSTP network protocols, according to the technical datasheet.
Configuration should be carried out over an appropriately secured network. Remote access depends on connectivity conditions and configured permissions.
The outdoor station features an IP65 protection rating. This classification indicates protection against dust and water jets.
The device is designed for surface mounting. Installation should follow the manufacturer's recommendations.
The outdoor station operates at temperatures ranging from -40°C to +53°C. Its specified operating humidity ranges from 10% to 95%.
The outdoor station measures 138 × 65 × 27mm. Its compact design facilitates installation near the entrance.
The indoor monitor measures 200 × 140 × 15.1mm, according to the specifications table. Its weight is 355g without packaging and 683g with packaging.
The monitor is designed for wall mounting. Its operating temperature ranges from -10°C to +50°C.
The DS-KIS605-P(C) combines a 2MP HD camera, a 7-inch touchscreen monitor and two-way audio communication. Its IP connection enables integration into a compatible network infrastructure.
The outdoor station offers night vision, True WDR technology, motion detection, PoE power support and IP65 protection. Alarm and access control interfaces provide additional installation possibilities.
The indoor monitor supports live video viewing, audio communication and control through its capacitive touchscreen. Together, these features make the kit a Hikvision solution for residential communication and entrance management.
| Parameter | Detailed Technical Specifications |
|---|---|
| Commercial reference | DS-KIS605-P(C) |
| Model identified in the datasheet | DS-KIS605-P |
| Brand | Hikvision |
| Product type | IP video intercom kit |
| Communication technology | IP network |
| Application | Audiovisual communication and access control |
| Main components | Outdoor station with 2MP camera and 7-inch touchscreen indoor monitor |
| Outdoor station camera | 2MP HD camera |
| Main stream resolution | 1920 × 1080 or 1280 × 720 pixels |
| Sub-stream resolution | 704 × 576 pixels |
| Main stream frame rate | 1080p at 30fps; 720p at 25fps |
| Sub-stream frame rate | D1 at 25fps |
| Video compression | H.264 |
| Night vision | Infrared illumination |
| IR illumination range | 3m |
| Low-light performance | Supported |
| WDR | True WDR |
| Backlight compensation | BLC supported |
| Digital noise reduction | DNR supported |
| Motion detection | Supported |
| Horizontal viewing angle | 129° |
| Vertical viewing angle | 75° |
| Anti-flicker frequency | 50Hz / 60Hz |
| Outdoor station microphone | Built-in omnidirectional microphone |
| Outdoor station speaker | Built-in |
| Outdoor audio communication | Two-way audio |
| Outdoor audio processing | Noise suppression and echo cancellation |
| Outdoor audio compression | G.711U |
| Outdoor audio compression rate | 64Kbps |
| Outdoor station operating system | Embedded Linux |
| Outdoor station operating mode | Single-button operation |
| Outdoor station buttons | 1 |
| Outdoor station indicators | 2 |
| Outdoor station Flash memory | 16MB / 32MB, according to the datasheet |
| Outdoor station RAM | 256MB |
| Outdoor station relays | 1 |
| Card reading frequency | 13.56MHz |
| Outdoor alarm inputs | 4 |
| Outdoor RS-485 interface | 1 |
| Outdoor debugging port | 1 |
| Outdoor grounding connection | 1 |
| Anti-tamper protection | 1 TAMPER switch |
| Memory card slot | TF card slot identified in the physical layout diagram |
| Outdoor network protocols | TCP/IP, RSTP, according to the datasheet |
| Outdoor Ethernet network | 10/100Mbps |
| Outdoor wireless connectivity | 2.4GHz Wi-Fi, listed in the main features |
| Outdoor remote configuration | Through a Web interface |
| Outdoor station power supply | 12V DC or IEEE 802.3af standard PoE |
| Outdoor station power consumption | Below 10W |
| Outdoor operating temperature | -40°C to +53°C |
| Outdoor operating humidity | 10% to 95% |
| Outdoor station protection rating | IP65 |
| Outdoor station installation | Surface mounting |
| Outdoor station height | 138mm |
| Outdoor station width | 65mm |
| Outdoor station depth | 27mm |
| Outdoor station dimensions | 138 × 65 × 27mm (height × width × depth) |
| Monitor display type | Colour TFT LCD |
| Display size | 7 inches |
| Display resolution | 1024 × 600 pixels |
| Operating method | Capacitive touchscreen |
| Live viewing | Video from outdoor stations and associated cameras |
| Monitor operating system | Embedded RTOS |
| Monitor memory | 64MB |
| Monitor Flash memory | 16MB |
| Monitor microphone | Built-in omnidirectional microphone |
| Monitor speaker | Built-in |
| Monitor audio processing | Noise suppression and echo cancellation |
| Monitor audio compression | G.711U, G.711A |
| Monitor audio compression rate | 64Kbps |
| Monitor Ethernet network | 10/100Mbps, auto-adaptive |
| Monitor network protocols | TCP/IP, SIP, RTSP |
| Monitor network interface | RJ45 with standard PoE power support |
| Monitor RS-485 interface | 1, reserved |
| Monitor alarm inputs | 8 zones |
| Monitor relay outputs | 2, reserved |
| Monitor power input | 2-pin |
| Monitor power supply | 12V DC or standard PoE |
| Monitor power consumption | ≤ 6W |
| Monitor operating temperature | -10°C to +50°C |
| Monitor operating humidity | 0% to 90% |
| Monitor installation | Wall mounting |
| Monitor width | 200mm |
| Monitor height | 140mm |
| Monitor depth | 15.1mm, according to the specifications table |
| Monitor dimensions | 200 × 140 × 15.1mm (width × height × depth) |
| Monitor weight without packaging | 355g |
| Monitor weight with packaging | 683g |
