DS-KIS101-P/Surface - Hikvision 2-Wire Analog Video Intercom Kit with 7" Monitor and 2MP Camera:
The DS-KIS101-P/Surface is a Hikvision video intercom kit based on 2-wire analog technology. It is designed for residential installations requiring communication between the entrance and the interior of a property. The system allows residents to view visitors, communicate with them and control compatible access devices.
The kit includes the DS-KV1101-ME2/Surface outdoor door station and the DS-KH1200 indoor monitor. The outdoor unit features a 2MP CMOS camera. The indoor monitor has a 7-inch color TFT display with a resolution of 1024 × 600 pixels.
Plug & Play technology simplifies installation. The system uses analog communication through a 2-wire connection. It also supports up to two additional compatible indoor monitors, allowing communication to be extended throughout the property.
The Hikvision DS-KIS101-P/Surface uses 2-wire analog communication. This architecture allows compatible devices to be connected using suitable cabling.
The technology is designed for straightforward residential installations. Plug & Play operation simplifies system commissioning and initial configuration.
The kit enables communication with visitors without requiring an IP network infrastructure for its basic functions. Installation must comply with the manufacturer's wiring and power requirements.

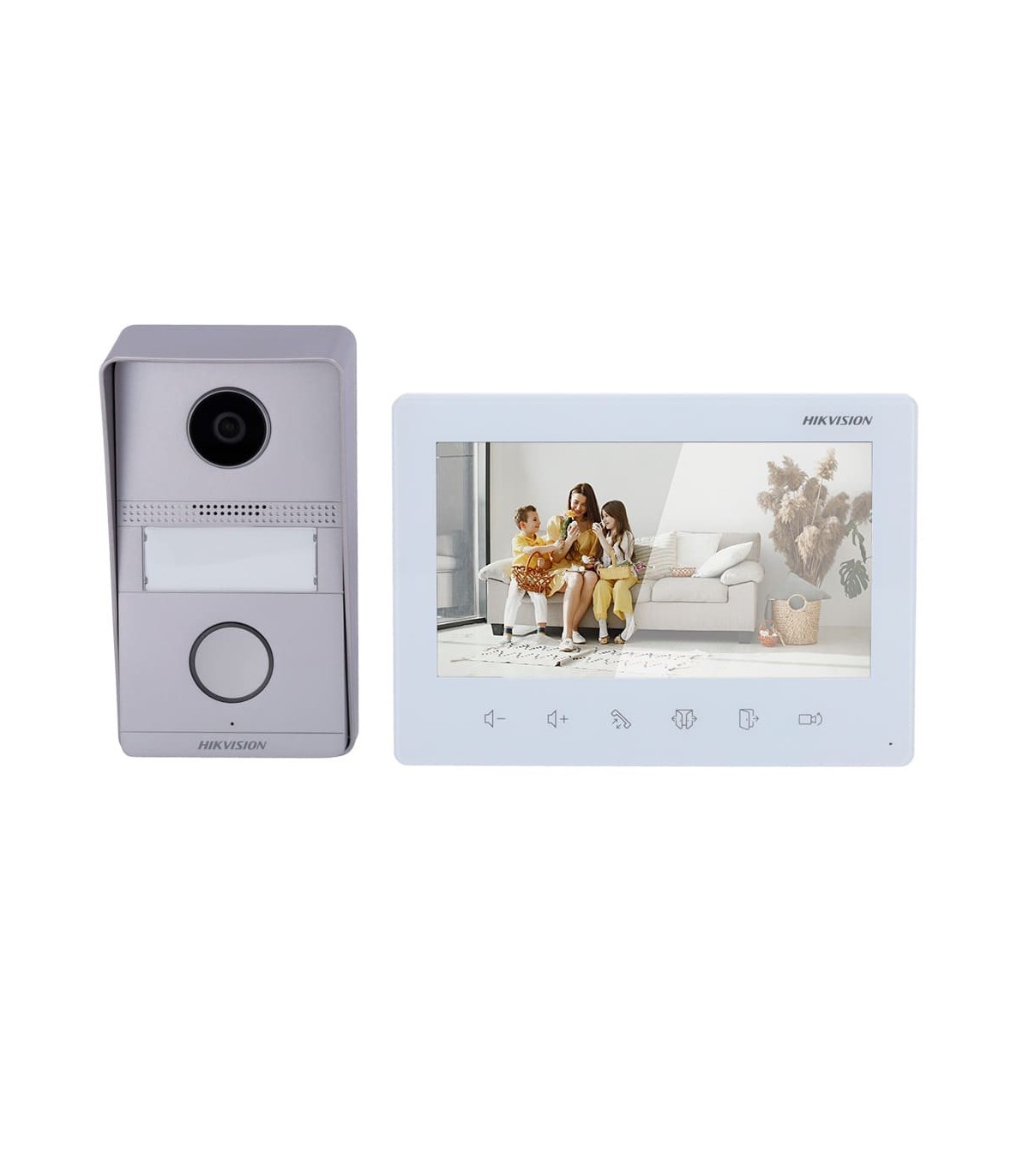

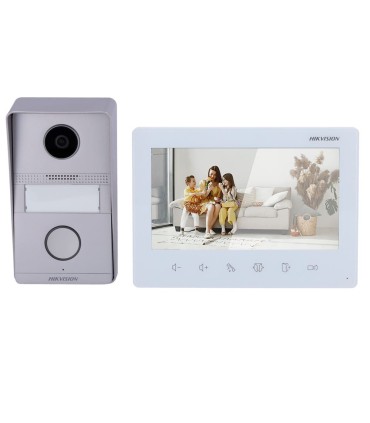

The DS-KIS101-P/Surface kit includes two main devices. The DS-KV1101-ME2/Surface outdoor door station receives visitor calls and captures video images.
The DS-KH1200 indoor monitor displays images from the entrance. It also supports two-way communication and the available access control functions.
The outdoor door station is designed for surface mounting. The technical kit composition identifies these two devices without specifying every installation accessory.
The DS-KV1101-ME2/Surface outdoor door station incorporates a 2MP CMOS image sensor. This sensor is designed to operate in low-light conditions.
The device captures images of visitors at the entrance. Video is transmitted to the indoor monitor through a 2-wire analog connection.
The door station uses an integrated analog operating system. Its construction is suitable for outdoor installation.
The Hikvision video intercom camera provides a resolution of 2 megapixels. Its CMOS sensor captures images suitable for visually identifying visitors.
The device includes built-in infrared illumination. It also features white LEDs to provide additional lighting around the entrance.
These features improve visibility under different lighting conditions. Actual performance depends on ambient lighting and installation conditions.
The DS-KV1101-ME2/Surface outdoor door station offers a 100° horizontal field of view. Its vertical field of view is 69°.
This coverage allows the system to capture the area directly in front of the door station. The installation position affects how visitors appear in the camera image.
The installer should select an appropriate mounting height. Correct positioning helps provide a useful view of the entrance area.
The DS-KIS101-P/Surface supports two-way audio communication with visitors. The outdoor door station includes a built-in microphone and speaker.
The indoor monitor also features an integrated microphone and speaker. These components enable conversations between the entrance and the interior of the property.
Audio communication helps residents identify visitors before opening the door. Users can speak directly to the person outside.
The Hikvision outdoor door station features a mechanical call button. Visitors can use this button to initiate communication with the indoor monitor.
The identification nameplate is customizable. Its LED backlighting makes it easier to locate in poorly illuminated environments.
The system provides a straightforward interface for visitors. No special technical knowledge is required to use the call button.
The DS-KH1200 indoor monitor features a 7-inch color TFT display. Its 1024 × 600-pixel resolution allows images from the outdoor camera to be viewed.
The device is designed for installation inside the property. Its white housing features a compact design.
The monitor uses an integrated analog operating system. It connects to the outdoor door station through 2-wire technology.
The indoor monitor features 6 touch-sensitive buttons for operating the available functions. These controls provide an alternative to conventional mechanical buttons.
The TFT display shows video images from the entrance. Operations are performed using the touch-sensitive buttons on the control panel.
This configuration provides straightforward operation. The touch-sensitive buttons should not be confused with a fully touchscreen display.
The DS-KV1101-ME2/Surface outdoor door station features 2 relay outputs. These interfaces allow compatible access control devices to be integrated.
The technical specifications indicate a lock power output of up to 12V / 1A. Connections must comply with the electrical limits of the device.
This function allows the video intercom to be connected to suitable door-opening mechanisms. Compatibility should be verified before installation.
The outdoor door station includes 4 alarm inputs. These connections support the integration of compatible auxiliary devices.
The equipment also provides 2 push-button inputs. In addition, it features 2 door sensor inputs.
These interfaces expand the available integration options. Configuration must follow the manufacturer's wiring diagram.
The outdoor door station incorporates a TAMPER input. This interface is intended to detect unauthorized opening or interference.
Anti-sabotage protection complements the physical characteristics of the device. Its operation depends on correct wiring and configuration.
This feature is particularly useful for outdoor installations. It also supports integration with compatible security systems.
The DS-KIS101-P/Surface system supports up to 2 additional compatible indoor monitors. This allows communication to be extended to different rooms.
The DS-KH1200 monitor includes a 2-wire output for connecting another indoor monitor. The installation can therefore be expanded according to the property's requirements.
Additional monitors must meet the manufacturer's compatibility requirements. These extra devices are not included among the two main components identified in the kit.
The DS-KH1200 monitor features 2 two-wire inputs for outdoor door stations. This allows configurations involving compatible entrance devices.
The monitor also includes 1 analog camera input. This connection allows an additional compatible video source to be integrated.
These interfaces provide greater installation flexibility. Their use depends on the compatibility of the connected equipment.
The DS-KIS101-P/Surface is designed for Plug & Play installation. This approach simplifies device connections and initial commissioning.
Analog communication uses two wires between compatible devices. The outdoor door station receives its power through the indoor monitor.
The system is suitable for projects requiring a conventional video intercom solution. Installation must follow the manufacturer's wiring and power recommendations.
The outdoor door station operates at 48V DC. The maximum current specified for this device is 500mA.
The door station receives power from the monitor through the 2-wire connection. This architecture centralizes the connection between the system components.
The indoor monitor also uses a 48V DC supply. Power supply selection and wiring must comply with the manufacturer's specifications.
The outdoor door station has an IP65 protection rating. This classification indicates protection against dust and water jets.
The device also features an IK07 impact resistance rating. This classification indicates resistance to mechanical impacts within the limits defined by the applicable standard.
The housing is manufactured from aluminum alloy. The device is designed for outdoor installation when correctly mounted.
The outdoor door station operates at temperatures from -30°C to +60°C. This range allows use in various environmental conditions.
The indoor monitor operates at temperatures from -10°C to +50°C. It is designed for suitable indoor environments.
Installation conditions must remain within these limits. Correct mounting contributes to the intended operation of the system.
The DS-KV1101-ME2/Surface outdoor door station measures 150 × 82 × 23.5mm. Its specified weight is 345g.
The DS-KH1200 indoor monitor measures 187 × 137 × 25.4mm. Its specified weight is 335g.
These compact dimensions facilitate integration into residential installations. The outdoor door station is designed for surface mounting.
The DS-KIS101-P/Surface combines a 2MP camera with a 7-inch TFT monitor. Its 2-wire analog technology provides a straightforward installation solution.
The outdoor door station offers IP65 protection and IK07 impact resistance. Auxiliary inputs and relay outputs allow compatible access control functions to be integrated.
The ability to add compatible monitors extends the system's functionality. This Hikvision video intercom kit provides a practical solution for residential communication and access control.
| Parameter | Detailed Technical Specifications |
|---|---|
| Commercial reference | DS-KIS101-P/Surface |
| Brand | Hikvision |
| Product type | Analog video intercom kit |
| Communication technology | 2-wire analog |
| Installation type | Plug & Play |
| Application | Residential audiovisual communication and access control |
| Included outdoor door station | DS-KV1101-ME2/Surface |
| Included indoor monitor | DS-KH1200 |
| Outdoor door station mounting | Surface mounting |
| Additional monitors | Up to 2 compatible extensions |
| Outdoor door station model | DS-KV1101-ME2/Surface |
| Outdoor door station operating system | Integrated analog system |
| Image sensor technology | CMOS |
| Image sensor resolution | 2MP |
| Image sensor sensitivity | Low-light operation |
| Infrared illumination | Yes, built-in |
| White LED illumination | Yes, built-in |
| Horizontal field of view | 100° |
| Vertical field of view | 69° |
| Outdoor audio communication | Two-way |
| Outdoor microphone | Built-in |
| Outdoor speaker | Built-in |
| Call button | Mechanical |
| Identification nameplate | Customizable, LED-backlit |
| Relay outputs | 2 |
| Lock power output | Up to 12V / 1A, according to manufacturer specifications |
| Monitor connection inputs | 1 |
| Alarm inputs | 4 |
| Push-button inputs | 2 |
| Door sensor inputs | 2 |
| Anti-sabotage input | 1 TAMPER |
| Outdoor door station connection | 2-wire |
| Outdoor door station power supply | 48V DC / 500mA maximum, supplied through the monitor via 2 wires |
| Outdoor protection rating | IP65 |
| Impact resistance rating | IK07 |
| Outdoor door station material | Aluminum alloy |
| Outdoor operating temperature | -30°C to +60°C |
| Outdoor door station height | 150mm |
| Outdoor door station width | 82mm |
| Outdoor door station depth | 23.5mm |
| Outdoor door station dimensions | 150 × 82 × 23.5mm (height × width × depth) |
| Outdoor door station weight | 345g |
| Indoor monitor model | DS-KH1200 |
| Monitor operating system | Integrated analog system |
| Display type | Color TFT |
| Display size | 7 inches |
| Display resolution | 1024 × 600 pixels |
| Control method | 6 touch-sensitive buttons |
| Fully touchscreen display | Not specified; operation through touch-sensitive buttons |
| Outdoor door station inputs | 2 two-wire connections |
| Analog camera input | 1 |
| Indoor monitor output | 1 two-wire connection |
| Monitor audio | Two-way |
| Monitor microphone | Built-in |
| Monitor speaker | Built-in |
| Monitor connection type | 2-wire analog |
| Monitor power supply voltage | 48V DC |
| Maximum monitor current | Value pending supplier confirmation (9A stated in distributor datasheet) |
| Monitor operating temperature | -10°C to +50°C |
| Monitor height | 187mm |
| Monitor width | 137mm |
| Monitor depth | 25.4mm |
| Monitor dimensions | 187 × 137 × 25.4mm (height × width × depth) |
| Monitor weight | 335g |
| Monitor color | White |
