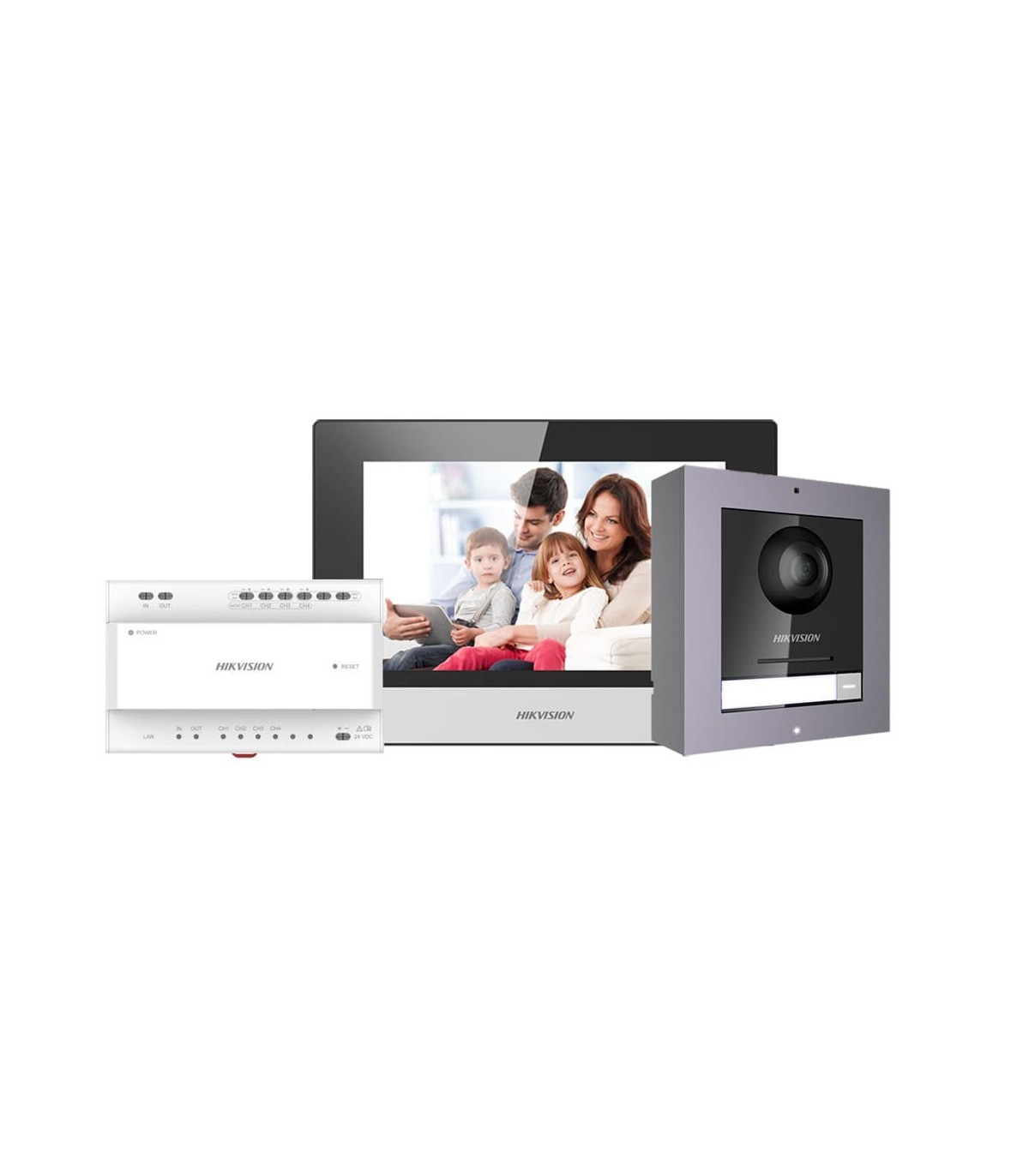

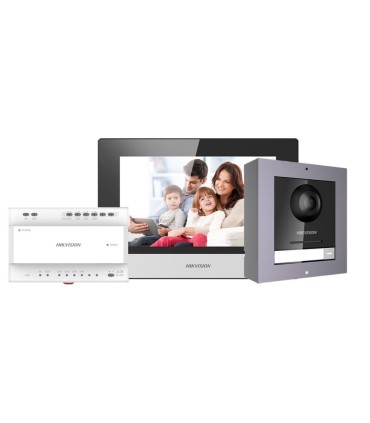

DS-KIS702EY - Hikvision 2-Wire Video Intercom Kit with 7" Wi-Fi Touchscreen Monitor and 2MP Camera:
The DS-KIS702EY is a Hikvision video intercom kit using digital 2-wire technology. It is designed for single-family homes and residential installations. The system allows users to identify visitors, communicate with them and control access.
The kit includes an outdoor door station with a 2MP HD camera and a 7-inch touchscreen monitor. It also contains a 2-wire distributor, a mounting bracket and a microSD card. A 24V DC DIN rail power supply completes the package.
This Hikvision video intercom combines audio and video communication with access control functions. The Hik-Connect application supports remote management of compatible features. The system also offers expansion options with additional indoor monitors.
The Hikvision DS-KIS702EY uses a digital 2-wire architecture. This technology transmits power and communication signals through compatible wiring. It simplifies installation in suitable residential projects.
The system is suitable for single-family homes and small residential installations. It combines video communication with IP networking features. The distributor centralises connections between the devices.
Dedicated firmware helps simplify the installation process. Its design reduces the need for complex network configuration.
The DS-KIS702EY includes the main components required for video intercom installation. The commercial package contains six items.
The DS-KD8003Y-IME2 outdoor station integrates the camera and call button. The DS-KH6320Y-WTE2 monitor displays visitors and supports communication. The DS-KAD704Y distributor manages the 2-wire connection.
A surface mounting bracket for the outdoor station is also included. The microSD card provides local storage. The 24V DC power supply is designed for DIN rail installation.
The DS-KD8003Y-IME2 outdoor door station features a 2MP HD camera. Its sensor is designed to capture images in low-light conditions.
The device includes a mechanical call button. The identification nameplate features LED backlighting. This makes the button easier to locate.
The outdoor station runs on Linux. Communication uses digital 2-wire technology and the SIP 2.0 protocol.
The Hikvision video intercom camera provides a wide field of view. Its horizontal viewing angle reaches 146°, while the vertical angle is 82°.
The manufacturer also specifies a 180° diagonal viewing angle. This coverage helps users observe a wide area around the entrance.
The 2MP HD sensor supports visual identification of visitors. Image quality depends on lighting conditions and installation.
The outdoor station includes BLC, WDR and DNR image enhancement technologies. These functions help improve visibility under different lighting conditions.
Backlight Compensation (BLC) improves the visibility of darker areas. Wide Dynamic Range (WDR) balances areas with different brightness levels.
Digital Noise Reduction (DNR) improves image presentation by reducing visual noise. These functions complement the low-light sensor and infrared illumination.
The DS-KH6320Y-WTE2 indoor monitor features a 7-inch colour TFT touchscreen. Its 1024 × 600-pixel resolution displays images from the outdoor door station.
The touchscreen interface provides convenient access to available functions. The device is designed for indoor residential use.
The monitor runs on Linux. Power is supplied through a compatible Hikvision 2-wire distributor.
The DS-KIS702EY supports two-way audio communication between visitors and residents. The outdoor station features a built-in microphone and speaker.
The indoor monitor also includes integrated audio components. Users can speak with visitors before granting access.
Noise reduction and echo cancellation help improve conversation clarity. These functions are particularly useful in noisy outdoor environments.
The indoor monitor supports Wi-Fi IEEE 802.11 b/g/n. This connection enables P2P communication with the application.
The device also supports RTSP and SIP 2.0 protocols. Communication between the system components uses digital 2-wire technology.
The DS-KAD704Y distributor includes a 10/100 BaseT Ethernet interface. This connection enables integration into a compatible IP network.
The Hik-Connect application supports remote management of compatible Hikvision video intercom functions. Users can communicate with visitors through a mobile device.
The system also supports supervision using iVMS-4200 software. These tools provide greater flexibility for everyday operation.
Remote functionality depends on the available network connection and system configuration. Features must be enabled according to the manufacturer's instructions.
The DS-KD8003Y-IME2 outdoor station provides 2 lock control relay outputs. These interfaces allow compatible electric locking devices to be controlled.
The device also includes an auxiliary 12V DC / 500mA maximum power output. This connection can supply suitable accessories.
Four auxiliary inputs support different functions. They can be used with exit buttons and door contacts.
A TAMPER input helps detect unauthorised opening. Connected accessories must comply with the specified electrical requirements.
The outdoor station is compatible with modules from the Hikvision modular intercom range. This allows the installation to be adapted to project requirements.
The system supports up to 16 additional compatible indoor monitors. Communication can therefore be available in different rooms.
Some compatibility restrictions must be observed. The Android monitors DS-KH9310 and DS-KH9510 cannot operate as secondary monitors in this system.
The indoor monitor provides 8 configurable alarm inputs. These interfaces allow compatible devices to be connected for additional functions.
The unit also includes 2 relay outputs. An RS-485 interface expands the available integration options.
These features allow the video intercom to meet different residential requirements. The use of each connection depends on system configuration.
The DS-KIS702EY includes a microSD card for local storage. The indoor monitor provides a compatible memory card slot.
The device supports microSD cards with capacities up to 128GB. This allows users to select suitable storage for supported functions.
The capacity of the supplied card is not specified in the commercial package information. Therefore, no particular capacity is assigned to the included card.
The DS-KAD704Y manages communication between devices using 2-wire technology. It distributes power, video and audio between compatible components.
The distributor features 4 two-wire channels. These channels support connections for up to four devices, depending on system requirements.
The unit also supports cascading with compatible distributors. Its 10/100 BaseT Ethernet interface enables IP network integration.
The DS-KIS702EY includes a 24V DC power supply. This power supply is designed for DIN rail mounting.
The DS-KAD704Y distributor operates at 24V DC. The specified maximum current is 2.5A.
The included power supply simplifies installation planning. Electrical connections must follow the manufacturer's instructions.
The outdoor station can receive 24V DC through the 2-wire distributor. It also supports 12V DC power, with a specified maximum current of 1700mA.
The indoor monitor receives power through a compatible Hikvision distributor. Its specified maximum power consumption is 6W.
The distributor centralises power delivery to compatible devices. The installation must comply with electrical and wiring requirements.
The outdoor station has an IP65 protection rating. It is designed for outdoor use when installed correctly.
Its operating temperature ranges from -40°C to +60°C. This range supports operation under different environmental conditions.
The device features a plastic housing. The included surface mounting bracket facilitates installation near the entrance.
The outdoor door station measures 98 × 100 × 42mm and weighs approximately 374g. The included bracket allows surface mounting.
The indoor monitor measures 140 × 200 × 15mm. Its specified weight is 327g.
The DS-KAD704Y distributor measures 144 × 92 × 66mm and weighs 250g. The power supply must be installed on a suitable DIN rail.
The DS-KIS702EY combines digital 2-wire technology with IP communication features. Its 2MP camera provides visitor images. The 7-inch touchscreen monitor offers convenient everyday operation.
Hik-Connect adds compatible remote management functions. The DS-KAD704Y distributor centralises connections between the devices.
The mounting bracket, microSD card and power supply are included. This Hikvision video intercom kit provides an integrated solution for residential communication and access control.
| Parameter | Detailed Technical Specifications |
|---|---|
| Commercial reference | DS-KIS702EY |
| Brand | Hikvision |
| Product type | Digital 2-wire video intercom kit with IP integration |
| Application | Single-family homes and residential installations |
| Technology | 2-wire / IP |
| Included outdoor door station | DS-KD8003Y-IME2 |
| Included surface mounting bracket | Yes, for outdoor door station installation |
| Included indoor monitor | DS-KH6320Y-WTE2, with dedicated firmware |
| Included distributor / converter hub | DS-KAD704Y |
| Included microSD card | Yes, capacity not specified |
| Included power supply | 24V DC, for DIN rail mounting |
| Compatible additional monitors | Up to 16 extensions |
| Management software | iVMS-4200 |
| Mobile application | Hik-Connect |
| Outdoor station operating system | Linux |
| Image sensor | 2MP low-light HD sensor |
| Camera resolution | 2MP |
| Horizontal viewing angle | 146° |
| Vertical viewing angle | 82° |
| Diagonal viewing angle | 180° |
| Backlight compensation | BLC |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | DNR |
| Night illumination | Built-in infrared illumination |
| Outdoor station audio | Two-way audio with built-in microphone and speaker |
| Call button | Mechanical |
| Identification nameplate | LED-backlit |
| Lock control relays | 2 |
| Auxiliary power output | 12V DC / 500mA maximum |
| Outdoor station auxiliary inputs | 4 |
| Tamper protection | 1 TAMPER input |
| Outdoor station RS-485 interface | 1 |
| Additional module output | 1 |
| Modular compatibility | Compatible Hikvision modular intercom modules |
| Outdoor station protocol | SIP 2.0 |
| Outdoor station connection | 2-wire technology |
| Outdoor station power supply | 24V DC via 2-wire distributor / 12V DC, 1700mA maximum |
| Outdoor station protection rating | IP65 |
| Outdoor station housing material | Plastic |
| Outdoor station operating temperature | -40°C to +60°C |
| Outdoor station dimensions | 98 × 100 × 42mm (height × width × depth) |
| Outdoor station weight | 374g |
| Indoor monitor operating system | Linux |
| Display type | Colour TFT LCD touchscreen |
| Display size | 7 inches |
| Display resolution | 1024 × 600 pixels |
| User interface | Touchscreen |
| Indoor monitor audio | Two-way audio with built-in microphone and speaker |
| Audio processing | Noise reduction and echo cancellation |
| Indoor monitor alarm inputs | 8 configurable |
| Indoor monitor relay outputs | 2 |
| Indoor monitor RS-485 interface | 1 |
| Memory card slot | microSD |
| Maximum microSD capacity | 128GB |
| Wi-Fi connectivity | IEEE 802.11 b/g/n |
| Wi-Fi function | P2P application connectivity |
| Indoor monitor protocols | RTSP / SIP 2.0 |
| Indoor monitor system connection | 2-wire |
| Indoor monitor power supply | Via compatible Hikvision distributor |
| Indoor monitor maximum power consumption | 6W |
| Indoor monitor operating temperature | -10°C to +50°C |
| Indoor monitor dimensions | 140 × 200 × 15mm (height × width × depth) |
| Indoor monitor weight | 327g |
| Compatibility limitations | Android models DS-KH9310 and DS-KH9510 cannot operate as secondary monitors |
| DS-KAD704Y distributor function | Power, video and audio distribution over 2-wire connections |
| 2-wire channels | 4 |
| Connection capacity | Up to 4 devices over 2-wire connections, subject to compatible configuration |
| Cascading channels | 2 |
| Cascading compatibility | Compatible Hikvision DS-KAD706Y distributors |
| Distributor network interface | 10/100 BaseT Ethernet |
| Distributor power supply | 24V DC / 2.5A maximum |
| Distributor operating temperature | -10°C to +55°C |
| Distributor dimensions | 144 × 92 × 66mm (width × height × depth) |
| Distributor weight | 250g |
