NVS-VIDEOINTERCOM-2W-MONITOR - Nivian 2-Wire WiFi Additional Monitor 7"

NVS-VIDEOINTERCOM-2W-MONITOR – Nivian 2-Wire WiFi Additional Monitor 7"

The NVS-VIDEOINTERCOM-2W-MONITOR is a Nivian 2-wire WiFi additional monitor for compatible video intercom systems. It features a 7" touch display and allows an additional point of use to be added to the system. It is suitable for residential and professional installations that require an additional monitor.

The device is compatible only with 2-wire kits. Its connection to the outdoor station uses wired technology. The outdoor station receives power through the system, without requiring a separate power cable.

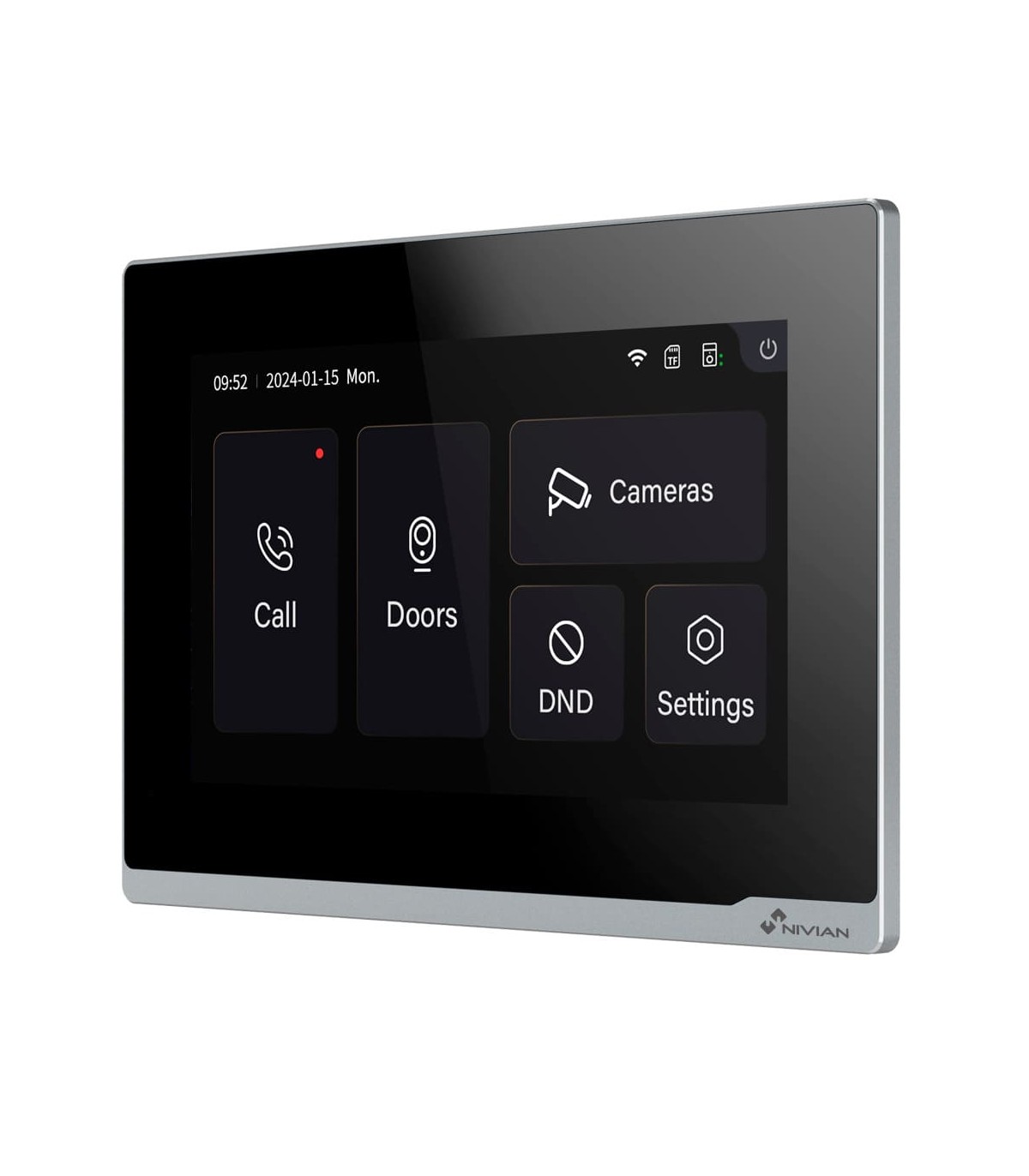

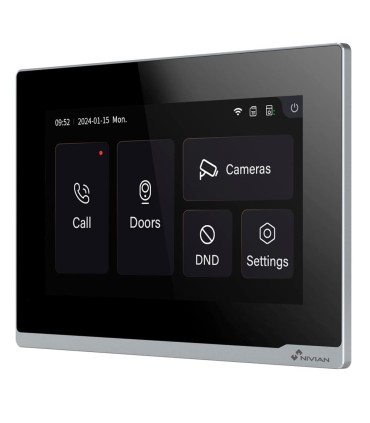

NVS-VIDEOINTERCOM-2W-MONITOR with 7" touch display

The monitor features a 7" TFT LCD touch display with a resolution of 1024 × 600. Its interface provides access to the main video intercom functions. The operating system is Linux.

Two-way audio uses an integrated microphone and speaker. Noise reduction contributes to clearer communication during calls. The monitor therefore allows users to communicate with visitors from another point in the installation.

2.4GHz WiFi and Tuya Smart app

The 2.4GHz WiFi connection enables the use of the Tuya Smart app. Remote management includes call notifications and remote door unlocking. These functions provide greater flexibility in everyday video intercom use.

The NVS-VIDEOINTERCOM-2W-MONITOR combines local monitor functions with WiFi connectivity. The Tuya Smart app allows users to receive call notifications and use the remote unlocking functions available on the system.

ONVIF integration with up to 8 IP cameras

The monitor supports CCTV management through ONVIF compatibility. It can manage up to 8 compatible IP cameras. This function allows other areas of the installation to be viewed from the same device.

ONVIF integration increases the versatility of the monitor. In addition to video intercom functions, it can be used to view compatible IP cameras. This feature is useful in installations that combine access control and video surveillance.

MicroSD up to 128 GB for image recording

The NVS-VIDEOINTERCOM-2W-MONITOR features a slot for a MicroSD card up to 128 GB. The card is not included. Storage is intended for image recording through the functions available on the device.

This capacity allows local storage to be added to the system. The use of a memory card complements the viewing and management functions available on the monitor.

2-wire installation and DC 24V/2A power supply

The connection to the outdoor station uses 2-wire technology. The monitor is designed as an additional device for compatible kits. The technical sheet specifically states that it is compatible only with 2-wire kits.

The required power supply is DC 24V/2A. The specified consumption is 9.5 W during operation and 5 W in standby. The power supply is not included and should therefore be considered during installation.

Construction and physical characteristics

The monitor is constructed from aluminium, methacrylate and ABS plastic. Its dimensions are 192 × 128 × 17.6 mm, and it weighs 342 g. The operating temperature ranges from -10 °C to +55 °C.

The NVS-VIDEOINTERCOM-2W-MONITOR combines a 7" touch display, 2.4GHz WiFi, Tuya Smart and ONVIF compatibility. MicroSD support up to 128 GB adds local storage capacity. Its 2-wire technology allows it to be integrated as an additional monitor in compatible Nivian kits.
