NVR-110S3 - Uniarch 10 Channel 6MP NVR

NVR-110S3 - Uniarch 10 Channel 6MP NVR

The NVR-110S3 is a Uniarch network video recorder designed for professional IP video surveillance systems. It can manage up to 10 IP cameras from a single device. Its compact format makes it suitable for integration into different security installations.

The recorder supports recording resolutions up to 6MP. It uses Ultra 265, H.265 and H.264 video compression to manage video streams efficiently. Incoming bandwidth reaches 64 Mbps. Outgoing bandwidth supports up to 48 Mbps.

10-channel IP recording up to 6MP

This Uniarch NVR centralises the recording of up to 10 IP channels. Supported resolutions include 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, 2CIF and CIF. The system can therefore be configured according to the specifications of the installed cameras.

Ultra 265 technology works alongside H.265 and H.264 compression. Decoding capacity varies according to the selected resolution. The recorder supports 2 channels at 6MP@30fps or 4 channels at 5MP@25fps. It also supports 6 channels at 1080P@30fps, 8 channels at 720P@30fps or 10 channels in D1.

Local synchronous playback is available for up to 10 channels. This allows several recordings to be reviewed directly from the recorder. The NVR also supports up to 128 remote users.

NVR-110S3 with UMD, SIP and VCA search

The NVR-110S3 supports intelligent functions provided by compatible IP cameras. These functions include Ultra Motion Detection (UMD). The recorder also supports SIP functions on a total of four channels.

SIP functions include intrusion detection and cross line detection. Enter area and leave area functions are also available. VCA search provides behaviour search capabilities for recorded video.

For integration with other IP devices, the recorder supports ONVIF Profile S, G and T. This compatibility allows the use of third-party cameras that comply with the supported ONVIF profiles.

SATA storage and network connectivity

For recording storage, the NVR provides 1 SATA interface. It supports one hard drive with a maximum capacity of 6TB. Required storage space depends on resolution, bitrate, recording duration and the selected configuration.

Network connectivity is provided through a RJ45 Ethernet 10/100 Mbps interface. Supported protocols include TCP/IP, P2P, UPnP and DHCP. The recorder also supports HTTP, HTTPS, DNS, DDNS, SMTP, RTSP and IPv4.

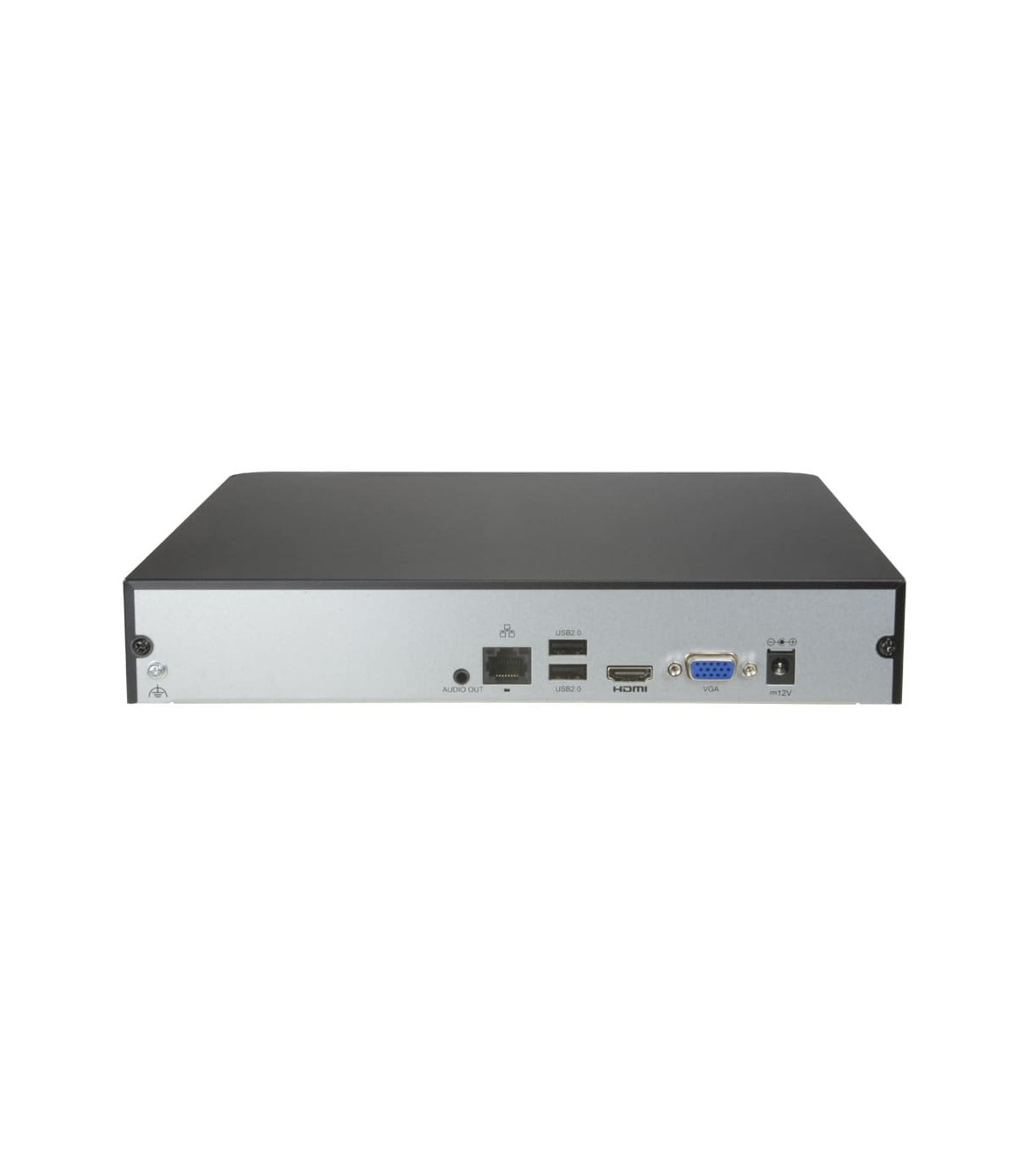

The rear panel includes 2 USB 2.0 ports. These interfaces can be used for operations supported by the recorder. Unlike the S3-P models, this model does not include built-in PoE ports.

HDMI, VGA and local display

The HDMI and VGA outputs allow the recorder to connect directly to a monitor. Both outputs can operate simultaneously. Output resolution can reach 1920 × 1080 at 60Hz. Additional display resolutions are also supported.

The NVR also provides a 3.5mm audio output. Power is supplied through DC 12V / 2A. Power consumption without a hard drive is equal to or below 7W.

With 10 IP channels, recording up to 6MP and Ultra 265, this NVR provides a compact solution for IP video surveillance. It also includes UMD, SIP, VCA search, HDMI, VGA and ONVIF. Support for 1 SATA HDD up to 6TB completes the recorder's main functions.
