Uho-S2E-M3 - Uniarch 3MP 4mm WiFi PT IP Camera

Uho-S2E-M3 - Uniarch 3MP 4mm WiFi PT IP Camera

The Uho-S2E-M3 is a Uniarch PT IP camera designed for indoor video surveillance, featuring 3MP (2304×1296) resolution, WiFi connectivity and motorised Pan & Tilt movement. Its 1/3" Progressive Scan CMOS sensor and fixed 4mm F2.0 lens provide a suitable solution for monitoring homes, offices, shops and other indoor spaces.

In addition to video monitoring, the camera integrates features such as Auto Tracking, human body detection, motion detection and audio detection. The built-in microphone and speaker enable two-way audio communication, while Smart IR illumination provides night surveillance at distances of up to 10 metres.

3MP image and fixed 4mm F2.0 lens

The 1/3" Progressive Scan CMOS sensor captures images at a maximum resolution of 3MP (2304×1296). The Uho-S2E-M3 also supports 2MP (1920×1080) and 720P resolutions, allowing the video stream to be adapted to the requirements of the installation.

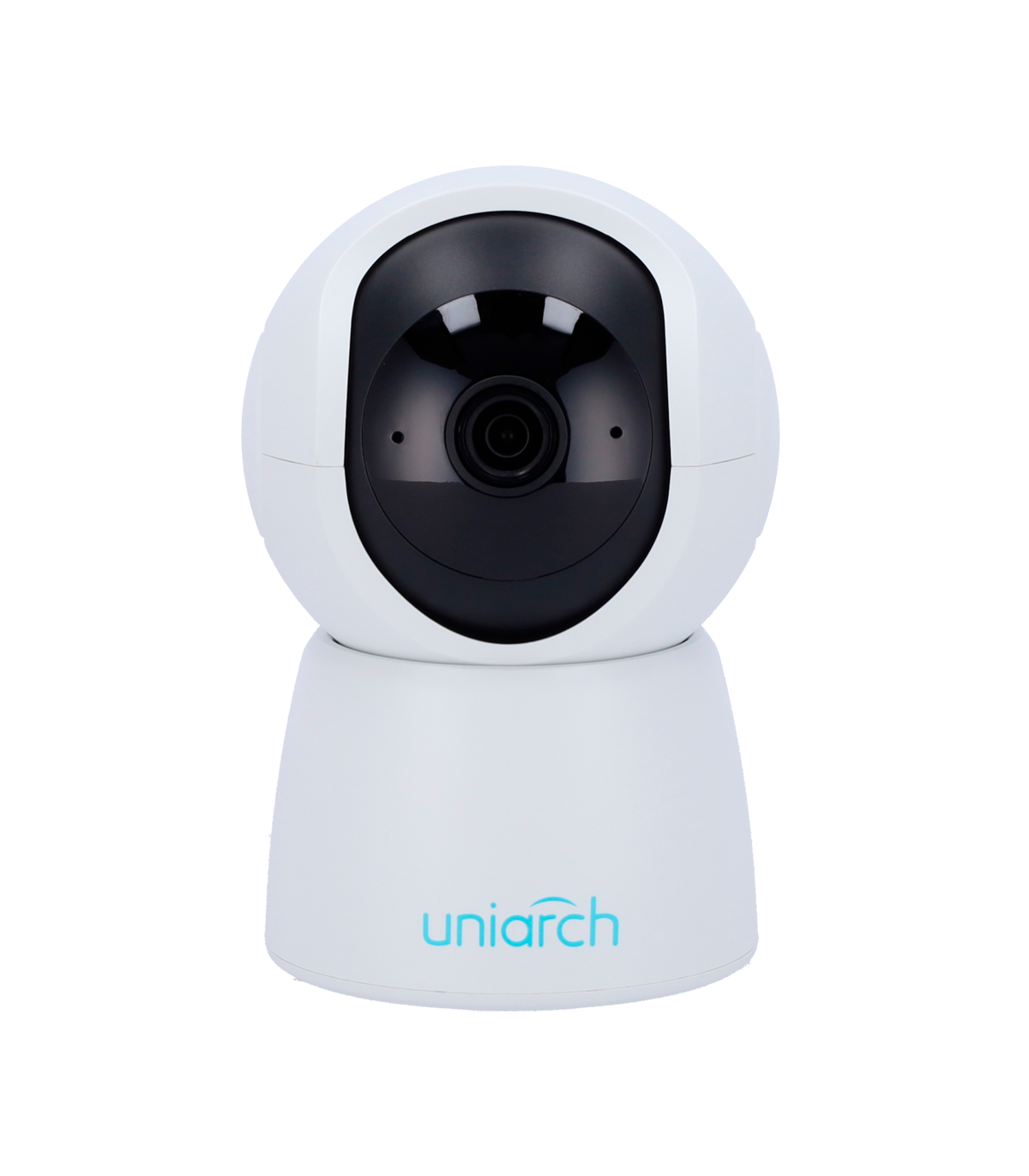

The fixed 4mm F2.0 lens provides a field of view of approximately 78.2° horizontal, 41.8° vertical and 84.4° diagonal. The camera also features an IR-cut filter with automatic switching for Day/Night operation.

DWDR and 2D/3D DNR technologies help improve the image in scenes with different lighting levels and reduce digital noise. For environments with little or no visible light, infrared illumination provides a range of up to 10 m with Smart IR support.

Uho-S2E-M3 with Auto Tracking and human detection

The Uho-S2E-M3 features motorised Pan & Tilt movement, allowing the camera orientation to be adjusted remotely and increasing the monitored area without manually repositioning the device.

The Auto Tracking function enables automatic tracking of detected targets. The camera also supports human body detection, motion detection and audio detection, providing different tools for identifying relevant events within the monitored area.

The combination of Pan & Tilt movement and intelligent functions makes the camera particularly suitable for dynamic monitoring of indoor spaces, allowing events to be followed throughout its coverage area.

Two-way audio and MicroSD storage

The built-in microphone and speaker enable real-time two-way audio, making it possible to listen to the monitored environment and communicate directly through the camera.

To optimise video transmission and storage, the camera supports Ultra 265, H.265 and H.264 compression formats. Ultra 265 technology provides efficient management of bandwidth and the storage space required for recordings.

The camera supports local storage via MicroSD cards up to 256GB, providing a recording solution directly on the device. Dual stream is also supported, allowing different video streams to be used according to system requirements.

2.4GHz WiFi, RJ45 Ethernet and Micro USB power

2.4GHz WiFi IEEE802.11b/g/n connectivity allows the camera to be integrated into a wireless network, making installation easier in locations where a wired data connection is not convenient.

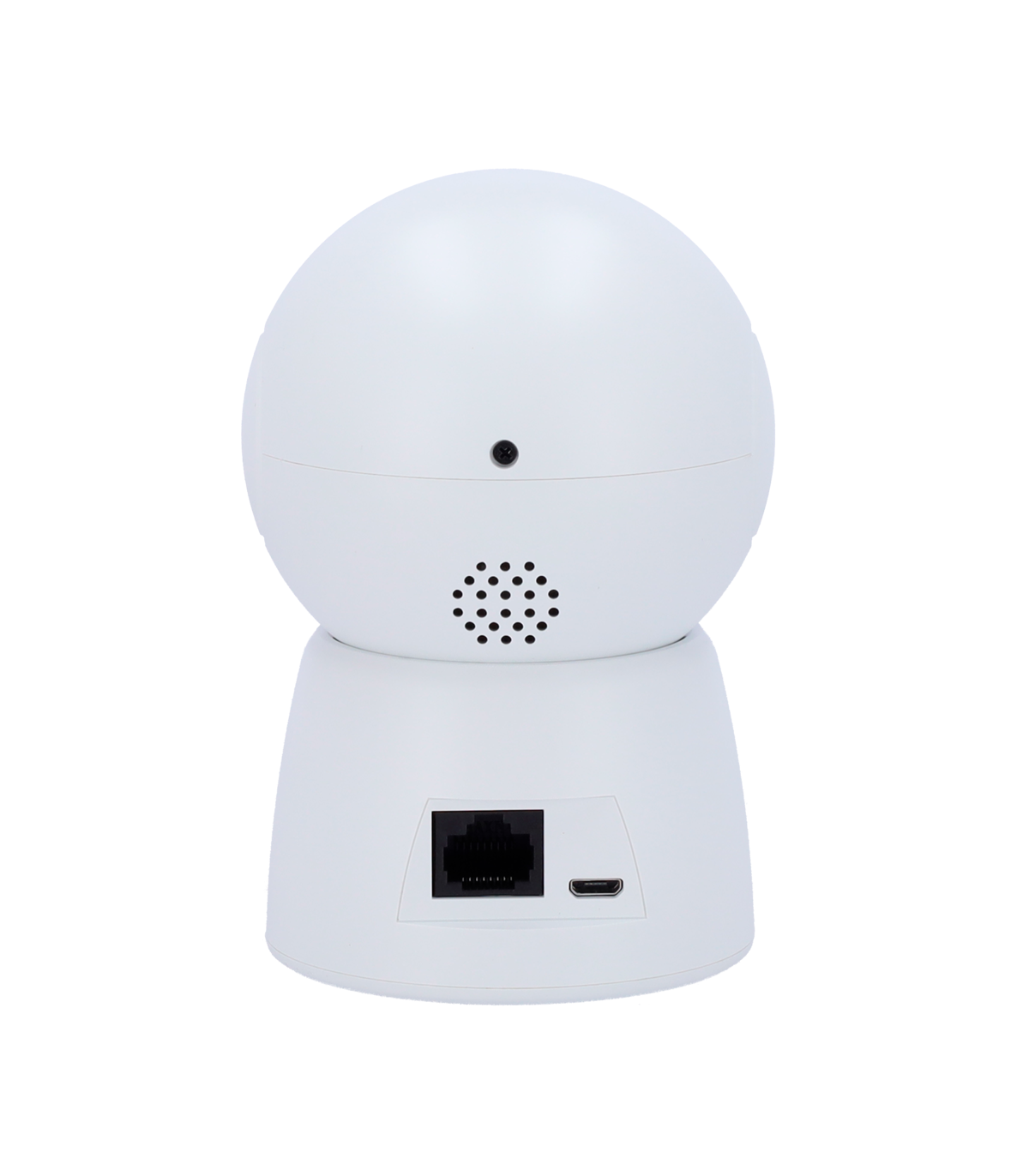

For installations using a physical network connection, the Uho-S2E-M3 also features an RJ45 10/100 Base-TX Ethernet interface. This allows the installer to choose between WiFi and Ethernet connectivity according to the available network infrastructure.

Power is supplied via 5V DC / 1.5A through a Micro USB interface. With 3MP resolution, a 4mm lens, Pan & Tilt movement, Auto Tracking, Smart IR, two-way audio, MicroSD storage and WiFi connectivity, this Uniarch camera provides a versatile solution for indoor video surveillance systems.
