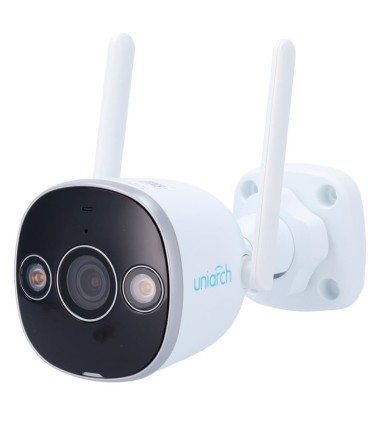

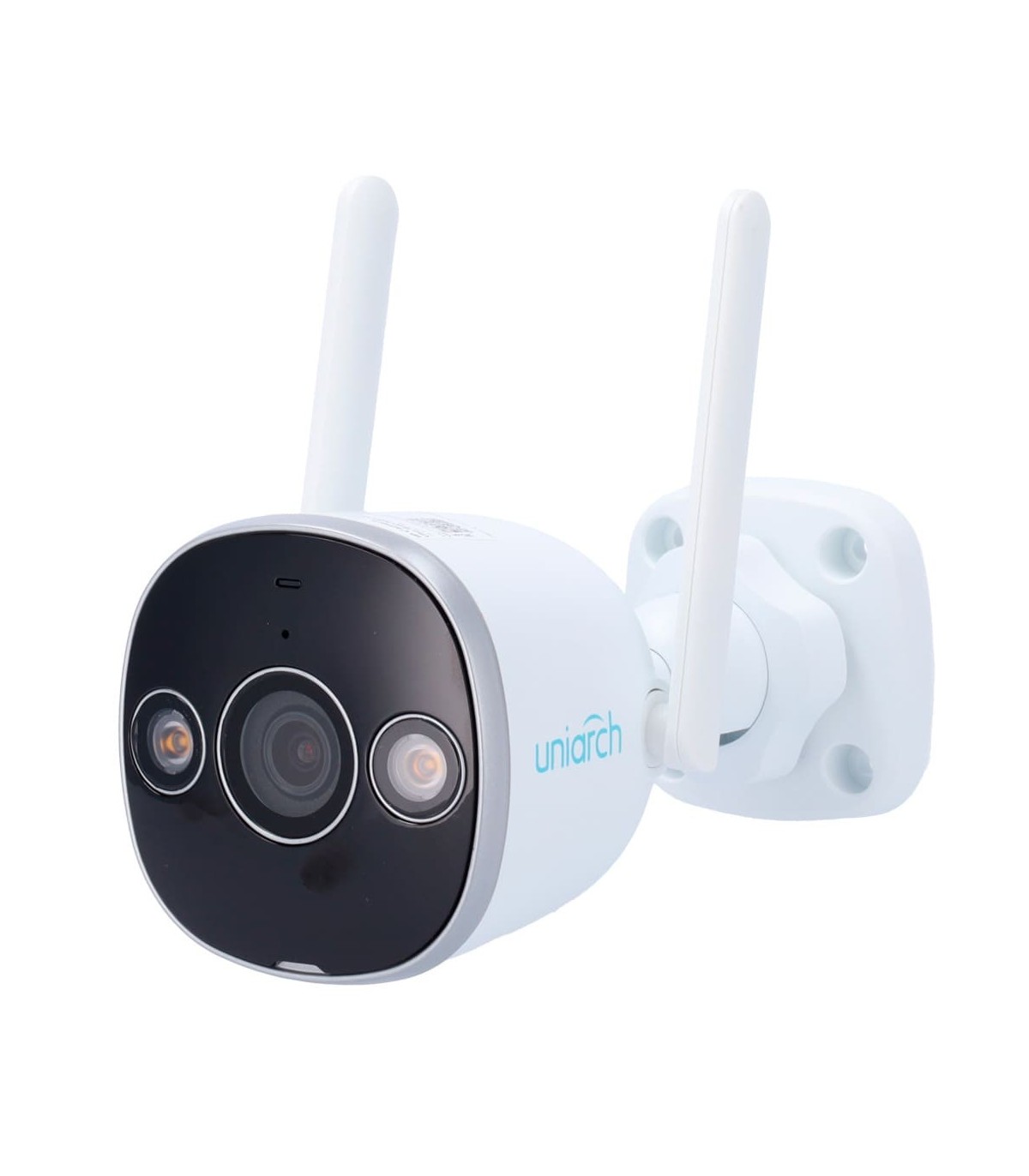

Uho-B2D-M5F3D - Uniarch 5MP 2.8mm WiFi Bullet IP Camera

Uho-B2D-M5F3D - Uniarch 5MP 2.8mm WiFi Bullet IP Camera

The Uho-B2D-M5F3D is a Uniarch Bullet IP camera designed for outdoor video surveillance, combining 5MP (2880×1620) resolution, WiFi connectivity and Dual Light technology. Equipped with a 1/3" CMOS sensor and fixed 2.8mm F1.6 lens, it provides high-definition images with a horizontal field of view of approximately 97°.

The combination of Smart IR and warm light allows the illumination to be adapted to different night-time conditions. The camera also features two-way audio through its built-in microphone and speaker, local MicroSD storage, 2.4GHz WiFi connectivity and an RJ45 network interface.

5MP image and fixed 2.8mm F1.6 lens

The 1/3" CMOS sensor allows the camera to capture images with a maximum resolution of 5MP (2880×1620), providing a high level of detail for monitoring outdoor areas.

The fixed 2.8mm F1.6 lens provides a horizontal field of view of approximately 97°, making it suitable for monitoring wide areas such as entrances, façades, access points, courtyards and other outdoor spaces.

DWDR technology helps balance the image when different lighting levels are present within the same scene. 2D DNR / 3D DNR digital noise reduction also helps improve image quality, particularly under low-light conditions.

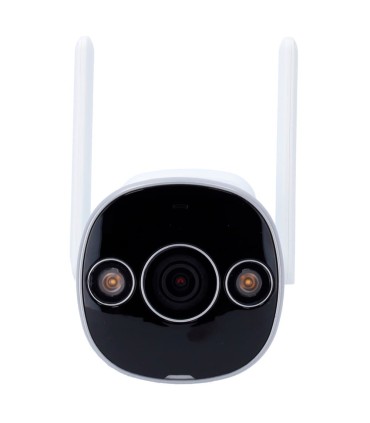

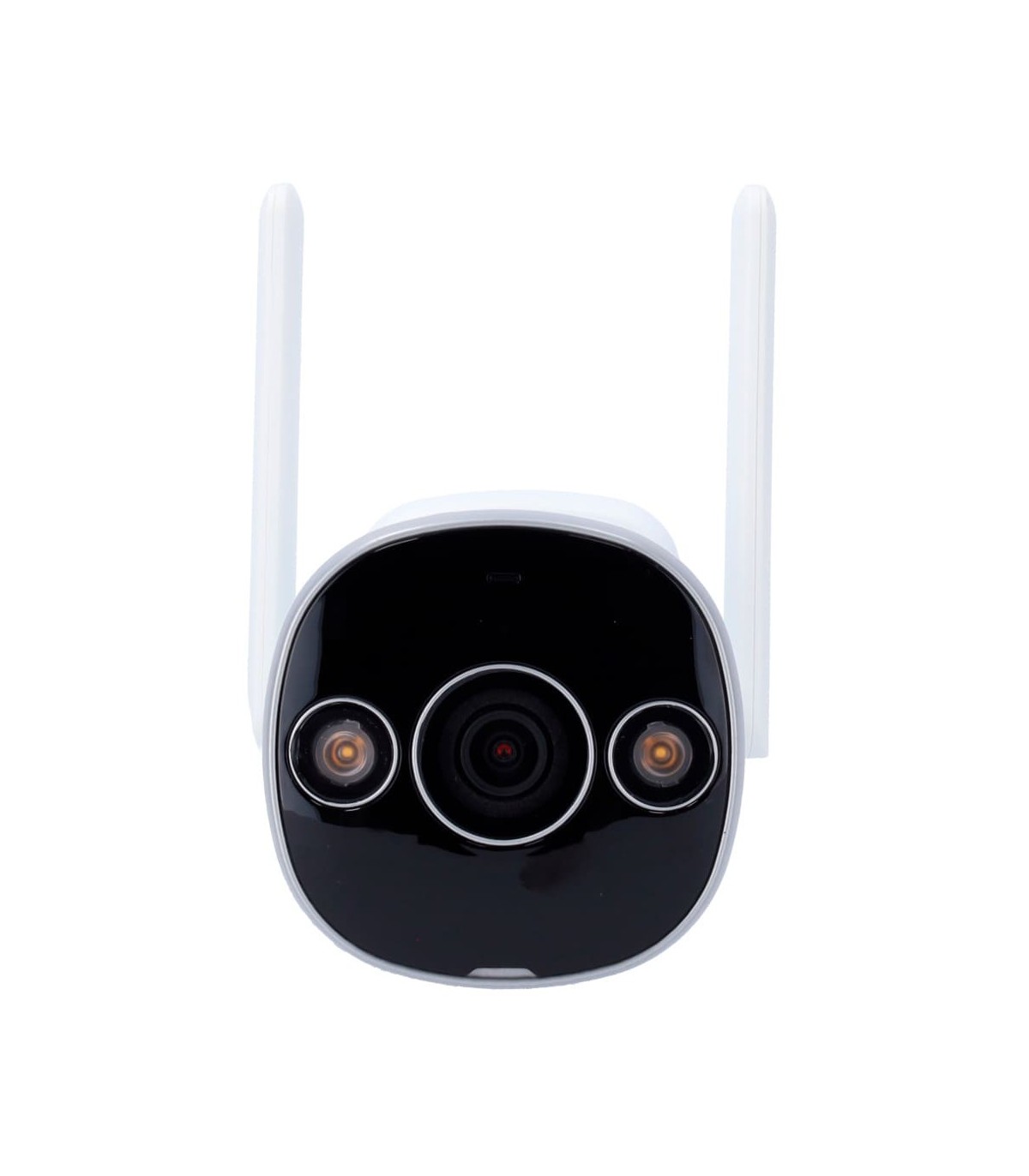

Uho-B2D-M5F3D with Dual Light and Smart IR

The Uho-B2D-M5F3D incorporates Dual Light technology, combining infrared illumination and warm light to provide greater flexibility for night-time video surveillance.

The Smart IR system provides an infrared range of up to 20 m, allowing images to be captured in environments with little or no visible light. The camera also features warm light with a range of up to 10 m, providing visible illumination when required.

The combination of these technologies allows the camera illumination to be adapted to different conditions at the installation site while maintaining surveillance capability during the night.

Two-way audio and Ultra 265 compression

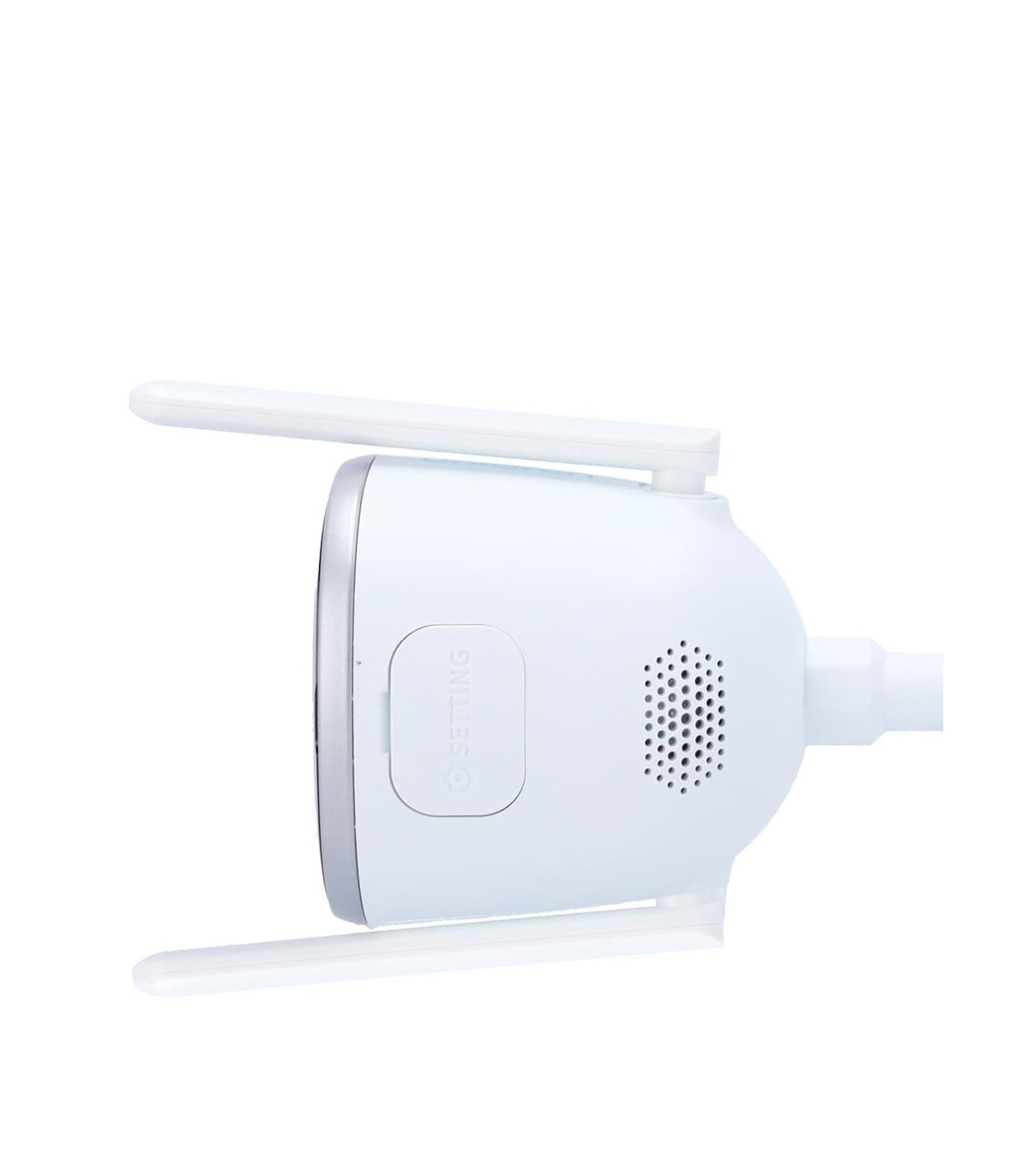

The built-in microphone and speaker enable two-way audio, making it possible to listen to the monitored environment and communicate directly through the camera.

Ultra 265 compression technology helps optimise bandwidth usage and the storage space required for recordings. The device also supports H.265, H.264 and MJPEG, providing different video encoding options.

For local storage, the camera supports MicroSD cards up to 512GB, allowing recordings to be stored directly on the device according to the selected configuration.

2.4GHz WiFi, RJ45 and IP67 protection

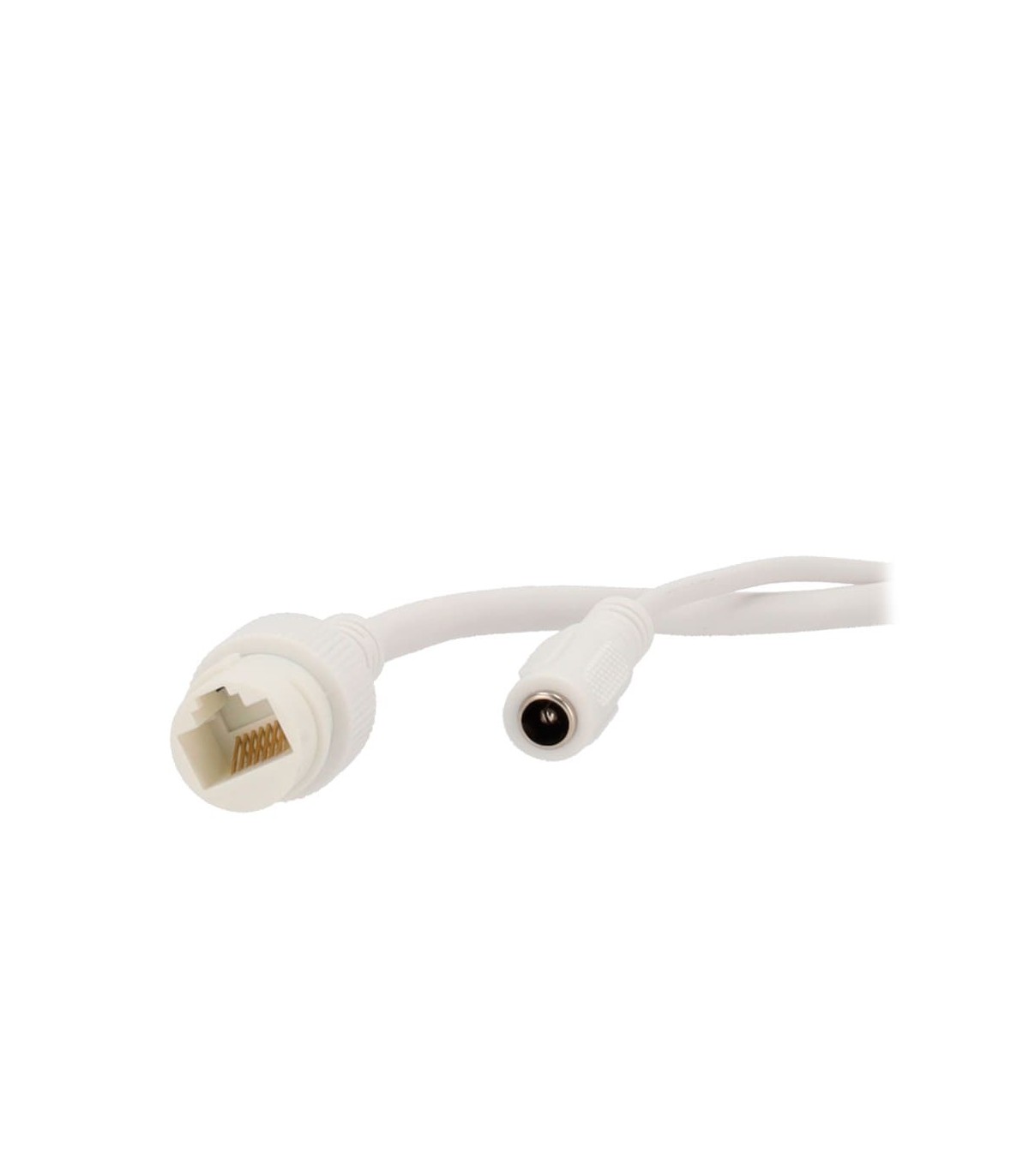

2.4GHz WiFi connectivity allows the camera to be integrated into a wireless network, providing greater flexibility during installation. When a wired data connection is preferred, an RJ45 network interface is also available.

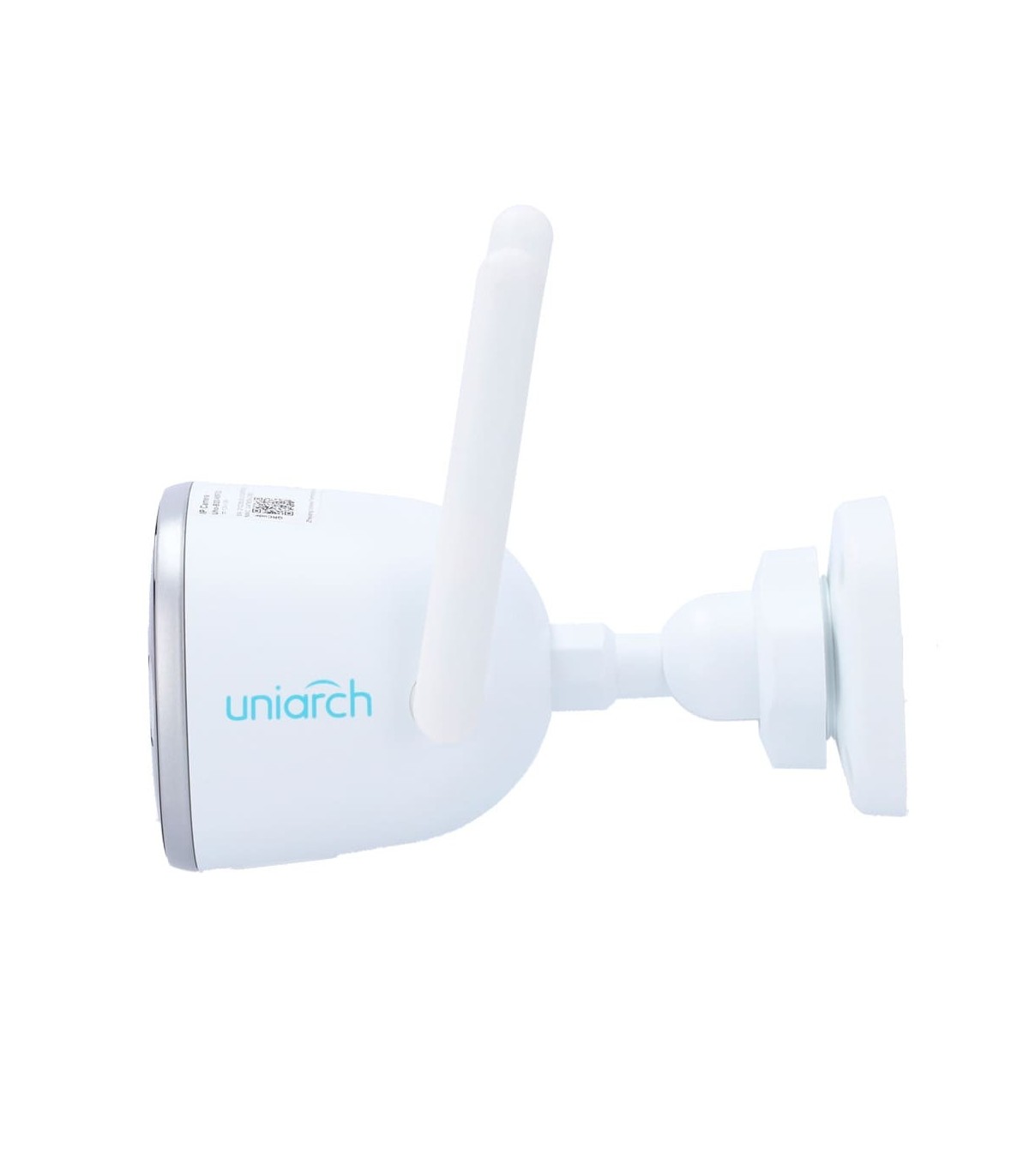

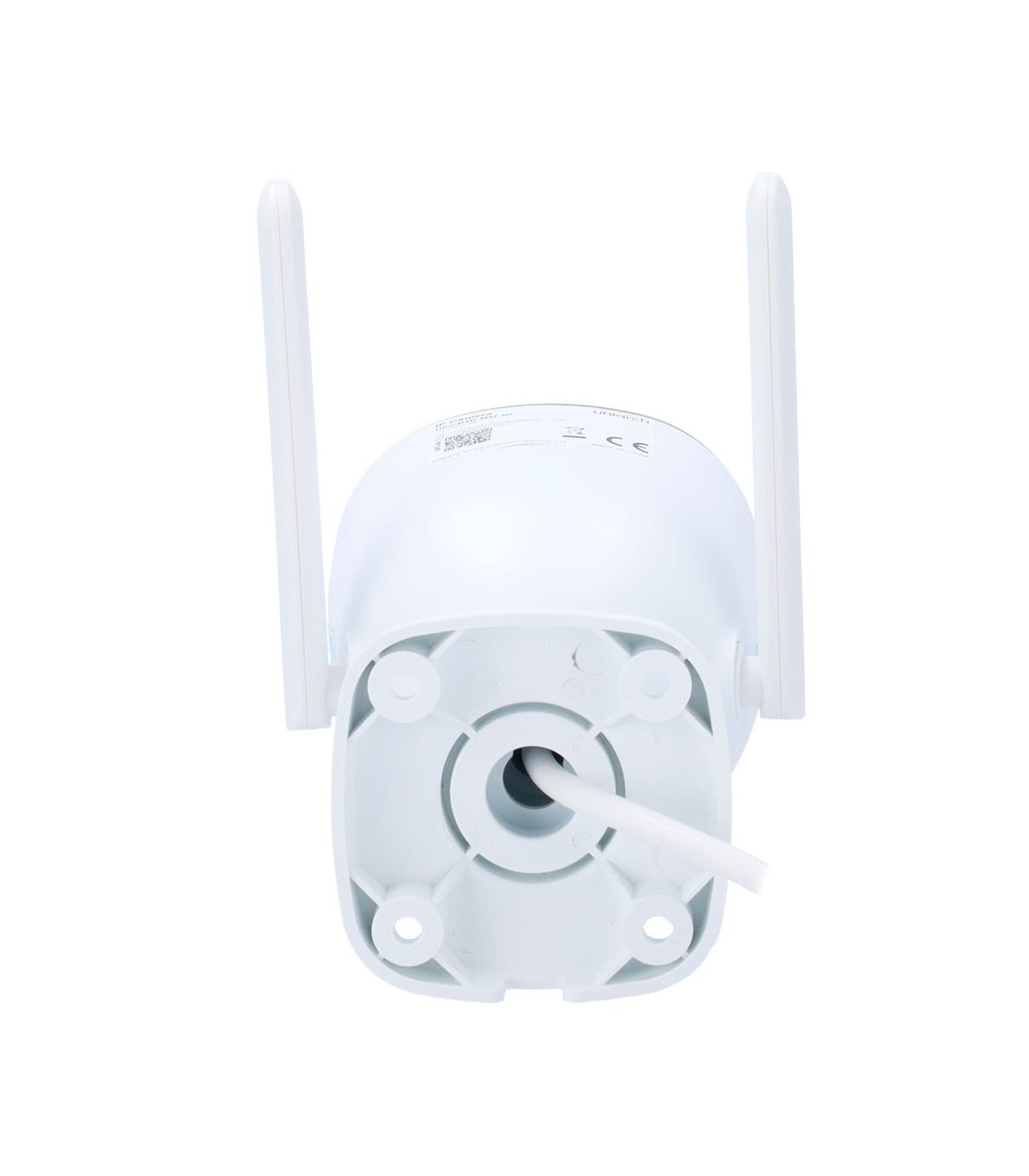

The camera supports manual adjustment on three axes, with Pan 0°–360°, Tilt 0°–90° and Rotate 0°–360°, making it easier to position the camera during installation. This adjustment is manual and does not correspond to a motorised Pan/Tilt system.

Power is supplied via 12V DC, while IP67 protection allows the camera to be used in outdoor environments. The combination of 5MP resolution, 2.8mm lens, Dual Light, Smart IR, two-way audio, WiFi, MicroSD storage and IP67 protection makes this Uniarch camera a versatile solution for outdoor video surveillance systems.
