Uho-S3S-M55F36D - Uniarch Dual 5MP+5MP PT IP Camera WiFi

Uho-S3S-M55F36D - Uniarch Dual 5MP+5MP PT IP Camera WiFi

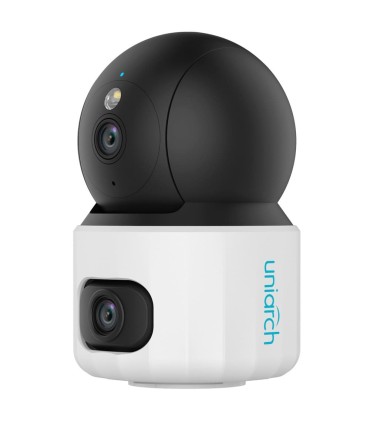

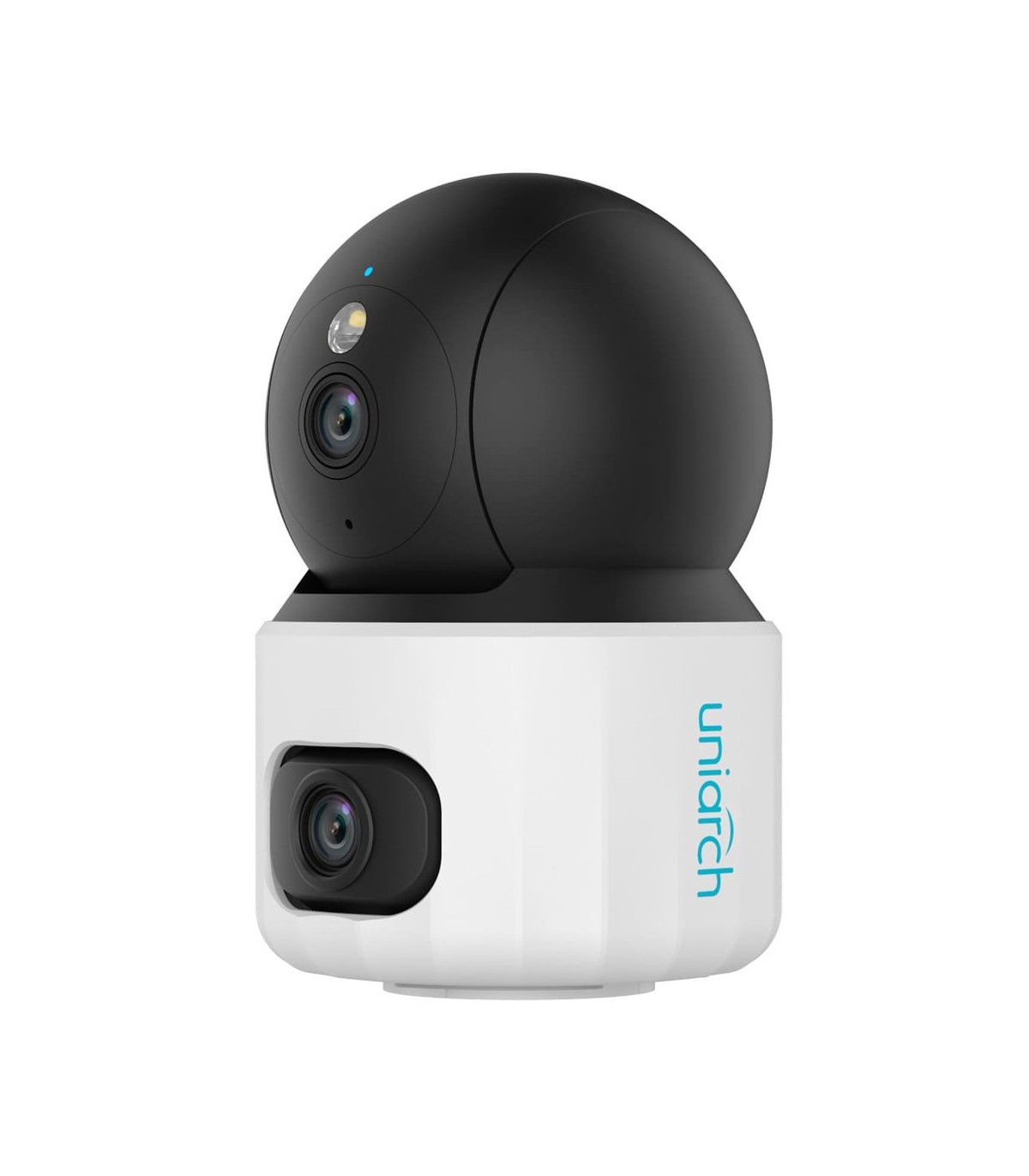

The Uho-S3S-M55F36D is an indoor Uniarch PT IP camera that combines two video channels in a single device. Its dual-lens configuration integrates a fixed 5MP panoramic camera and a 5MP PT detail camera. Both channels operate through a single IP address. This makes it possible to view a general overview and specific areas at the same time.

This architecture provides a versatile solution for indoor video surveillance. The panoramic camera uses a fixed 2.8mm lens, while the detail channel features a fixed 6mm lens. The mobile channel adds PT movement and 4X digital zoom. The camera also integrates WiFi, two-way audio, Smart IR, white light, MicroSD storage and intelligent detection functions.

Dual 5MP + 5MP lenses with two channels

Both channels use a 1/3" CMOS sensor and can provide a maximum resolution of 5MP (2880 × 1620) at up to 15 fps. The 2.8mm panoramic channel provides a horizontal field of view of 97.1°. Its vertical field of view is 52.5°, while the diagonal field reaches 107.6°. This configuration provides a wide view of the monitored area.

The detail channel uses a 6mm fixed lens. Its field of view is 49.7° horizontally, 26.4° vertically and 56.8° diagonally. This channel also features 4X digital zoom, allowing specific areas of the image to be viewed in greater detail.

Uho-S3S-M55F36D with PT movement

The detail channel provides horizontal Pan movement from 0° to 355° and vertical Tilt movement from -15° to 90°. PT speed ranges from 17°/s to 50°/s, while preset speed reaches 50°/s. The camera also supports up to 20 presets.

The combination of a fixed panoramic image and a PT channel allows the system to maintain a general overview while directing the second camera towards another area. Different points can therefore be monitored without losing the panoramic reference provided by the first channel.

Smart IR, white light and intelligent detection

The camera features Smart IR up to 10 m. The detail channel also integrates white light up to 10 m for use in different scenarios. The specified minimum illumination is 0.01 Lux in colour mode. With infrared illumination enabled, the camera can operate at 0 Lux.

Analysis functions include Motion Detection and Ultra Motion Detection for people, vehicles and animals. The camera also supports loud sound detection, crying detection and tampering alarm. Its built-in audible and visual alarm provides an active warning function for specific events.

WiFi, two-way audio and MicroSD

The Uho-S3S-M55F36D features a built-in microphone and speaker for two-way audio. It supports G.711U and G.711A audio compression. Video compression includes Ultra 265, H.265 and H.264, providing options for adapting transmission and storage to the requirements of the surveillance system.

Wireless connectivity uses 2.4 GHz WiFi with IEEE 802.11b/g/n/ax support. An RJ45 10/100 Mbps Ethernet interface is also available for wired network connections. For local storage, the camera supports MicroSD cards up to 512 GB.

USB-C power supply and indoor installation

Power is supplied via 5V DC / 1.5A using a USB-C interface. The camera has compact dimensions of Ø83 × 127 mm and is designed for indoor environments. The specified operating temperature ranges from -10°C to +50°C. Supported relative humidity is up to 95% without condensation.

With dual 5MP + 5MP lenses, PT movement, WiFi, Smart IR and two-way audio, this Uniarch solution combines panoramic coverage with directional monitoring. MicroSD storage up to 512 GB and detection of people, vehicles and animals complete its functionality for indoor video surveillance applications.
