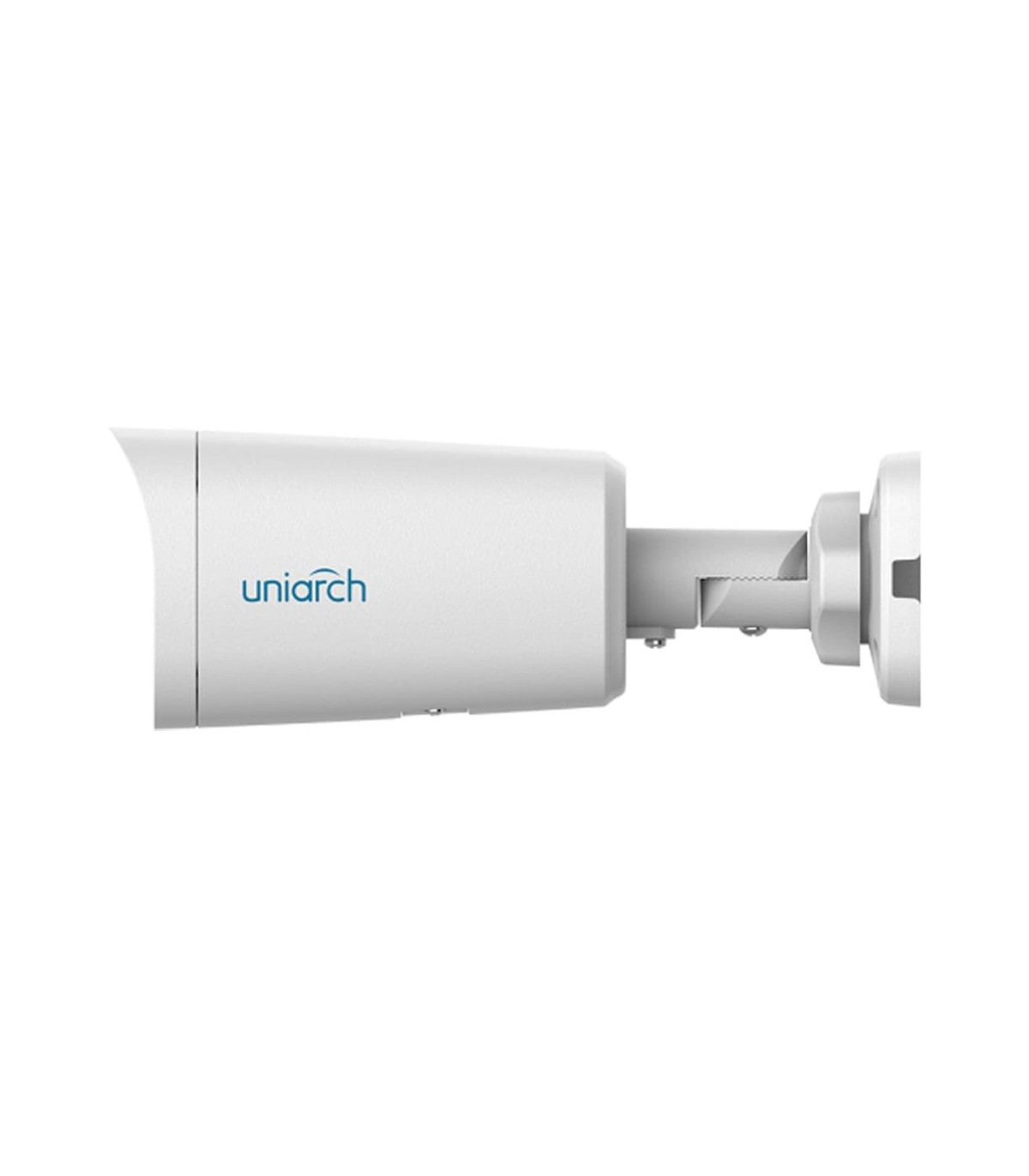

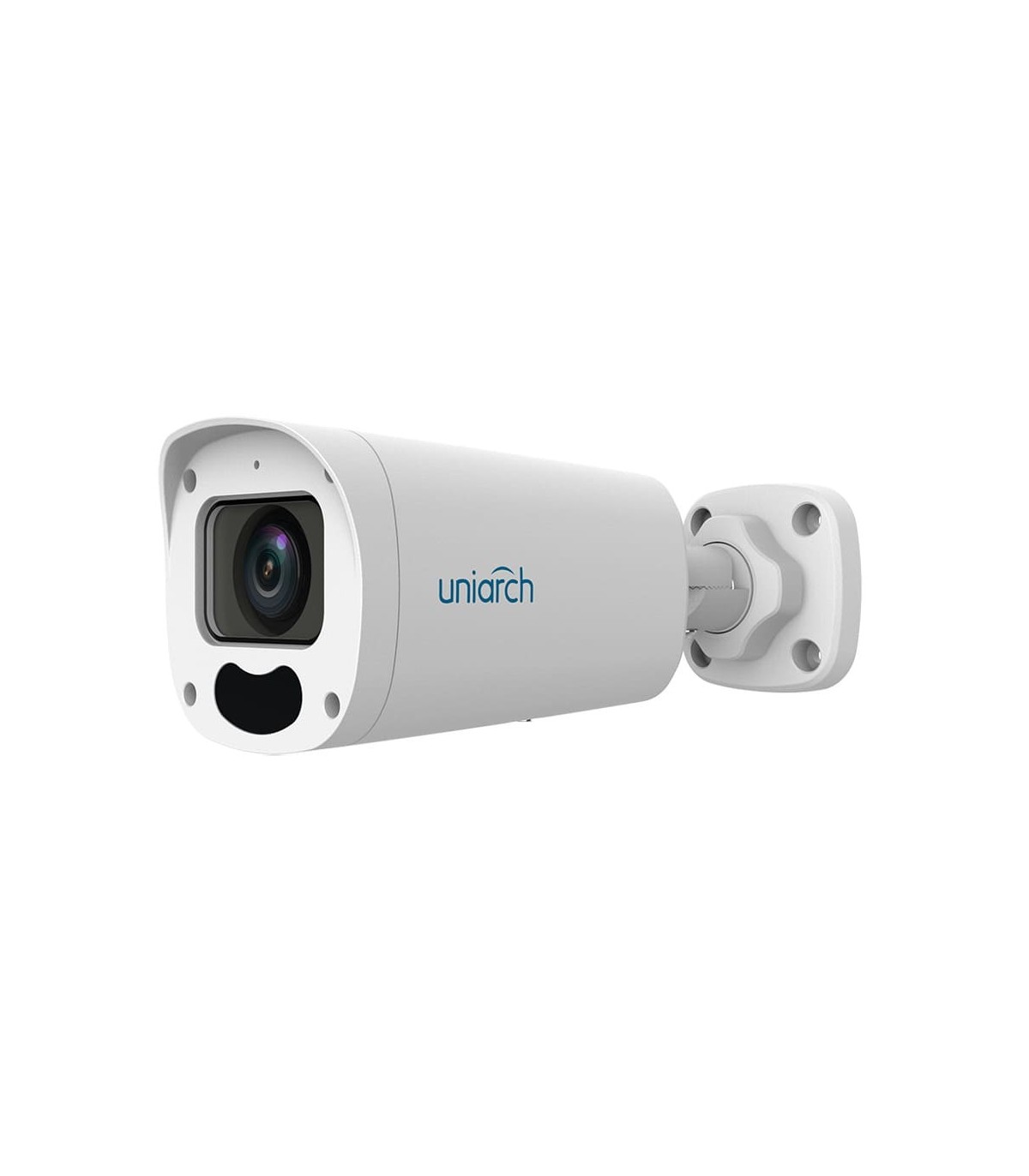

IPC-B314-APKZ - Uniarch 4MP 2.8-12mm Bullet IP Camera

IPC-B314-APKZ - Uniarch 4MP 2.8-12mm Bullet IP Camera

The IPC-B314-APKZ is a Uniarch Bullet IP camera designed for professional video surveillance systems requiring 4MP resolution, flexible framing adjustment and high resistance for indoor or outdoor installations. It features a 1/2.7" CMOS sensor with a maximum resolution of 4MP (2560×1440) and a 2.8-12mm F1.8 motorised varifocal lens with autofocus.

The motorised lens allows the field of view to be adapted to the requirements of each installation without being limited to a fixed focal length. The camera also combines long-range Smart IR, True WDR 120dB, local storage, a built-in microphone, PoE power and a robust housing with IP67 protection and IK10 vandal resistance.

4MP image and 2.8-12mm motorised lens

The camera provides a maximum resolution of 4MP (2560×1440) at up to 25fps, enabling images to be captured with a high level of detail. It also supports 3MP and Full HD 1080P resolutions at up to 30fps, allowing video transmission to be adapted to system requirements and available network bandwidth.

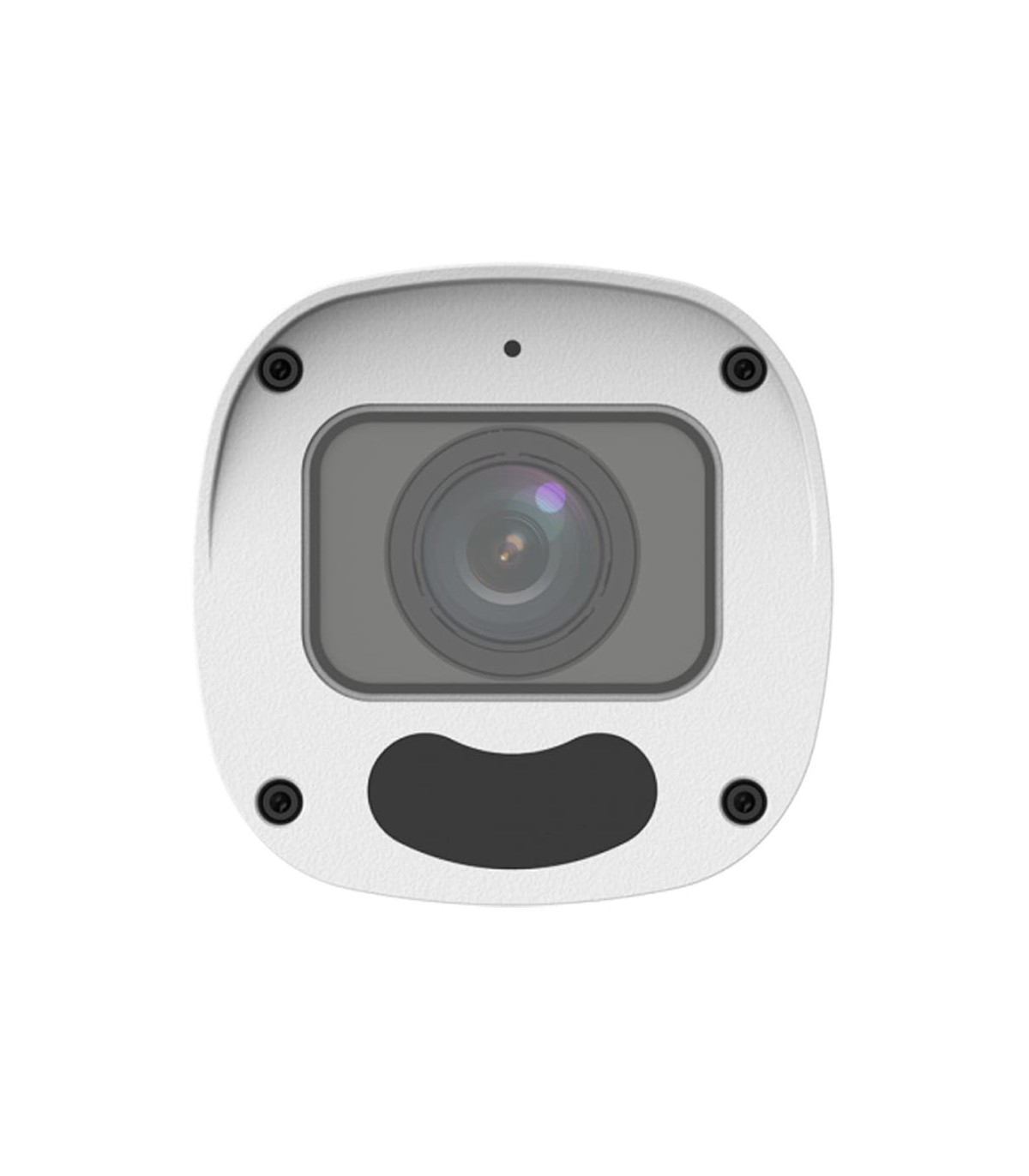

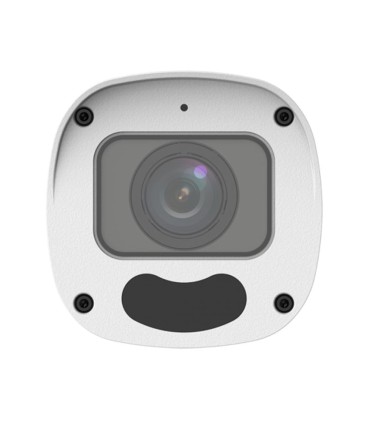

The 2.8-12mm F1.8 motorised varifocal lens features autofocus and allows the framing to be adjusted according to the area being monitored. The field of view ranges from 102.79° to 30.86° horizontally, 54.50° to 17.49° vertically and 106.94° to 35.49° diagonally.

IPC-B314-APKZ with Smart IR up to 50m

The IPC-B314-APKZ features Smart IR up to 50 m with an 850 nm wavelength, enabling video surveillance in environments with reduced lighting or during the night. The specified minimum illumination is 0.005 Lux in colour mode and 0 Lux when infrared illumination is active.

Image processing includes True WDR 120dB, 2D/3D DNR digital noise reduction, BLC, HLC and Digital Defog. These technologies help improve visibility in scenes with strong differences in lighting, backlight, image noise or conditions that reduce image clarity.

Intelligent detection, audio and MicroSD storage

The camera features intrusion detection based on human body detection, enabling more targeted monitoring of protected areas. It also includes motion detection, tampering detection and audio detection, adding different monitoring functions to the IP video surveillance system.

The built-in microphone enables audio capture at the installation location. For local storage, the camera supports MicroSD cards up to 256GB, allowing recordings to be stored directly on the device when this function is used in the system configuration.

PoE, ONVIF, IP67 and IK10 protection

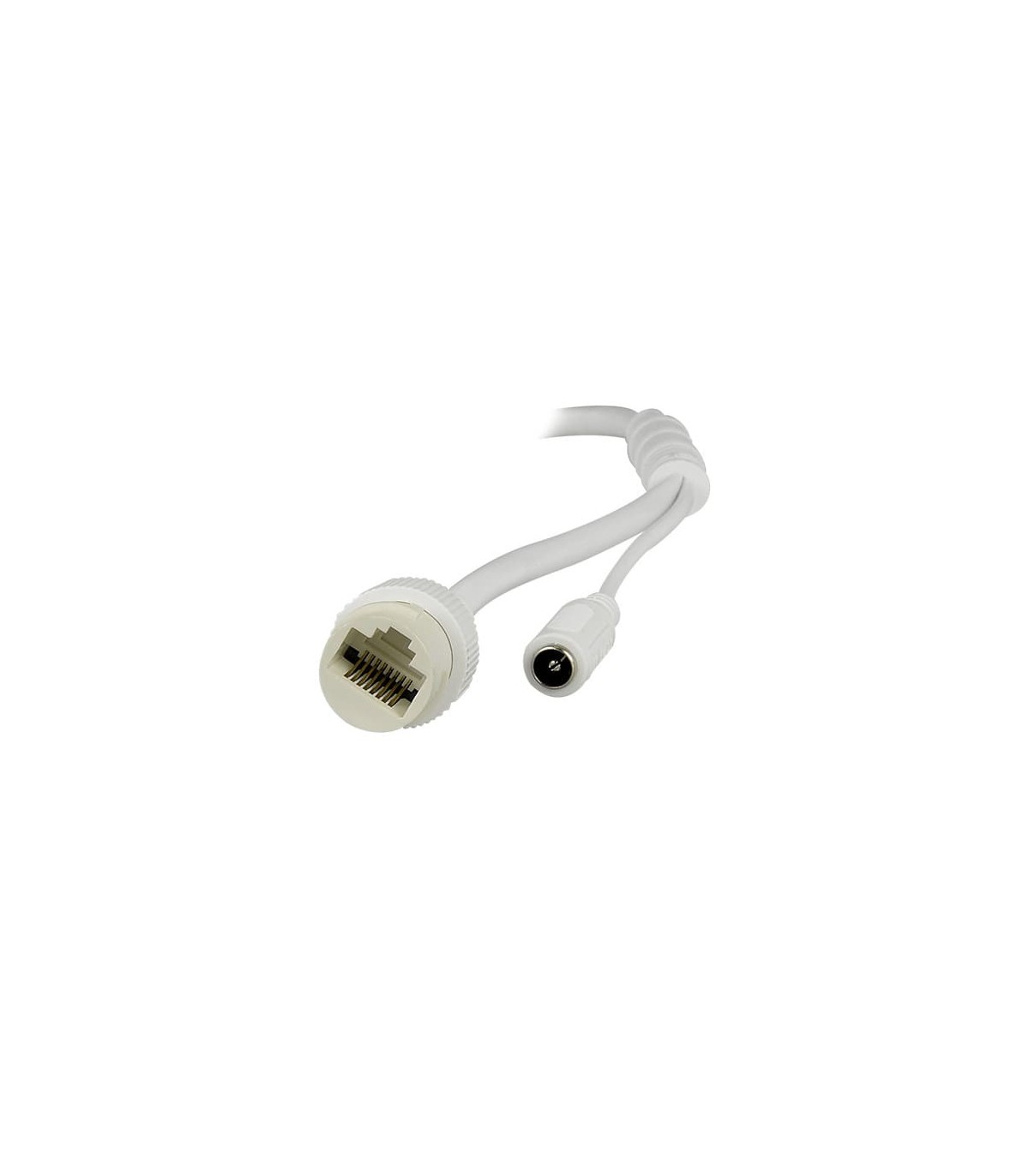

Network connectivity is provided through an RJ45 10/100 Base-TX interface, while ONVIF Profile S, Profile T and Profile G compatibility facilitates integration with compatible video surveillance equipment and platforms. Video compression supports Ultra 265, H.265, H.264 and MJPEG.

Power can be supplied via 12V DC ±25% or PoE IEEE 802.3af, allowing data and power to be transmitted through the same Ethernet cable when used with compatible PoE infrastructure. IP67 protection, IK10 vandal resistance and surge protection up to 6kV reinforce the camera's suitability for demanding professional installations. The combination of 4MP resolution, a 2.8-12mm motorised lens, Smart IR 50m, WDR 120dB and PoE makes this Uniarch Bullet camera a versatile solution for professional IP video surveillance projects.
