Uho-P2A-M3F4D - Uniarch 3MP 4mm WiFi PT IP Camera

Uho-P2A-M3F4D - Uniarch 3MP 4mm WiFi PT IP Camera

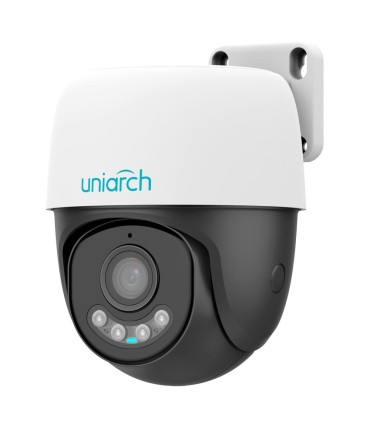

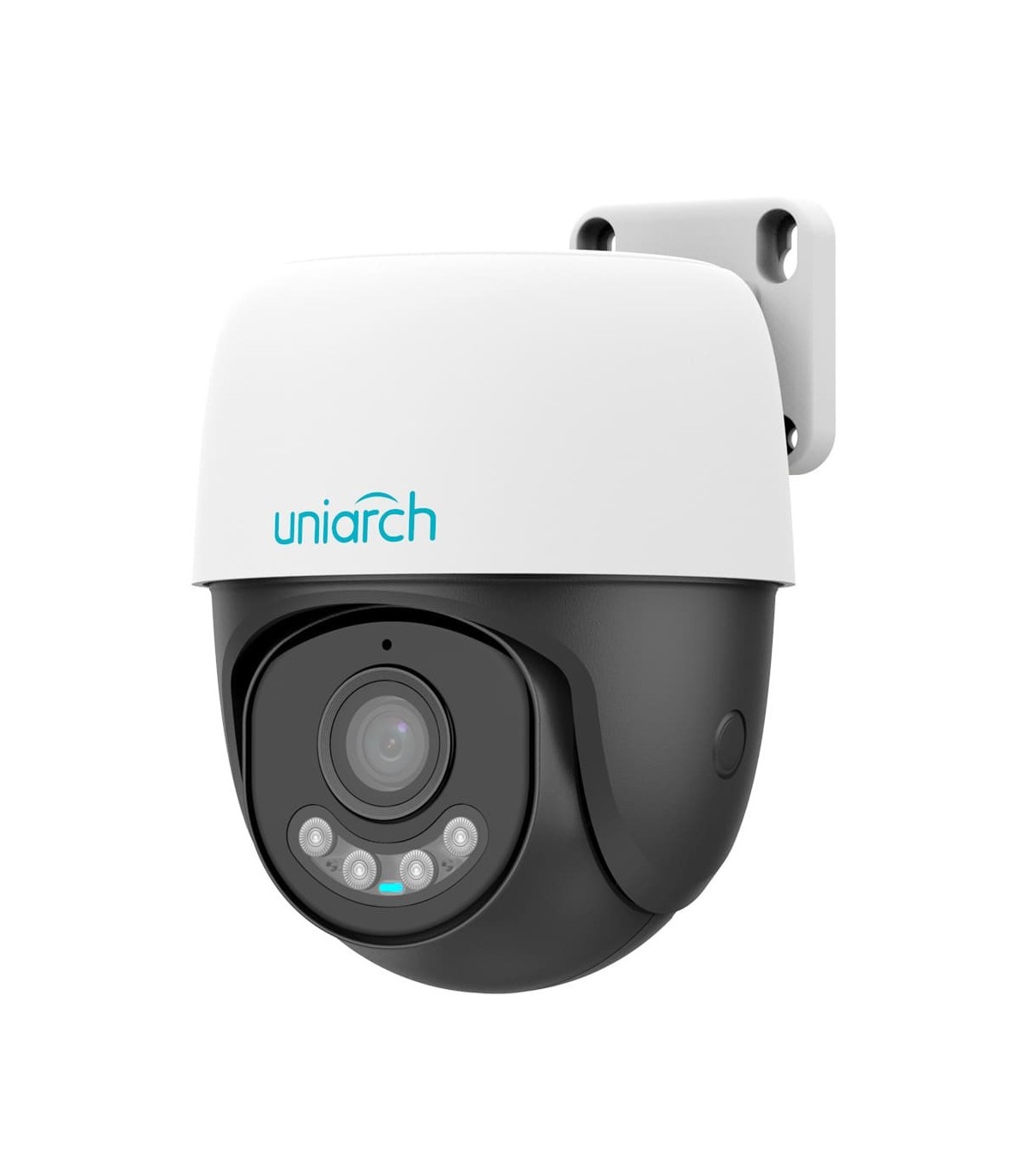

The Uho-P2A-M3F4D is a Uniarch PT IP camera designed for video surveillance systems requiring motorised movement, WiFi connectivity and outdoor monitoring. Equipped with a 1/3" CMOS sensor, it provides a maximum resolution of 3MP (2304×1296) and uses a fixed 4mm F1.6 lens, delivering detailed images for different surveillance applications.

The motorised Pan/Tilt system allows the camera orientation to be controlled remotely, providing wider coverage of the monitored area. Auto Tracking enables automatic tracking of detected targets, while Dual Light technology combines infrared illumination and warm light to improve surveillance during low-light and night-time conditions.

3MP image and fixed 4mm F1.6 lens

The camera uses a 1/3" CMOS sensor and provides 3MP resolution, with a main stream of 2304×1296 at up to 20 fps. The fixed 4mm F1.6 lens provides a field of view of 90.5° horizontally, 44.4° vertically and 111.3° diagonally.

Minimum illumination is 0.005 Lux in colour mode with F1.6 and AGC enabled, reaching 0 Lux with IR illumination activated. The camera uses an IR-cut filter with automatic ICR switching and incorporates DWDR to improve visibility in scenes with significant differences in lighting conditions.

The device supports 4X digital zoom and Ultra 265, H.265 and H.264 video compression, helping to optimise bandwidth usage and storage requirements within the video surveillance system.

Uho-P2A-M3F4D with Pan/Tilt and Auto Tracking

The Uho-P2A-M3F4D features motorised Pan movement from 0° to 345° and Tilt movement from 0° to 90°. Pan speed ranges from 1°/s to 40°/s, while Tilt speed ranges from 1°/s to 30°/s. The camera also supports up to 20 presets, allowing predefined viewing positions to be configured.

The Auto Tracking function automatically follows detected targets within the monitored area. The combination of motorised Pan/Tilt movement and automatic tracking provides greater flexibility for applications where different areas need to be monitored from a single installation point.

Dual Light, Smart IR and two-way audio

Dual Light technology combines Smart IR up to 30 m with warm light illumination up to 10 m. The infrared illumination operates at a wavelength of 850 nm and supports surveillance in low-light conditions, while the warm light can provide colour visual information when used.

The camera features a built-in microphone and speaker, enabling two-way audio communication. Audio compression supports G.711U/G.711A. The device also supports an audible and visual warning, making alerts more noticeable within the monitored area.

2.4GHz WiFi, 512GB MicroSD and IP66 protection

Connectivity includes 2.4GHz WiFi IEEE 802.11b/g/n with a built-in antenna and an RJ45 10/100 Base-TX Ethernet interface. This configuration allows the camera to be integrated through either a wireless connection or an Ethernet network, depending on the installation requirements.

For local storage, the camera supports MicroSD cards up to 512GB and also supports ANR network storage. Power is supplied via 12V DC ±25%, with a maximum power consumption of 6.5W.

IP66 protection allows the camera to be installed in outdoor environments, providing protection against dust and water. The combination of 3MP resolution, motorised Pan/Tilt movement, Auto Tracking, Dual Light, WiFi, two-way audio and MicroSD storage makes this Uniarch camera suitable for a wide range of IP video surveillance projects.
