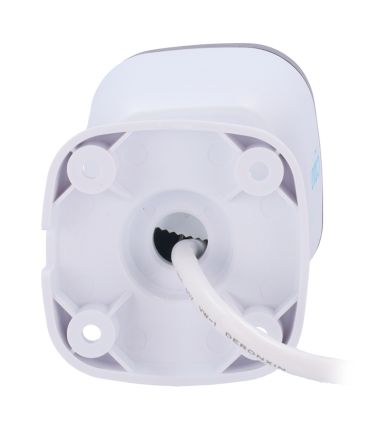

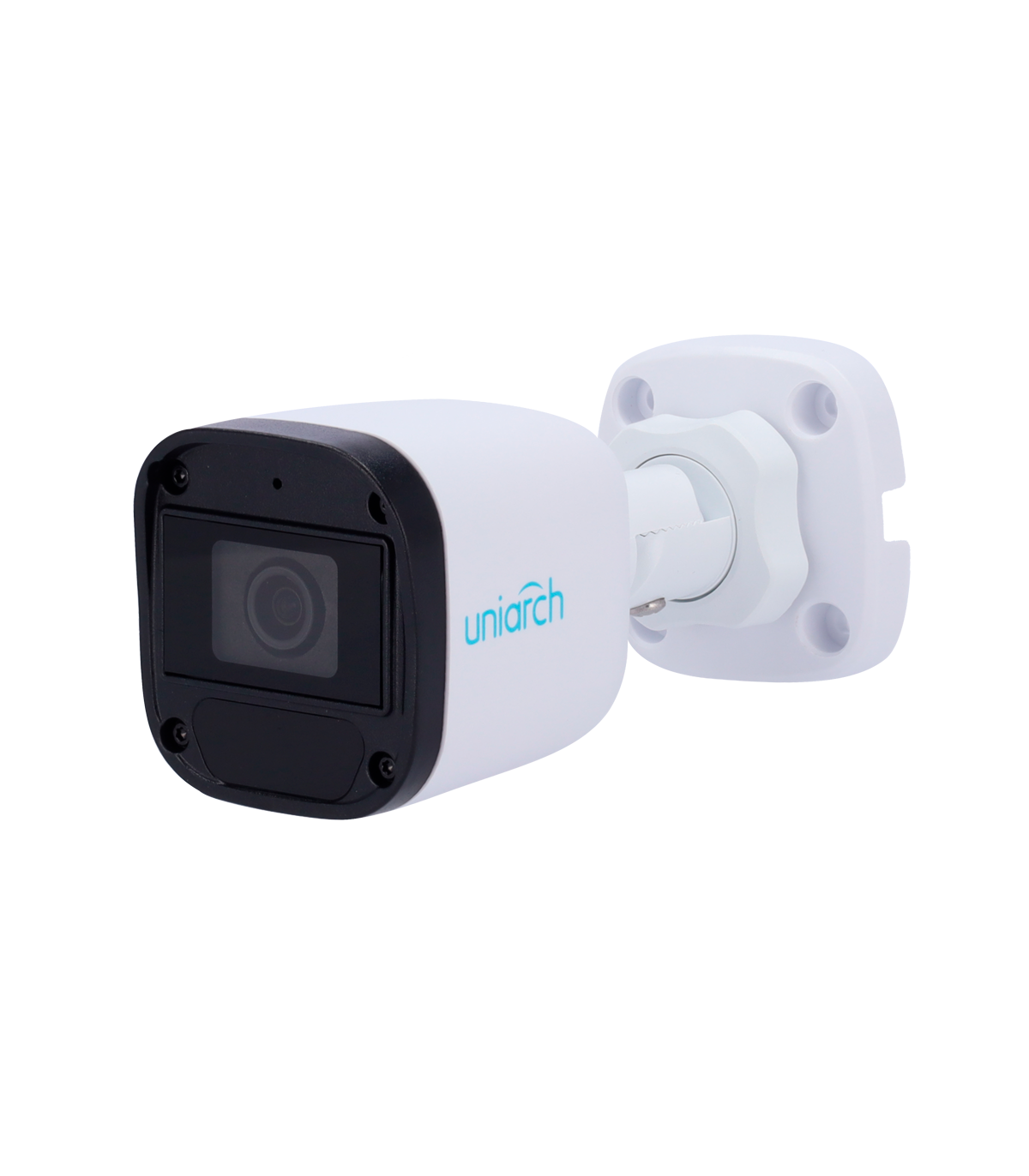

IPC-B122-APF28-ECO - Uniarch 2MP Bullet IP Camera 2.8mm

IPC-B122-APF28-ECO - Uniarch 2MP Bullet IP Camera 2.8mm

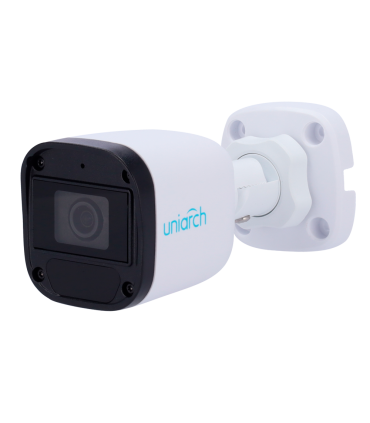

The IPC-B122-APF28-ECO is a 2MP Uniarch Bullet IP camera designed for professional video surveillance systems. It combines Full HD resolution, a fixed 2.8mm lens, Smart IR illumination and a built-in microphone. Power via PoE or 12V DC makes integration easier in different security installations. Its IP67 protection also allows the camera to be used in outdoor environments.

Equipped with a 1/2.9" Progressive Scan CMOS sensor, the camera provides a maximum resolution of 2MP (1920 × 1080). Video transmission can reach 25 fps at maximum resolution. This configuration provides images suitable for monitoring entrances, façades, corridors, perimeters and other areas within an IP video surveillance system.

Fixed 2.8mm lens with wide field of view

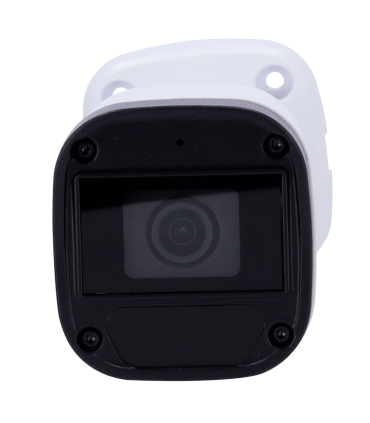

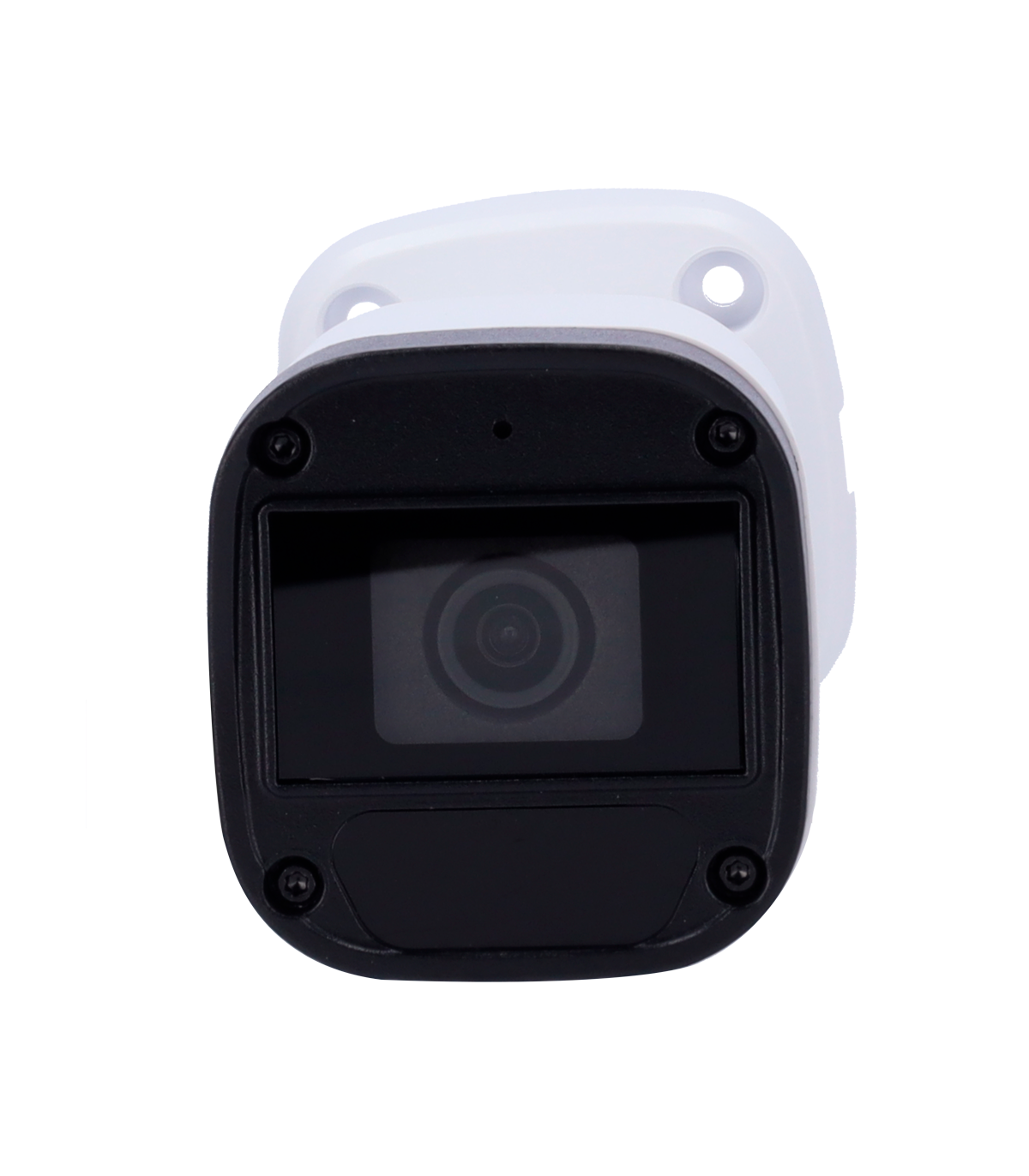

The IPC-B122-APF28-ECO features a fixed 2.8mm lens that provides a wide field of view. For this variant, the specified field of view is approximately 101.1° horizontally, 55° vertically and 111° diagonally. This coverage allows a wide area to be monitored without requiring a motorised lens.

DORI distances provide an additional reference for the available level of detail. The camera provides 45 m for detection and 18 m for observation. It also offers 9 m for recognition and 4.5 m for identification. These values help assess the camera according to the distance from the monitored area.

Smart IR up to 30 m for night video surveillance

The IPC-B122-APF28-ECO features Smart IR up to 30 m for operation in low-light conditions. The Smart IR function adapts infrared illumination to the conditions of the scene. Minimum illumination in colour mode is 0.02 Lux. The ICR filter allows switching between day and night operation.

The camera features DWDR to improve visibility in scenes with different lighting levels. 2D/3D DNR digital noise reduction helps optimise image quality. Functions such as AGC, ROI and Privacy Mask are also available to adapt the configuration to different video surveillance requirements.

IPC-B122-APF28-ECO with Ultra 265 and built-in microphone

The IPC-B122-APF28-ECO supports Ultra 265, H.265 and H.264 video compression. These technologies help optimise bandwidth usage and the storage resources of the surveillance system. Video transmission can therefore be managed efficiently within a compatible IP infrastructure.

The built-in microphone allows audio to be captured together with video from the monitored area. Network connectivity is provided through an RJ45 10/100 Mbps interface. The camera also supports ONVIF, facilitating integration with video surveillance systems compatible with this protocol.

PoE power supply and IP67 protection

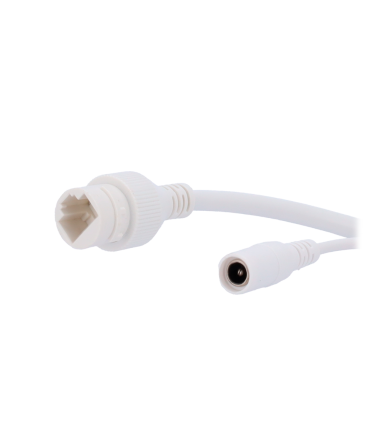

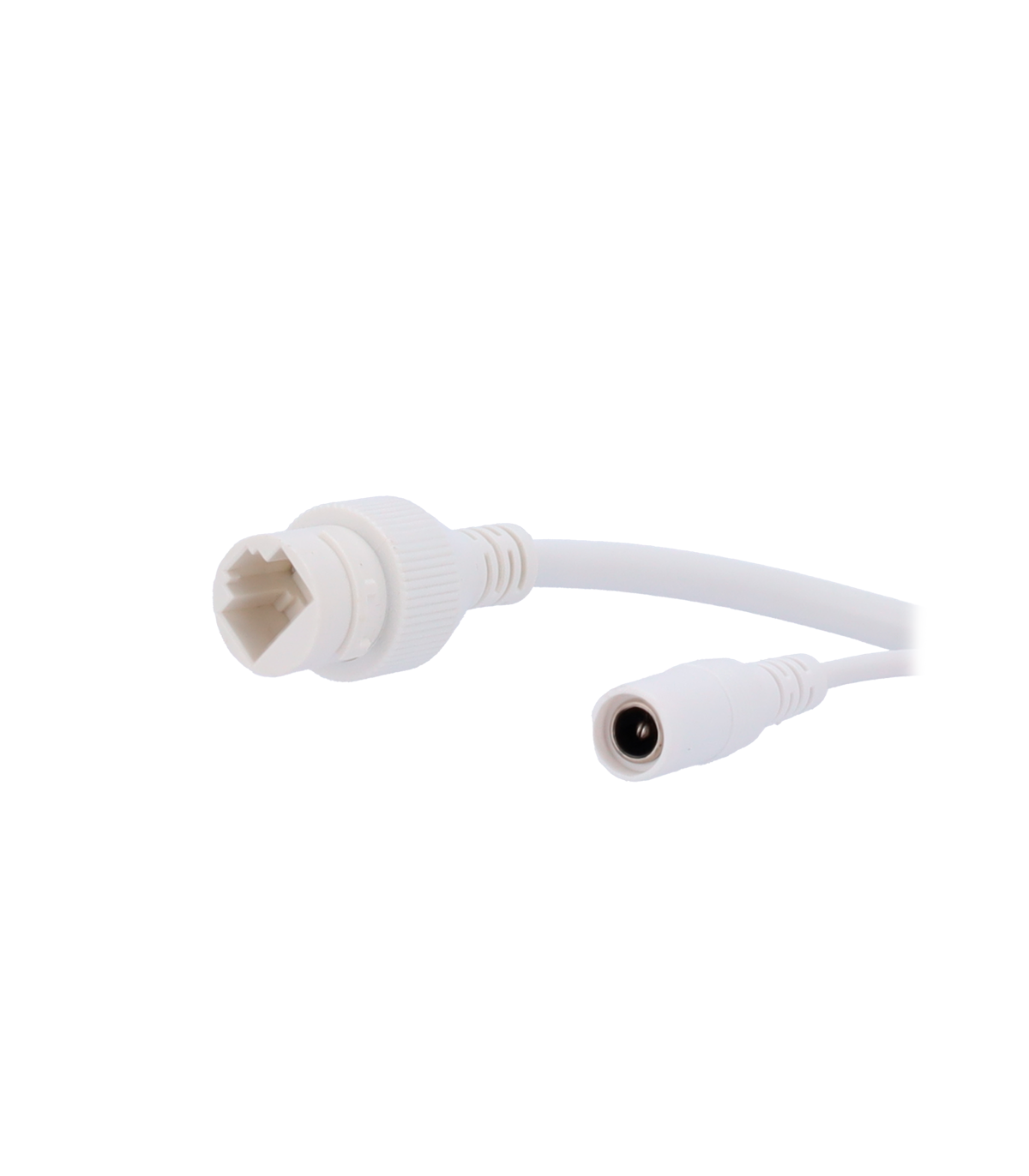

The IPC-B122-APF28-ECO can be powered via 12V DC or PoE IEEE 802.3af. With PoE, electrical power and data can use the same compatible network connection. This configuration helps simplify cabling in many installations. The specified maximum power consumption for this model is 3.5W.

The IP67 rating provides protection against dust and weather conditions, making the camera suitable for outdoor installations. With 2MP resolution, a 2.8mm lens, Smart IR up to 30 m, built-in microphone, Ultra 265, PoE and IP67, the IPC-B122-APF28-ECO provides useful features for different professional IP video surveillance projects.
