IPC-D124-PF28 - Uniarch 4MP 2.8mm Dome IP Camera

IPC-D124-PF28 - Uniarch 4MP 2.8mm Dome IP Camera

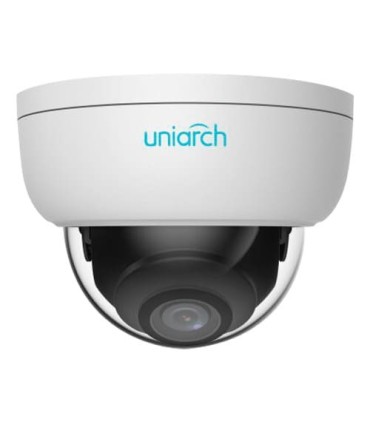

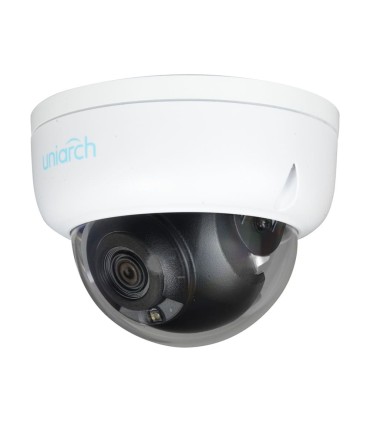

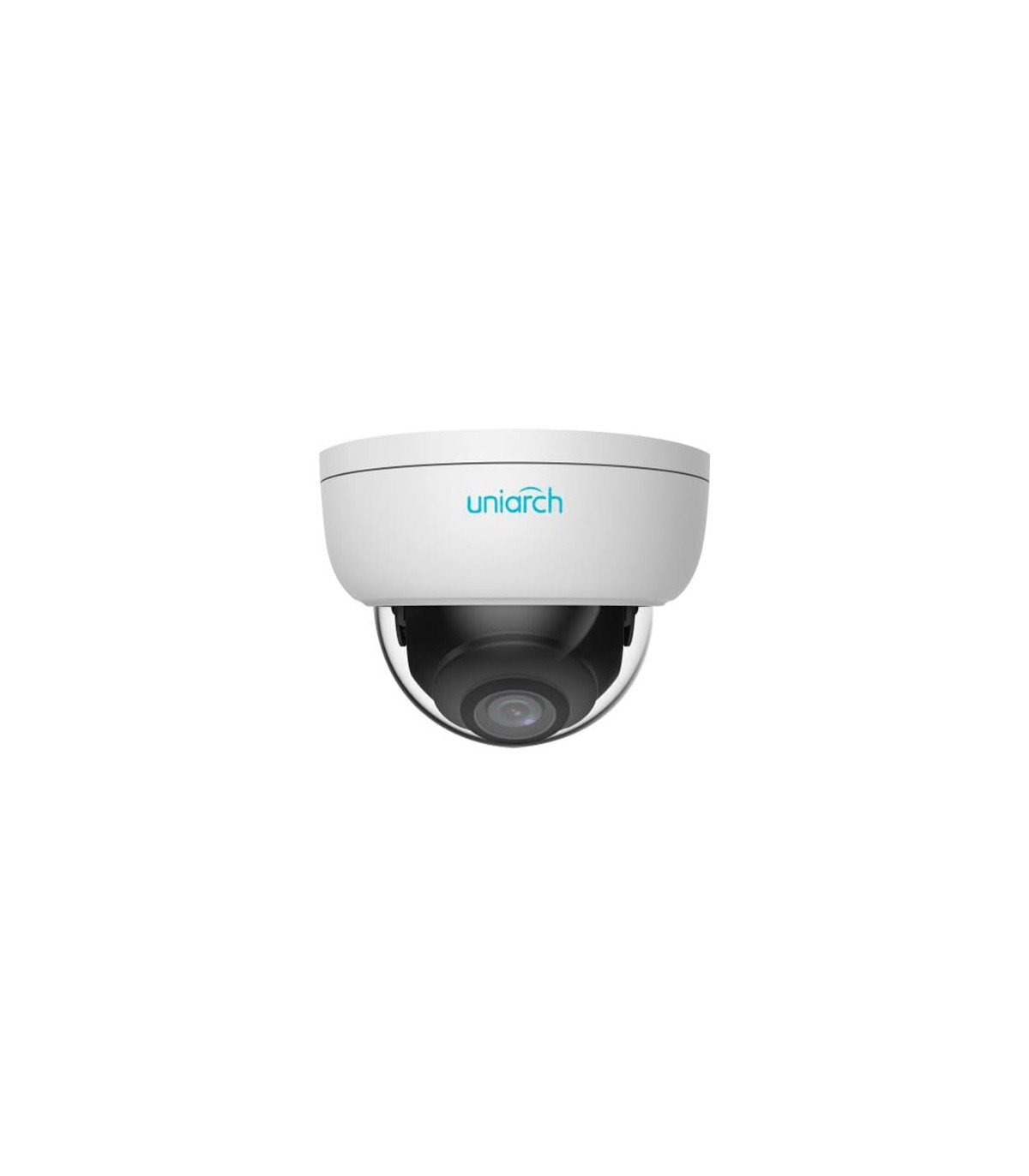

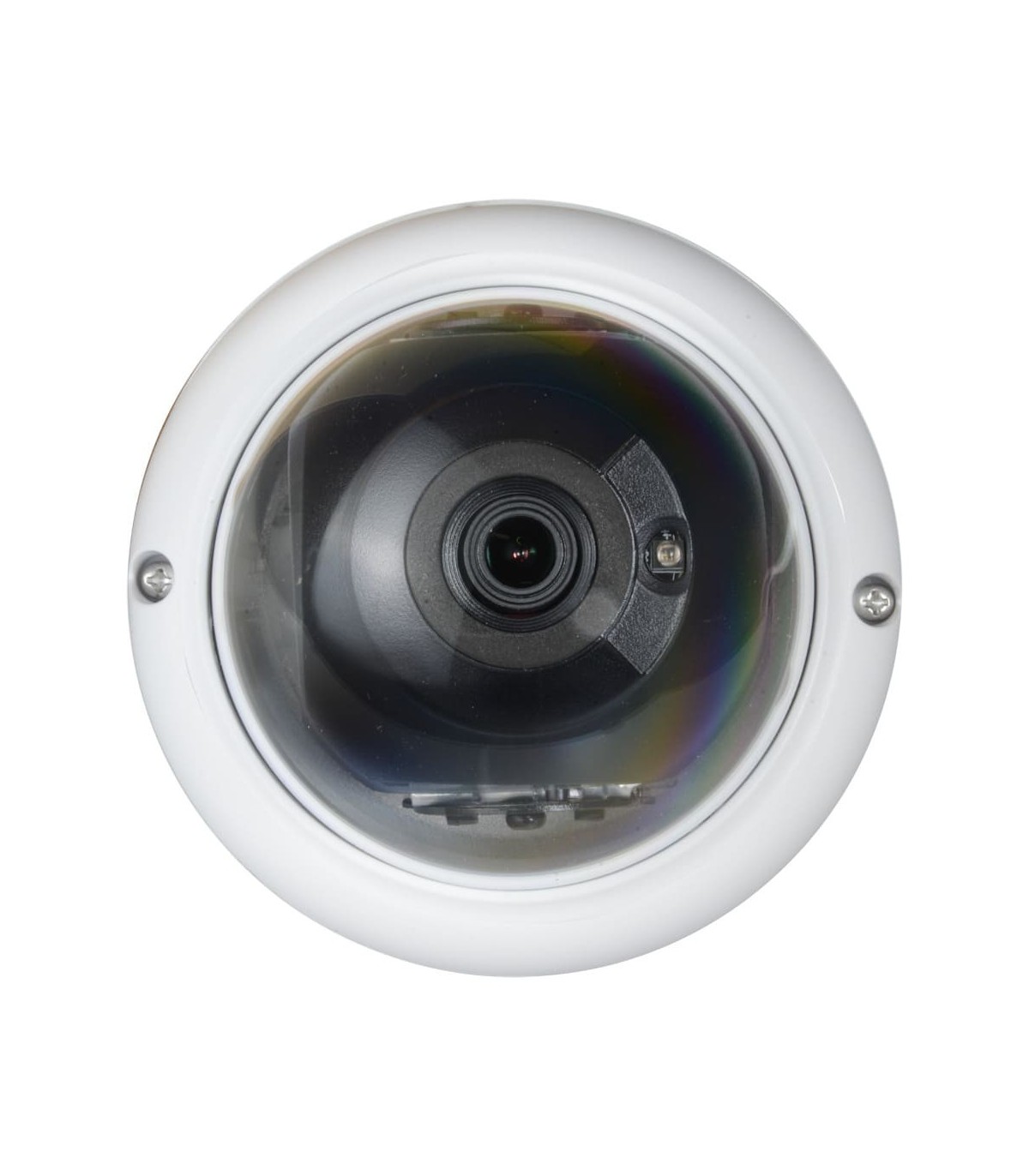

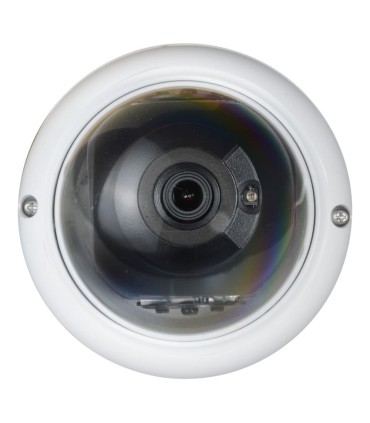

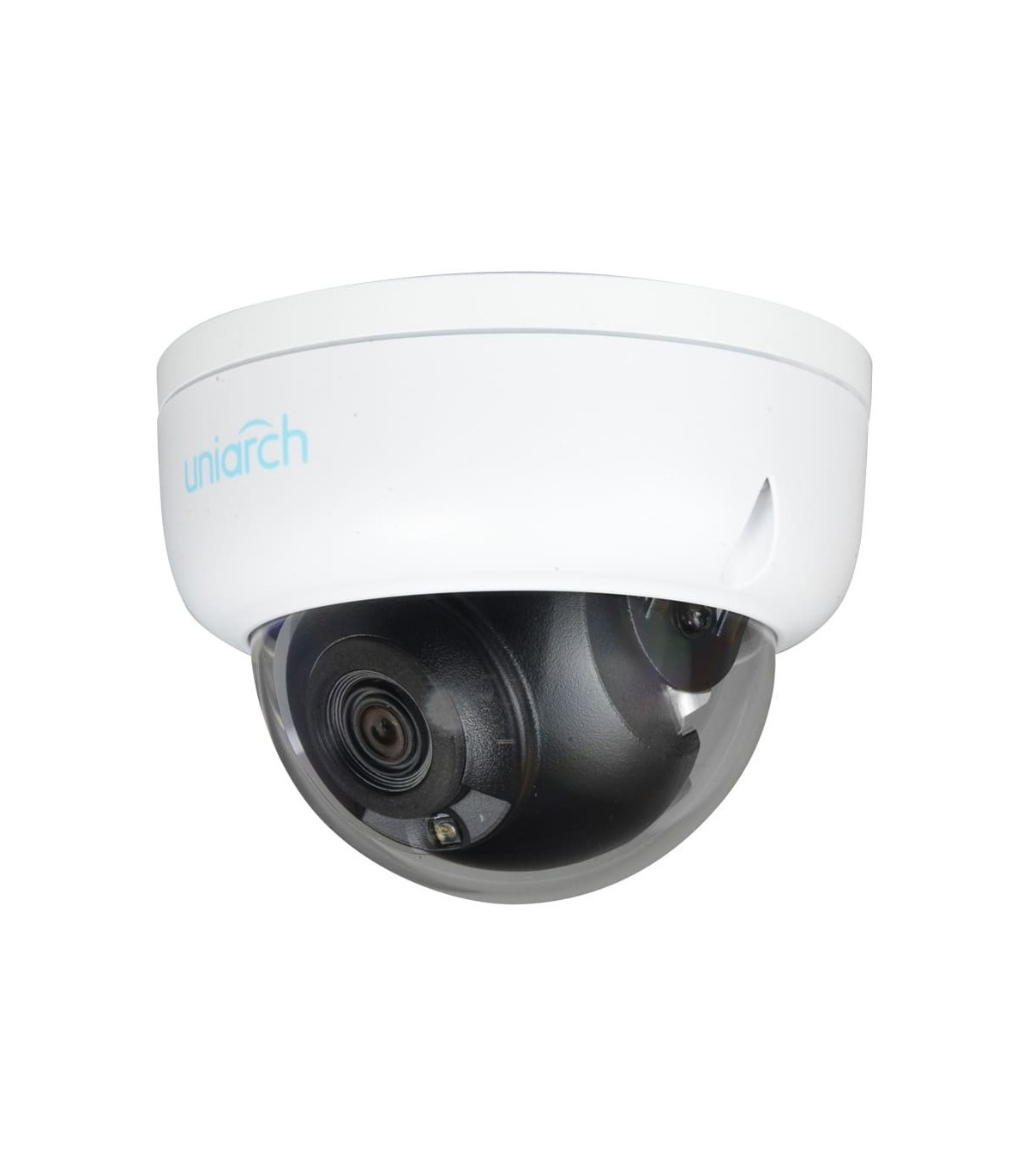

The IPC-D124-PF28 is a Uniarch vandal-resistant Dome IP camera designed for professional video surveillance systems requiring high mechanical resistance, 4MP resolution and reliable operation in indoor or outdoor environments. It features a 1/3" CMOS sensor with a maximum resolution of 4MP (2560×1440) and a fixed 2.8mm F2.1 lens, providing wide coverage for monitoring different areas.

The Dome construction combines IP67 protection against dust and water with IK10 vandal-resistant protection, making the camera particularly suitable for installations where the equipment may be exposed to environmental conditions or physical impacts. Smart IR illumination also enables continuous surveillance in low-light conditions or during the night.

4MP image and fixed 2.8mm lens

The camera provides a maximum resolution of 4MP (2560×1440) at up to 20fps. It also supports 3MP (2304×1296) at up to 20fps, Full HD 1080P at up to 30fps and 720P at up to 30fps, allowing the resolution and frame rate to be adapted to the requirements of the installation and the available network bandwidth.

The fixed 2.8mm F2.1 lens provides a horizontal field of view of 89.1°, vertical field of view of 47.3° and diagonal field of view of 94.3°. For this lens, the specified DORI distances are 63 m for detection, 25.2 m for observation, 12.6 m for recognition and 6.3 m for identification.

IPC-D124-PF28 with Smart IR up to 30m

The IPC-D124-PF28 features Smart IR up to 30 m with an 850 nm wavelength, enabling image capture in environments with reduced lighting. The specified minimum illumination is 0.02 Lux in colour mode with F2.1 and AGC enabled, reaching 0 Lux when the infrared illumination is active.

The mechanical ICR filter provides automatic switching between Day and Night modes. Image processing includes DWDR and 2D/3D DNR digital noise reduction, helping optimise image quality under different lighting conditions. ROI and privacy mask functions are also available.

Ultra 265, ONVIF and IP connectivity

The camera supports Ultra 265, H.265, H.264 and MJPEG video compression formats. Ultra 265 technology enables more efficient use of network bandwidth and storage capacity in compatible systems while maintaining integration within professional IP video surveillance infrastructures.

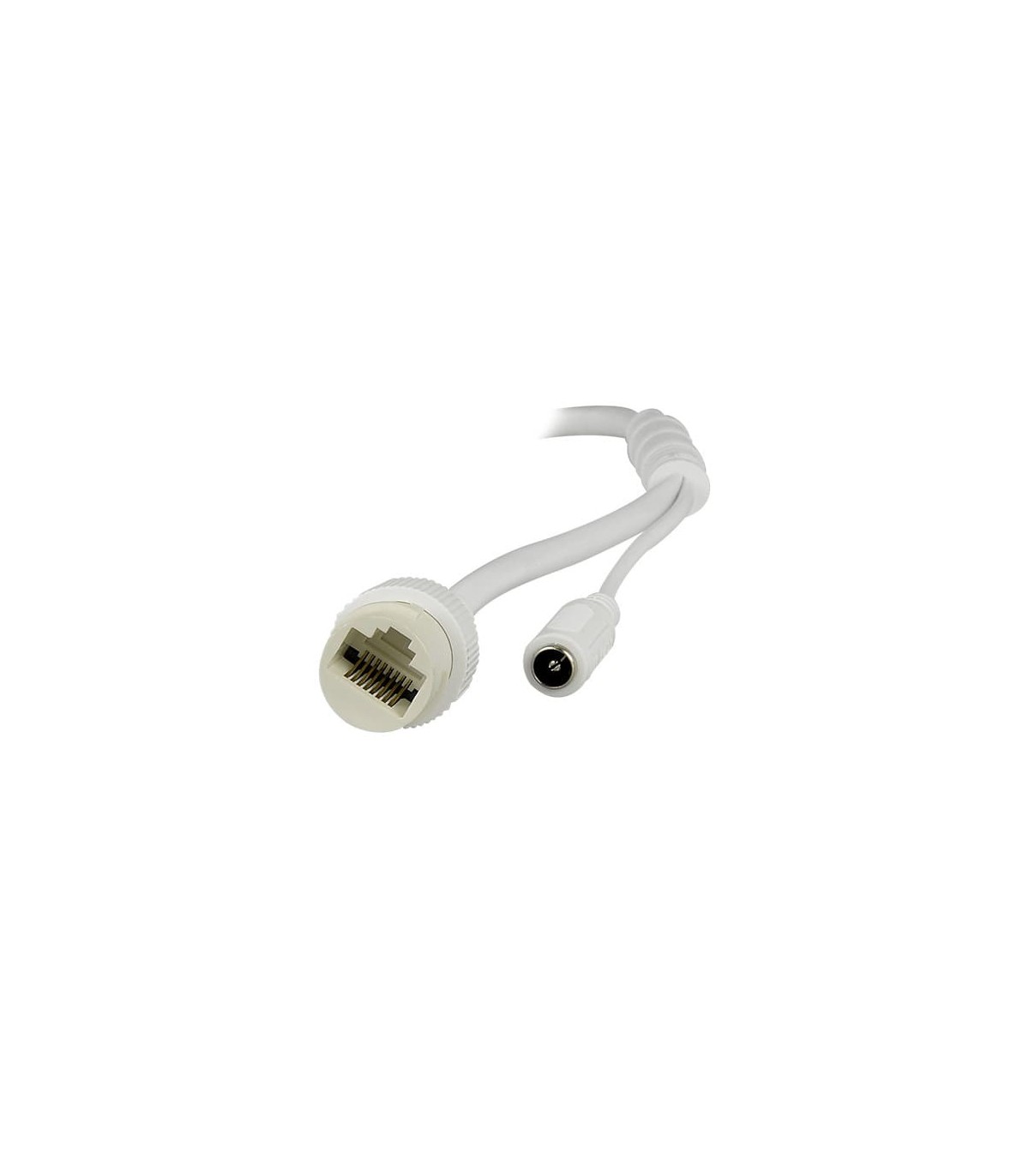

Network connectivity is provided through an RJ45 10/100 Base-TX interface. ONVIF Profile S and Profile T compatibility facilitates integration with compatible video surveillance equipment and platforms, allowing the camera to be deployed within different IP security system architectures.

PoE, IP67 and IK10 vandal-resistant protection

Power can be supplied via 12V DC ±25% or PoE IEEE 802.3af. PoE technology allows electrical power and data to be transmitted through the same Ethernet cable when used with compatible infrastructure, simplifying installation and reducing the need for additional cabling.

The combination of IP67 and IK10 ratings provides protection for demanding installations. IP67 provides resistance against the ingress of dust and water, while IK10 indicates high mechanical resistance against impacts. With 4MP resolution, a 2.8mm lens, Smart IR 30m, Ultra 265, ONVIF and PoE, this Uniarch Dome camera is suitable for professional IP video surveillance projects requiring a compact and robust camera.
