Uho-S2E-M4 - Uniarch 4MP 4mm WiFi PT IP Camera

Uho-S2E-M4 - Uniarch 4MP 4mm WiFi PT IP Camera

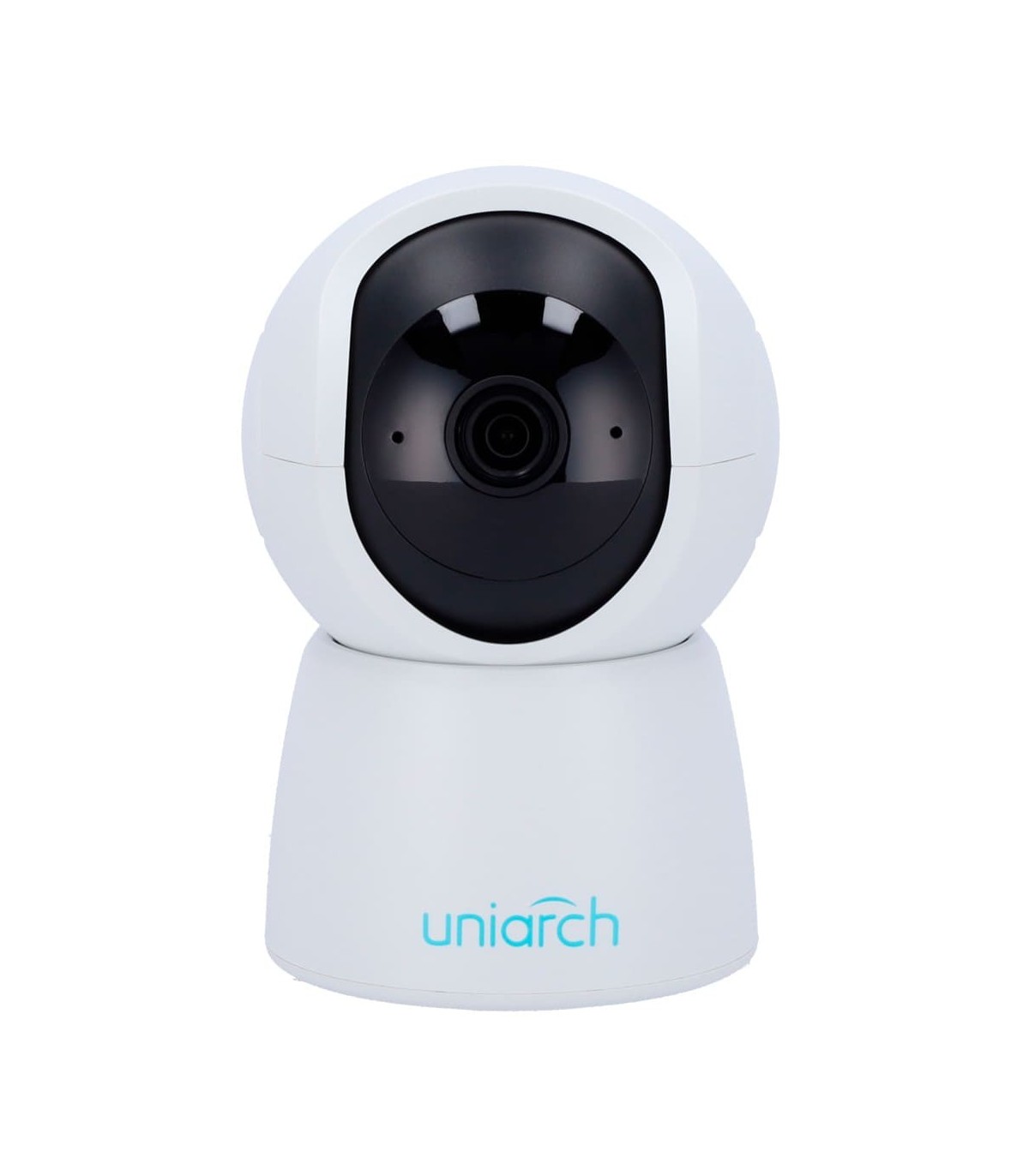

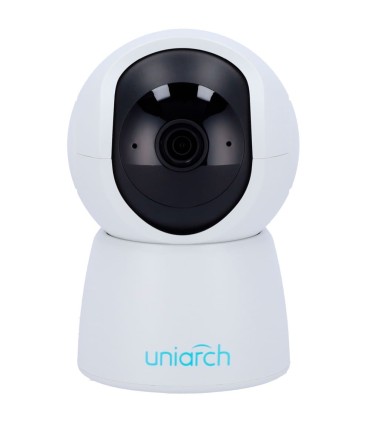

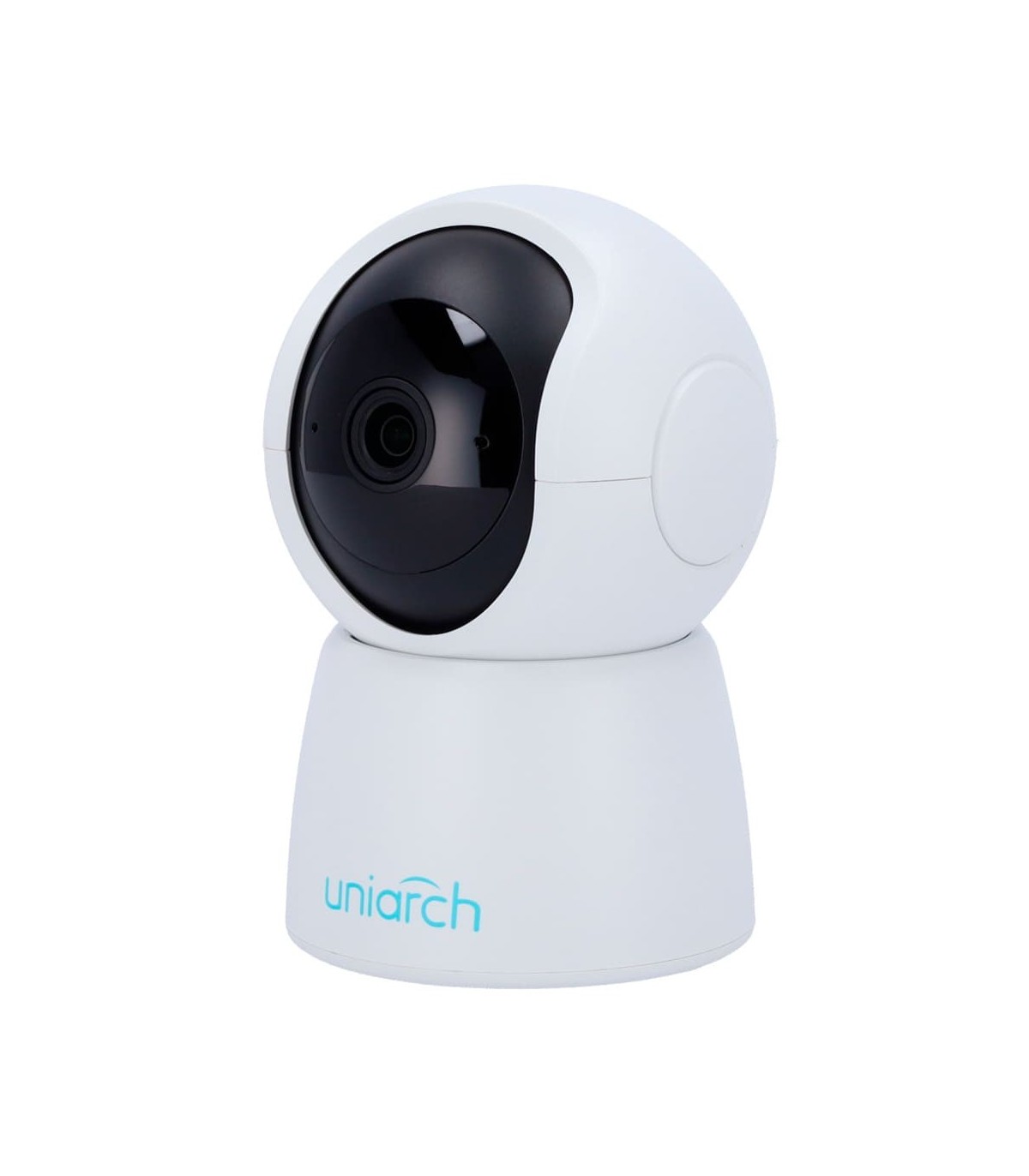

The Uho-S2E-M4 is a Uniarch indoor PT IP camera designed for video surveillance systems requiring motorised coverage, WiFi connectivity and 4MP resolution. It features a 1/3" CMOS sensor with a maximum resolution of 4MP (2560×1440) and a fixed 4mm F2.0 lens, combining video monitoring with remotely controlled Pan & Tilt movement.

Connectivity can be established via 2.4GHz WiFi or through the RJ45 10/100 Base-TX Ethernet interface, allowing the installation to be adapted to the available network infrastructure. The camera also features a built-in microphone and speaker for two-way audio, together with local storage via MicroSD card.

4MP image and fixed 4mm lens

The camera provides a maximum resolution of 4MP (2560×1440), delivering a suitable level of detail for monitoring indoor spaces. The fixed 4mm F2.0 lens provides a horizontal field of view of 79°, vertical field of view of 42.3° and diagonal field of view of 85.1°.

For improved image performance under different lighting conditions, the camera features DWDR and 2D/3D DNR digital noise reduction. Video compression supports Ultra 265, H.265 and H.264, enabling efficient use of network bandwidth and storage space in compatible systems.

Uho-S2E-M4 with Pan & Tilt and Auto Tracking

The Uho-S2E-M4 features motorised Pan movement from 0° to 340° and Tilt movement from -5° to 55°, allowing the camera's viewing direction to be controlled remotely. The system also supports 20 presets, allowing predefined positions to be stored for convenient operation.

The Auto Tracking function enables automatic tracking within the monitored area. The camera also incorporates human body detection, motion detection and audio detection, providing additional functions for monitoring and supervising indoor environments.

Smart IR 10m and two-way audio

For operation in low-light conditions, the camera features Smart IR up to 10 m. Infrared illumination enables monitoring to continue during the night or in areas with reduced lighting, complementing the camera's digital image processing functions.

The built-in microphone and speaker enable two-way audio communication directly through the camera. This function makes it possible to listen to the monitored environment and transmit audio through the speaker, making the device suitable for different indoor security and monitoring applications.

2.4GHz WiFi, MicroSD and Ethernet connectivity

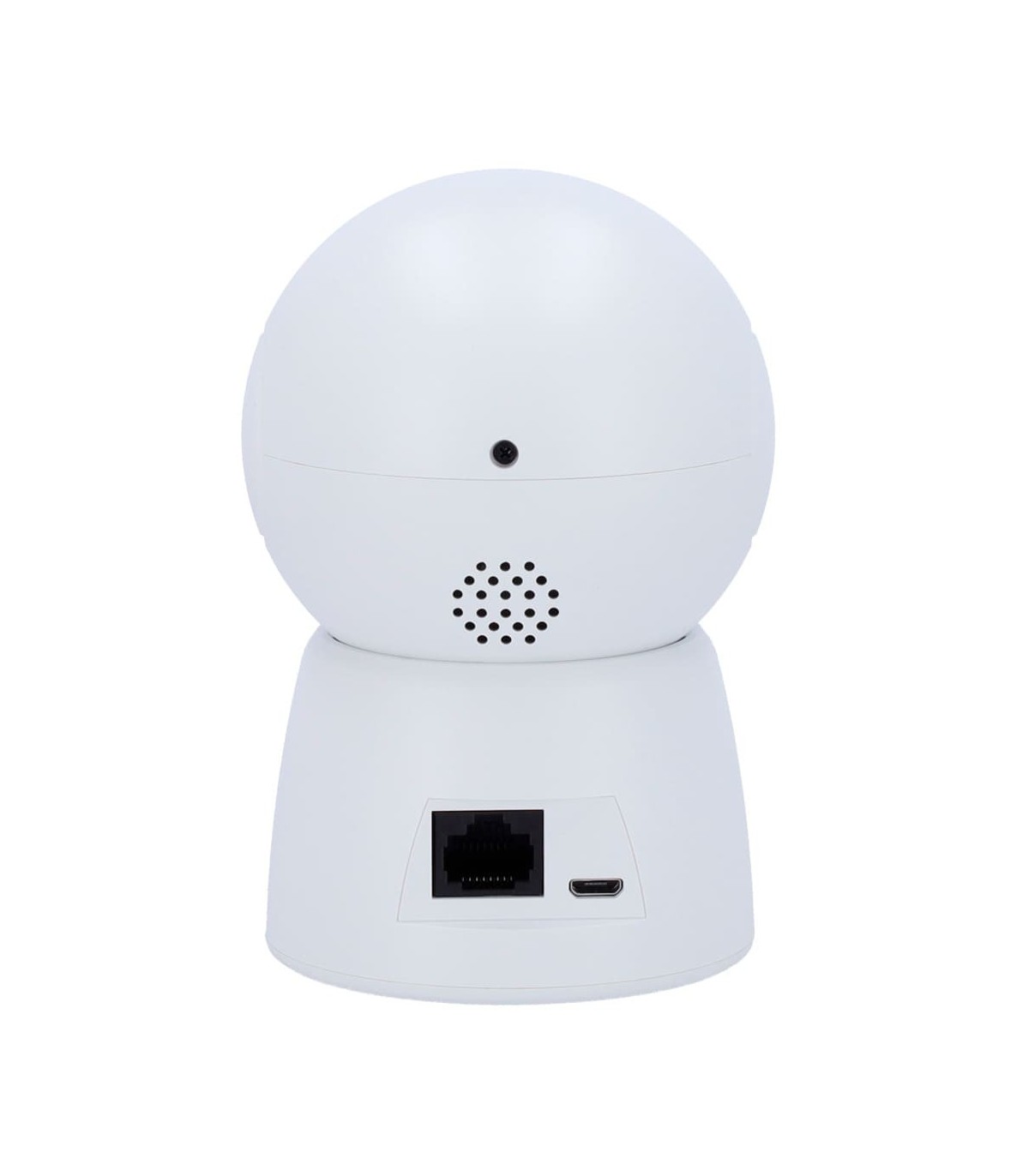

2.4GHz WiFi connectivity allows the camera to be integrated into a compatible wireless network, while the RJ45 10/100 Base-TX port provides an alternative wired Ethernet connection. This combination provides greater flexibility when configuring the network infrastructure.

For local recording, the camera supports MicroSD cards up to 512GB. Power is supplied via 5V DC / 1.5A through Micro USB. Designed for indoor use, this Uniarch camera combines 4MP resolution, a 4mm lens, Pan & Tilt movement, Auto Tracking, Smart IR 10m, two-way audio, WiFi and MicroSD storage in a compact IP video surveillance solution.
