IPC-B124-APF40K - Uniarch 4MP 4mm Bullet IP Camera

IPC-B124-APF40K - Uniarch 4MP 4mm Bullet IP Camera

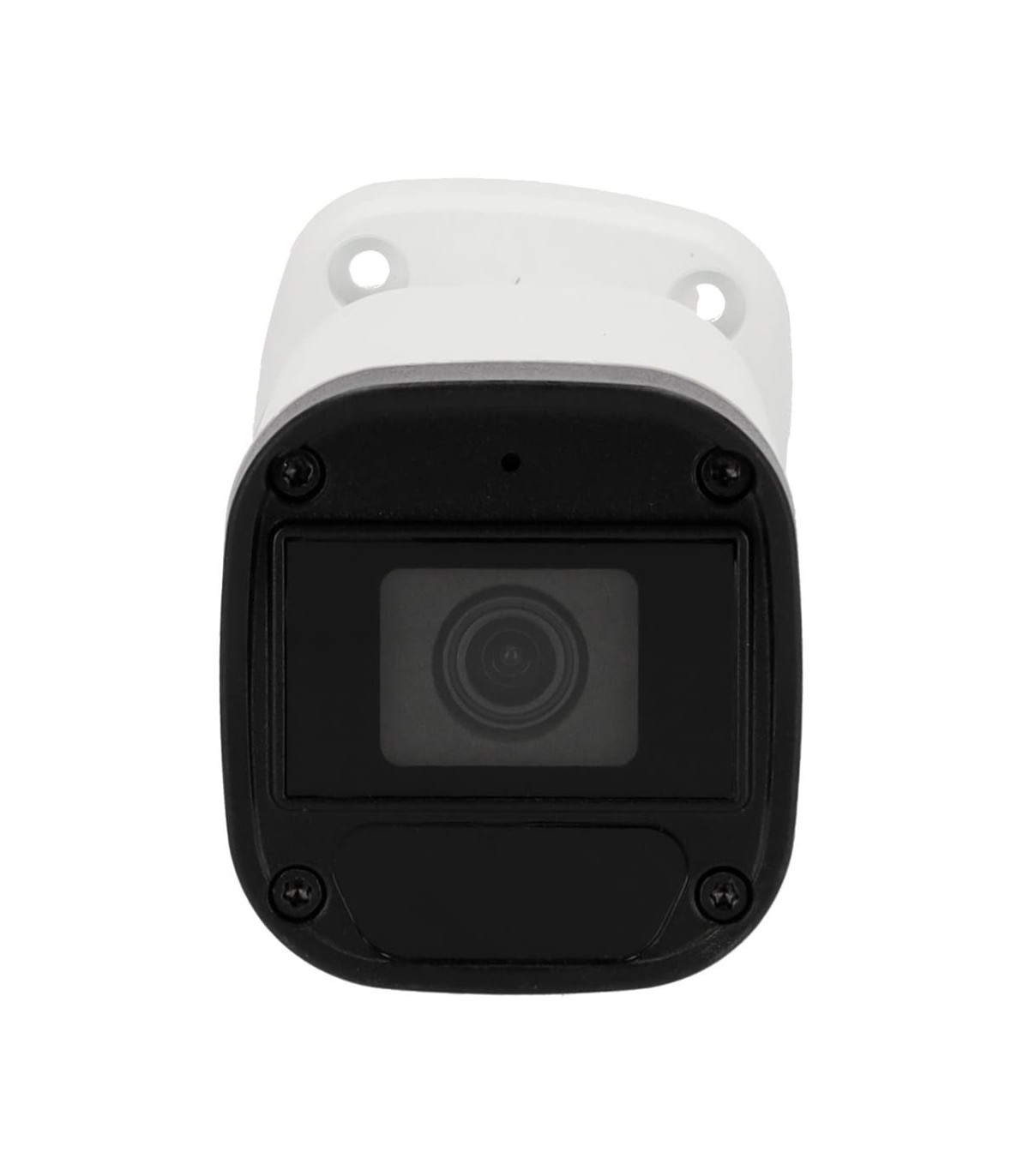

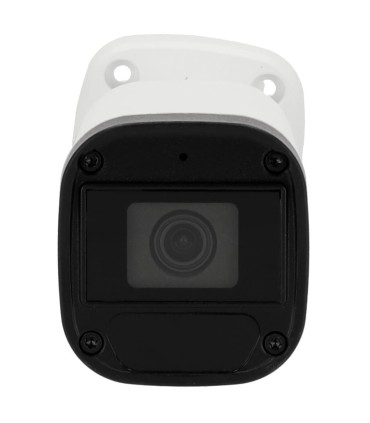

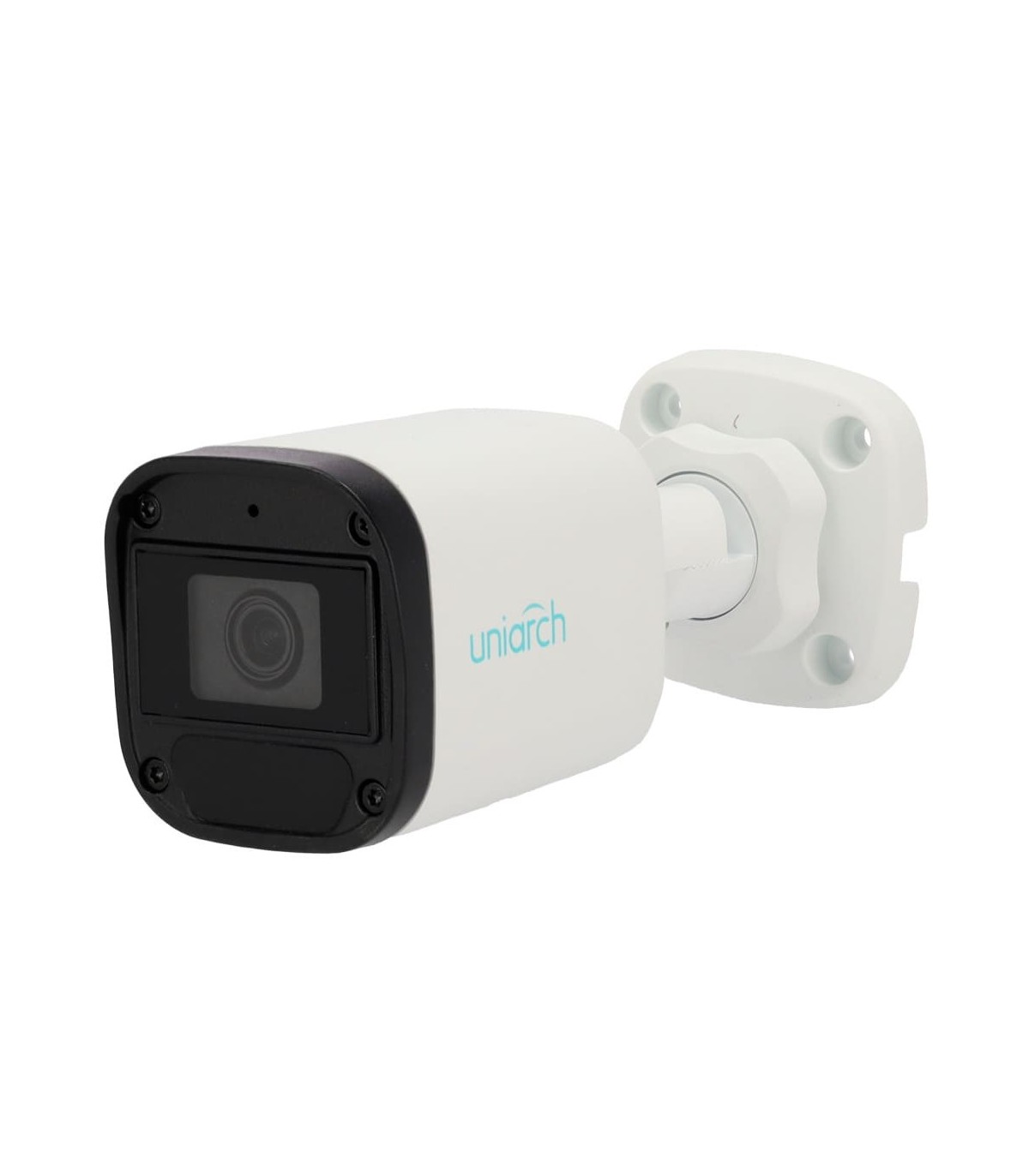

The IPC-B124-APF40K is a Uniarch Bullet IP camera designed for professional video surveillance systems requiring 4MP resolution, flexible installation and reliable outdoor operation. It features a 1/3" CMOS sensor with a maximum resolution of 4MP (2560×1440) and a fixed 4mm F2.1 lens, providing detailed images and a field of view suitable for monitoring different areas.

The camera combines Smart IR up to 30 m with different image processing technologies designed to improve visibility under varying lighting conditions. It also features a built-in microphone, local MicroSD storage, Ultra 265 compression and support for both 12V DC and PoE power.

4MP image and fixed 4mm lens

The maximum 4MP (2560×1440) resolution operates at up to 20fps. The camera also supports 3MP (2304×1296) at up to 20fps, Full HD 1080P at up to 30fps and 720P at up to 30fps. The fixed 4mm F2.1 lens provides a horizontal field of view of 79.0°, vertical field of view of 42.3° and diagonal field of view of 85.1°.

For the 4mm lens, the specified DORI distances are 90 m for detection, 36 m for observation, 18 m for recognition and 9 m for identification. These values help assess camera coverage according to the specific requirements of each installation.

IPC-B124-APF40K with Smart IR up to 30m

The IPC-B124-APF40K features Smart IR illumination with a range of up to 30 m and an 850 nm wavelength. The specified minimum illumination is 0.02 Lux in colour mode with F2.1 and AGC enabled, reaching 0 Lux when the infrared illumination is active.

The mechanical ICR filter provides automatic switching between Day and Night modes. Image processing includes DWDR and 2D/3D DNR digital noise reduction, helping optimise the image under different lighting conditions. The camera also supports ROI and privacy masks.

Ultra 265, built-in microphone and MicroSD storage

The camera supports Ultra 265, H.265, H.264 and MJPEG video compression formats, allowing video transmission to be adapted to the characteristics of the surveillance infrastructure. Ultra 265 technology contributes to efficient bandwidth and storage usage in compatible systems.

The built-in microphone enables audio capture directly at the installation location. For local storage, the camera supports a MicroSD card up to 512GB. Integration into IP video surveillance systems is facilitated by ONVIF Profile S, Profile G and Profile T compatibility and the RJ45 10/100 Base-TX Ethernet interface.

PoE, IP67 and 3-axis installation

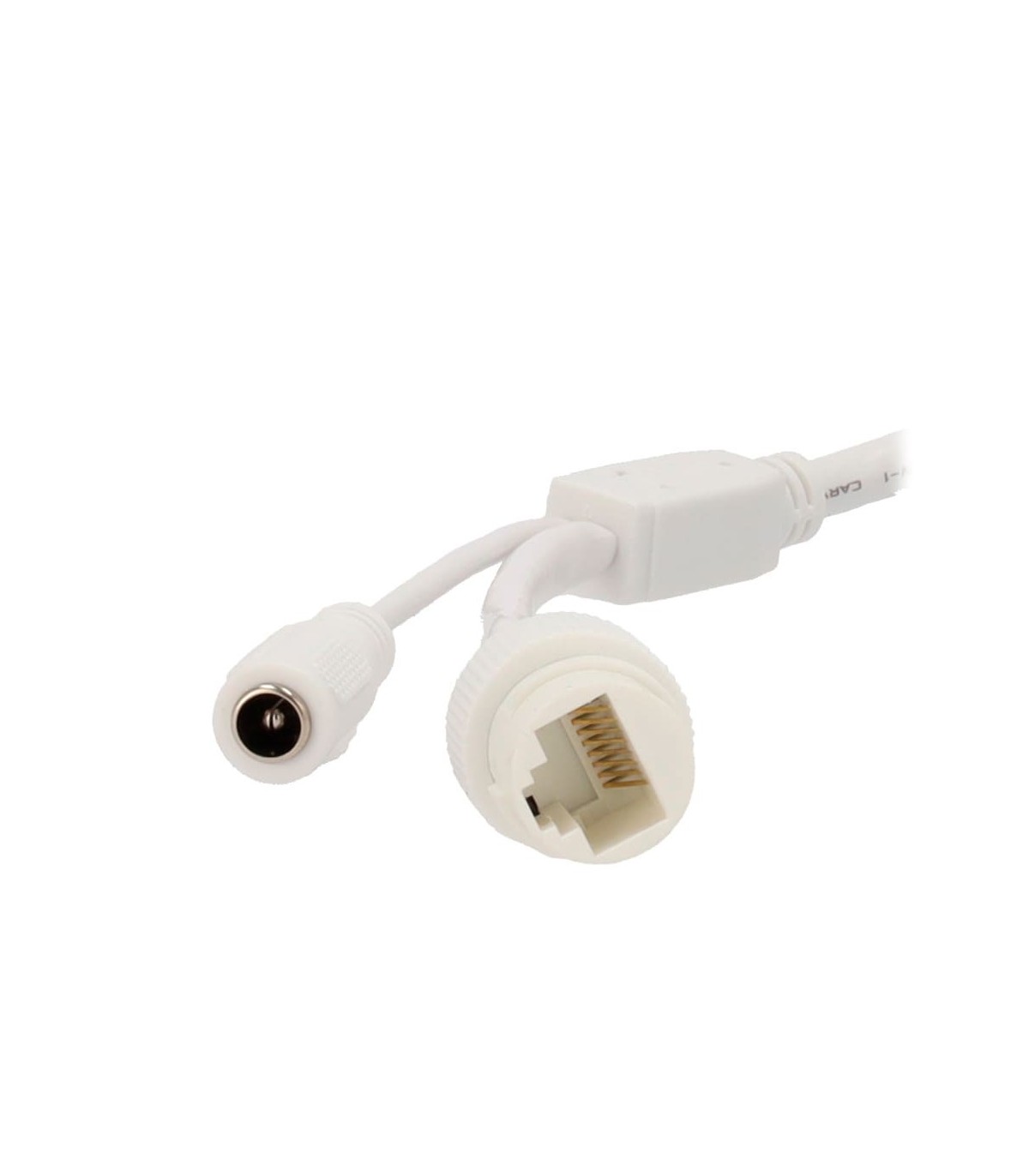

Power can be supplied via 12V DC ±25% or PoE IEEE 802.3af. PoE allows power and data to be transmitted through compatible Ethernet infrastructure, reducing the need for additional cabling and simplifying installation.

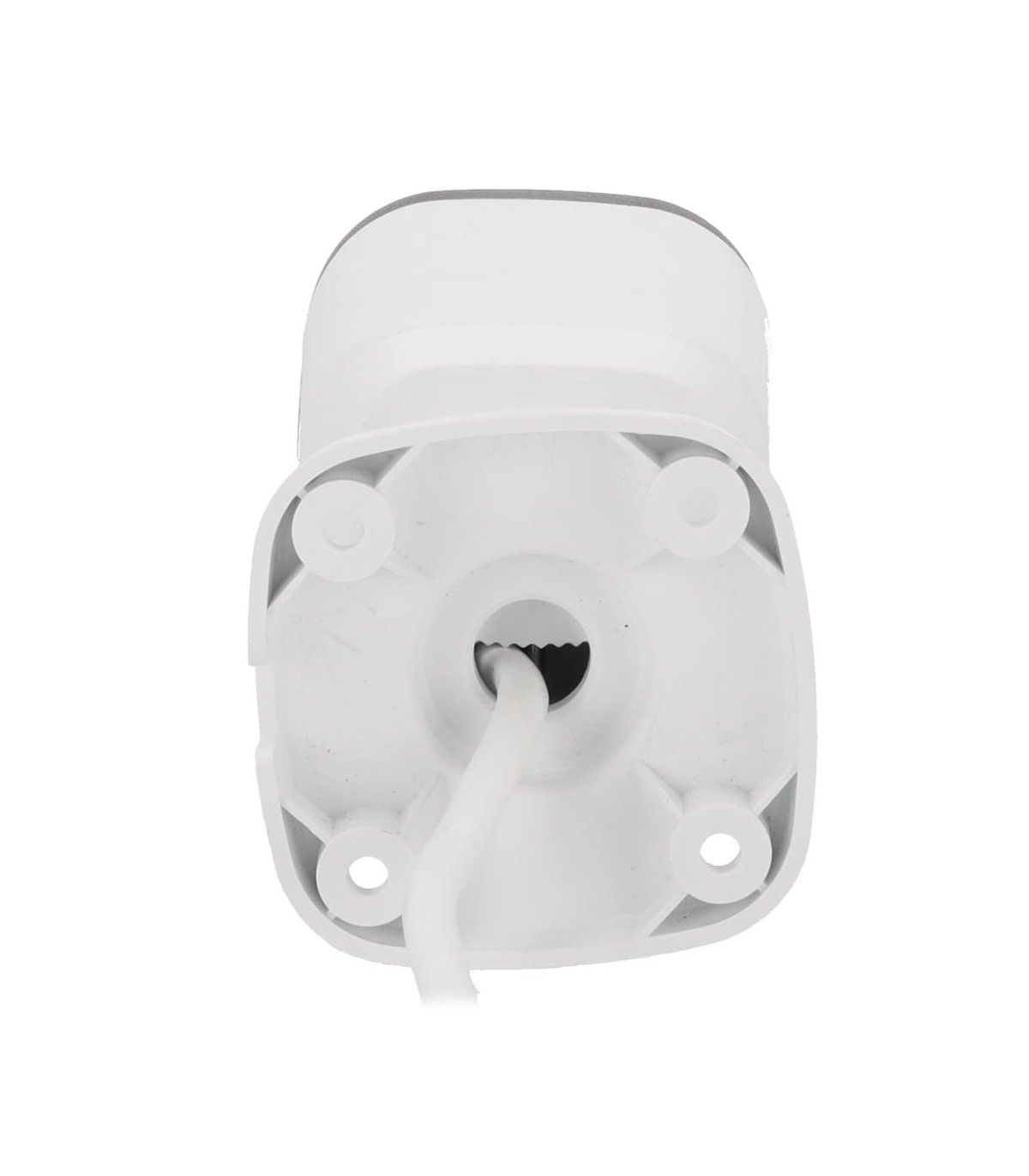

The camera provides manual three-axis adjustment, with Pan from 0° to 360°, Tilt from 0° to 90° and Rotation from 0° to 360°. Its IP67 protection rating allows operation in outdoor environments. The combination of 4MP resolution, 4mm lens, Smart IR 30m, MicroSD storage, built-in microphone, ONVIF and PoE makes this Uniarch camera suitable for different professional IP video surveillance projects.
