IPC-B125-APF28 - Uniarch 5MP 2.8mm Bullet IP Camera

IPC-B125-APF28 - Uniarch 5MP 2.8mm Bullet IP Camera

The IPC-B125-APF28 is a Uniarch Bullet IP camera designed for professional video surveillance systems requiring high resolution, straightforward installation and outdoor operation. It features a 1/3" 5MP CMOS sensor and provides a maximum resolution of 2592×1944. Its fixed 2.8mm F2.1 lens provides wide coverage suitable for monitoring different areas.

The camera combines Smart IR up to 30 m with several image processing technologies. It also features a built-in microphone, Ultra 265 compression and ONVIF compatibility. Power can be supplied via 12V DC or PoE IEEE 802.3af, facilitating integration into different network infrastructures.

5MP image and fixed 2.8mm lens

The maximum 5MP (2592×1944) resolution operates at up to 20fps. Lower resolutions are also available, including 4MP and 3MP at up to 20fps and Full HD 1080P at up to 30fps. The fixed 2.8mm F2.1 lens provides a horizontal field of view of 89.1°, vertical field of view of 47.3° and diagonal field of view of 94.3°.

For this lens, the specified DORI distances are 63 m for detection, 25.2 m for observation, 12.6 m for recognition and 6.3 m for identification. These values help evaluate the camera coverage according to the specific requirements of each video surveillance project.

IPC-B125-APF28 with Smart IR up to 30m

The IPC-B125-APF28 features Smart IR illumination with a range of up to 30 m and a wavelength of 850 nm. The specified minimum illumination is 0.02 Lux in colour mode with F2.1 and AGC enabled. It reaches 0 Lux when the infrared illumination is active.

The mechanical ICR filter provides automatic switching between Day and Night modes. Image processing includes DWDR, BLC, HLC, Digital Defog and 2D/3D DNR digital noise reduction. These functions help optimise image quality under different lighting conditions.

Ultra 265, built-in microphone and ONVIF

The camera supports Ultra 265, H.265, H.264 and MJPEG video compression formats. It also provides ROI, privacy masks and motion detection. Ultra 265 technology helps optimise video transmission and bandwidth usage in compatible IP video surveillance systems.

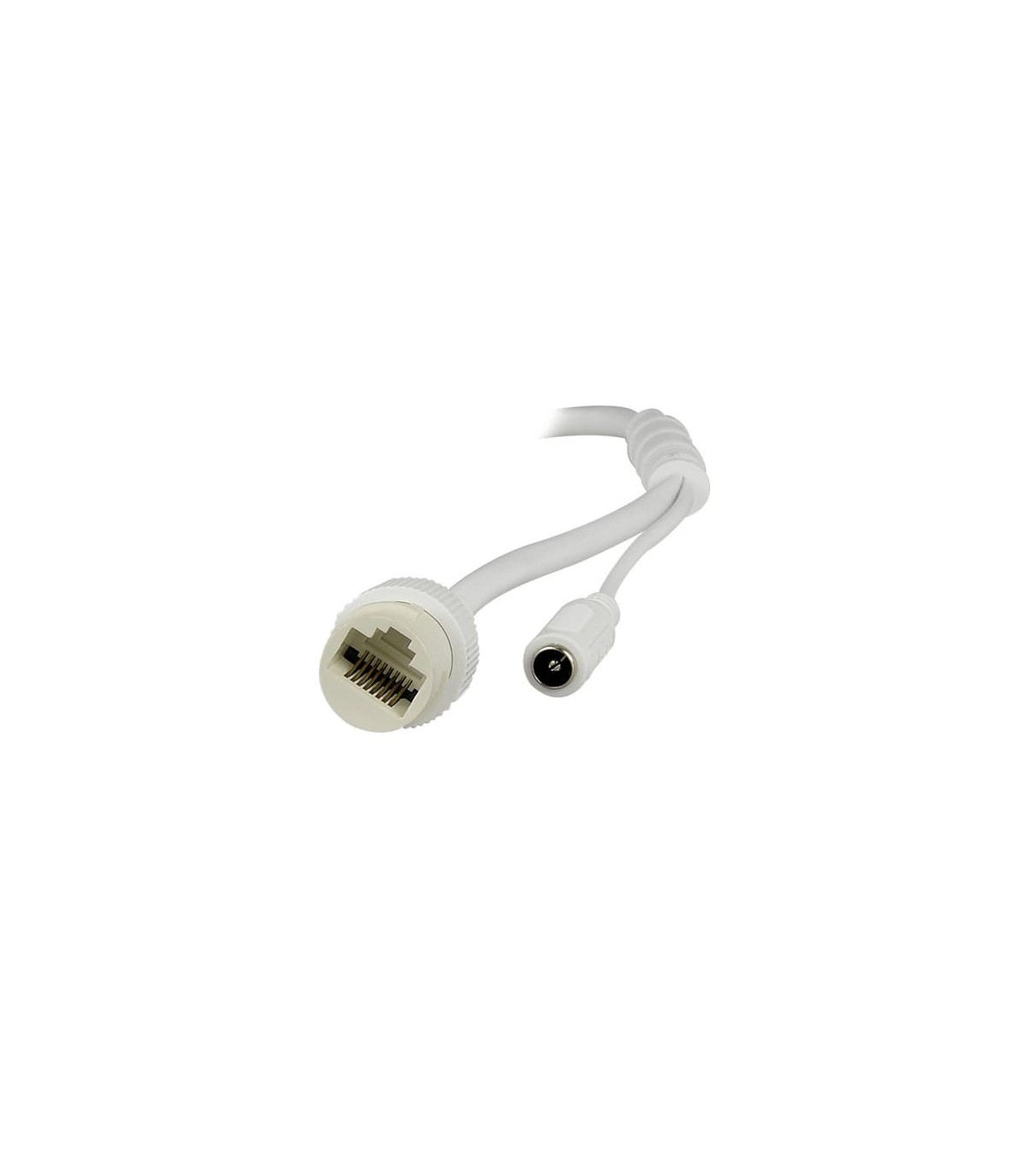

The built-in microphone enables audio capture directly at the installation location. For integration into video surveillance systems, the RJ45 10/100 Base-TX Ethernet interface supports different network protocols and ONVIF Profile S and Profile T compatibility.

PoE, IP67 protection and 3-axis installation

Power can be supplied via 12V DC ±25% or PoE IEEE 802.3af. PoE allows power and data to be carried through compatible Ethernet infrastructure. This can simplify installation in projects where PoE technology is available.

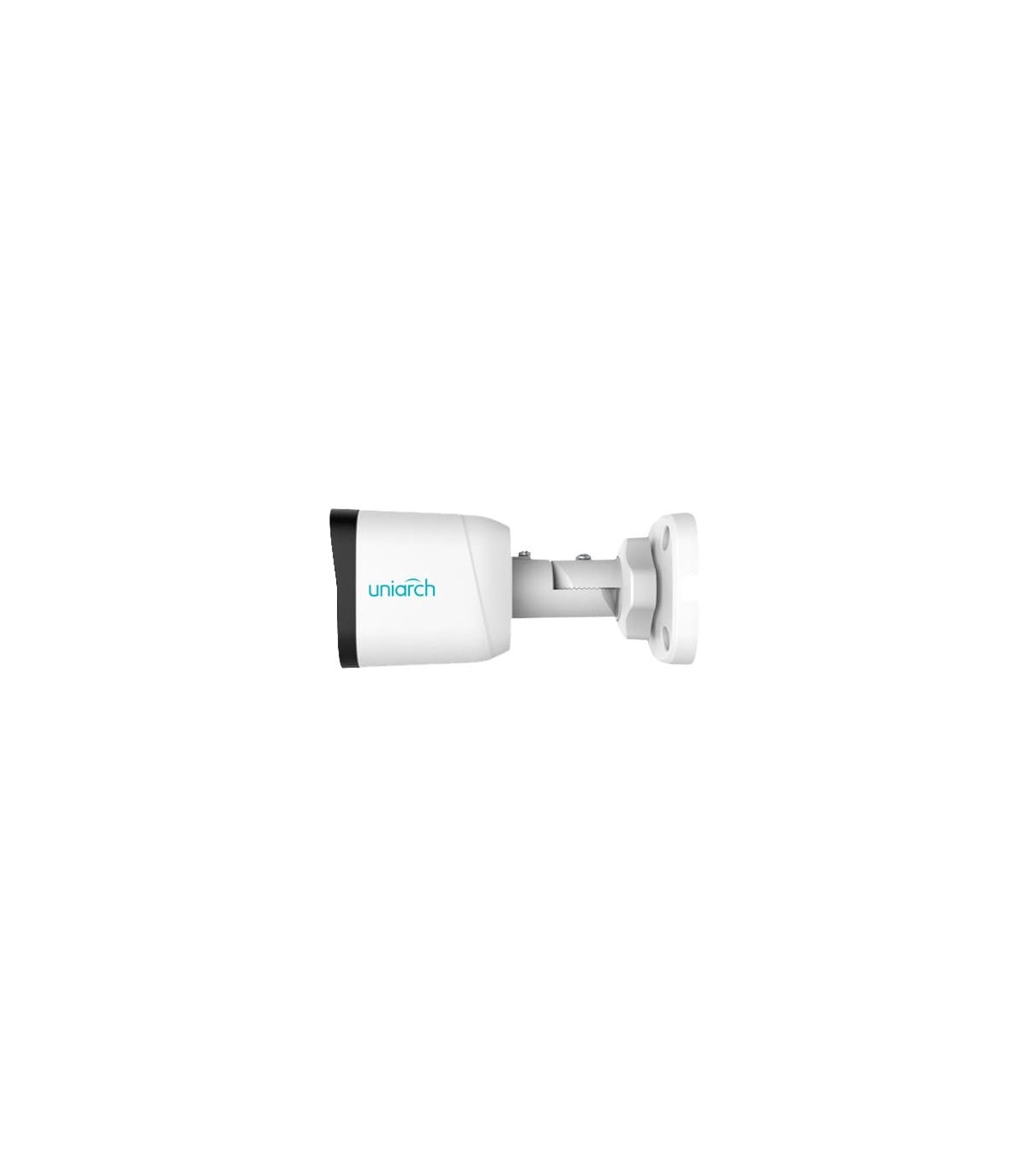

The camera provides manual three-axis adjustment, with Pan from 0° to 360°, Tilt from 0° to 90° and Rotation from 0° to 360°. Its IP67 protection rating allows operation in outdoor environments. The combination of 5MP resolution, 2.8mm lens, Smart IR 30m, Ultra 265, built-in microphone, ONVIF and PoE makes this Uniarch camera suitable for a range of professional IP video surveillance systems.
