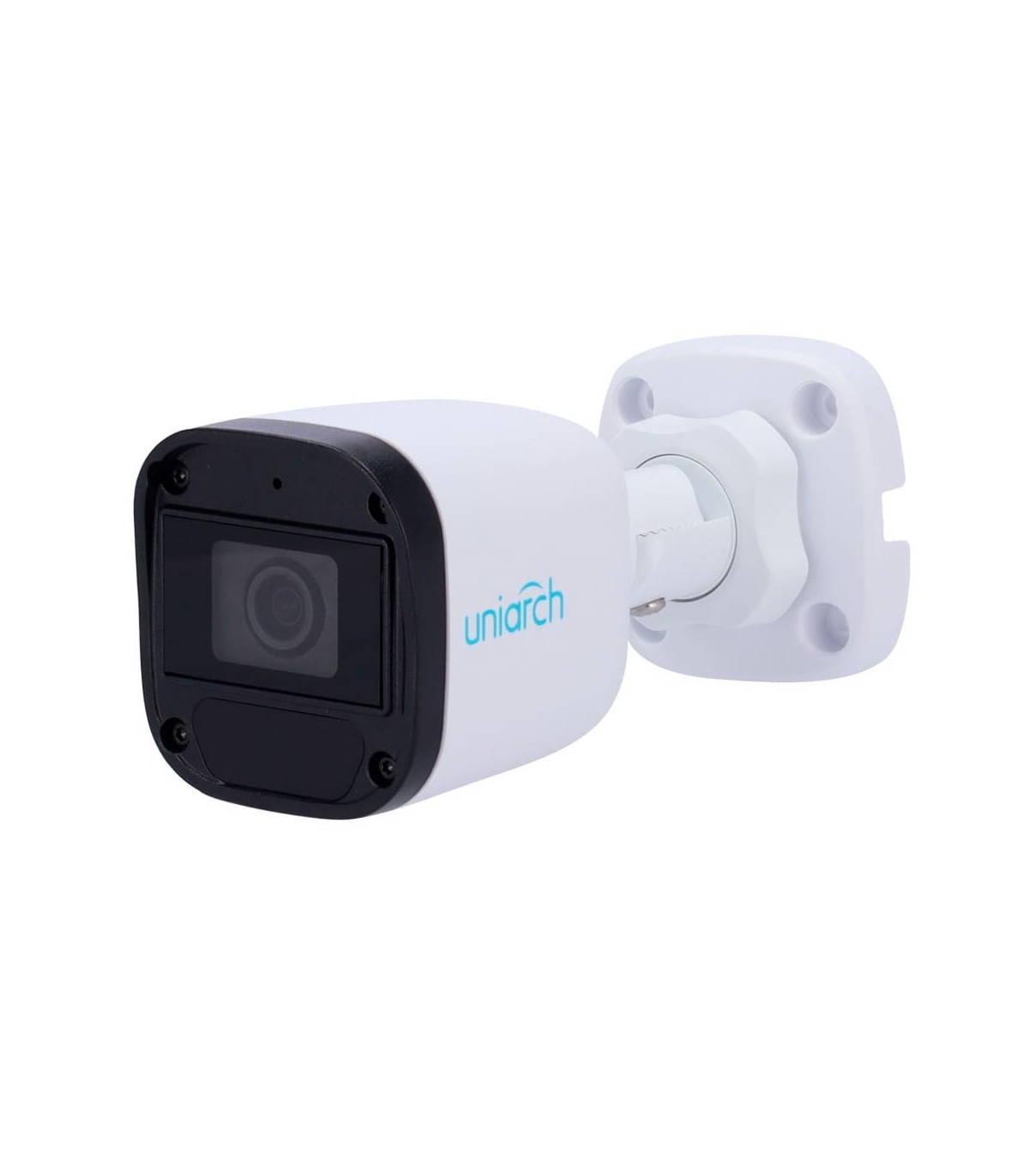

IPC-B122-APF40-ECO - Uniarch 2MP 4mm Bullet IP Camera

IPC-B122-APF40-ECO - Uniarch 2MP 4mm Bullet IP Camera

The IPC-B122-APF40-ECO is a Uniarch Bullet IP camera designed for professional video surveillance systems. Equipped with a 1/2.9" Progressive Scan CMOS sensor, it provides a maximum resolution of 2MP Full HD (1920×1080). Its fixed 4mm lens makes this model suitable for monitoring a variety of indoor and outdoor areas.

The camera combines infrared illumination with a range of up to 30 m, Smart IR and multiple image processing functions. It also features a built-in microphone, Ultra 265 compression and Ethernet connectivity. PoE support helps simplify installation in compatible network infrastructures.

2MP Full HD resolution and fixed 4mm lens

The Progressive Scan CMOS sensor allows the camera to operate at a maximum resolution of 1920×1080. The 2MP Full HD resolution provides images suitable for everyday monitoring in IP video surveillance systems. The fixed 4mm lens completes the optical configuration of this model.

The main stream supports 1080P (1920×1080) at up to 25fps and 720P (1280×720) at up to 25fps. A secondary stream is also available, allowing video transmission to be adapted to the requirements of the network and the recording or viewing devices used in the installation.

IPC-B122-APF40-ECO with Smart IR and IR up to 30m

The IPC-B122-APF40-ECO features infrared illumination with a range of up to 30 m, allowing video surveillance to continue in low-light conditions or at night. With IR illumination active, the camera can operate in 0 Lux conditions.

Smart IR technology helps manage the infrared illumination of the monitored scene. The camera also features a mechanical ICR filter for Day/Night operation. DWDR, AGC and 2D/3D DNR digital noise reduction contribute to improved image quality under different lighting conditions.

Ultra 265, built-in microphone and ONVIF compatibility

The camera supports Ultra 265, H.265 and H.264 video compression technologies. These technologies help optimise bandwidth usage and the resources required for recording. Image functions such as ROI and privacy mask are also available, providing additional configuration options for IP video surveillance systems.

The built-in microphone allows audio to be captured together with video without requiring an external microphone. Network connectivity is provided through an RJ45 10/100 BaseT Ethernet interface. ONVIF compatibility facilitates integration with compatible video surveillance devices and platforms.

PoE, 12V DC power and IP67 protection

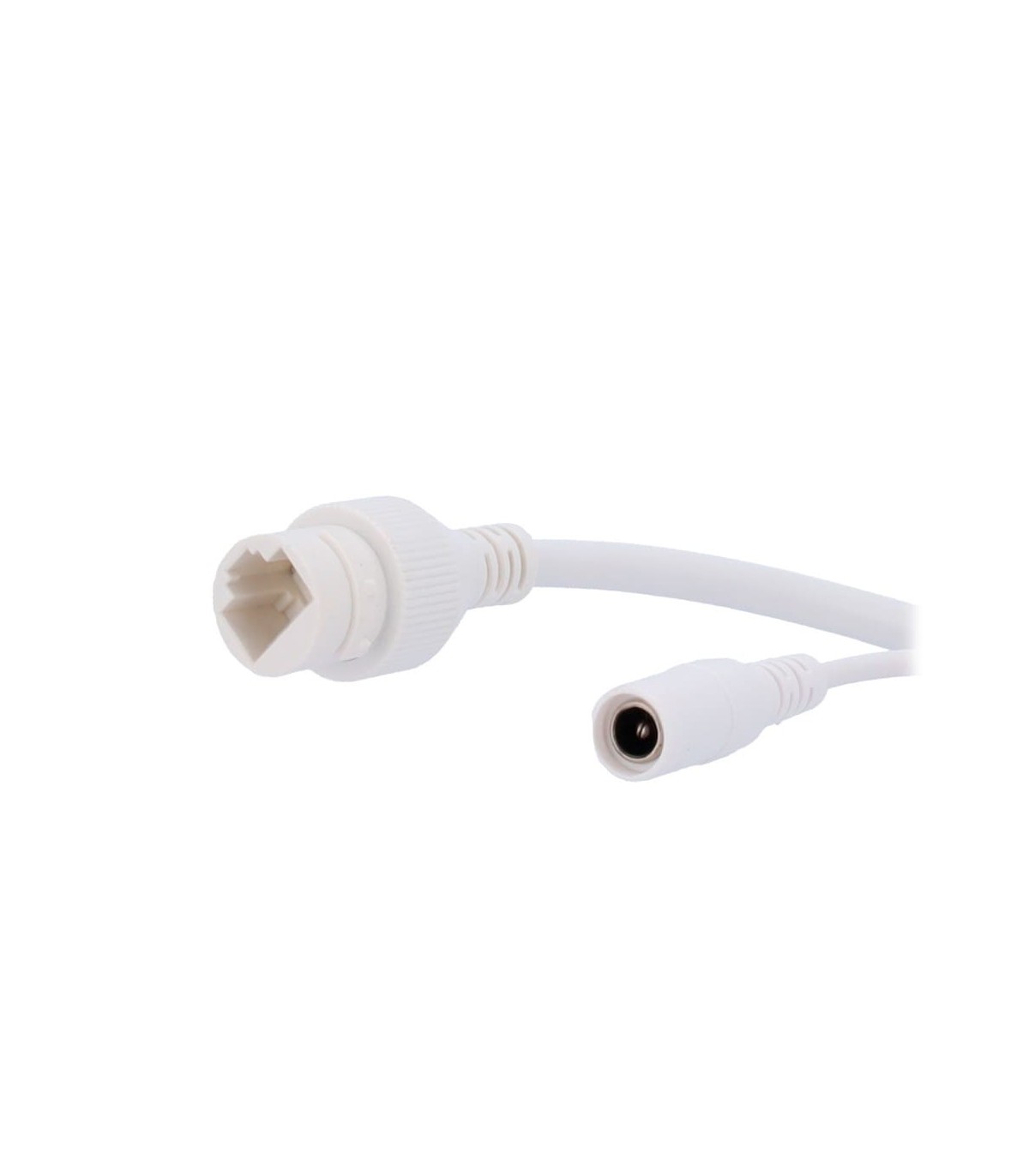

The camera can be powered via 12V DC or PoE IEEE 802.3af. With PoE, network data and electrical power can use the same Ethernet cable, reducing the number of connections required during installation. Maximum specified power consumption is 3.5W.

The IP67 protection rating allows the camera to be installed in indoor or outdoor environments. Its operating temperature ranges from -30°C to 60°C. The combination of 2MP Full HD resolution, 4mm lens, IR 30m, Smart IR, built-in microphone, ONVIF and PoE makes this Uniarch camera suitable for a wide range of professional video surveillance projects.
