IPC-B124-APF28K - Uniarch 4MP 2.8mm Bullet IP Camera

IPC-B124-APF28K - Uniarch 4MP 2.8mm Bullet IP Camera

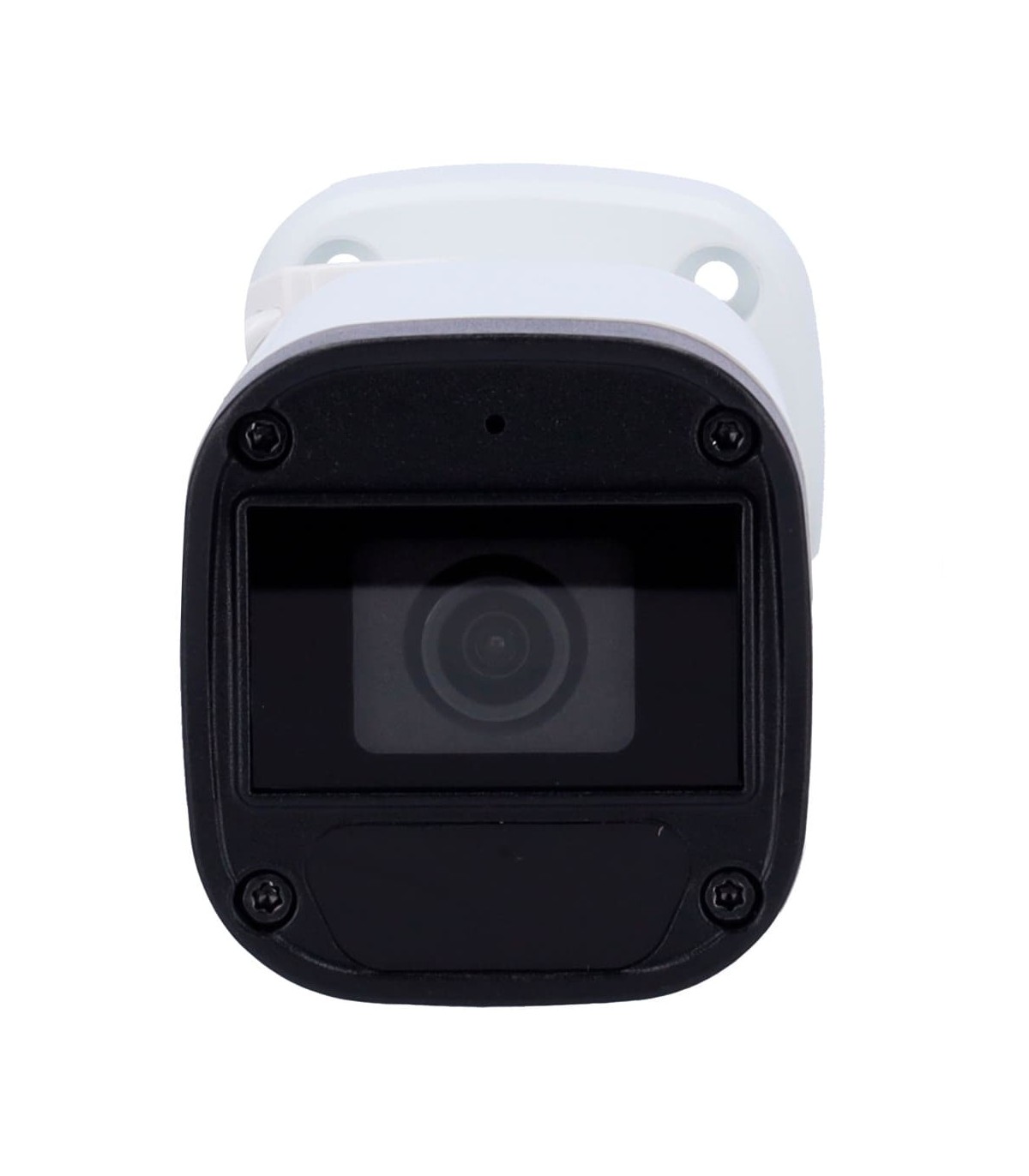

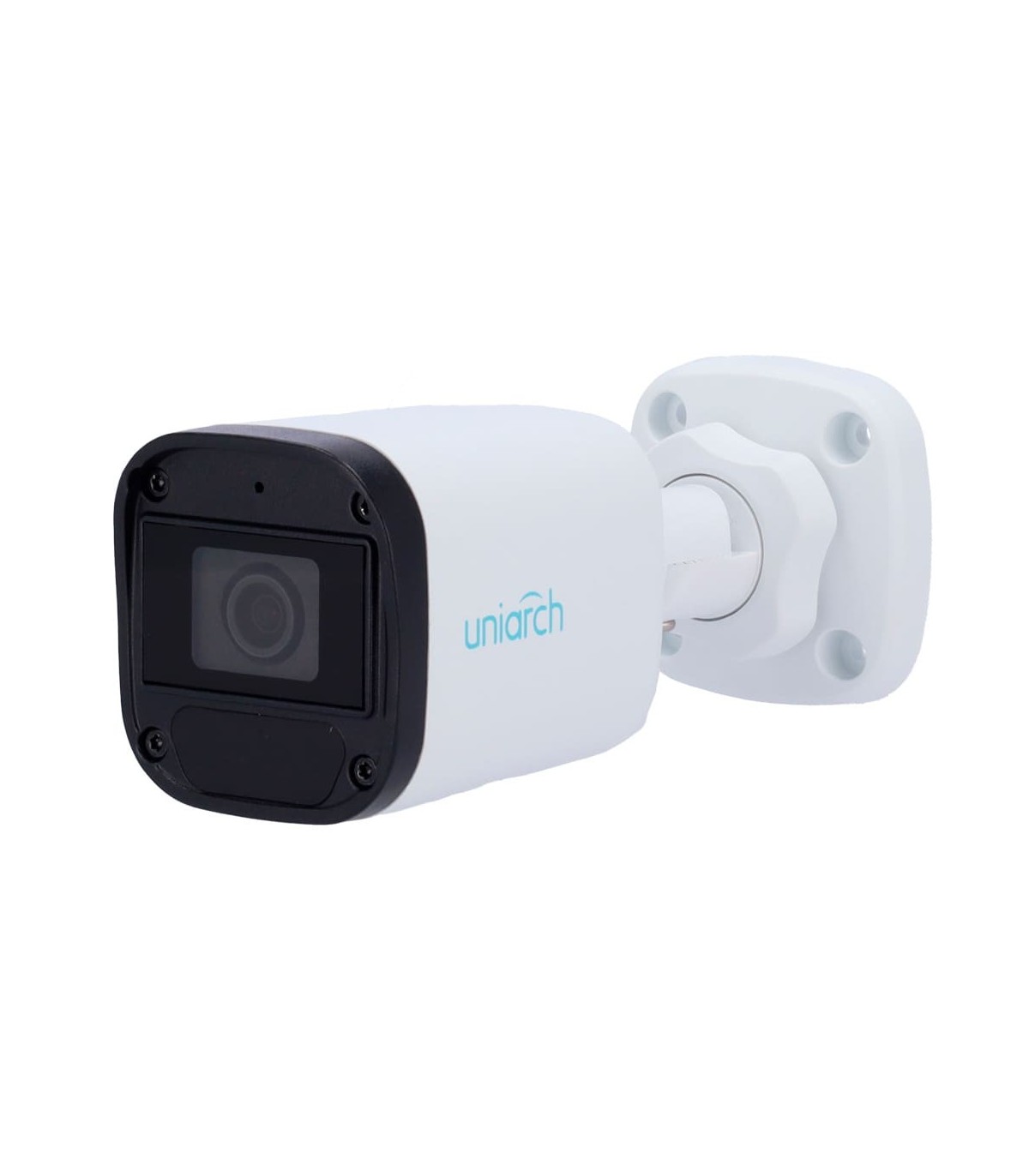

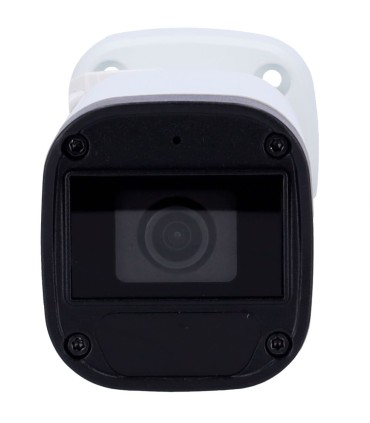

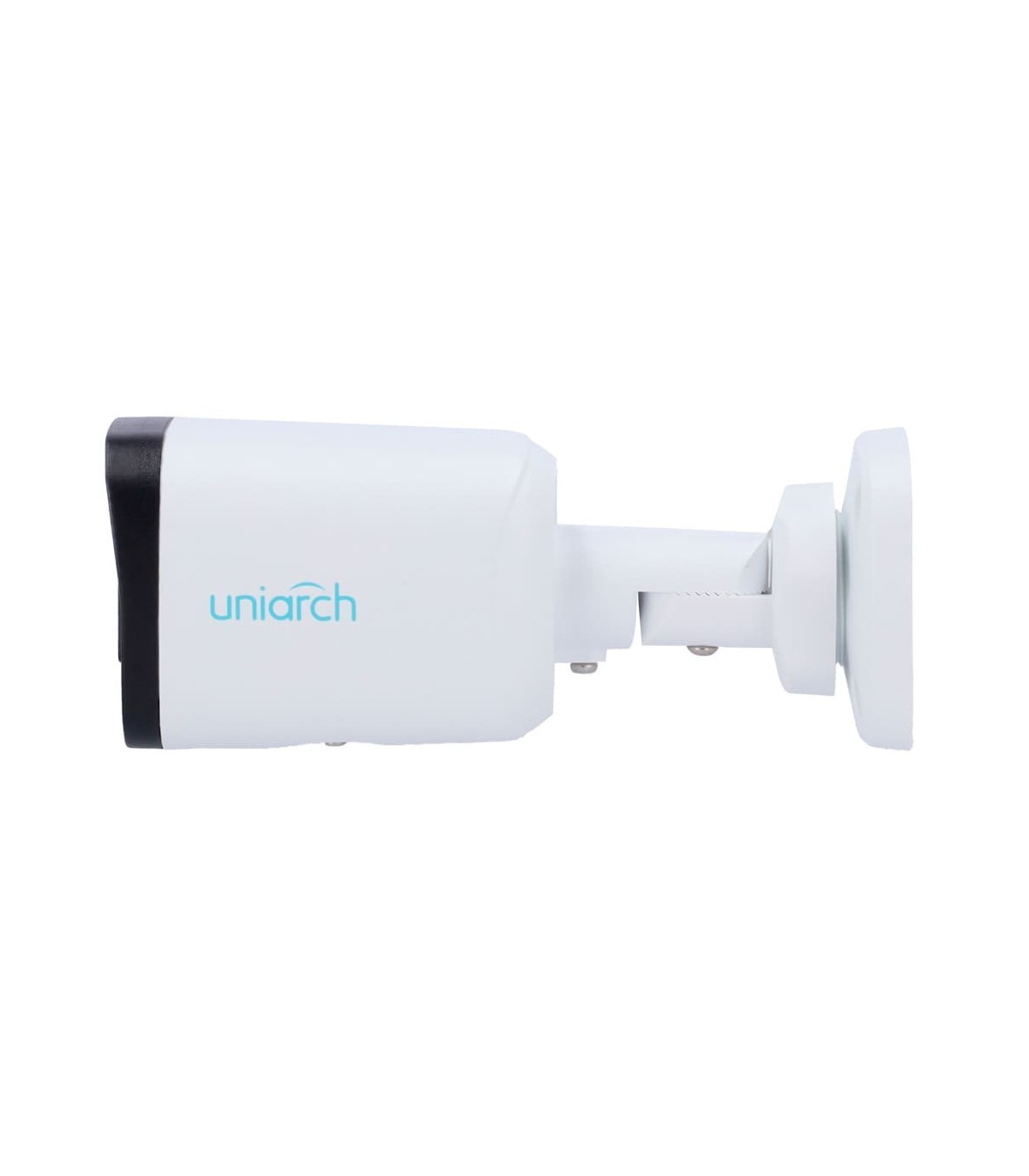

The IPC-B124-APF28K is a 4MP Uniarch Bullet IP camera designed for professional video surveillance systems. Equipped with a 1/3" CMOS sensor, it provides a maximum resolution of 2560×1440, delivering detailed images for security monitoring. Its fixed 2.8mm F2.1 lens provides a wide field of view, making the camera suitable for monitoring a variety of indoor and outdoor areas.

The camera combines Smart IR infrared illumination with DWDR image processing and 2D/3D DNR digital noise reduction. It also features a built-in microphone, MicroSD storage and multiple video compression technologies. Power can be supplied using 12V DC or directly through the network via PoE.

4MP resolution and fixed 2.8mm lens

The 4MP CMOS sensor provides a maximum resolution of 2560×1440. The camera supports 4MP video at up to 20fps and 1080P video at up to 30fps. Its fixed 2.8mm lens features an F2.1 aperture and provides a field of view of 97° horizontally, 52.2° vertically and 107.5° diagonally.

This configuration provides wide coverage of the monitored scene. It is suitable for entrances, corridors, commercial areas, warehouses and other video surveillance applications. Minimum illumination is 0.02 Lux with F2.1 and AGC enabled. When there is insufficient ambient light, the camera uses its infrared illumination.

IPC-B124-APF28K with Smart IR up to 30m

The IPC-B124-APF28K features Smart IR with a range of up to 30 m, enabling video surveillance at night or in areas with insufficient lighting. The IR-cut filter with automatic switching allows the camera to adapt its operation to daytime and nighttime lighting conditions.

For improved image quality, the camera integrates DWDR and 2D/3D DNR digital noise reduction. Smart IR helps control infrared illumination according to the monitored scene, contributing to more balanced images during night surveillance.

Video compression, audio and MicroSD storage

The camera supports Ultra 265, H.265, H.264 and MJPEG video compression technologies. These technologies help optimise bandwidth usage and storage requirements. ROI and privacy mask functions also provide additional configuration options for professional IP video surveillance systems.

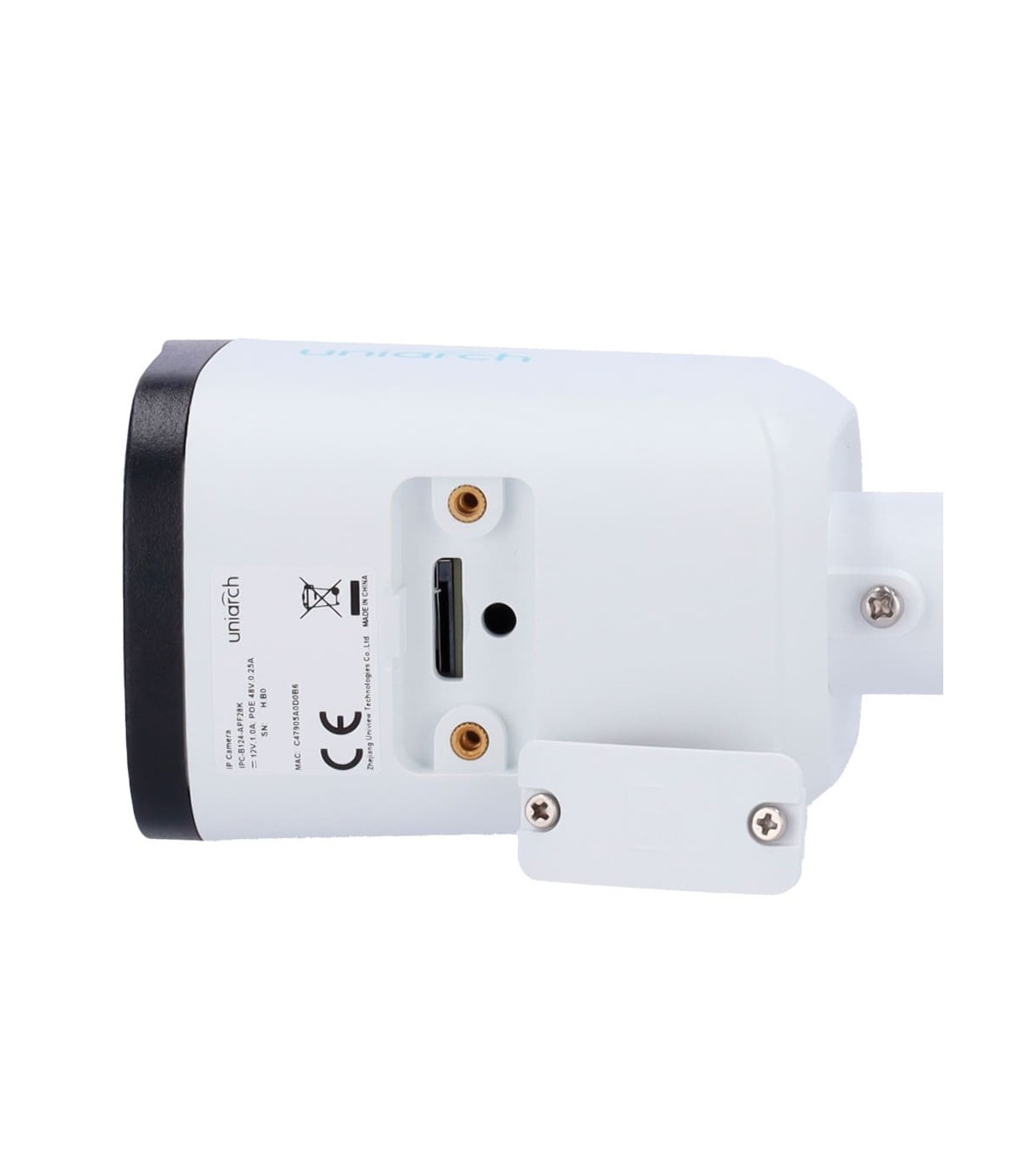

The built-in microphone allows audio to be captured together with video. For local recording, the camera supports MicroSD cards up to 512GB. Network connectivity is provided through an RJ45 10/100 Mbps Ethernet interface. ONVIF Profile S, Profile G and Profile T compatibility also facilitates integration with compatible surveillance systems.

PoE, 12V DC power and IP67 protection

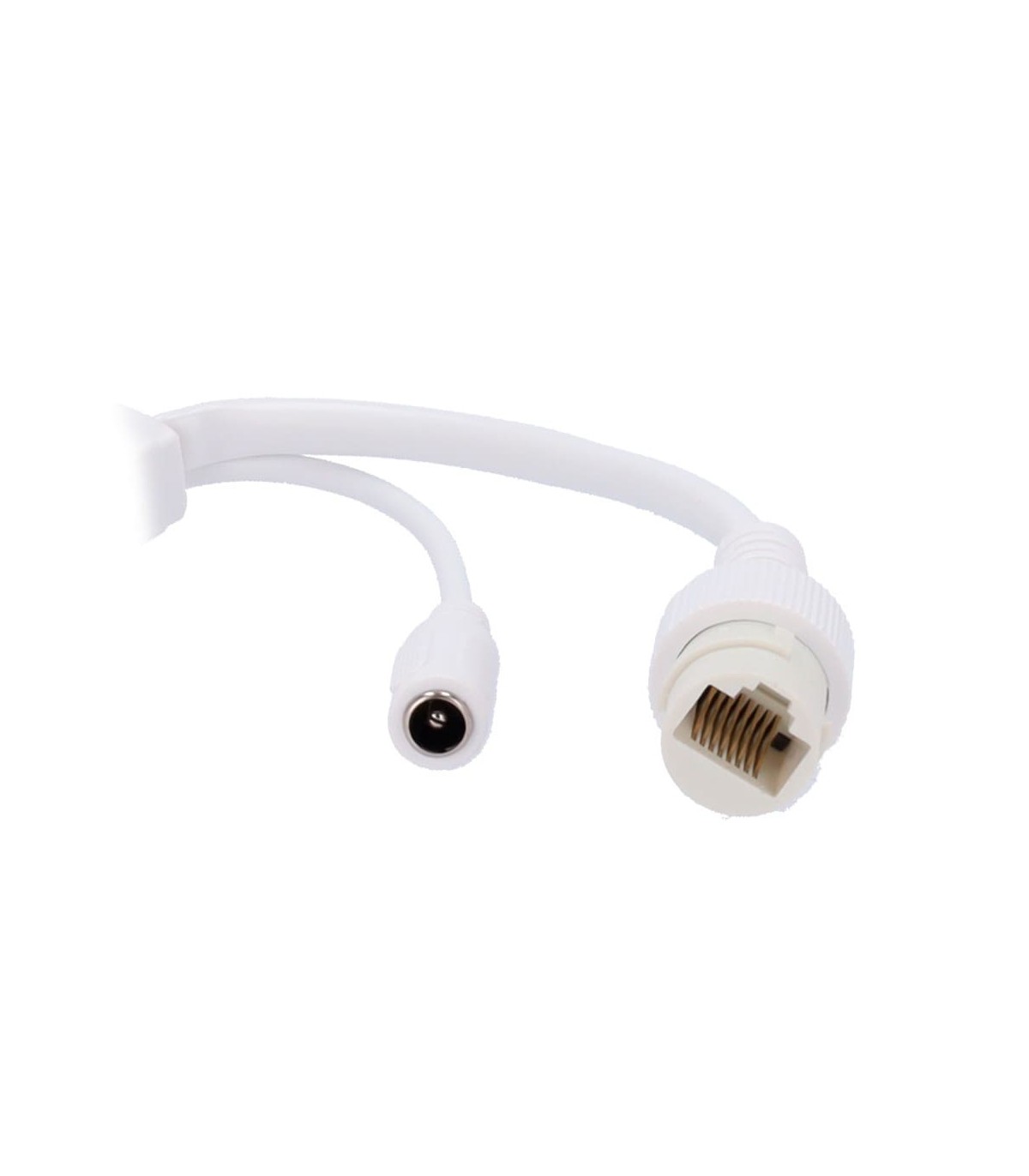

The camera can be powered via 12V DC ±25% or PoE IEEE 802.3af. PoE technology allows electrical power and network data to be transmitted through the same Ethernet cable, simplifying installation in compatible network infrastructures. Maximum specified power consumption is 3.4W.

The IP67 protection rating allows the camera to be used in both indoor and outdoor environments. The combination of 4MP resolution, 2.8mm lens, Smart IR 30m, MicroSD storage, built-in microphone, ONVIF and PoE makes this Uniarch solution suitable for a wide range of professional video surveillance projects.
