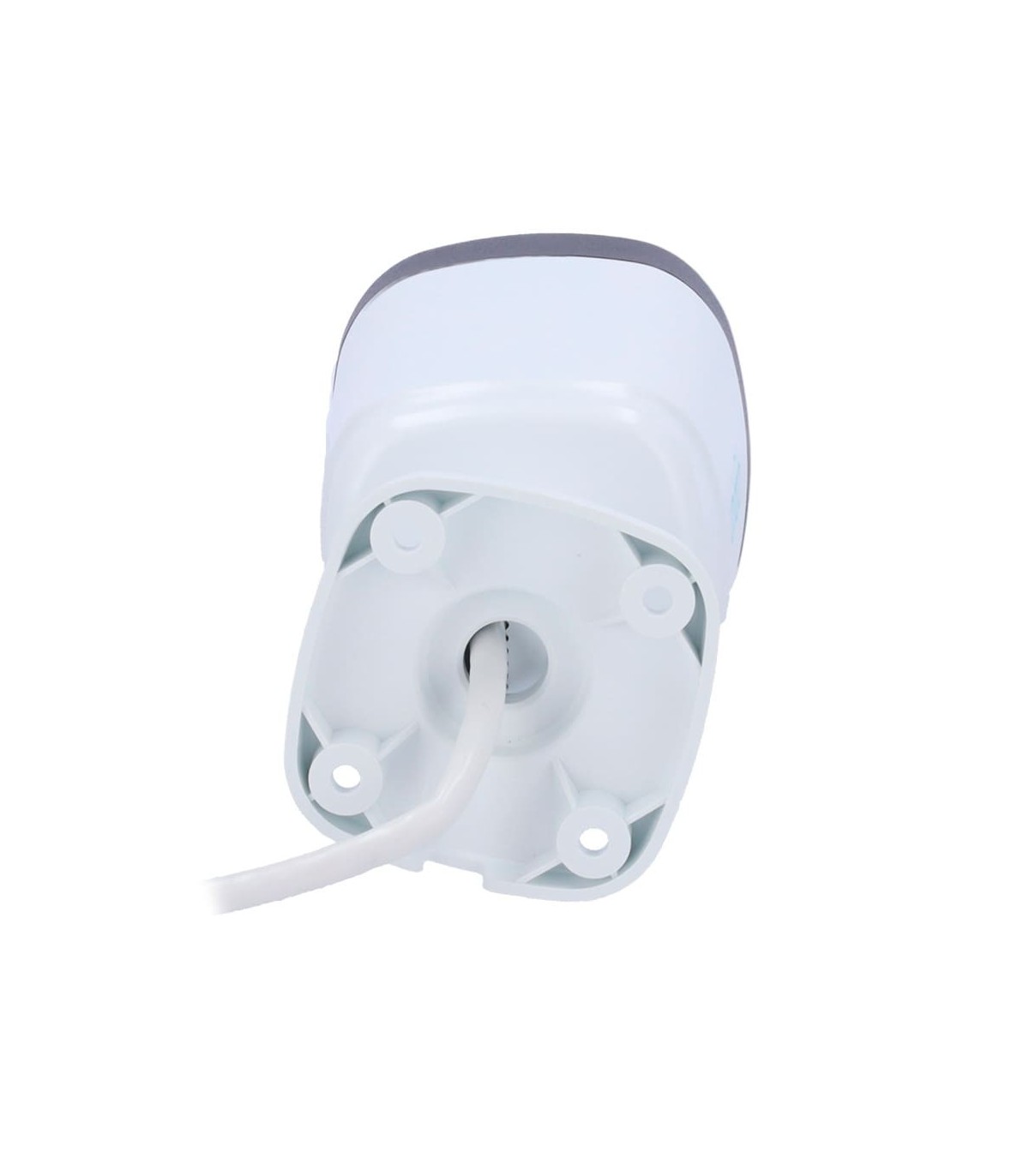

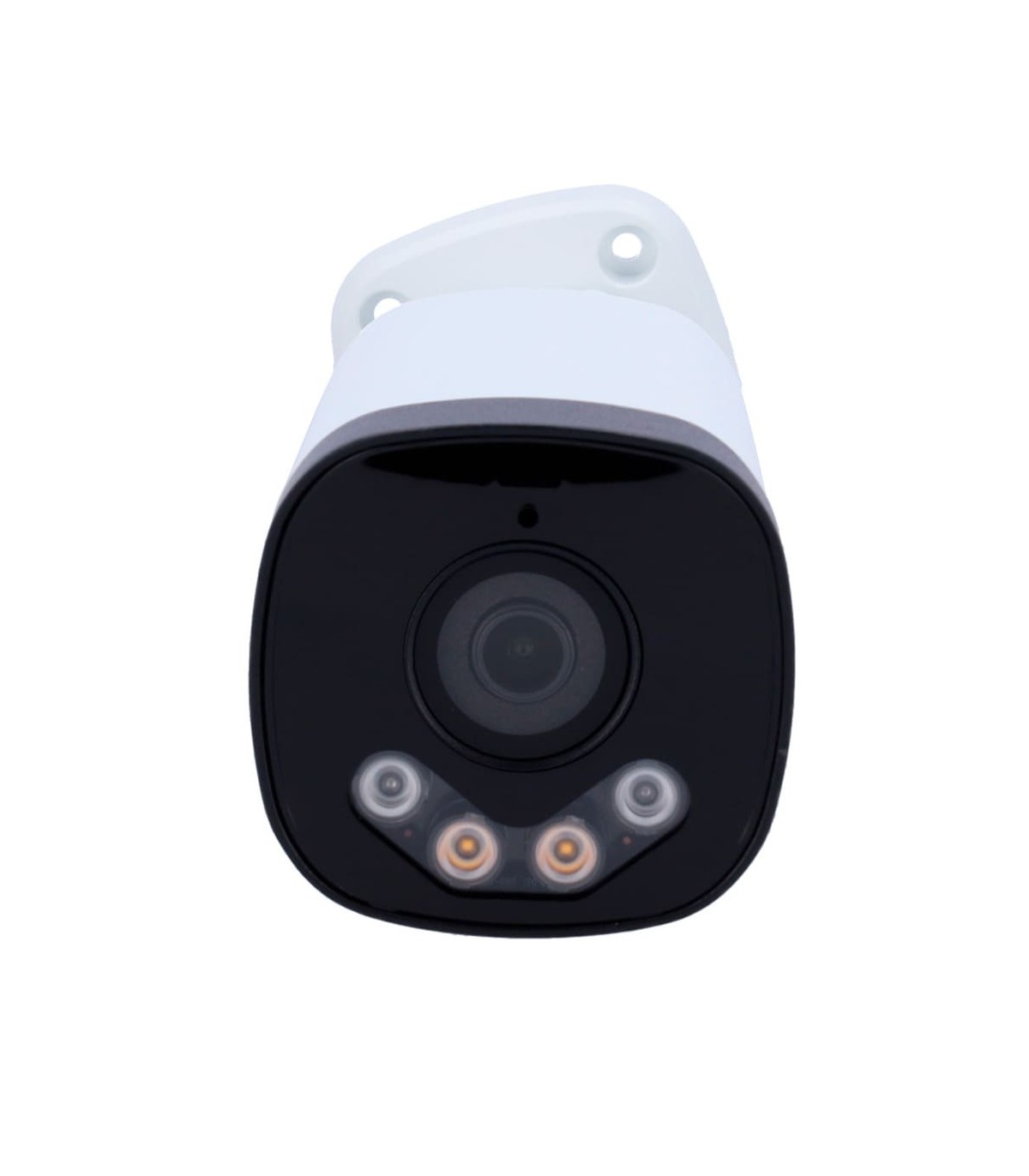

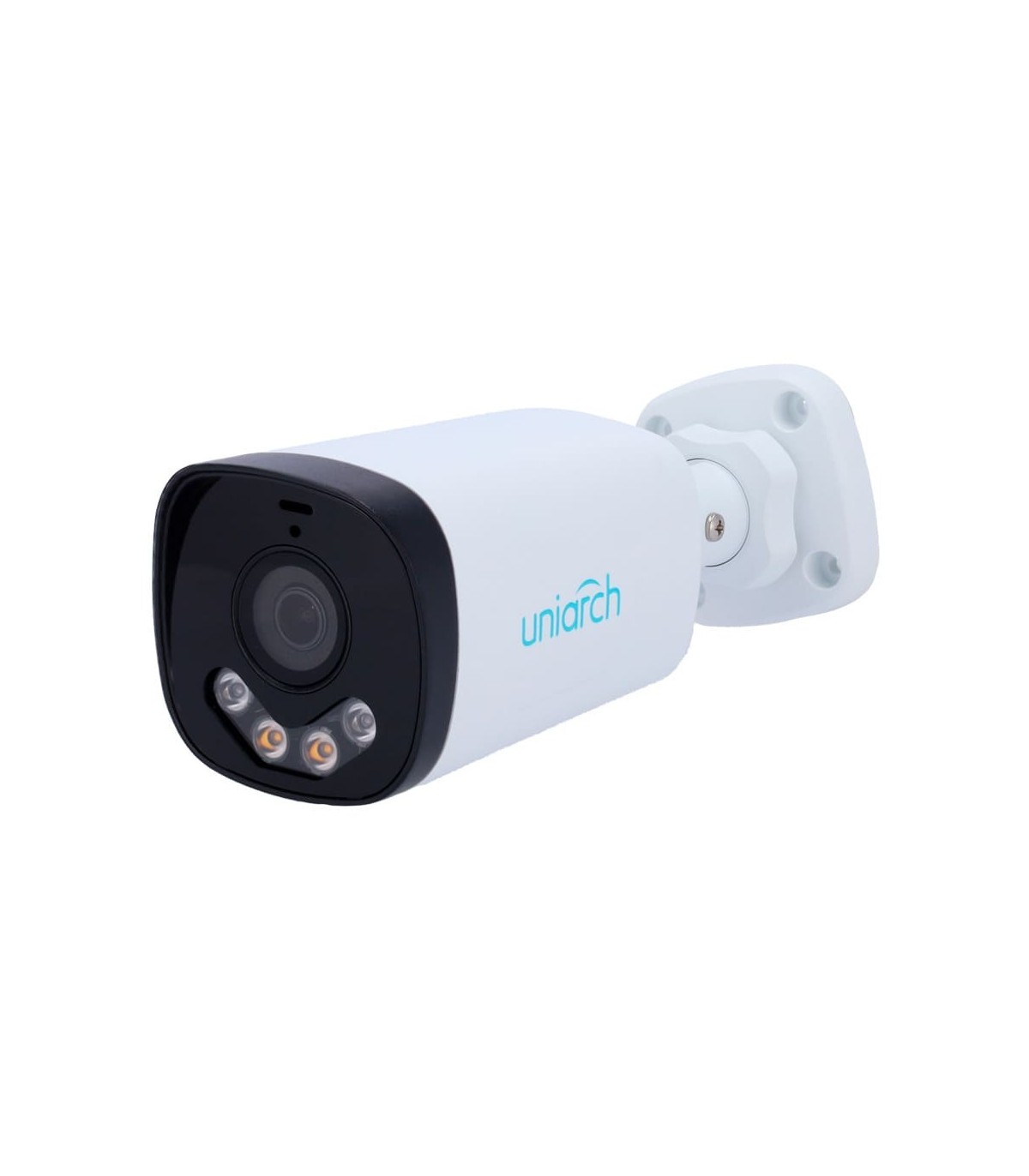

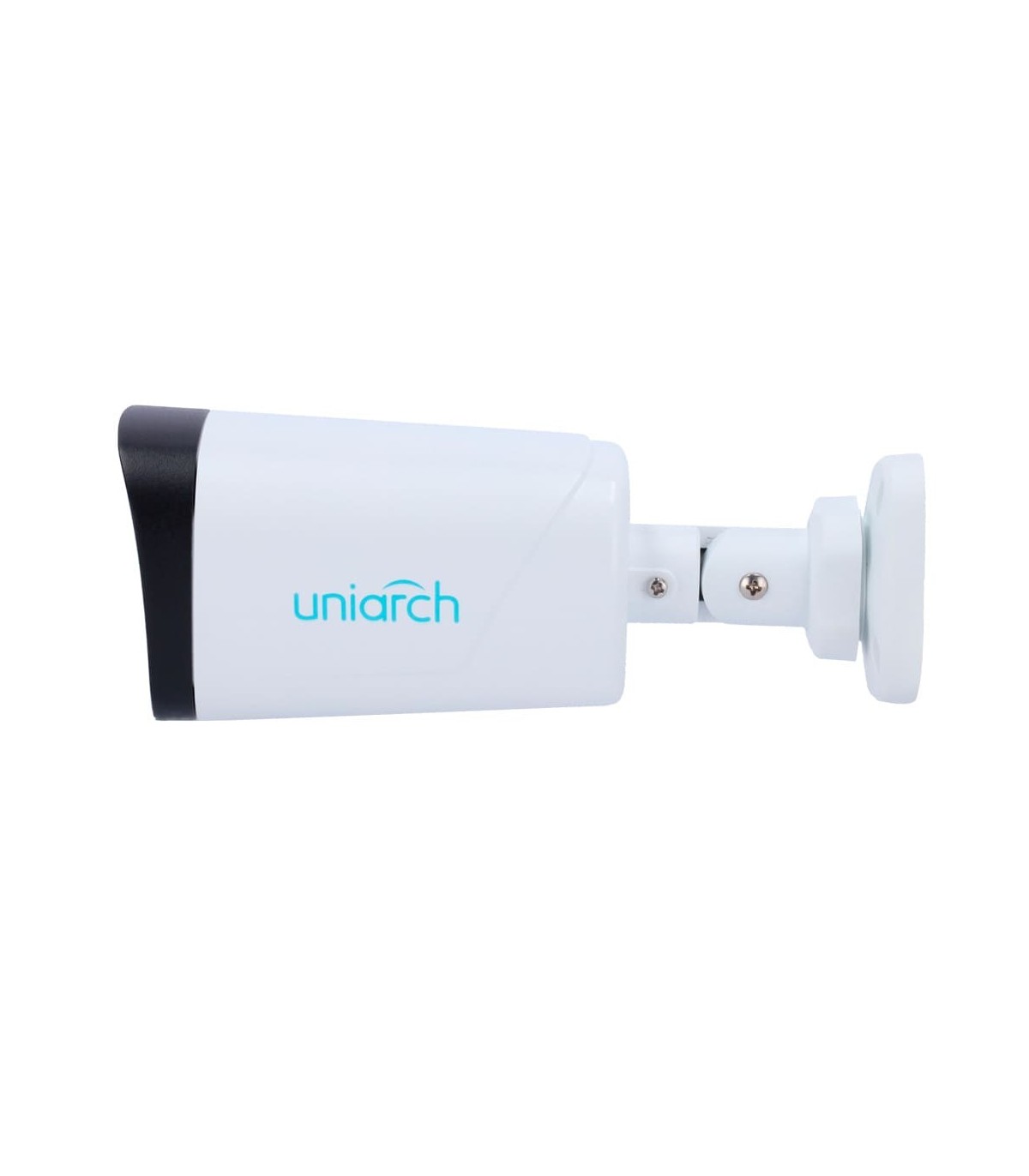

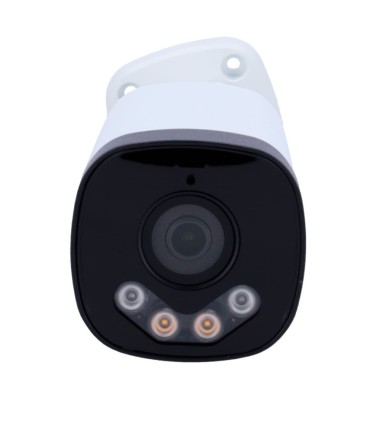

IPC-B233-APF40W - Uniarch 3MP 4mm Dual Light Bullet IP Camera

IPC-B233-APF40W - Uniarch 3MP 4mm Dual Light Bullet IP Camera

The IPC-B233-APF40W is a 3MP Uniarch Bullet IP camera designed for professional video surveillance systems. Equipped with a 1/3" CMOS sensor, it delivers a maximum resolution of 2304×1296 at up to 25 frames per second. Its fixed 4mm F2.0 lens provides a suitable viewing angle for monitoring different indoor and outdoor areas.

The combination of 3MP resolution, Dual Light illumination and intelligent functions makes the camera suitable for installations requiring continuous monitoring during both day and night. It also features a built-in microphone, efficient video compression technologies, PoE power and IP67 protection.

Fixed 4mm lens and 3MP resolution

The fixed 4mm lens operates with a maximum aperture of F2.0. The CMOS sensor captures images at 3MP resolution, reaching 2304×1296 at up to 25fps. The specified minimum illumination is 0.02 Lux in colour mode, while the integrated illumination system allows surveillance to continue under low-light conditions.

The camera also features DWDR to improve image visibility in scenes with differences in lighting. 2D/3D DNR technologies help reduce digital image noise and provide cleaner images under different environmental and lighting conditions.

IPC-B233-APF40W with Dual Light

The IPC-B233-APF40W uses Dual Light technology, combining infrared illumination with warm light. The Smart IR reaches up to 50 m, enabling surveillance in areas with little or no ambient light. The warm light provides a range of up to 15 m, adding visible illumination when required.

This combination allows the illumination to adapt to the conditions of the monitored area. Smart IR provides infrared illumination for night surveillance, while the warm light offers a complementary visible light source.

Intelligent detection and video compression

Intelligent functions include human body detection, helping to identify relevant events more effectively. The camera also supports line crossing and intrusion detection, making these functions suitable for monitoring defined zones and access areas.

To optimise video transmission and recording storage, the camera supports Ultra 265, H.265, H.264 and MJPEG. Its built-in microphone captures audio together with video, providing additional information for events recorded by the video surveillance system.

PoE, ONVIF and IP67 protection

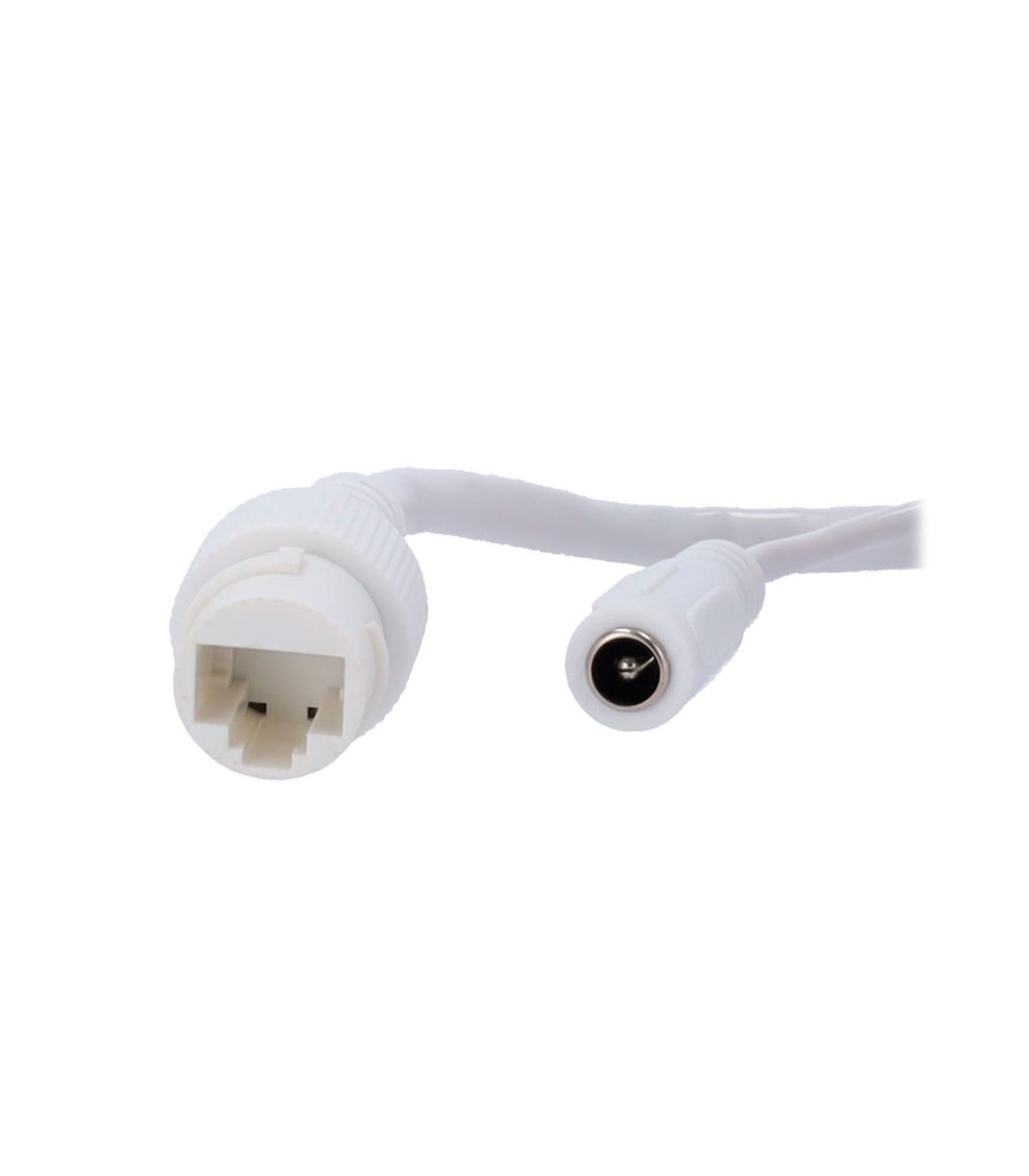

Network connectivity is provided through an RJ45 10/100 Mbps Ethernet interface. ONVIF compatibility facilitates integration with compatible video surveillance systems. For power, the camera supports 12V DC or PoE IEEE 802.3af. With PoE, network data and power can be transmitted through the same Ethernet cable.

IP67 protection allows the camera to be installed in properly planned indoor or outdoor environments. The combination of 3MP resolution, 4mm lens, Dual Light, Smart IR up to 50 m, intelligent detection, built-in audio, PoE and ONVIF makes this Uniarch solution suitable for a wide range of professional video surveillance projects.
