IPC-T314-APKZ - Uniarch 4MP Turret IP Camera 2.8-12mm

IPC-T314-APKZ - Uniarch 4MP Turret IP Camera 2.8-12mm

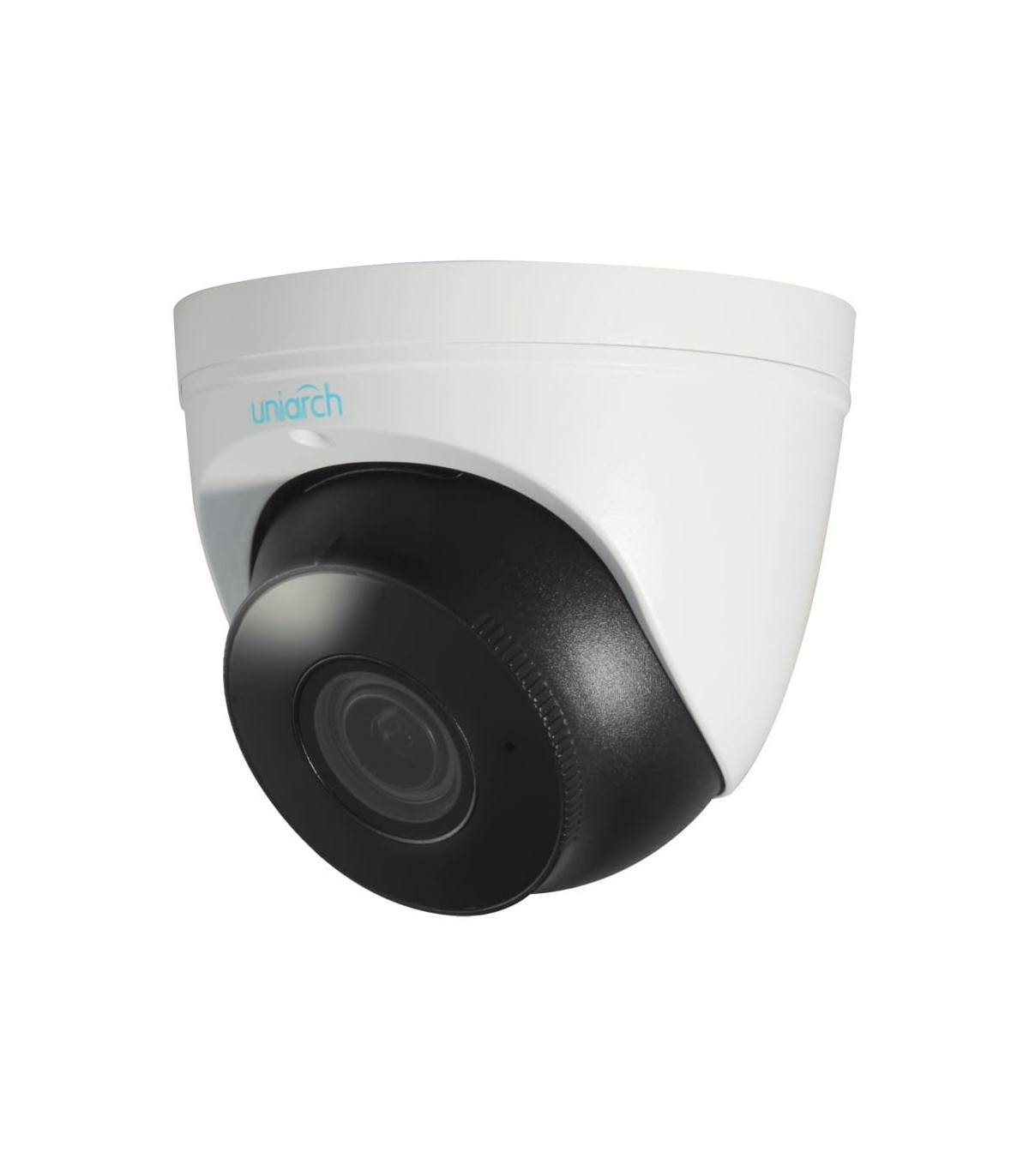

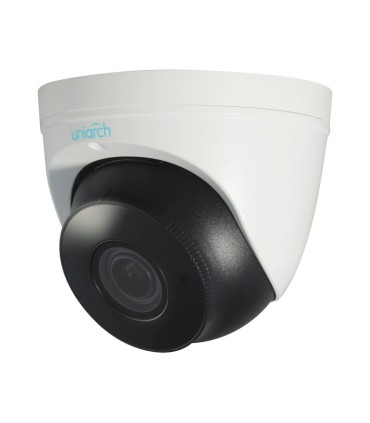

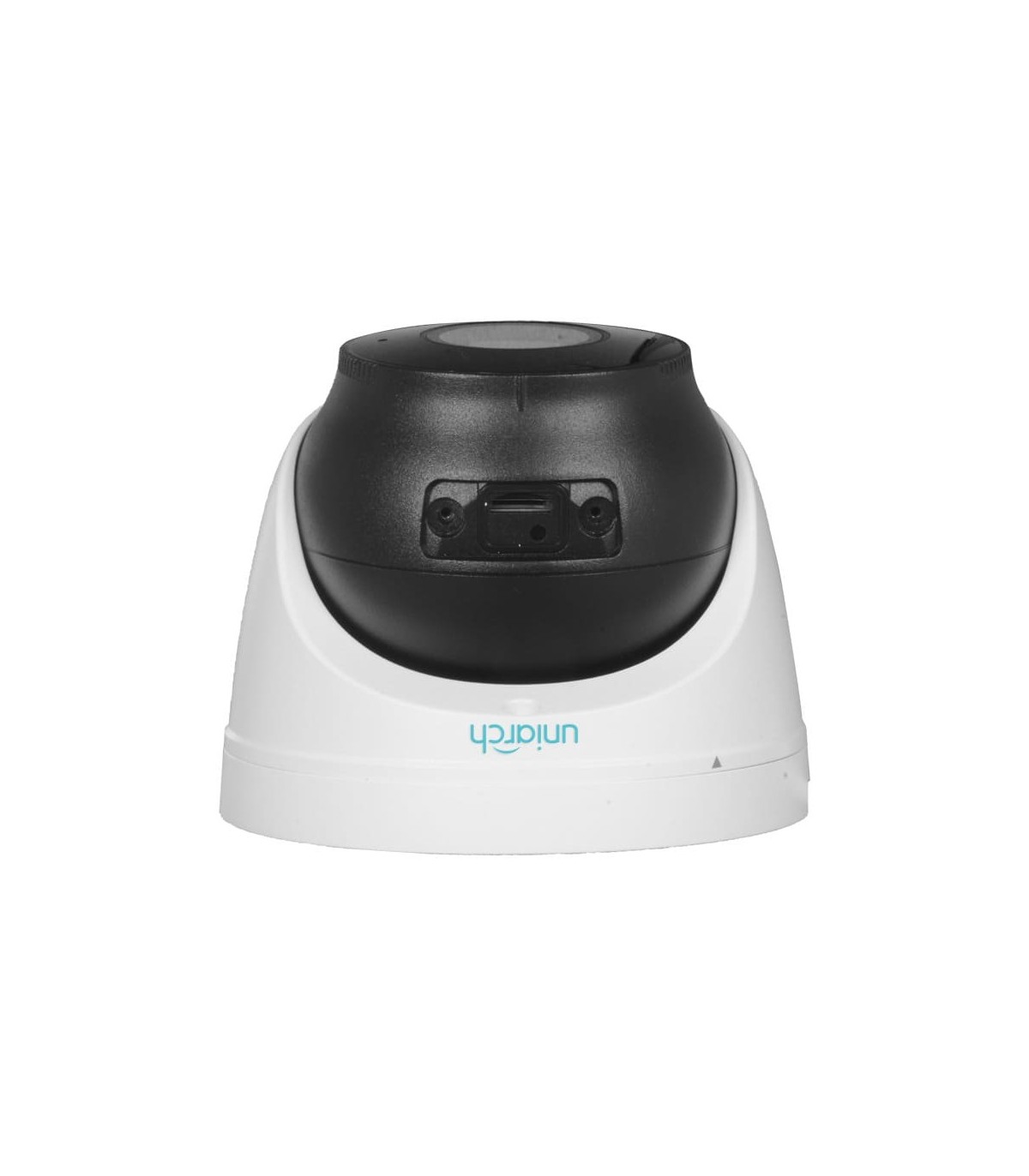

The IPC-T314-APKZ is a 4MP Uniarch Turret IP camera designed for professional video surveillance systems. It combines high resolution, a motorized varifocal lens, infrared illumination and multiple image processing functions. Its adjustable configuration makes it possible to adapt the field of view to the requirements of each installation.

Equipped with a 1/2.7" CMOS sensor, the camera provides a maximum resolution of 4MP (2560 × 1440) at up to 25 fps. This resolution provides detailed images for different security environments. The camera also features 120 dB WDR, Smart IR and digital noise reduction technologies to improve image quality under challenging lighting conditions.

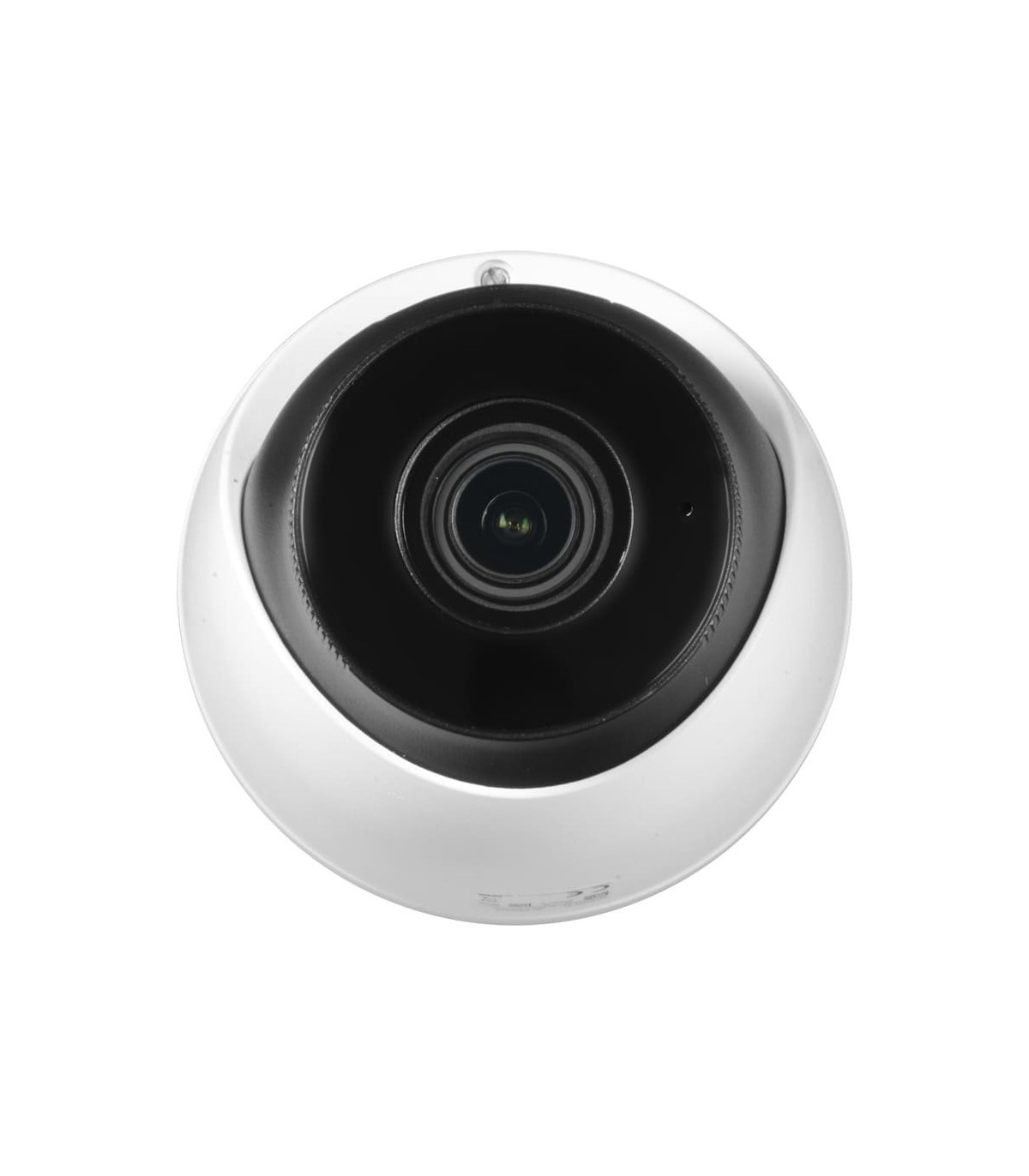

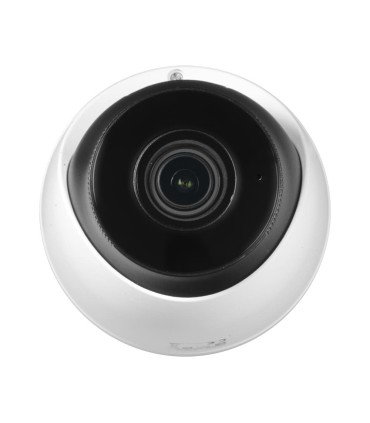

Motorized 2.8-12mm varifocal lens

The 2.8-12mm lens allows the field of view to be adjusted according to the requirements of the installation. Its motorized system simplifies focal length adjustment and includes autofocus. At the widest setting, the camera provides broad scene coverage. Increasing the focal length produces a narrower field of view for monitoring specific areas in greater detail.

The horizontal field of view ranges from 102.79° to 30.86°. This flexibility makes the camera suitable for different monitoring distances and framing requirements. DORI values also vary according to the selected focal length, providing a technical reference for detection, observation, recognition and identification capabilities.

IPC-T314-APKZ with Smart IR up to 50 m

The IPC-T314-APKZ features Smart IR up to 50 m, allowing operation in environments with little or no ambient lighting. Smart IR manages the infrared illumination to provide a more balanced image during night video surveillance.

The specified minimum illumination is 0.005 Lux in colour mode. With infrared illumination active, the camera can operate at 0 Lux. The ICR filter provides automatic day and night switching, adapting image capture to changing lighting conditions.

120 dB WDR and image processing

120 dB WDR helps preserve visual information in scenes containing both bright and dark areas. This feature is particularly useful at entrances, access points and other locations where significant differences in lighting may occur.

The camera also features 2D/3D DNR digital noise reduction. Additional image functions include ROI, Motion Detection and Privacy Mask. Ultra 265, H.265 and H.264 compression technologies help adapt video transmission and bandwidth usage to the requirements of the video surveillance system.

Network, PoE and IP67 protection

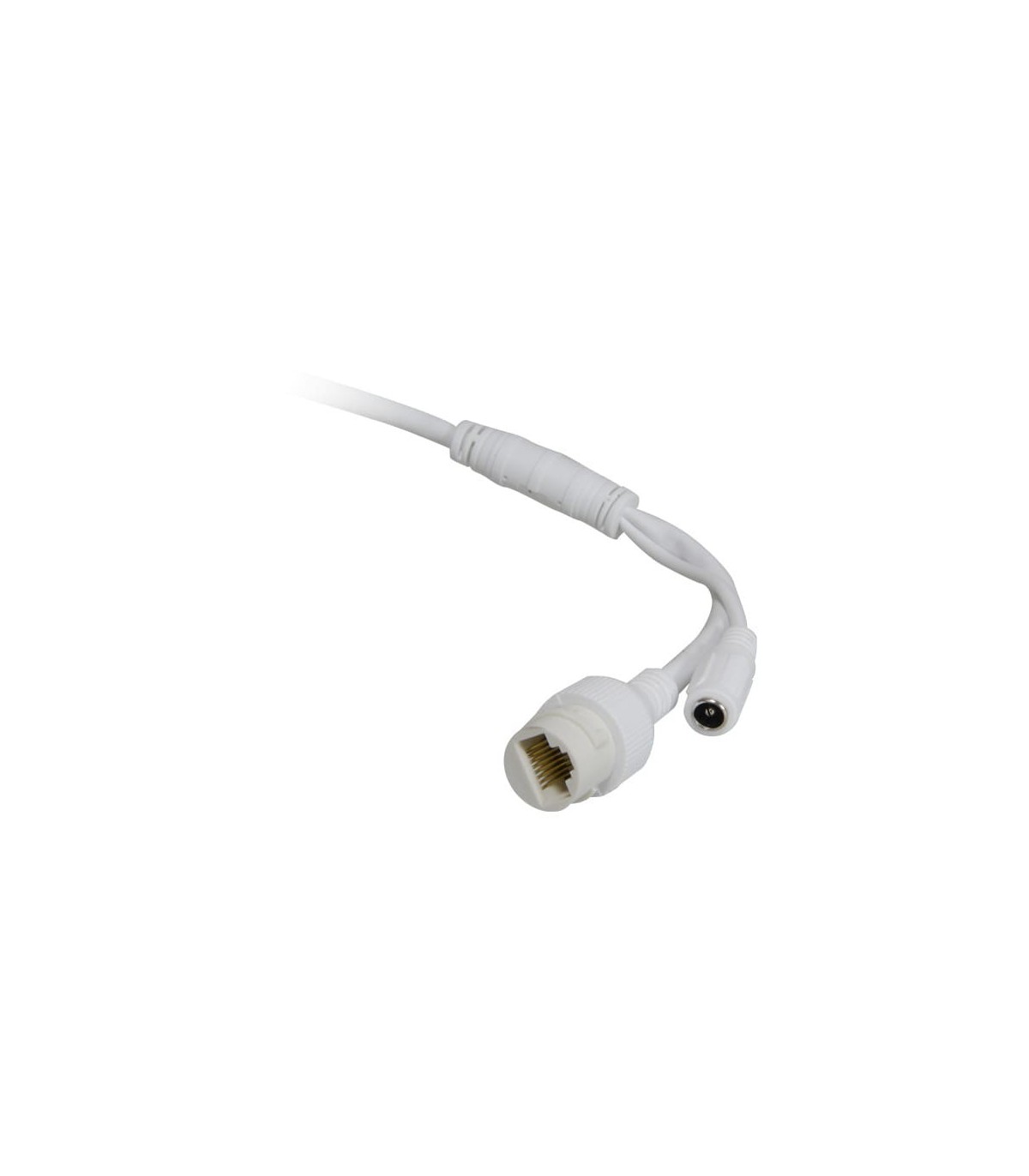

Network connectivity is provided through an RJ45 10/100 Mbps Ethernet interface. ONVIF compatibility facilitates integration with compatible video surveillance systems. Power can be supplied using 12V DC or IEEE 802.3af PoE. In a suitable PoE installation, network data and power can therefore be transmitted through the same Ethernet cable.

The IP67 protection rating makes the camera suitable for outdoor installations exposed to demanding environmental conditions. The combination of 4MP resolution, a motorized 2.8-12mm lens, Smart IR up to 50 m, 120 dB WDR and PoE makes this Uniarch solution suitable for professional installations requiring flexible framing and reliable day and night operation.
