IPC-B132-AF28-ECO - Uniarch 2MP Bullet IP Camera 2.8mm

IPC-B132-AF28-ECO - Uniarch 2MP Bullet IP Camera 2.8mm

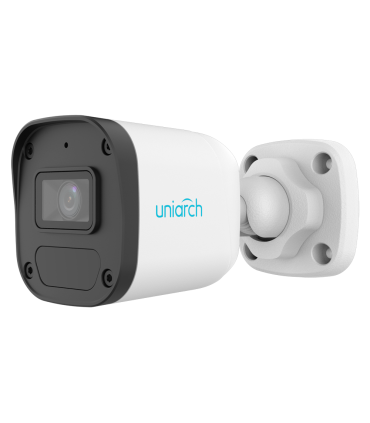

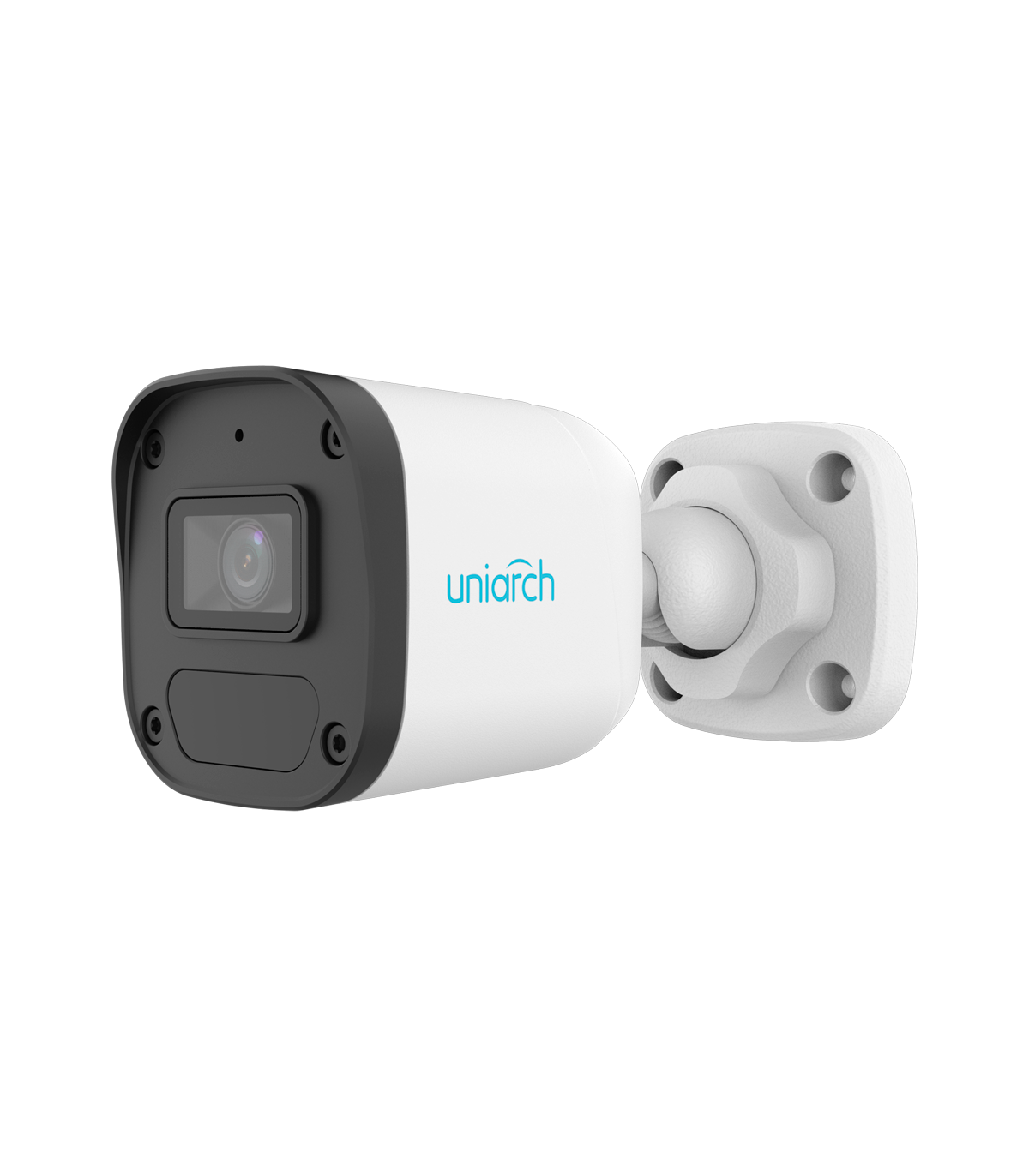

The IPC-B132-AF28-ECO is a 2MP Uniarch Bullet IP camera designed for professional video surveillance systems. It combines Full HD resolution, a fixed 2.8mm lens, Smart IR illumination and human body detection. Its Bullet design and IP67 protection make the camera suitable for different security installations, including outdoor environments.

Equipped with a 1/3.0" CMOS sensor, the camera provides a maximum resolution of 2MP (1920 × 1080). The main stream supports Full HD video at up to 30 fps. This configuration provides smooth video and a suitable level of detail for different IP video surveillance applications.

IPC-B132-AF28-ECO with 2MP resolution and 2.8mm lens

The IPC-B132-AF28-ECO uses a fixed 2.8mm F2.0 lens. This configuration provides a wide field of view for monitoring entrances, façades, passage areas and other locations that require broad video coverage for security applications.

The specified field of view for the 2.8mm lens is approximately 87.8° horizontally, 48.9° vertically and 99° diagonally. The DORI distances are 51.4 m for detection and 20.6 m for observation. Recognition reaches 10.3 m, while identification reaches 5.1 m.

Smart IR up to 30 m and low-light operation

The IPC-B132-AF28-ECO has a minimum illumination of 0.01 Lux in colour mode. When ambient lighting becomes insufficient, the Smart IR system provides infrared illumination with a range of up to 30 m.

The camera also features a mechanical ICR filter for day and night operation. DWDR technology helps balance images with different lighting levels. In addition, 2D/3D DNR digital noise reduction contributes to image optimization under different video surveillance conditions.

IPC-B132-AF28-ECO with human body detection

The IPC-B132-AF28-ECO integrates human body detection. This function adds analysis capabilities to the events captured by the camera and helps focus detection on human targets within the functions supported by the device.

The camera also supports ROI, allowing selected areas of the image to receive greater priority during encoding. For video transmission, the camera supports Ultra 265, H.265 and H.264 compression formats. These technologies help optimize bandwidth usage and storage resources.

Built-in microphone and audio capture

The IPC-B132-AF28-ECO features a built-in microphone for capturing audio together with video surveillance footage. Network connectivity is provided through an RJ45 10/100 Mbps interface, allowing the camera to be integrated into a compatible IP video surveillance infrastructure.

The device does not include internal storage, a built-in speaker or audio and alarm inputs or outputs. Its structure supports 3-axis adjustment, making it easier to correctly position the camera during installation.

IPC-B132-AF28-ECO with PoE and IP67 protection

The IPC-B132-AF28-ECO uses PoE IEEE 802.3af power. Electrical power and data can therefore be transmitted through a compatible network connection. This helps reduce the amount of cabling required during installation. Maximum power consumption is only 2.5W.

The IP67 protection rating makes the camera suitable for outdoor installations exposed to dust and weather conditions. With 2MP resolution, a 2.8mm lens, Smart IR up to 30 m, human body detection, a built-in microphone, PoE and IP67 protection, the IPC-B132-AF28-ECO provides essential features for different professional IP video surveillance projects.
